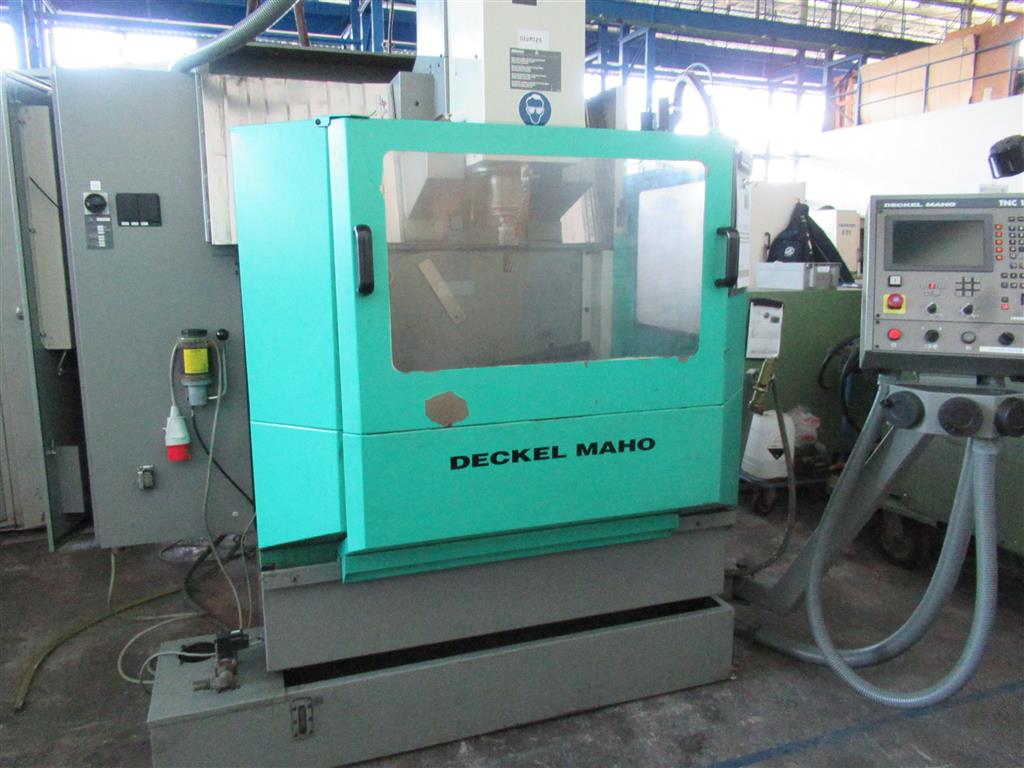

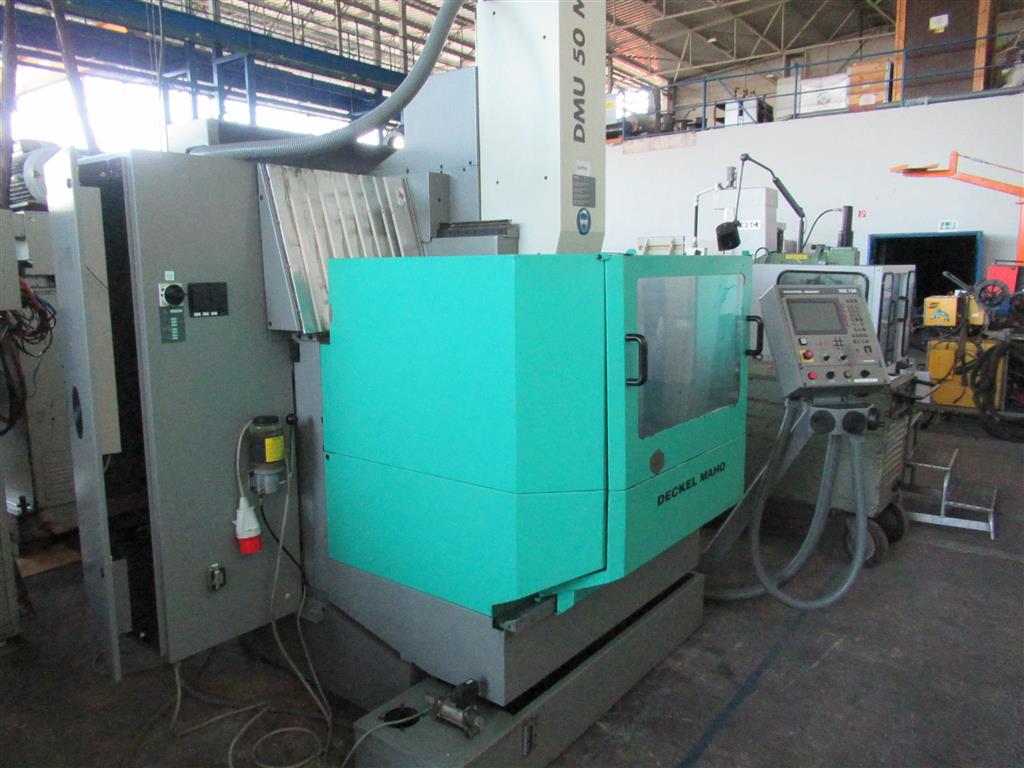

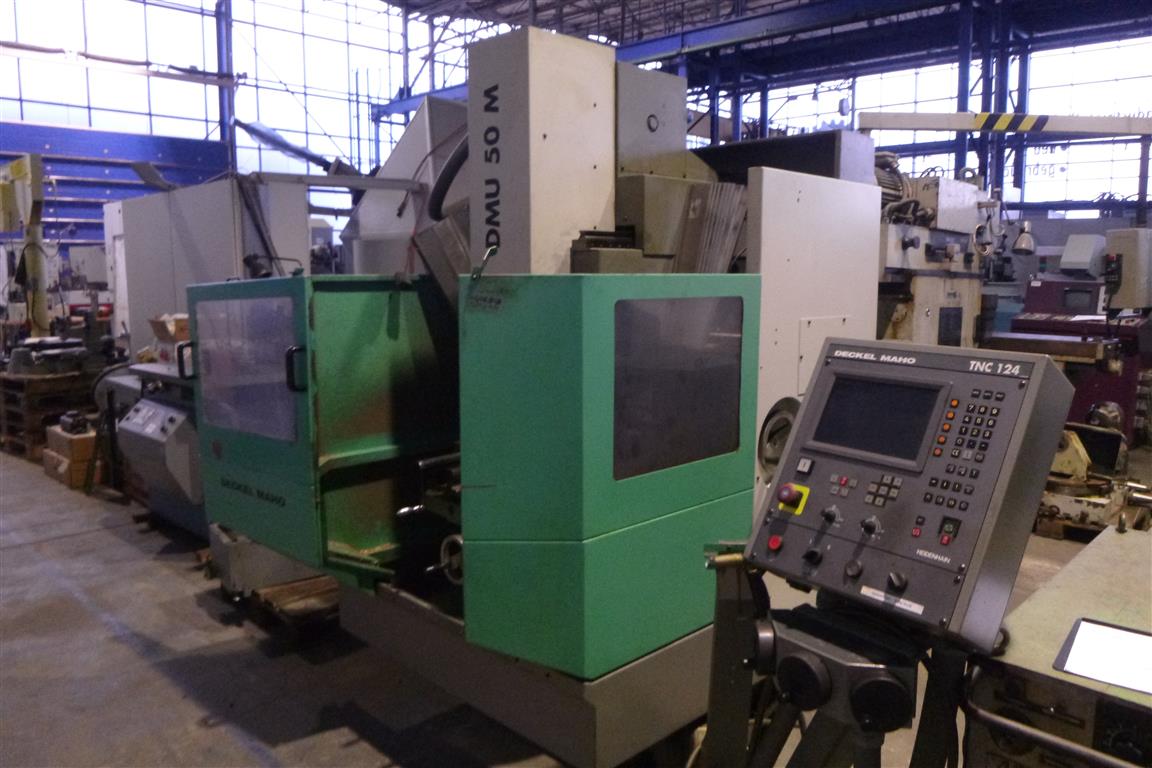

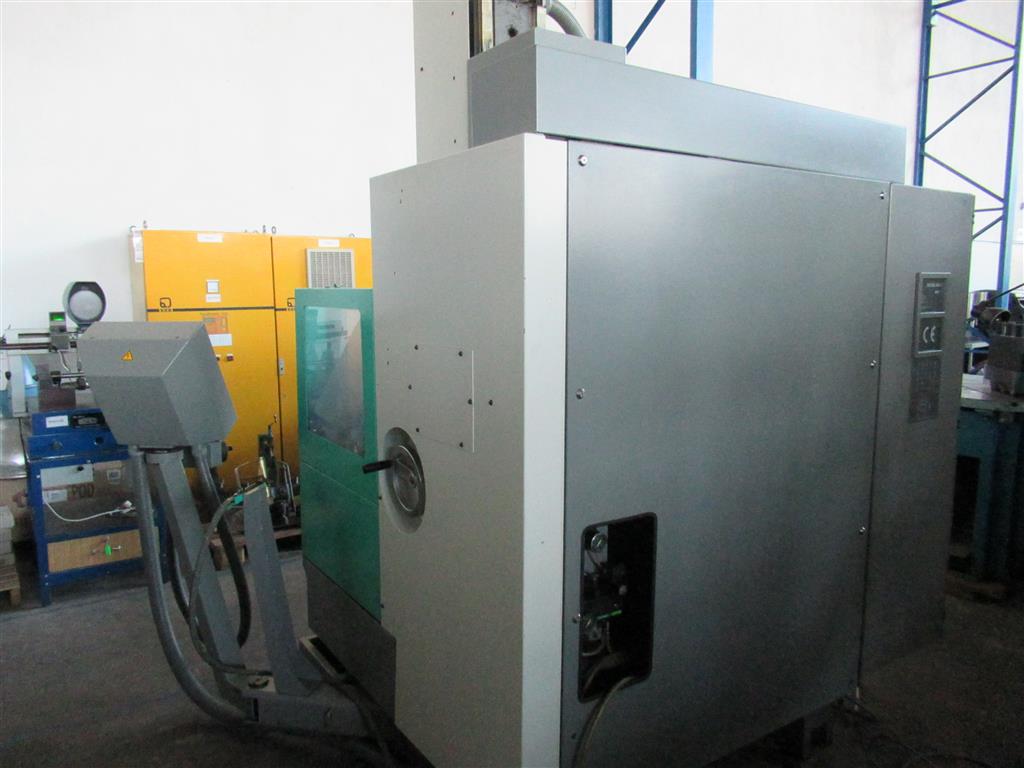

Machining Center - Vertical
Offer
- stock-no.:
- 0208020
- type of machine:
- Machining Center - Vertical
- make:
- DECKEL MAHO
- model:
- DMU 50 M - 5 axis
- year of manufacture:
- 2000
- type of control:
- CNC
- country of origin:
- Germany
- freight basis:
- EXW, free on truck unpacked
- storage location:
- Leipzig 1
- delivery time:
- immediately
- price:
- on request
technical details
- x-travel:
- 500 mm
- y-travel:
- 400 mm
- z-travel:
- 400 mm
- b-axis:
- manuell positionierbar °
- c-axis:
- manuell positionierbar
- control:
- Heidenhain TNC 124
- tool changer with:
- nein Plätze
- spindle taper MT:
- SK40
- Revolution per minute:
- 4500 U/min.
- feed speeds infinitely variable:
- X/Y/Z: max. 14000 mm/min
- rapid traverse::
- 5,0 m/min
- rapid traverse::
- m/min.
- table-size:
- 700 x 500 mm
- table load capacity:
- kg
- interface:

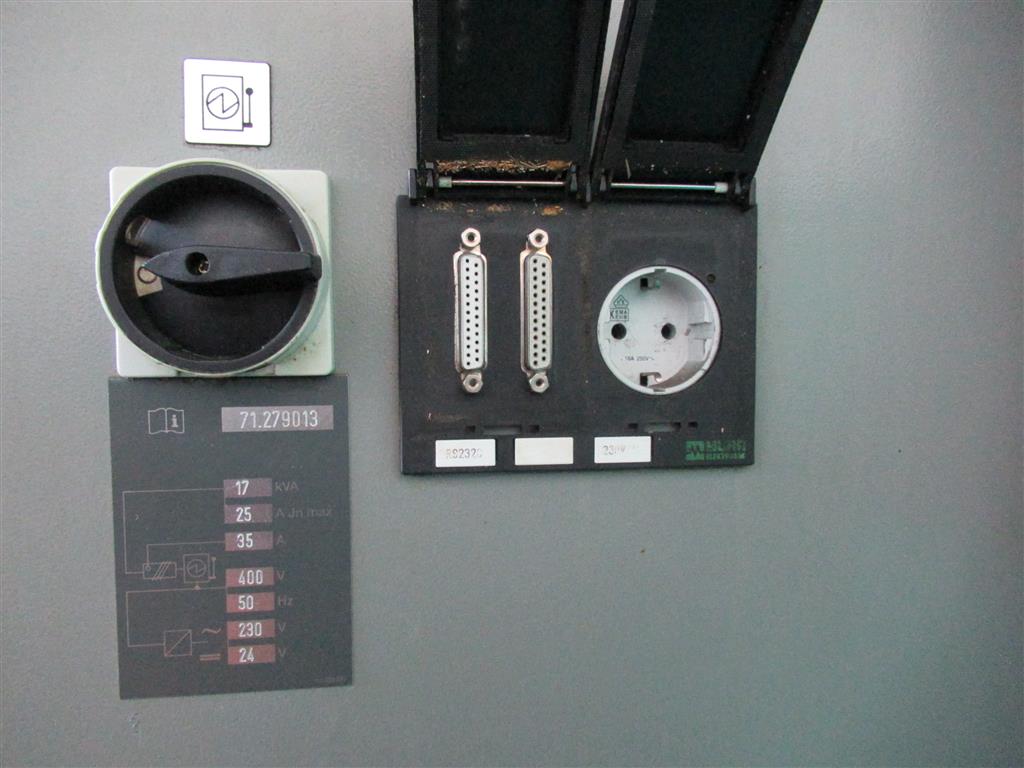

- total power requirement:
- 17 kVA
- Weight approx.:
- 2,91 t
- dimension machine approx.LxWxH:
- 2,0 x 2,0 x 2,5 m
additional information
The machine has 5 axes. B- and C-axis manual with measuring system.

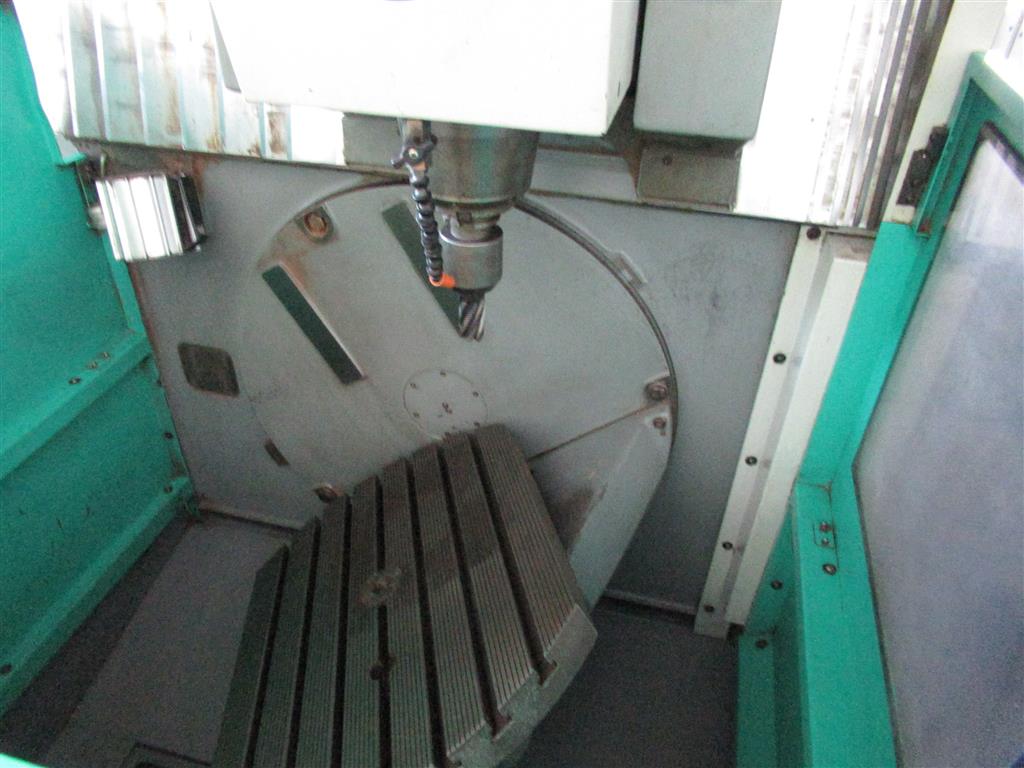

B-axis table swivel -10° / +95° and C-axis table rotate 360° (not interpolatable, manually selectable via control).
Cooling device (without pump)

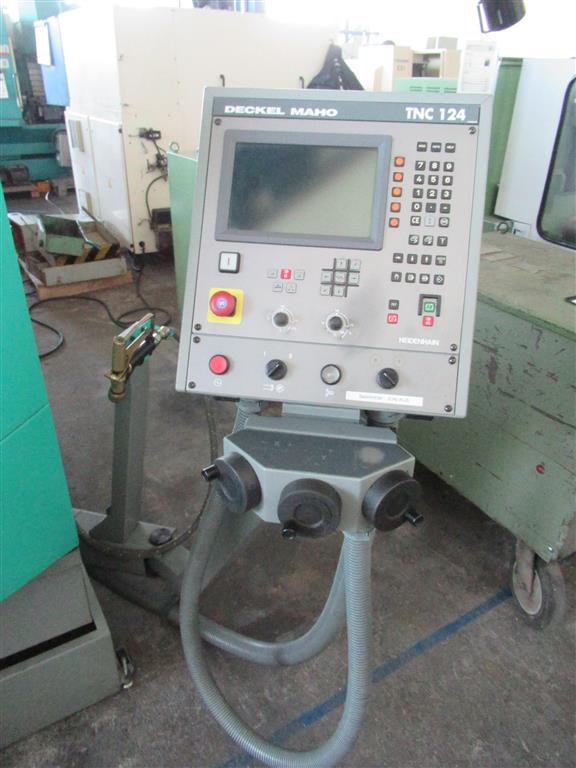

Operation via swiveling boom
