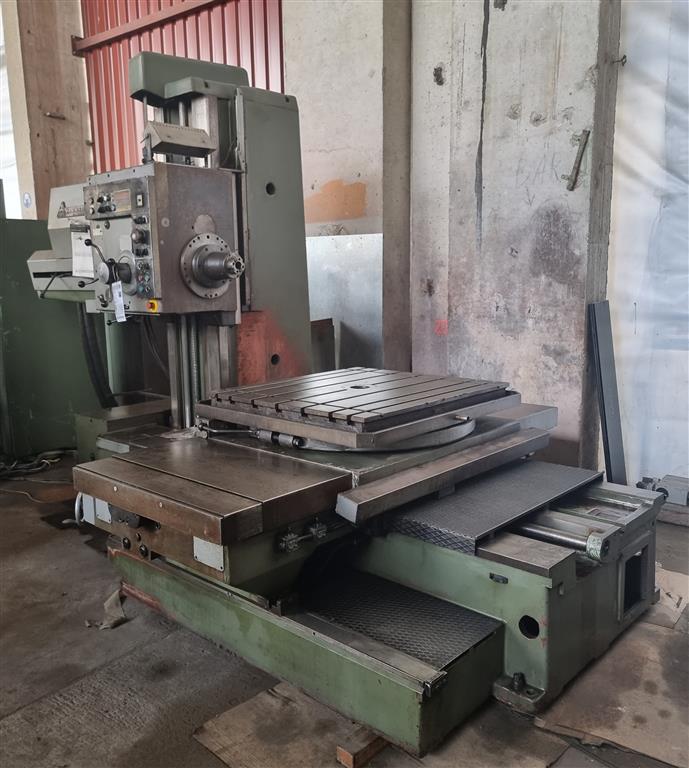

Table Type Boring and Milling MachineTable Type Boring and Milling Machine TOS WHN 9B

Table Type Boring and Milling Machine TOS WHN 9BTable Type Boring and Milling Machine TOS WHN 9BTable Type Boring and Milling Machine TOS WHN 9BTable Type Boring and Milling Machine TOS WHN 9BTable Type Boring and Milling Machine TOS WHN 9BTable Type Boring and Milling Machine TOS WHN 9BTable Type Boring and Milling Machine TOS WHN 9BTable Type Boring and Milling Machine TOS WHN 9B

Offer

stock-no.:
0200746
type of machine:
Table Type Boring and Milling Machine
make:
TOS
model:
WHN 9B
year of manufacture:
1978
type of control:
conventional
country of origin:
Czech Republic
freight basis:
EXW, free on truck unpacked
storage location:
Leipzig 2
delivery time:
immediately
price:
on request

technical details

spindle diameter:
90 mm
x-travel:
1250 mm
y-travel:
900 mm
z-travel:
1000 mm
B-axis (table):
mm
W-axis (spindle longitudinal):
550 mm

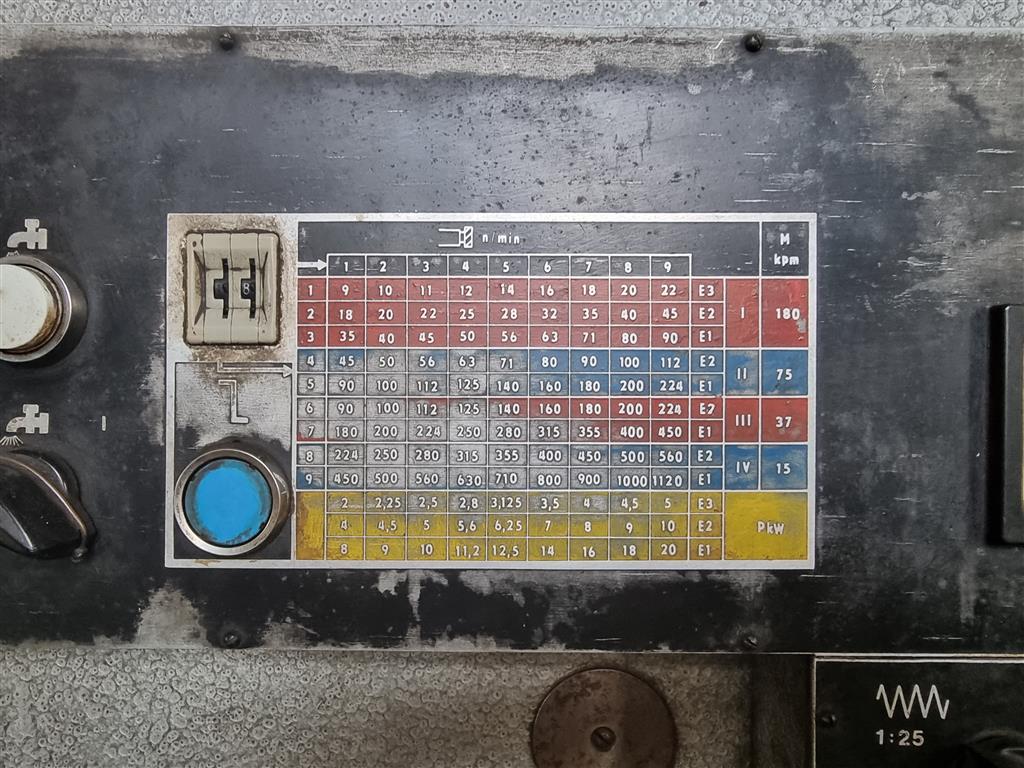

range of rpm - spindle:
9 - 1120 / 4 step U/min
feed steps:
18 - 900 mm/min
rapid traverse::
2300 mm/min.
tool taper:
ISO 40
table load:
3,0 t
table-size:
1000x1120 mm
table rotating:
360 °
horizontal table movement: cross:
1000 mm
horiz. table movement: longitudinal:
1250 mm
total power requirement:
30 kVA
dimensions electric cabinet:
1100x510x2100 je Schrank mm
machine dimensions LxWxH:
4,2 x 2,41 x 2,78 m
weight of the machine ca.:
12,0 + (0,6to für 2x E-Schrank) t

additional information

The machine is not functional. For sale as spare parts donor or for reconstruction due to an unknown electrical problem.

Table adjustment ranges: x-axis (longitudinal) 1250mm and y-axis (transverse) 1000mm

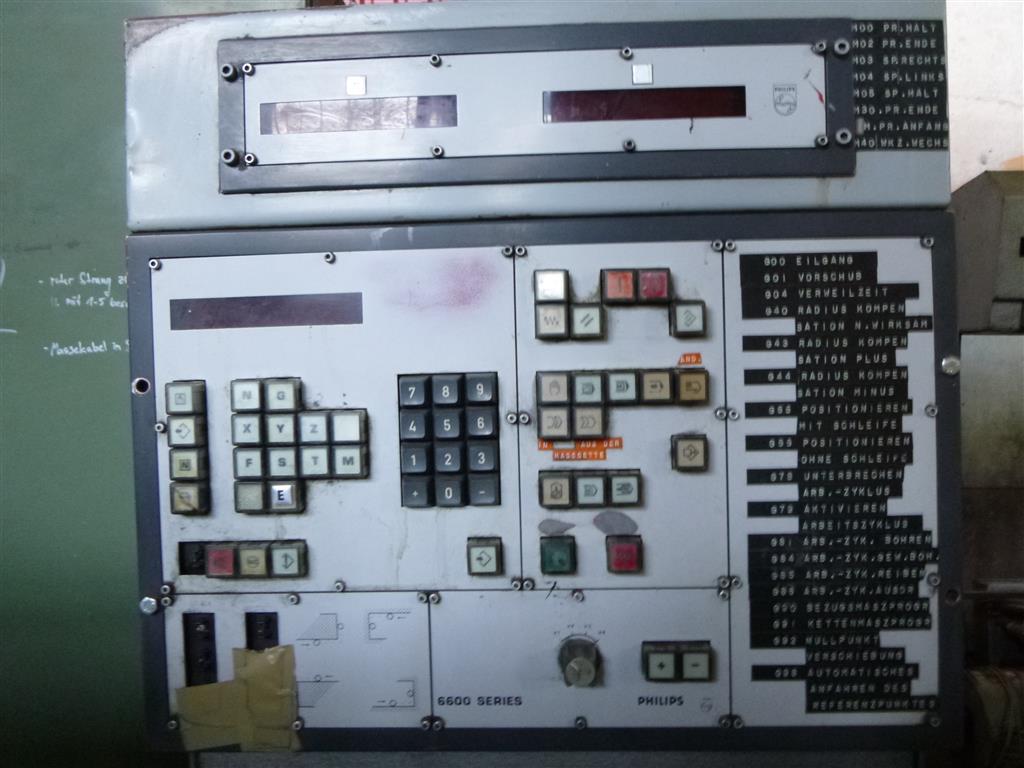

-Measuring device for table in X/Y and Z path
-Coolant device with pump
-Hydraulic power pack
i.d.
