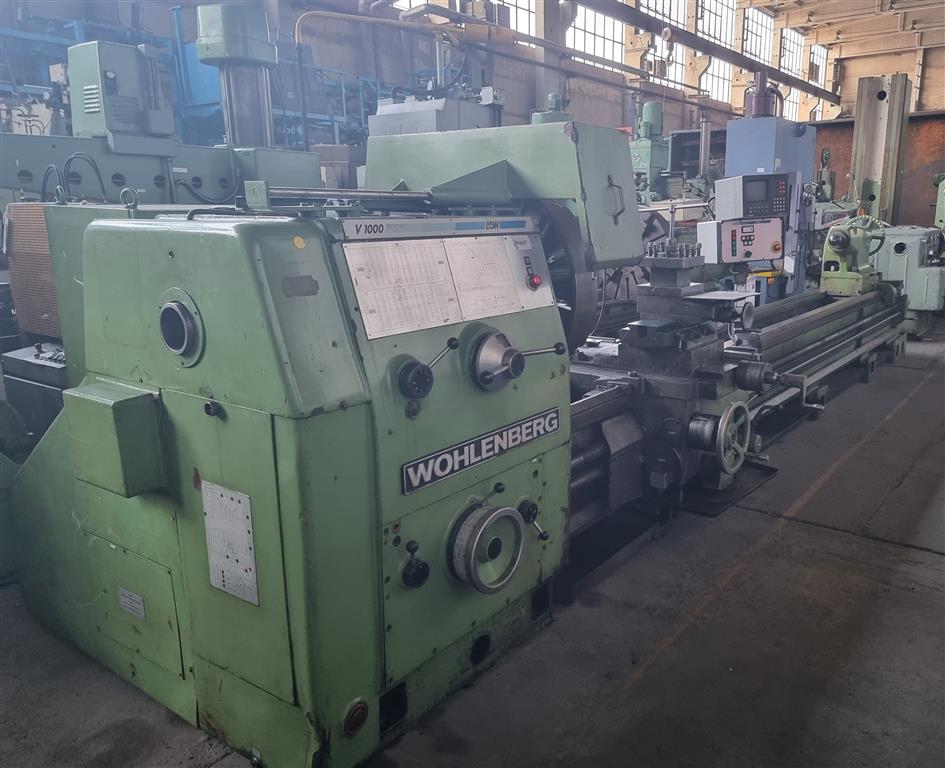

Center Lathe Wohlenberg V1000x5000

Offer

stock-no.:

0303037

type of machine:

Center Lathe

make:

Wohlenberg

model:

V1000x5000

year of manufacture:

1990

type of control:

conventional

country of origin:

Germany

freight basis:

EXW, free on truck unpacked

storage location:

Leipzig 2

delivery time:

immediately

price:

on request

technical details

turning diameter over bed:

1000 mm

turning diameter over support:

760 mm

turning length:

5000 mm

swing diameter:

Support: 760 mm

centre height:

450 mm

spindle passage:

100 mm

range of revolution per miute:

4,5 - 900 U/min

range of feed in x - axis:

0,036...140 mm/U

range of feed in y - axis:

0,032...71 mm/U

rapid traverse x + z axis:

4.200 / 2.100 mm/min.

tailstock quill taper MT:

6

tailstock quill adjustment:

350 mm

max. workpiece weight between centres:

5000 kg

total power requirement:

kW

weight of the machine ca.:

9,8 t

dimension machine approx.LxWxH:

7,7 x 2,4 x 1,8 m

additional information

other travels:
Longitudinal slide=300mm; cross slide=500mm; top slide=250mm.

equipment:

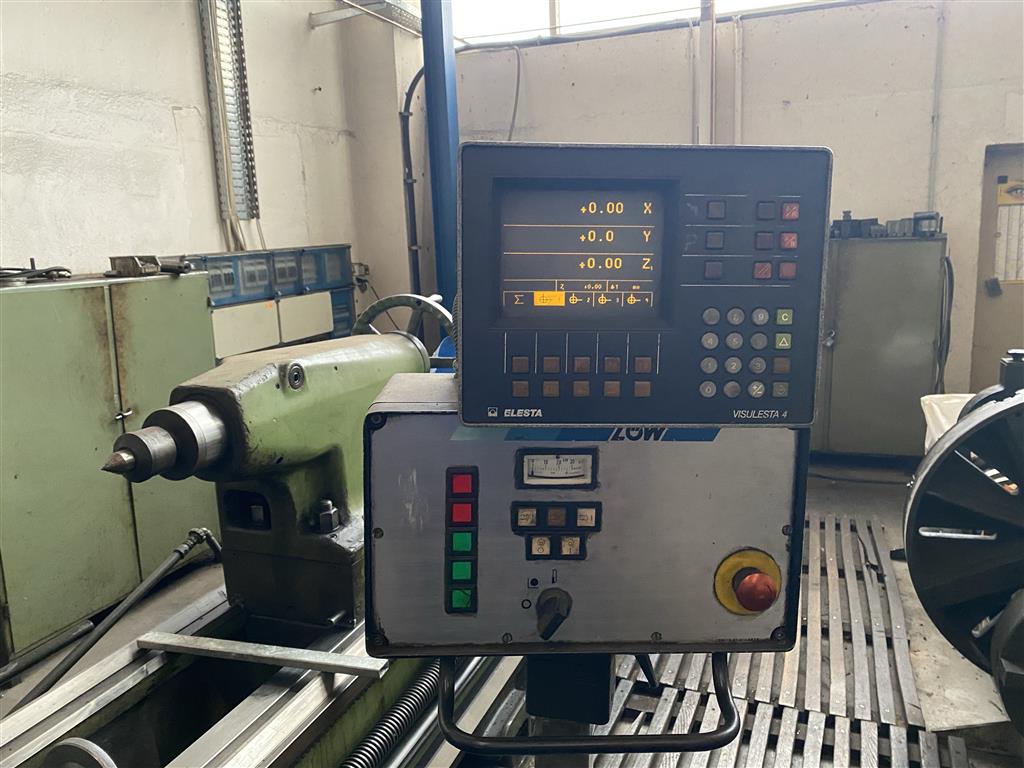

with 3-way digital display Visulesta 4
Cone turning device

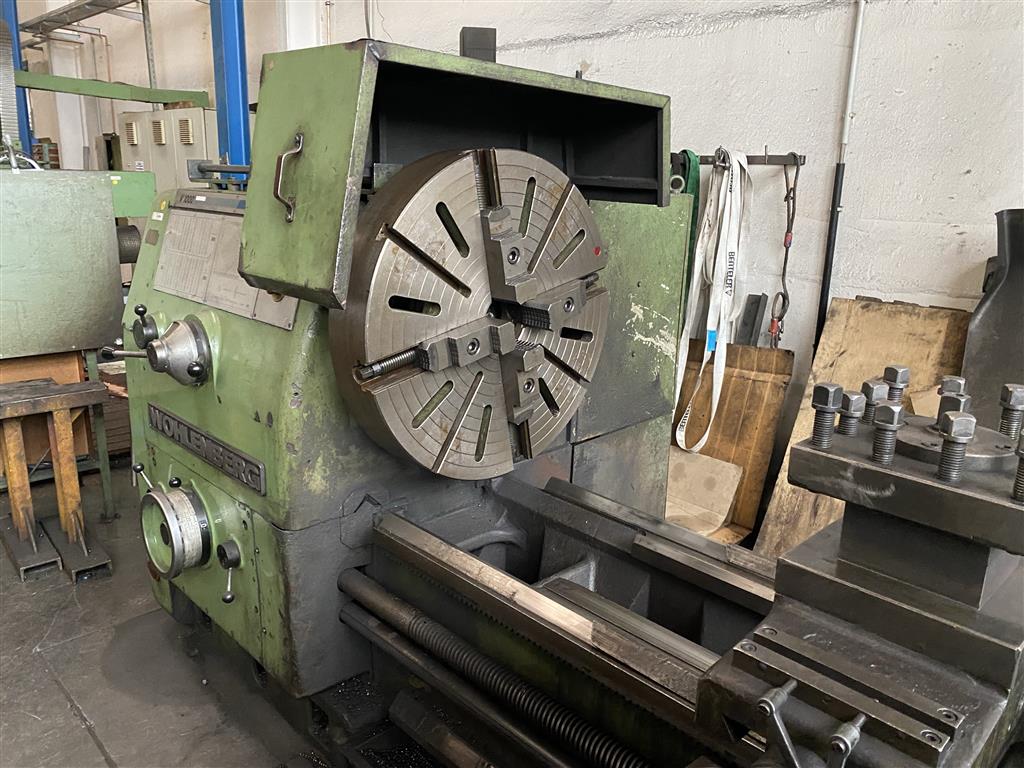

face plate Ø 800mm
spindle head DIN 55027 size 11

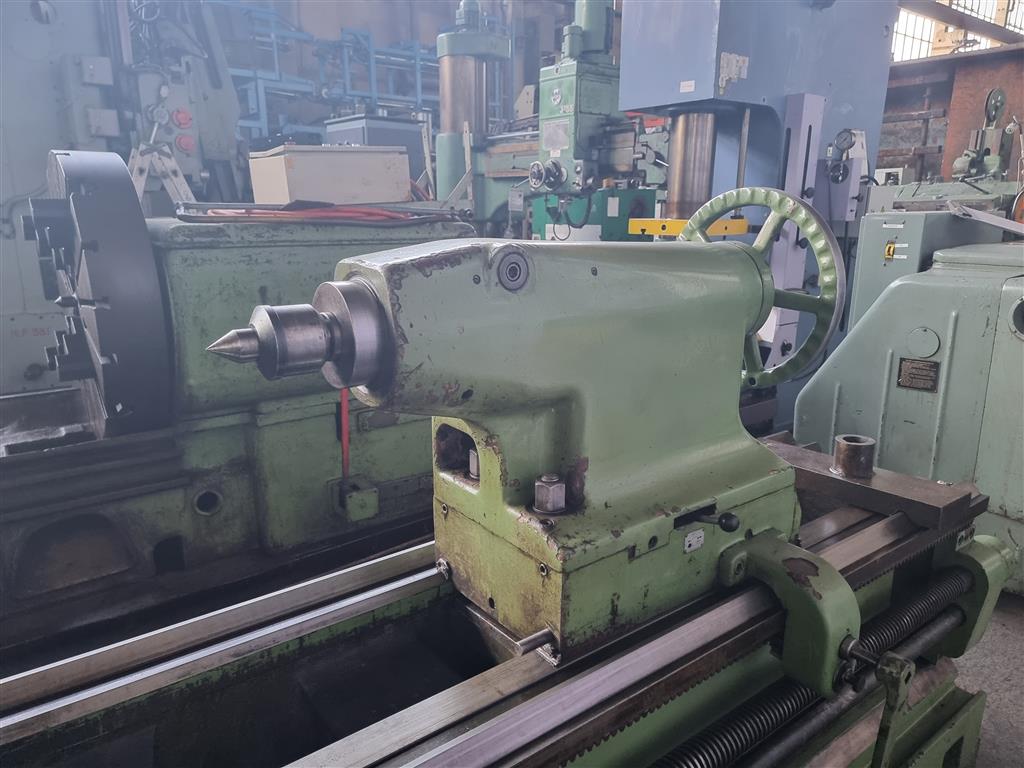

Tailstock with travelling tip

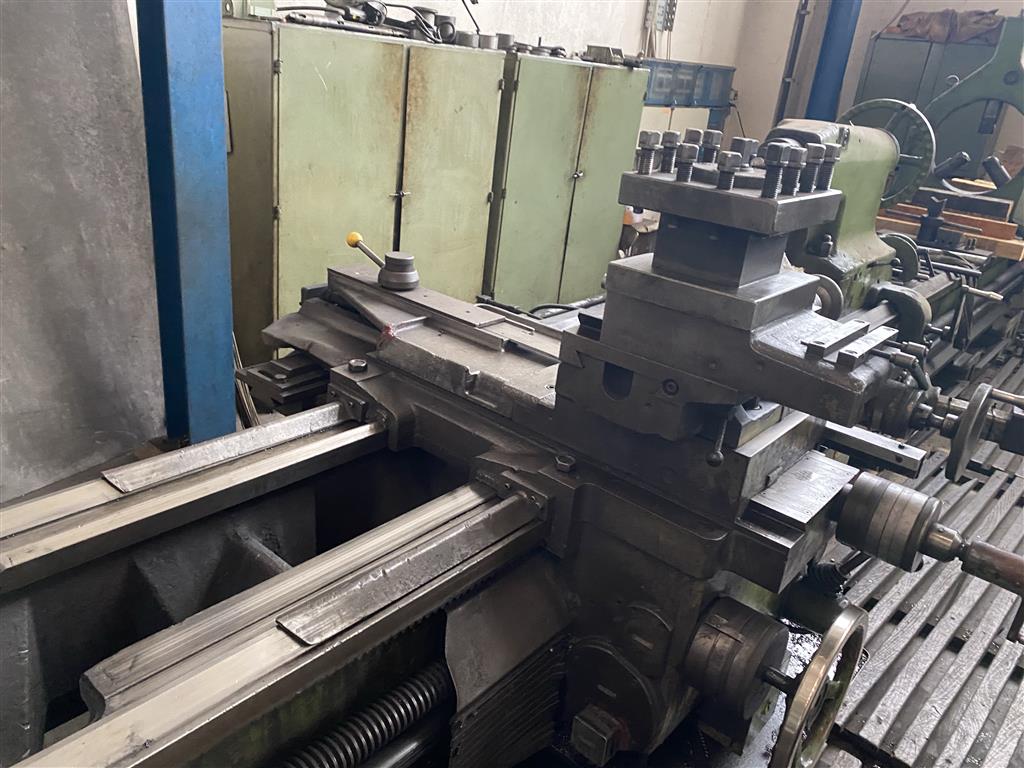

Quadruple toolholder
Coolant system with pump

div. accessories:
1x steady rest closed Ø 480mm
1x steady rest open Ø 250mm
