Offer

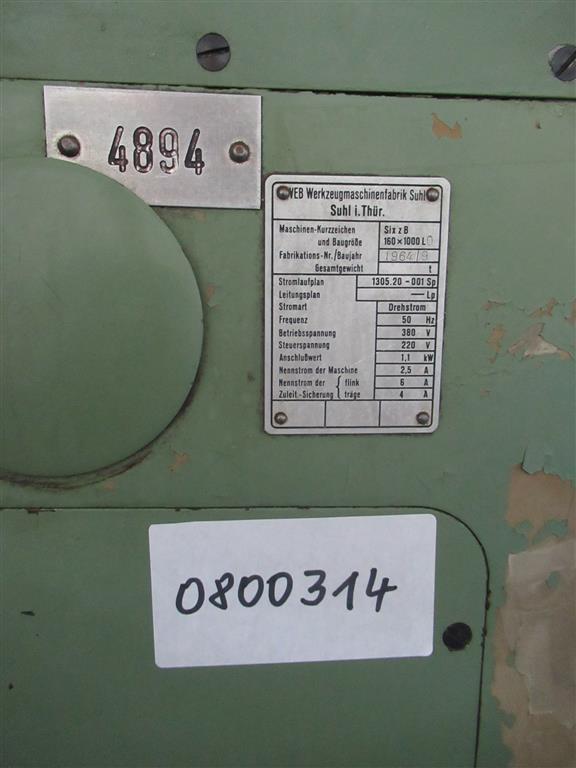

stock-no.:
0800314
type of machine:
Center Grinding Machine
make:
WMW Suhl
model:
SIX 160x1000L
year of manufacture:
1964
type of control:
conventional
country of origin:
Germany
freight basis:
EXW, free on truck unpacked
storage location:
Leipzig 1
delivery time:
immediately
price:
on request

technical details

rotary table diameter:
mm
grinding height:
mm
grinding head - power requirement:
kW
shaft diameter:
max. 120 mm
work piece - max.:
800 mm
height of profile:
Tiefe: max. 90 mm
grinding spindle speed:
nicht bekannt U/min
Table dimensions:
Ø 150 mm
voltage:
380 V
total power requirement:
1,1 kW
weight of the machine ca.:
0,675 t
dimension machine approx.LxWxH:
0,75 x 0,70 x 2,0 m
transport dimensions LxWxH:
m

additional information

Application: vertical internal cylindrical grinding of shafts face, and center grinding with shaft grinder.

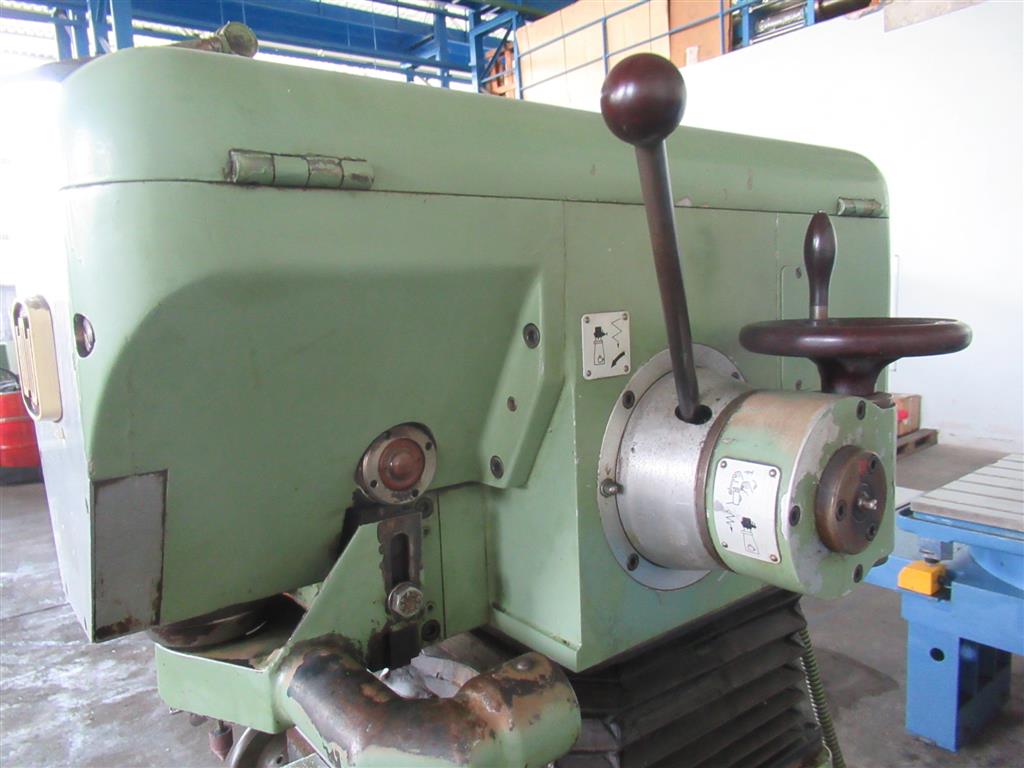

Spindle head technical details:
-equipment shank grinder Ø 13mm 60°; clamping element Ø 6mm shank clamping head.

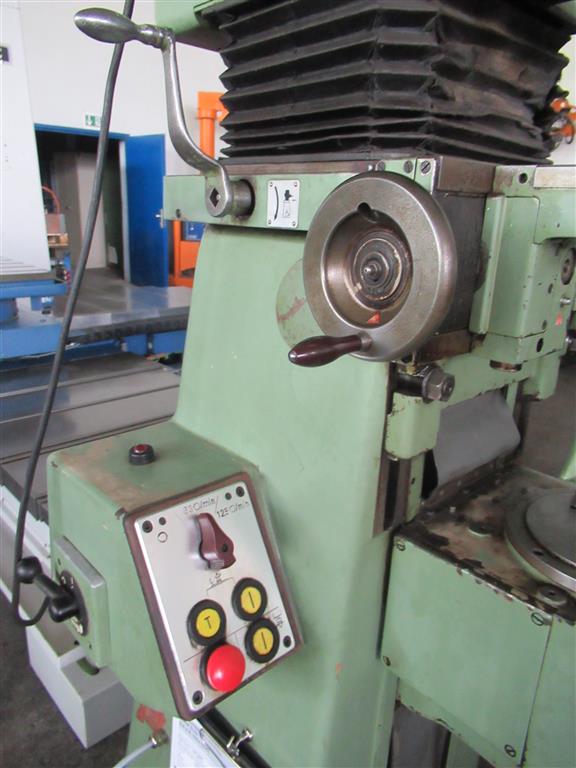

-travel=vertical 950mm by handwheel and transversal 80mm by crank handle
-abrasive device with diamond, adjustment crosswise= 80mm.

Table other specifications:

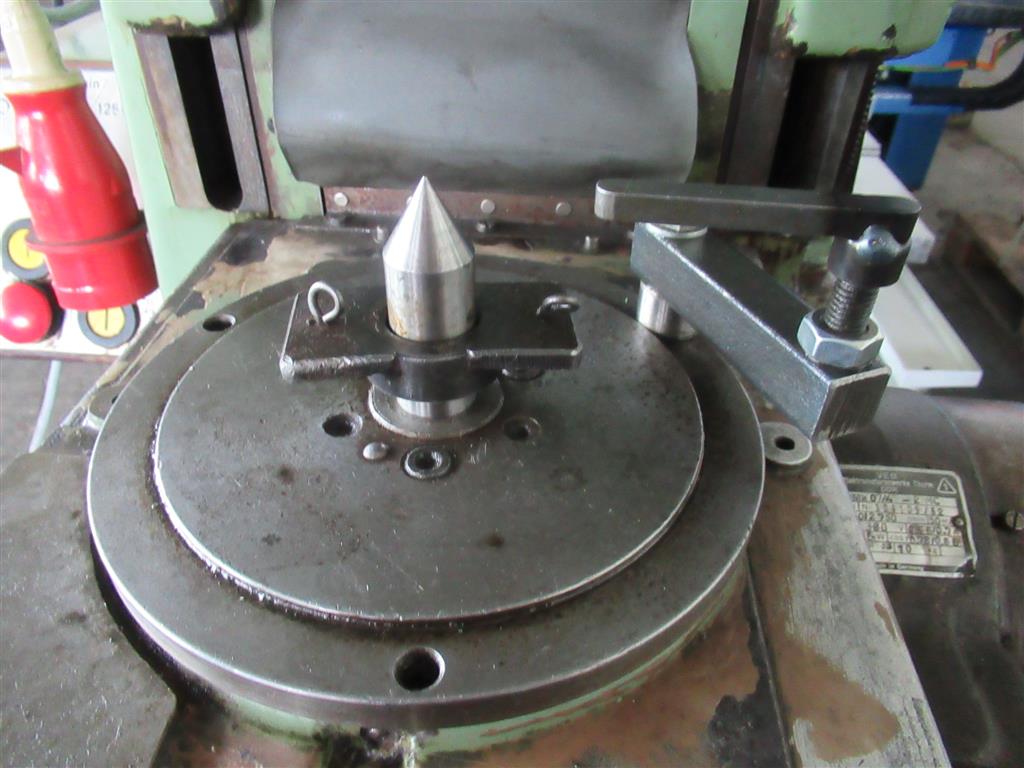

-with fixed tip holder 60°.
-speed 63 / 125 rpm.
-adjustment vertical 600mm, in height 1.100mm, operation manual.

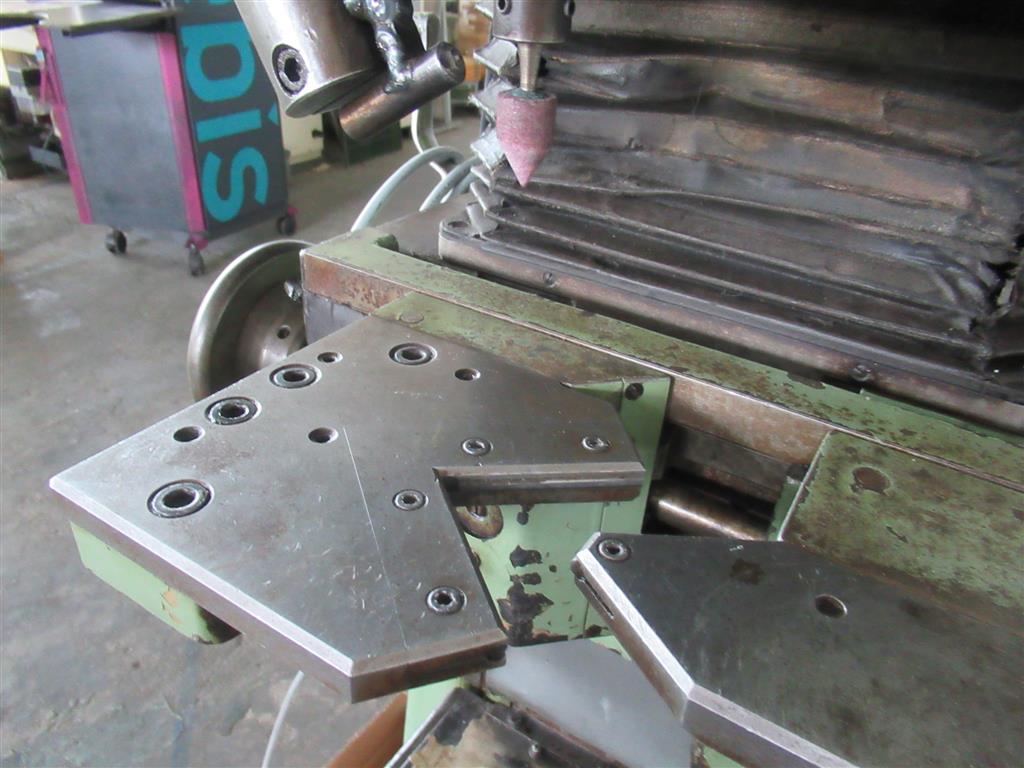

centering block:
-prismatic guide

accessories:
-fixed tip L=180mm
-fixed tip L=300mm
-div. shank grinder
-div. clamping and auxiliary tools
