Machining Center - HorizontalMachining Center - Horizontal VEB Ruhla CPW 251 - 4-Achsen

Offer

stock-no.:
0200950
type of machine:
Machining Center - Horizontal
make:
VEB Ruhla
type:
CPW 251 - 4-Achsen
year of manufacture:
GÜ 2000
type of control:
CNC
country of origin:
Germany
freight basis:
EXW, free on truck
storage location:
Leipzig 1
delivery time:
on request
price:
on request

technical details

x-travel:
500 mm
y-travel:
450 mm
z-travel:
350 mm
B-axis (table):
360° °
control:
Mitsubishi Meldas 500M CNC
number of spindle speeds:
ca. 9 - 5000 U/min
tool taper:
SK40
tool turret - number of stations:
20 Stück
rotary table dia.:
Ø 350 mm
Table dimensions:
LxB: 800 x 380 mm
table load:
ca. 0,3 t
feed continuous:
0 - 4500 U/min
rapid traverse:
0 - 10.000 mm/min mm/min
weight of the machine ca.:
3,0 t
dimensions electric cabinet LxWxH:
1,2 x 0,55 x 2,0 m
dimension machine approx.LxWxH:
3,8 x 2,2 x 2,0 m

additional information

CNC milling machine

Other features:
with integrated rotary table Ø 350mm

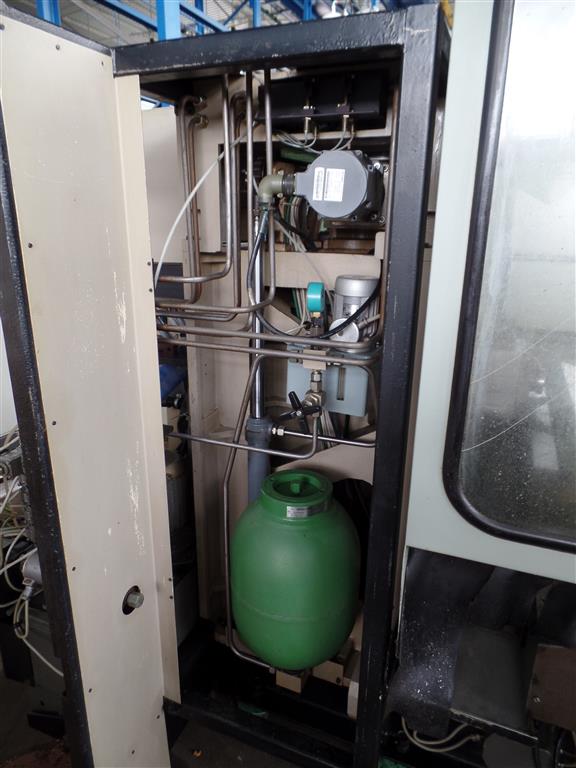

- Coolant system
- Control panel
i.D.
