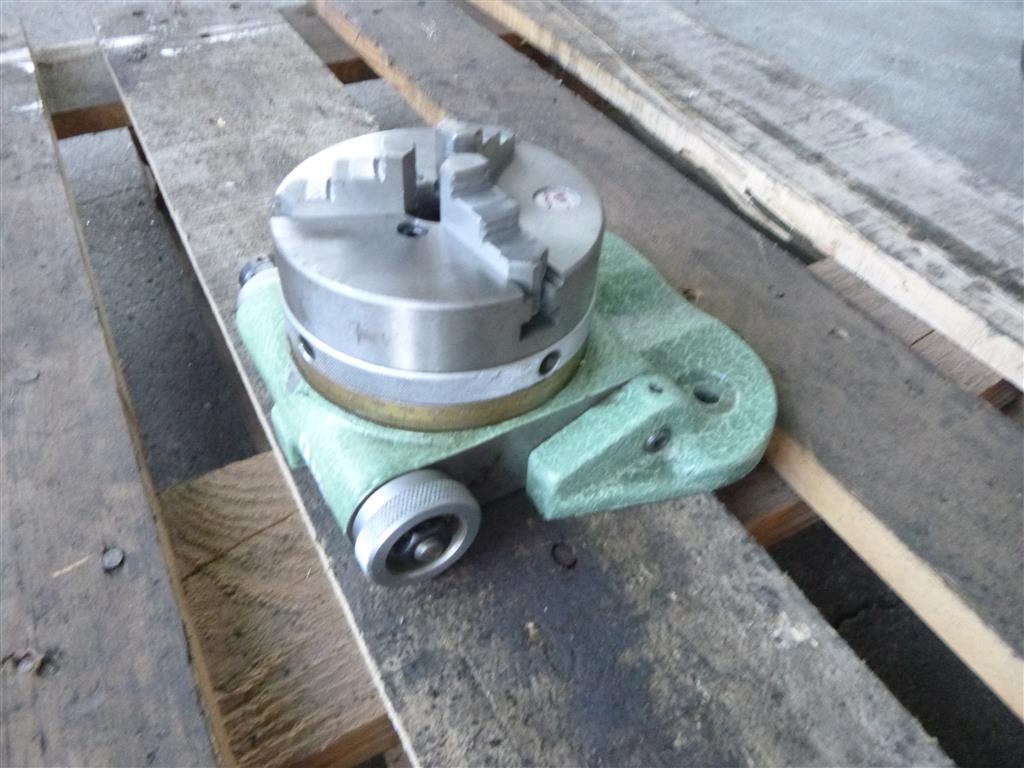

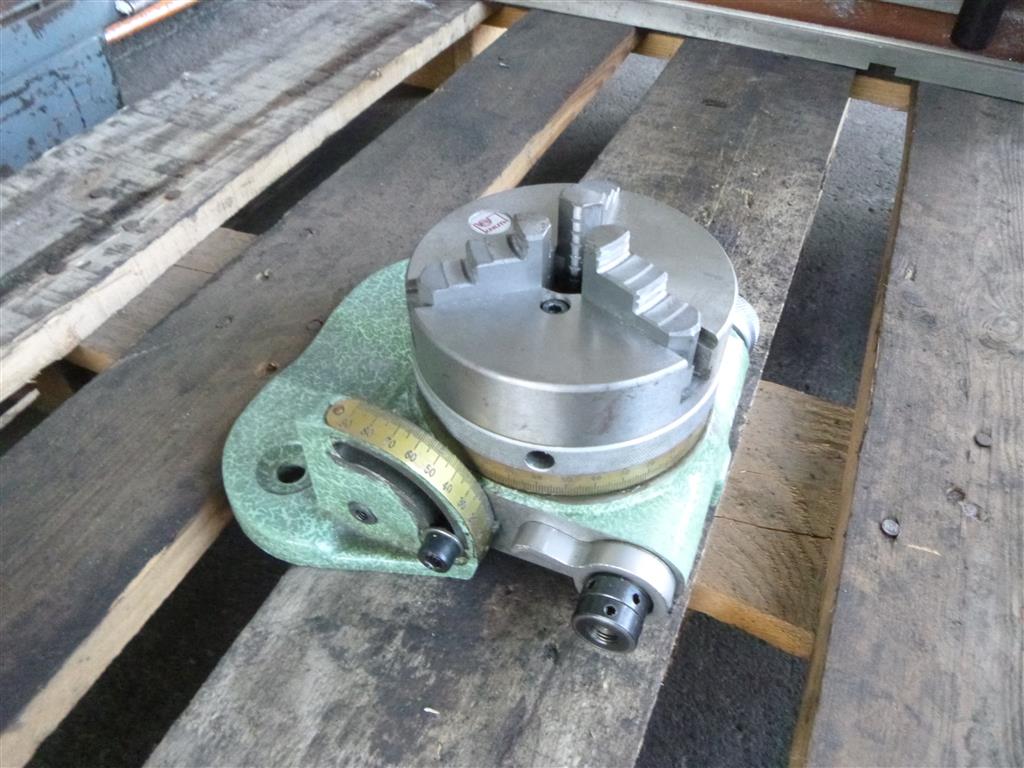

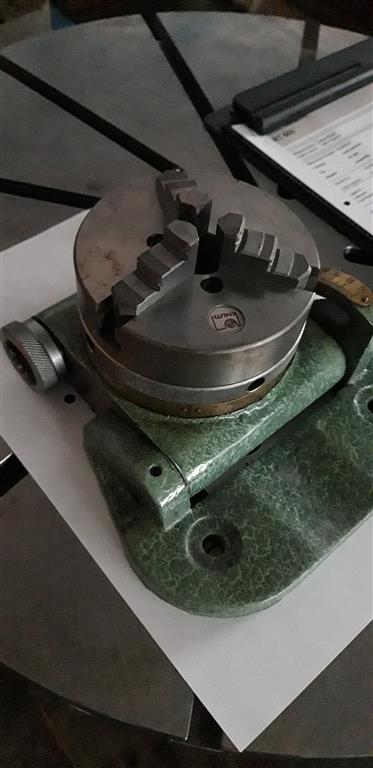

Indexing Device KNUTH

Offer

stock-no.:

1106015

type of machine:

Indexing Device

make:

KNUTH

model:

year of manufacture:

nicht bekannt

type of control:

other

country of origin:

Germany

freight basis:

EXW, free on truck unpacked

storage location:

Leipzig 1

delivery time:

immediately

price:

on request

technical details

max. pitch circle diameter:

mm

weight of the machine approx.:

9,0 kg

dimension machine approx.LxWxH:

m

swivable:

90° verikal °

rotation movement:

360 mit Radialskala Grad

dimensions::

190 x 180 x 120 mm

additional information

Application: For auxiliary work e.g. marking of graduations.
The base body is made of cast steel.
Chuck Ø 110mm with 3-jaws (inner jaws), clamping diameter max.: inside=Ø 100mm and outside=Ø 60mm,
rotary drive rotation 360°, manual with knurled ring Ø 40mm and convertible to free rotation
foot clamping on a gap surface 180 x 120mm and two holes (2x Ø 11mm)
