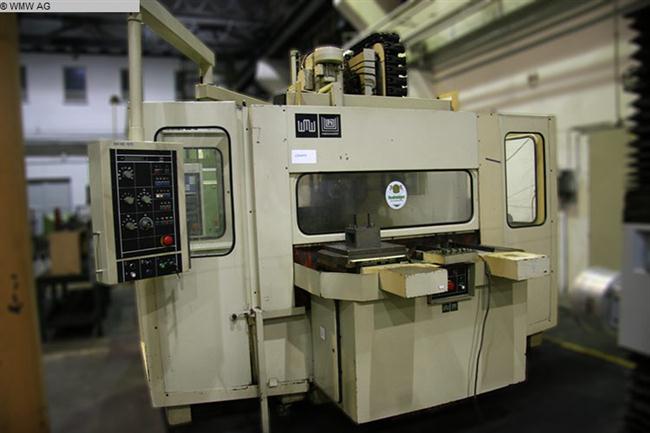

Machining Center - HorizontalMachining Center - Horizontal WMW WEMA AUERBACH CW 400

Machining Center - Horizontal WMW WEMA AUERBACH CW 400Machining Center - Horizontal WMW WEMA AUERBACH CW 400Machining Center - Horizontal WMW WEMA AUERBACH CW 400Machining Center - Horizontal WMW WEMA AUERBACH CW 400Machining Center - Horizontal WMW WEMA AUERBACH CW 400Machining Center - Horizontal WMW WEMA AUERBACH CW 400

Offer

stock-no.:
0200839
type of machine:
Machining Center - Horizontal
make:
WMW WEMA AUERBACH
model:
CW 400
year of manufacture:
1990
type of control:
CNC
country of origin:
Germany
freight basis:
from location,without dismantling
storage location:
Leipzig 4
delivery time:
immediately
price:
on request

technical details

x-travel:
850 mm
y-travel:
500 mm
z-travel:
460 mm
tool taper:
SK45
control:
Sinumerik 600-3
bore diameter:
40 mm
thread cutting up to max.:
M3 - M30
clamping surface area:
900x400 mm
feed::
1 - 2000 mm/min
feed - rapid adjustment:
Eilgang: 10 000 mm/min
revolution per minute:
30 - 3150 U/min
total power requirement:
27 kW
weight of the machine ca.:
3,3 t
space requirement of the machine approx.:
m

additional information

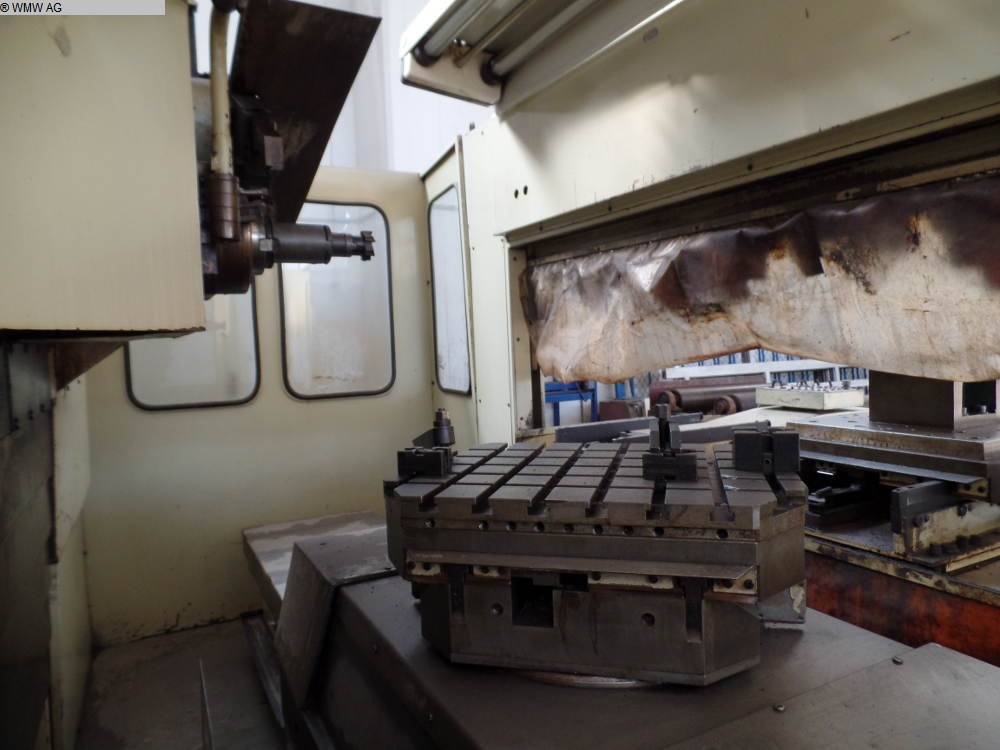

- with cross sliding table

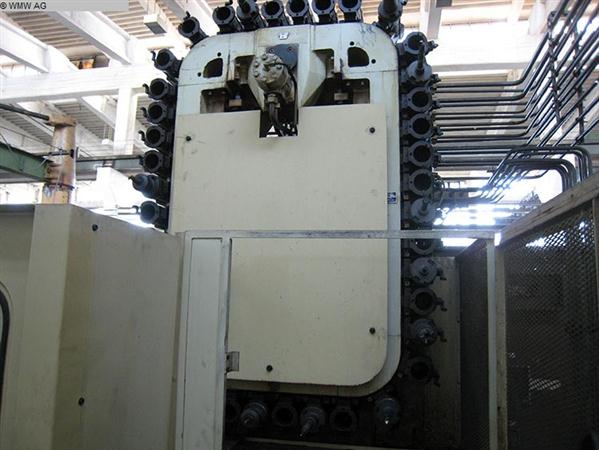

- tool changer type WW 3
- tool magazine 40/60
- with 2 palettes (512x400x62mm)
- max. clamping table weight: 7000N
- manual head stock adjustment vertical
- documentation

Machine is not under power, on sale as is, control malfunction.
i.D.
