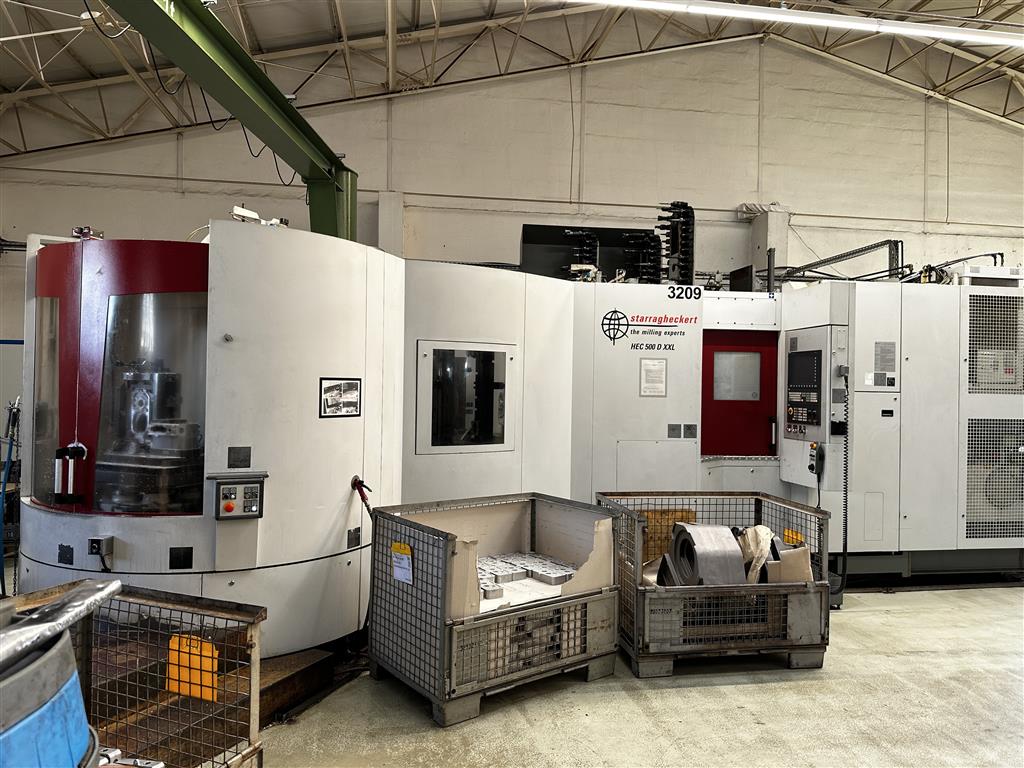

Machining Center - Horizontal HECKERT-STARRAG HEC500DXXL

Offer

stock-no.:

0200909

type of machine:

Machining Center - Horizontal

make:

HECKERT-STARRAG

model:

HEC500DXXL

year of manufacture:

2005

type of control:

CNC

country of origin:

Germany

freight basis:

Ex-Location

storage location:

Wurzen

delivery time:

immediately

price:

on request

technical details

x-travel:

850 mm

y-travel:

750 mm

z-travel:

800 mm

B-axis (table):

°

control:

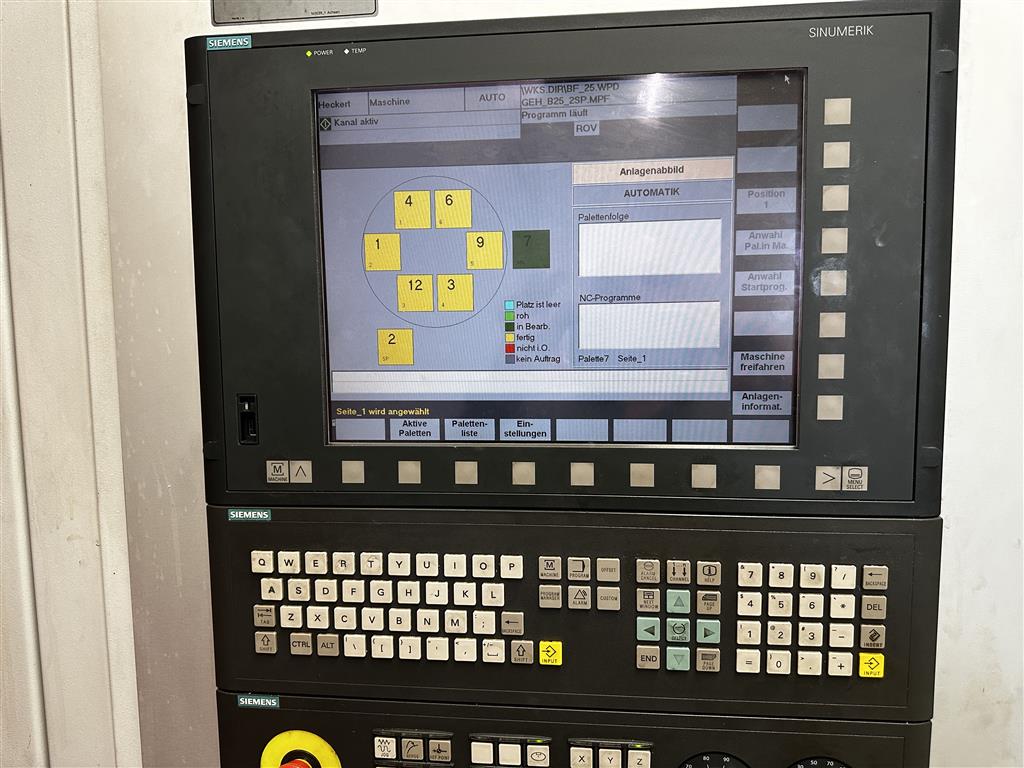

Sinumerik 840D

number of spindle speeds:

15000 U/min

tool taper:

HSK-A63

tool turret - number of stations:

60 Stück

numbers of pallets:

2

Table dimensions:

500 x 630 mm

table load:

0,8 t

table rotation:

100 U/min.

max. torque on table:

850 (Nm) Nm

feed continuous:

X/Y/Z: 1...60.000 (mm/min.)

rapid traverse:

X/Y/Z: 60 (m/min.) m/min

weight of the machine ca.:

16,5 t

dimensions electric cabinet LxWxH:

m

dimension machine approx.LxWxH:

m

additional information

Very good condition, from location under power.

A new work spindle was installed in December 2022.
Further features:
-automatic tool change

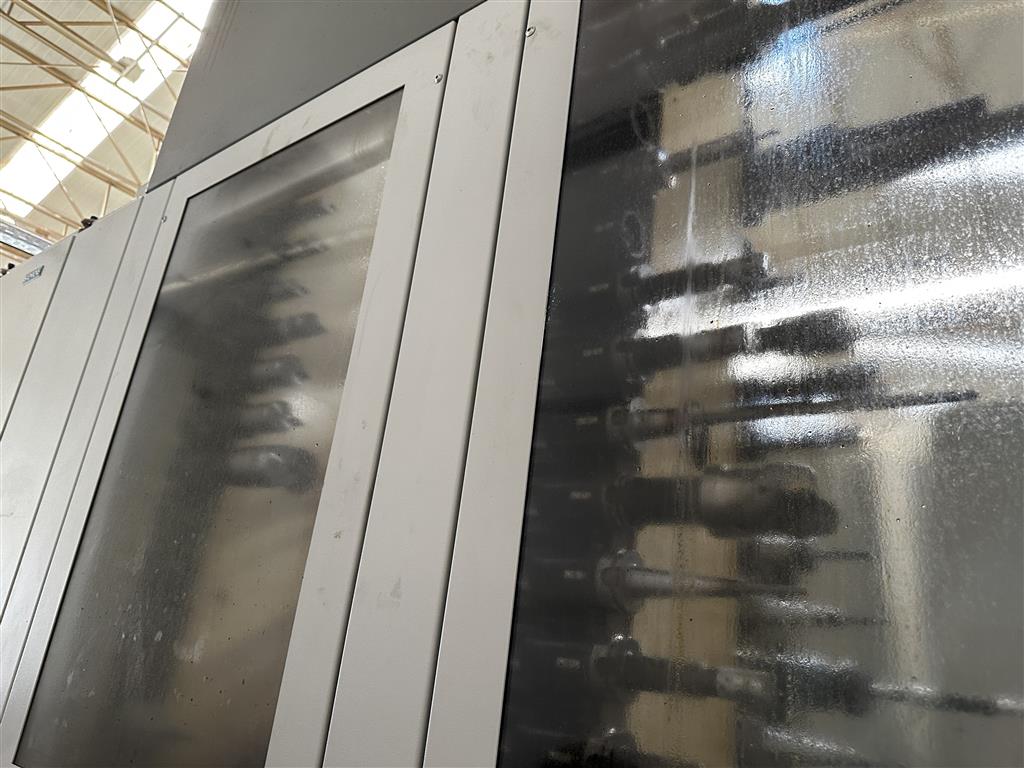

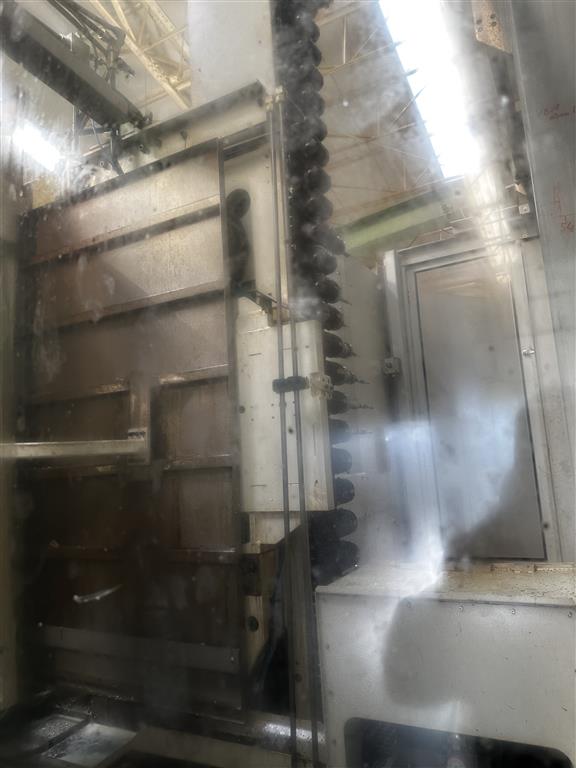

-Tool chain magazine with max. tool Ø 160mm
-automatic pallet changer (2 pallets/changing table)

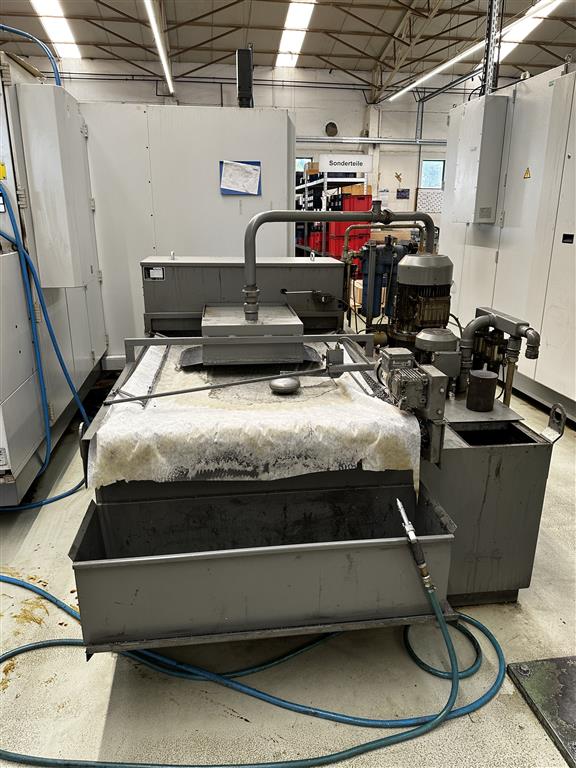

-cooling lubricant supply with backflush filter (15 bar); total cooling lubricant volume = approx. 900l
optional: 4 further pallets/changing tables are available for sale for € 1,200 each.
