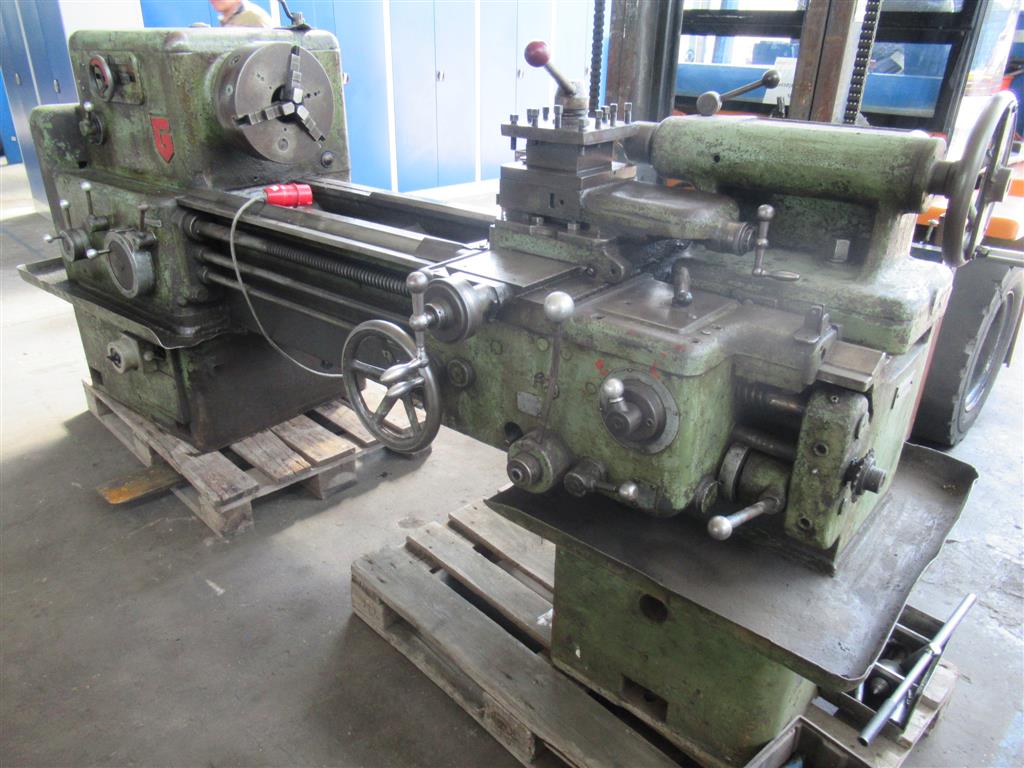

Center Lathe
Offer
- stock-no.:
- 0303045
- type of machine:
- Center Lathe
- make:
- nicht bekannt
- model:
- unbekannt / unknown
- year of manufacture:
- -
- type of control:
- conventional
- country of origin:
- Germany
- freight basis:
- EXW, free on truck unpacked
- storage location:
- Leipzig 4
- delivery time:
- immediately
- price:
- on request
technical details
- turning diameter over bed:
- 540 mm
- turning diameter over support:
- 300 mm
- turning length:
- 1000 mm
- center height measured in bed:
- 250 mm
- support travel z-axis:
- 260 mm
- support travel x-axis:
- 950 mm
- spindle passage:
- Ø 63 mm
- range of revolution per miute:
- 23 - 1000 / 12 step U/min
- tailstock quill taper MT:
- MK4
- tailstock quill adjustment::
- 300 mm
- total power requirement:
- weight of the machine ca.:
- 1,1 t
- dimension machine approx.LxWxH:
- 1,9 x 1,2 x 1,4 m
additional information
This machine is for sale as a spare parts donor.
It is functional but does NOT comply with European safety requirements!
Thread cutting possible: Metric and Whitworth - thread
Equipment:
-3-jaw chuck Ø 320mm
--tailstock with travelling point
-tool holder 4-fold
-div. turning chisel
