Bridge Crane - Single Beam Demag EHK EDV8 100KT 1000/24/1010000-21000

Offer

stock-no.:

1201957

type of machine:

Bridge Crane - Single Beam

make:

Demag

model:

EHK EDV8 100KT 1000/24/1010000-21000

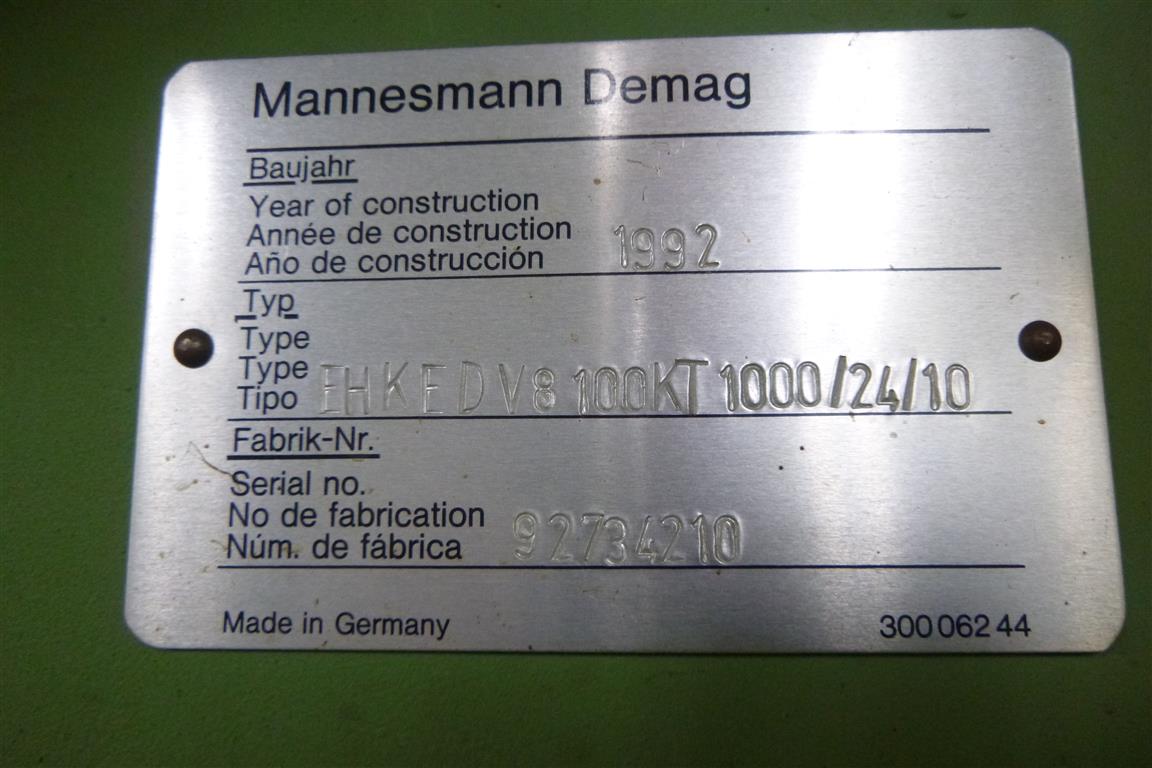

year of manufacture:

1992

type of control:

other

country of origin:

Germany

freight basis:

EXW, free on truck unpacked

storage location:

Flanschenwerk

delivery time:

immediately

price:

on request

technical details

lifting capacity:

10 t

lift:

mm

span width:

21000 mm

stroke speed:

6,3

precise lift:

1,0 m/min

rope diameter:

14 mm

electric control:

ja

electrics - voltage/frequency:

V/Hz

connected load:

15,5 kW

weight of the machine ca.:

t

dimensions L x W x H:

Brücke: ca. 22,47 x 2,1 x 1,8 (6,5to) m

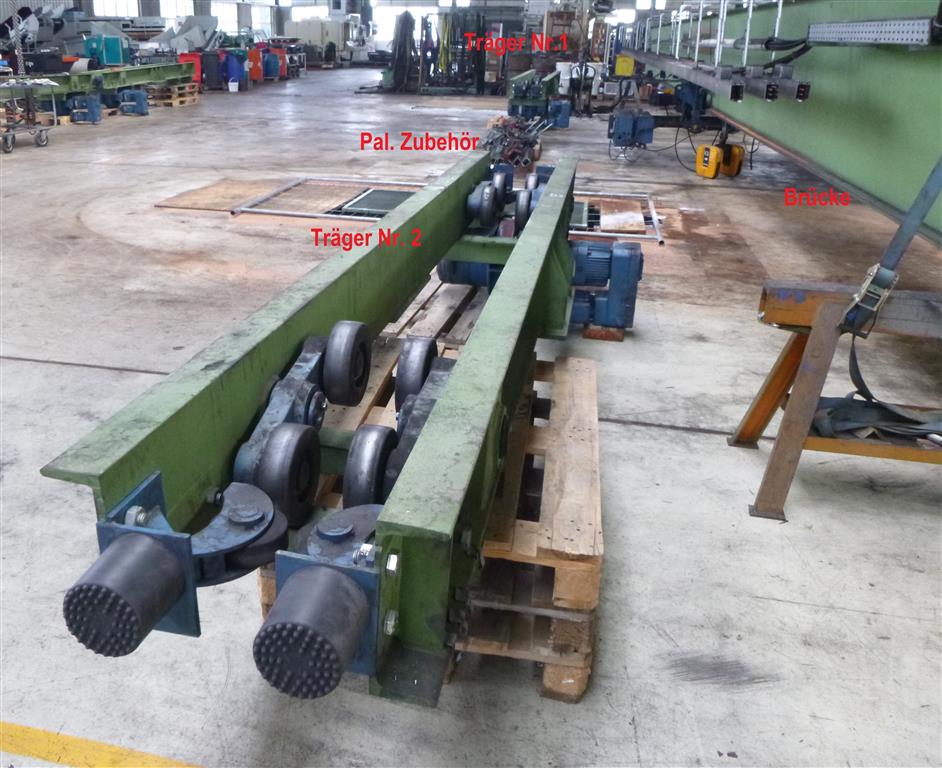

dimensions L x W x H:

Laufträger 1: ca. 4,35 x 1,1 x 0,9 (1,08to) m

dimensions L x W x H:

Laufträger 2: ca. 4,35 x 1,1 x 0,9 (1,16to) m

dimensions L x W x H:

1x Palette Zubehör: 4,1 x 0,8 x 0,5 (0,14to) m

additional information

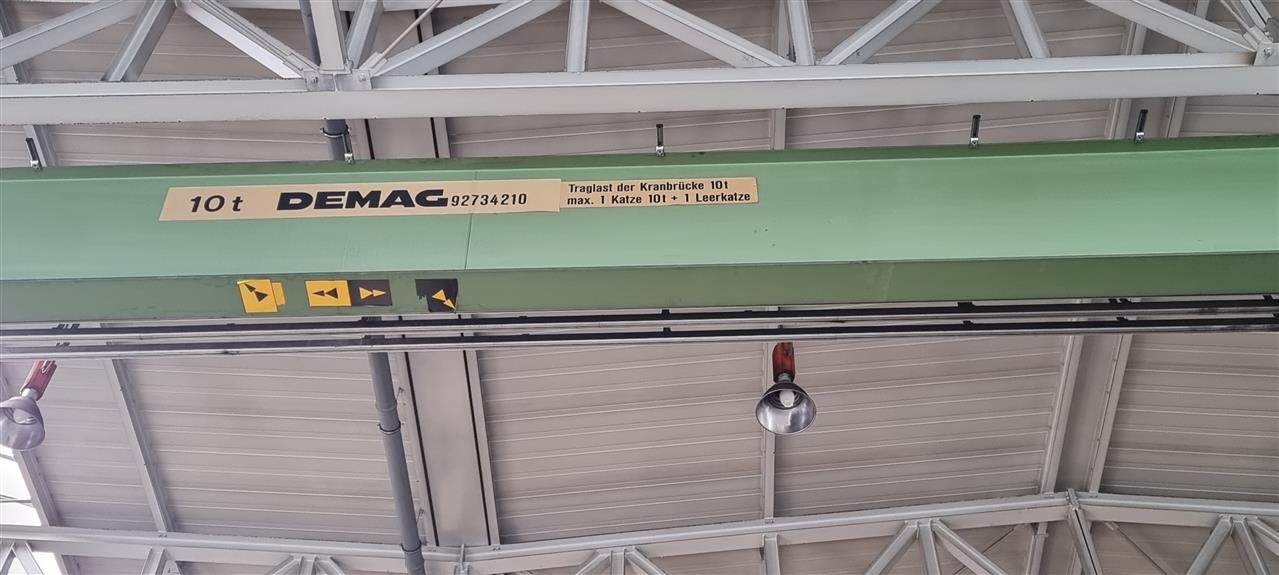

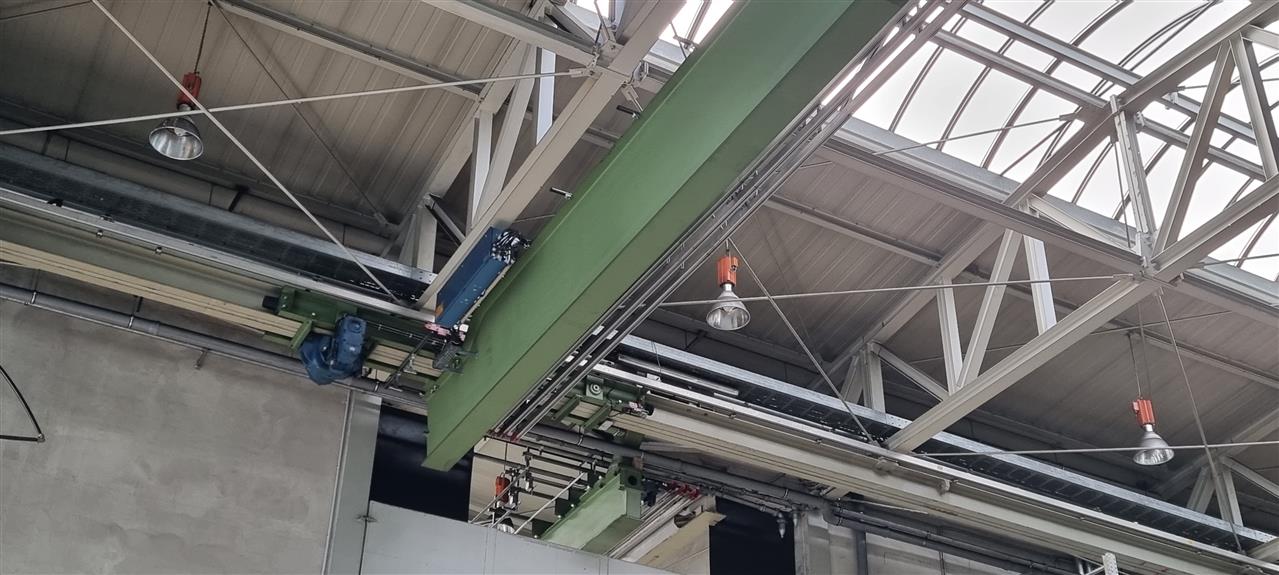

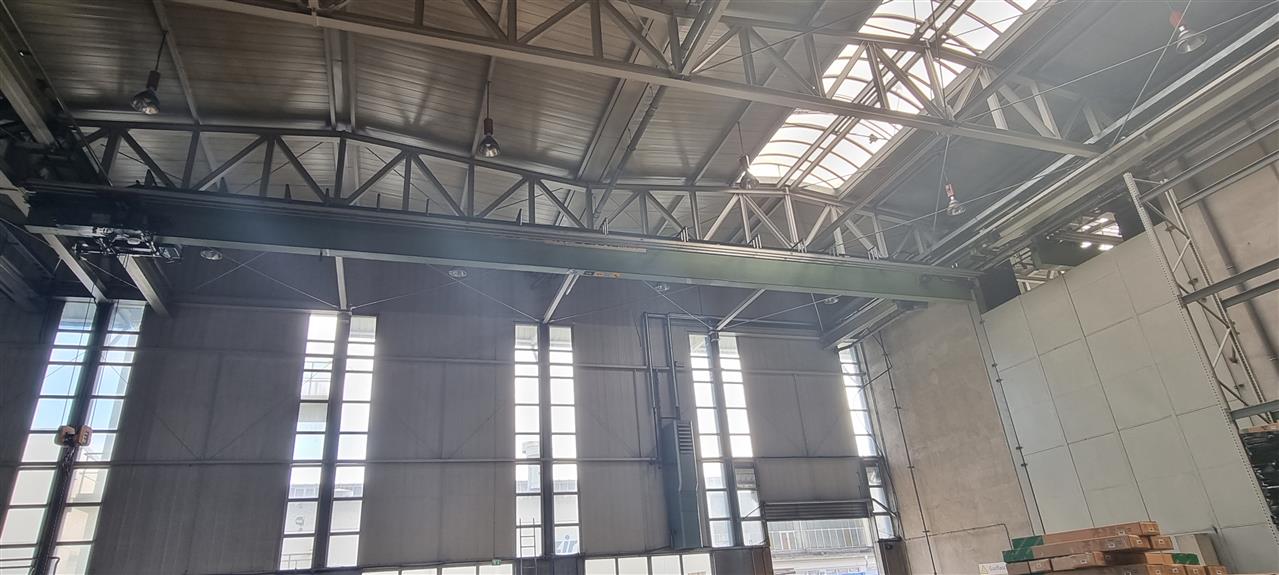

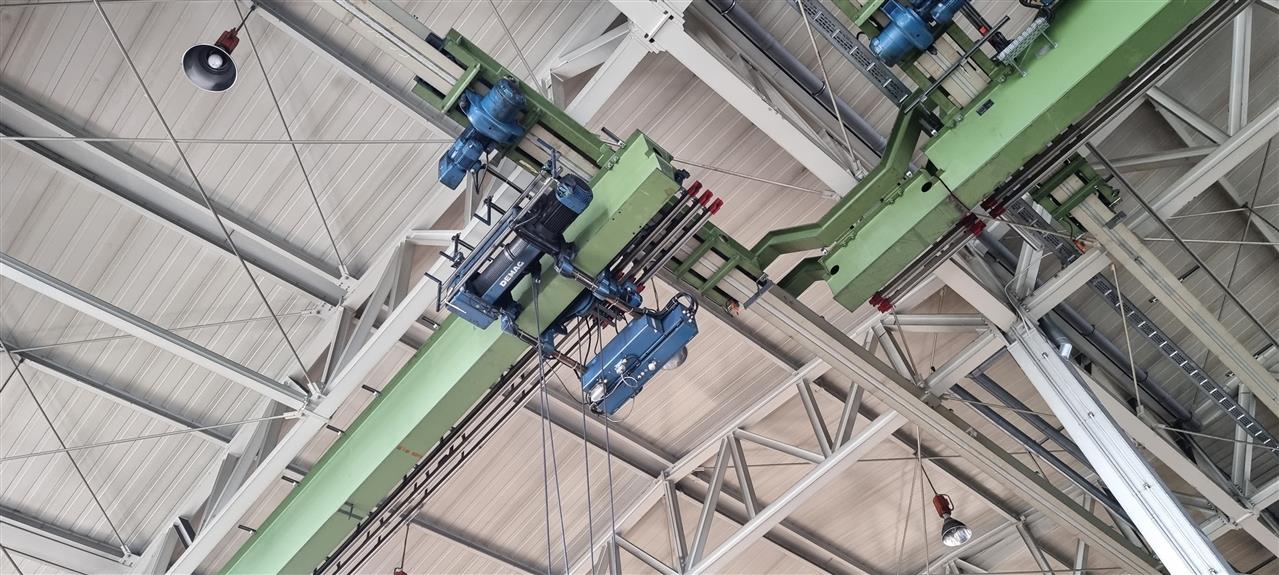

SINGLE GIRDER SUSPENSION CRANE
Crane classification according to DIN 15018H2 B3

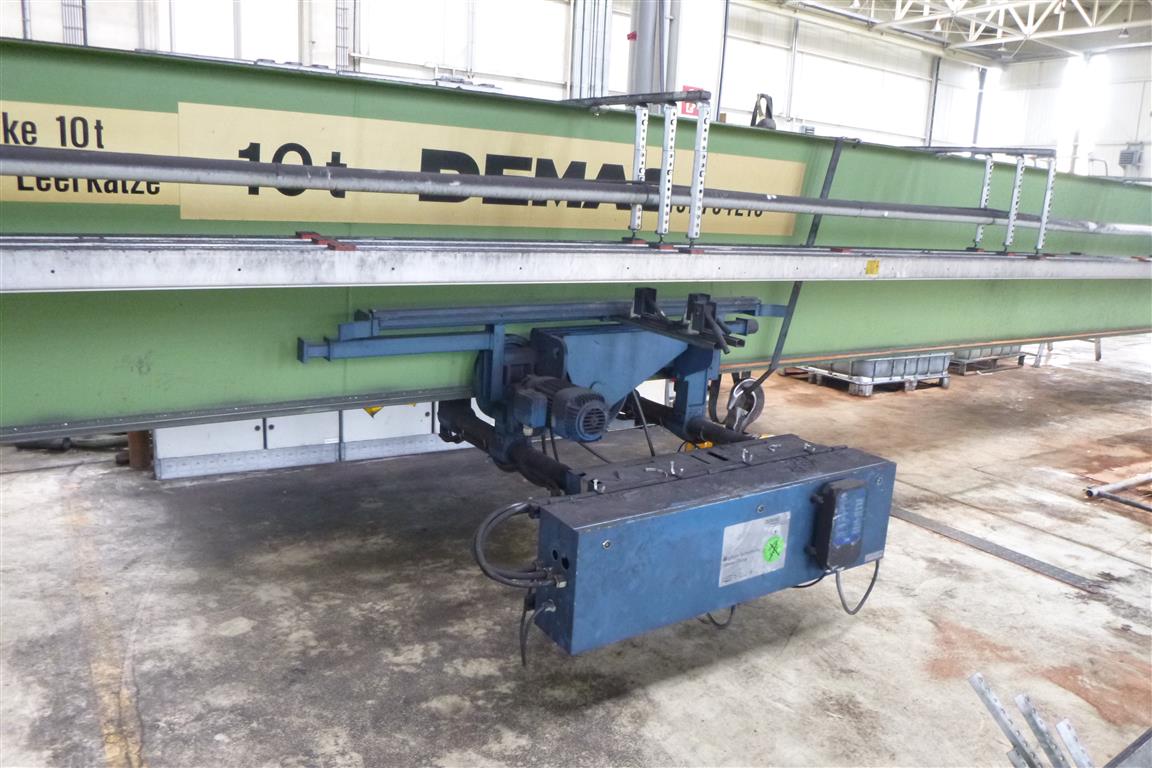

Crane trolley: designation RF 400; type KBF 112 A8/2, travel speed 12,5 / 50,0 m/min. and type KBF 89 A4, travel speed 2,5 m/min.
Size of travel wheels Ø 200mm (16 pieces)

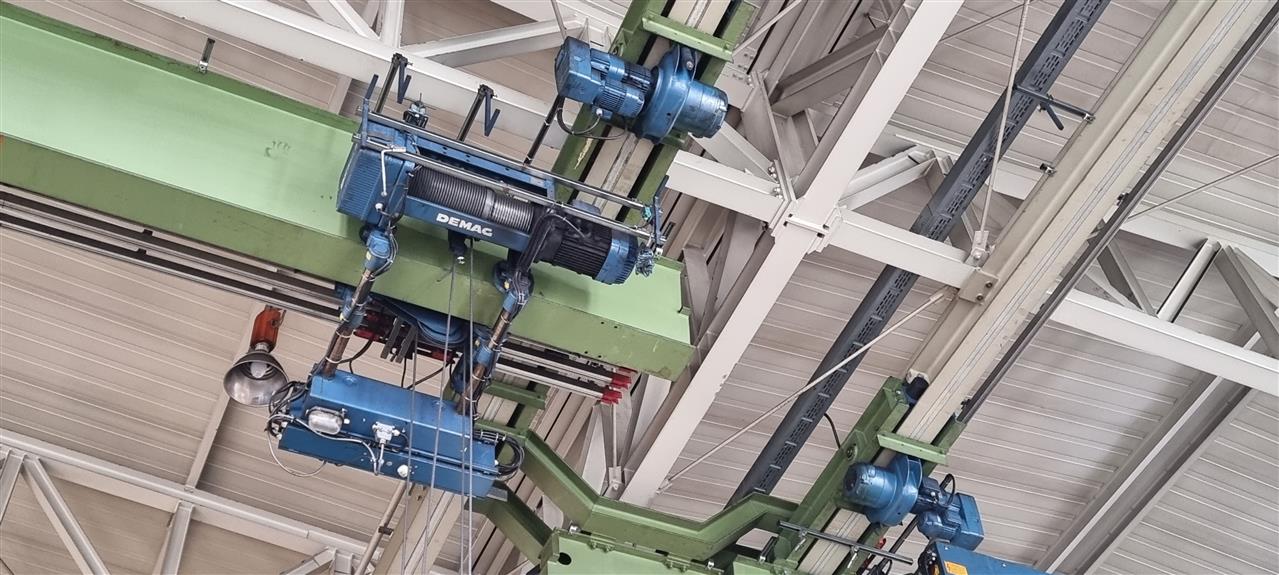

trolley main hoist EKDH 525 H20 KV3-4/1 F10; type KBF 80 A8/2; speed 20,0 / 5,0 m/min.; size of travel wheels Ø 160mm (4 pieces)

Hoisting gear: type KBH 160 B2/12; lifting height 10.000 mm; braked with sliding runner; lifting speed (main stroke 6,3 m/min. and fine stroke 1,0 m/min.)

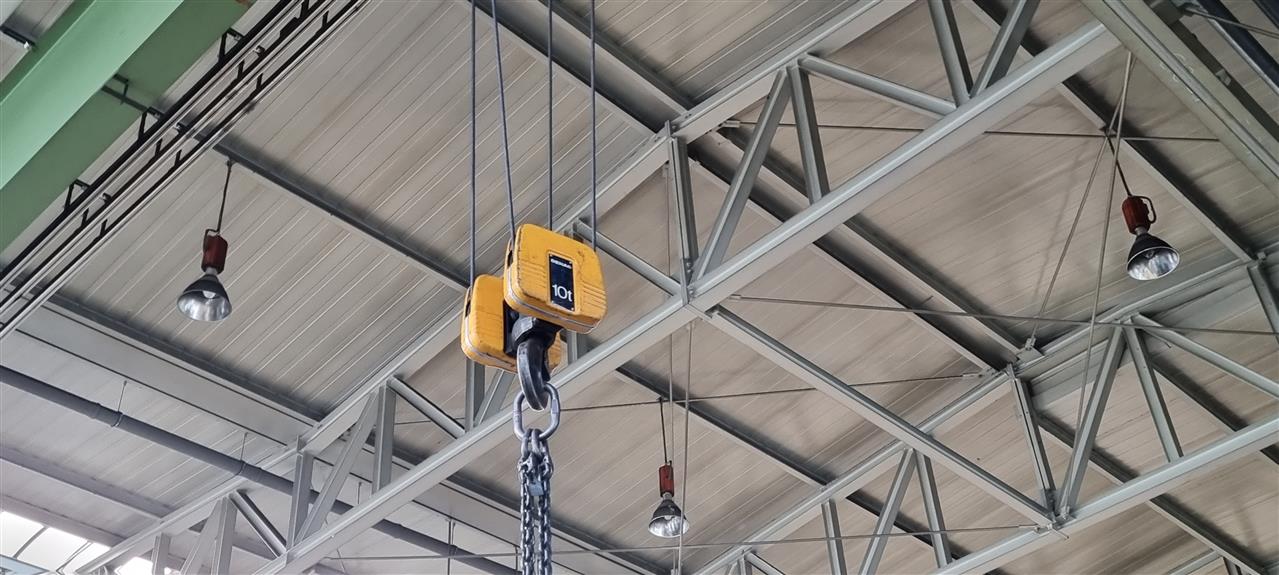

Single hook size 5.0
rope Ø 14mm; rope length 46m; drive group FEM 1 AM

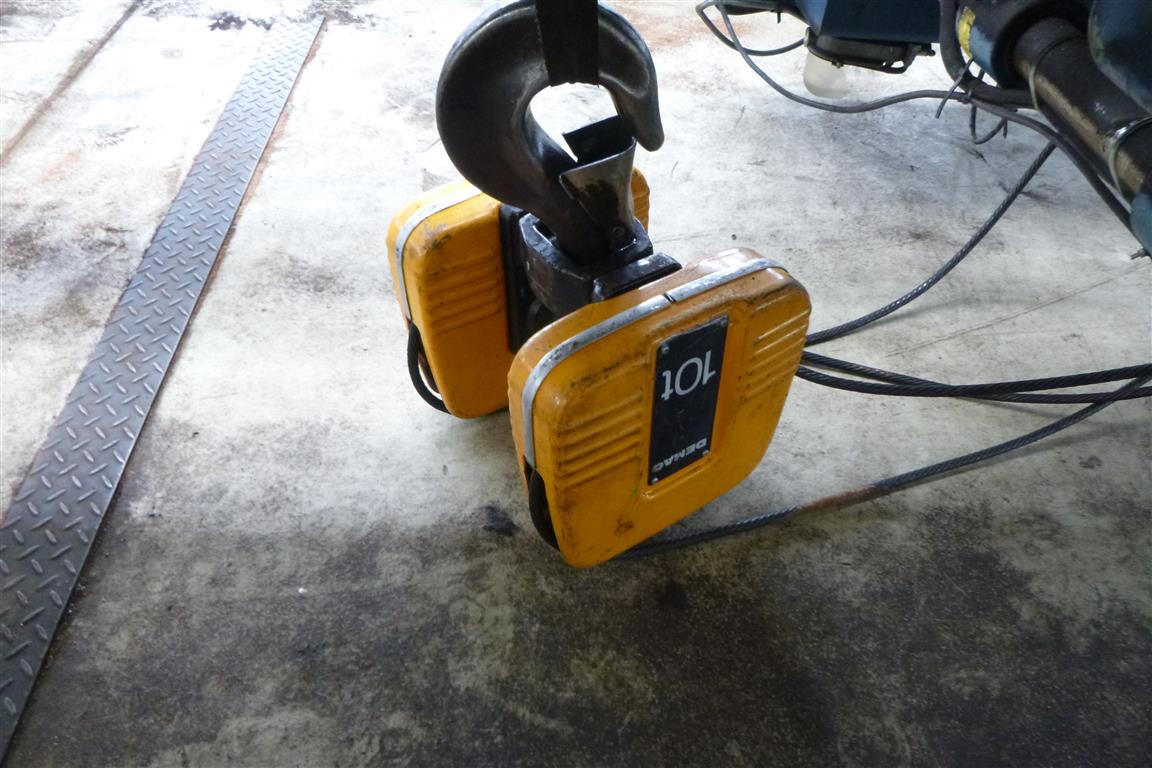

Operation via pushbutton pendant control with DST
Special feature: crossover piece with interlock and stitch tracks
