Plant for Candle Production (1210003)


stock-no.: 1210003
type of machine: Plant for candle production
make: type: year of manufacture: 2004
type of control: NC
country of origin: Germany
storage location: Leipzig 1
delivery time: immediately
freight basis: Ex location
-free loading price: on request

technical details:
candle diameter: 21 mm
candle length: 300 mm
capacity: 1872 Stück/h
clock cycle: 13 sec.
heating-up temprerature: 70 - 120 °C
candle material: Paraffin/Stearin
control: Siemens S 5
dimensions of the machine approx.:L:24 xW: 2 xH: 5,2 m

additional information:

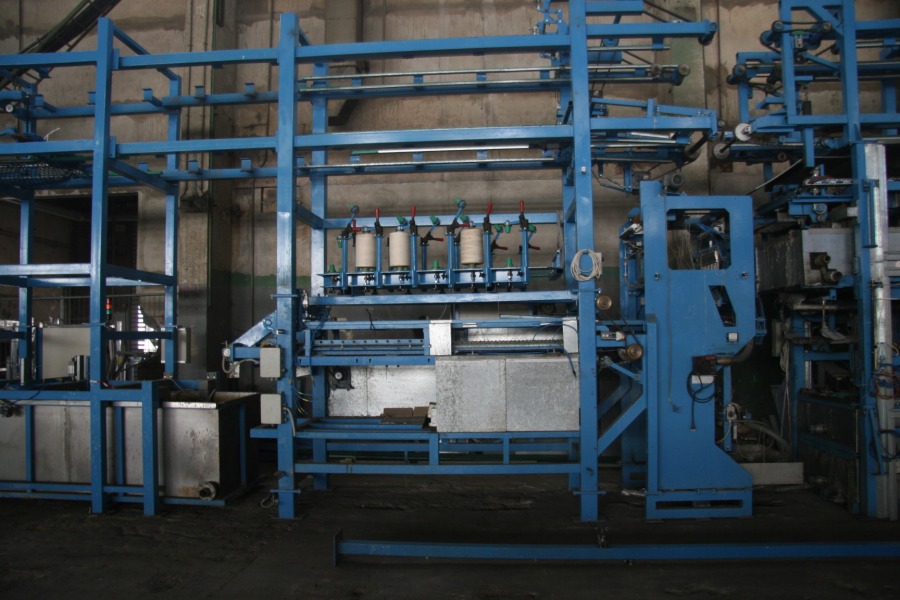

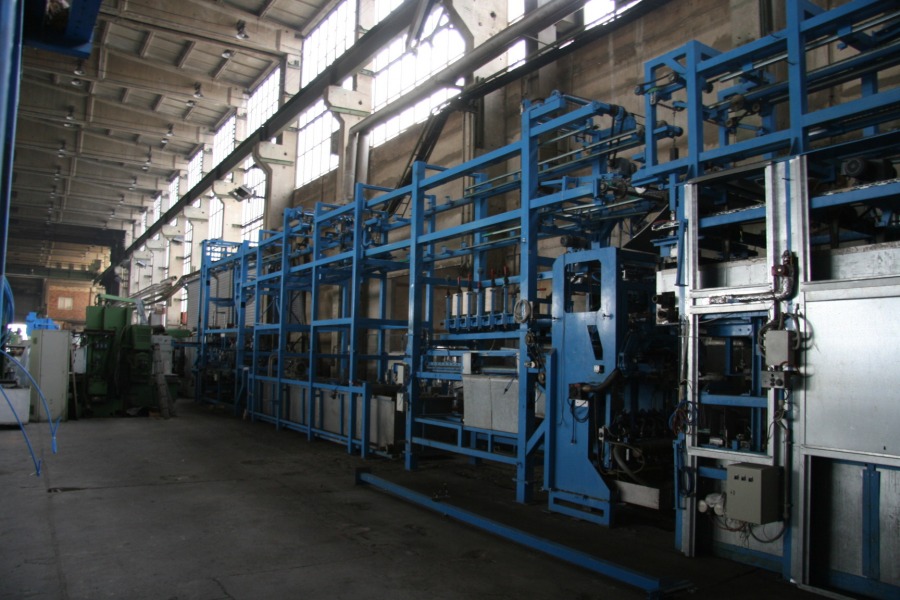

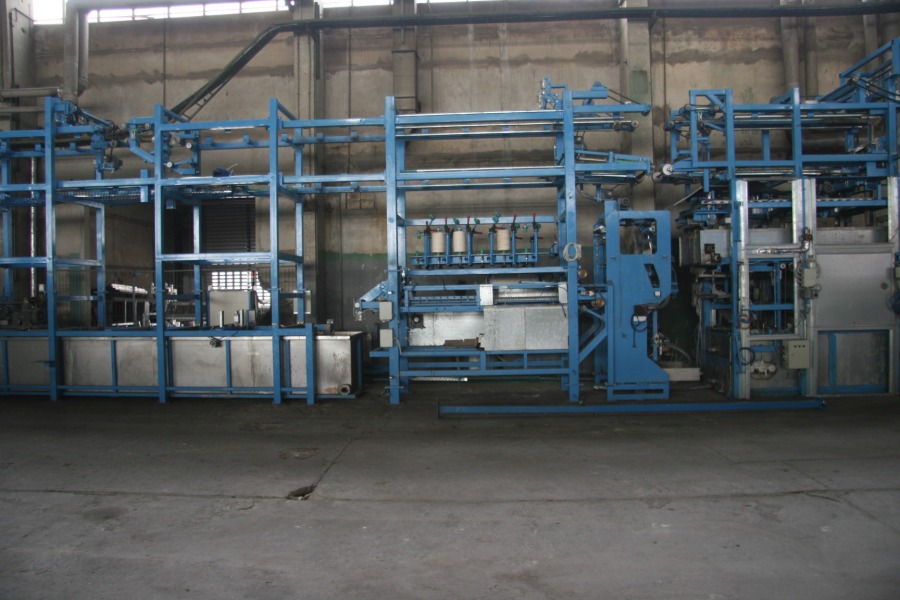

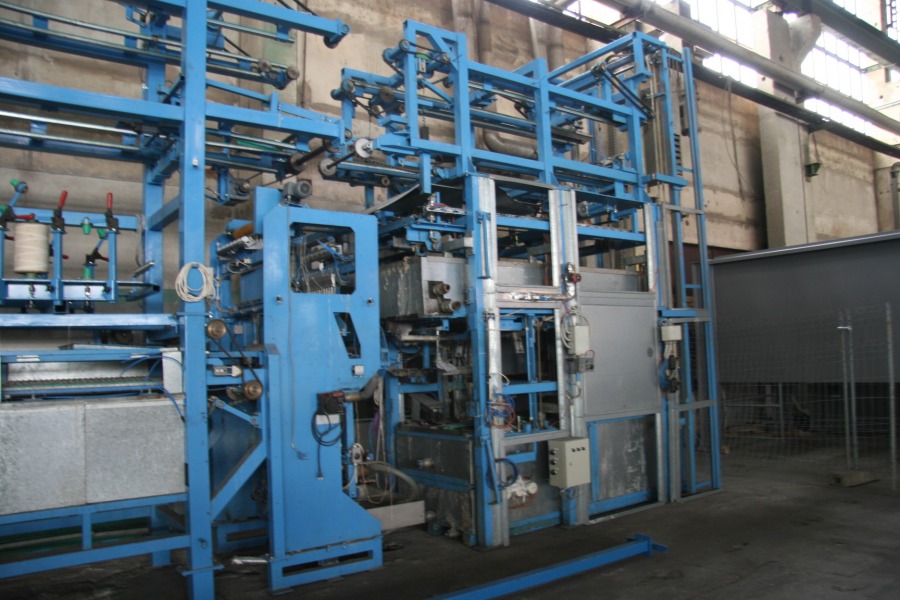

PLANT FOR CANDLE PRODUCTION. The unit is applied for the production of parafin /stearin candles ,after casting process with a high automation degrees.Multi colour candles can be manufactured and equipped with different molding boxes (e.g. cylindrical board candles or pointed candles) production capacity: for max. theoretical maximum performance of 1872 pcs./h with minimum cycle time of 23 seconds per molding box with 12 candles with 300mm pointed candles and board candles of the diameter are enough a 21mm, continuous operation approx.. 1200 units/h

Technical details and information subject to amendments and errors.
