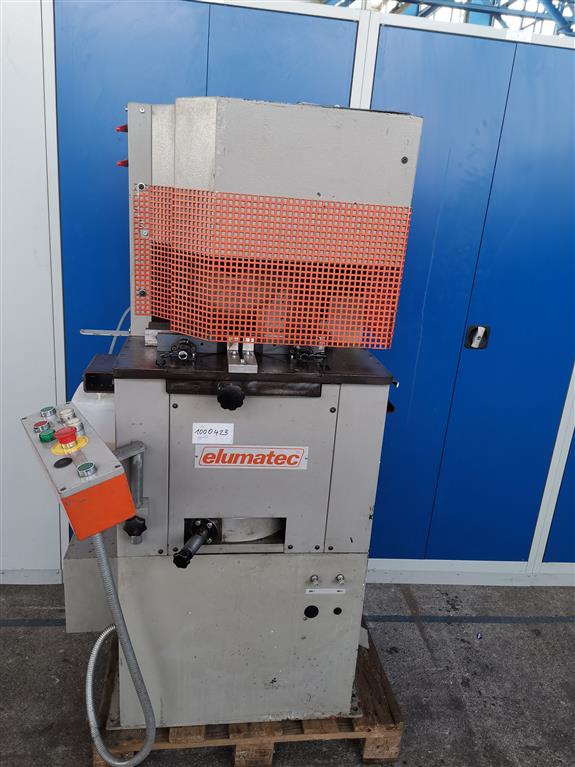

Cold Circular SawCold Circular Saw Elumatec GLS 191

Cold Circular Saw Elumatec GLS 191Cold Circular Saw Elumatec GLS 191Cold Circular Saw Elumatec GLS 191Cold Circular Saw Elumatec GLS 191Cold Circular Saw Elumatec GLS 191Cold Circular Saw Elumatec GLS 191Cold Circular Saw Elumatec GLS 191Cold Circular Saw Elumatec GLS 191

Offer

stock-no.:
1000423
type of machine:
Cold Circular Saw
make:
Elumatec
model:
GLS 191
year of manufacture:
nicht bekannt
type of control:
conventional
country of origin:
Germany
freight basis:
EXW, free on truck unpacked
storage location:
Leipzig 1
delivery time:
immediately
price:
on request

technical details

Saw blade diameter:
300 mm
cutting diameter:
mm
feed::
m/min
range of rpm - spindle:
2800 U/min
total power requirement:
kW
mitre cuts -/+ degrees:
45
table-size:
260 x 600 mm
compressed air:
7 bar
weight of the machine approx.:
kg

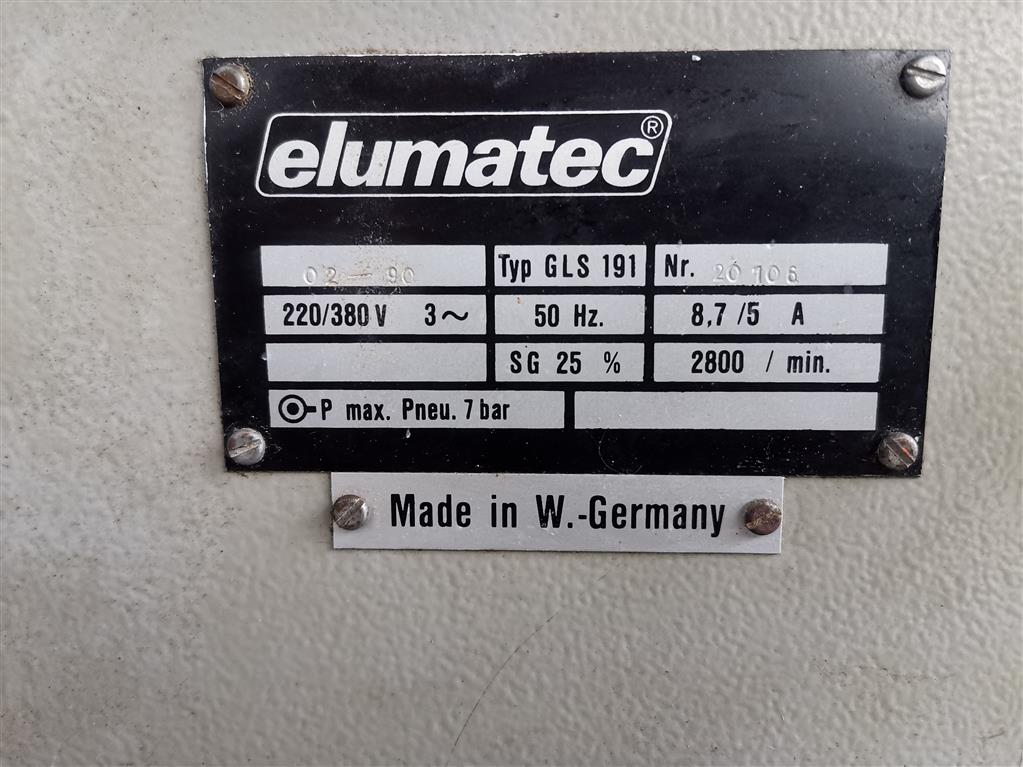

voltage:
220 / 380 V V
dimensions of machine:
0,8 x 1,0 x 1,5 m
output:
4,5 KW

additional information

For miter work of AL -profiles (window frames) in 45° angle range, automatic.
2 pieces of saw blades (1x underfloor and 1x overfloor)
in cutting range right/left 45° = cutting depth 70mm , straight 90°.

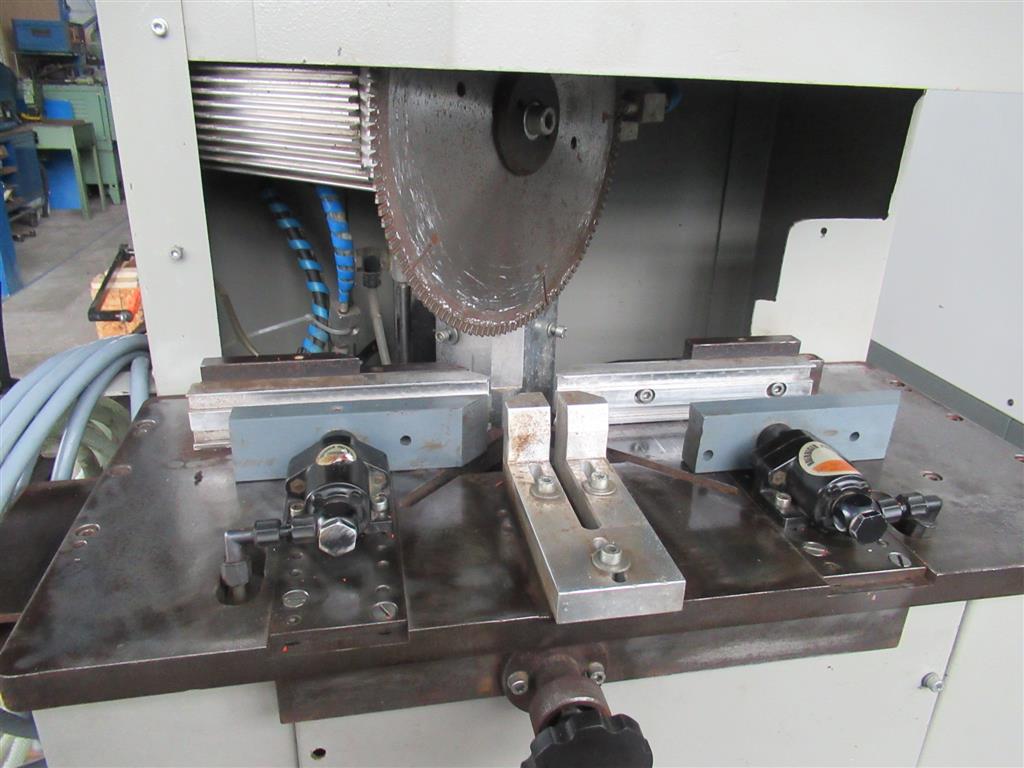

Workpiece clamping right/left with 2x clamping cylinders pneumatic, 1x contact jaw fixed and 1x clamping jaw flexible
Blow-off device
compressed air hose approx. 9 meters
current: 9A
Connection: CEE 16A
