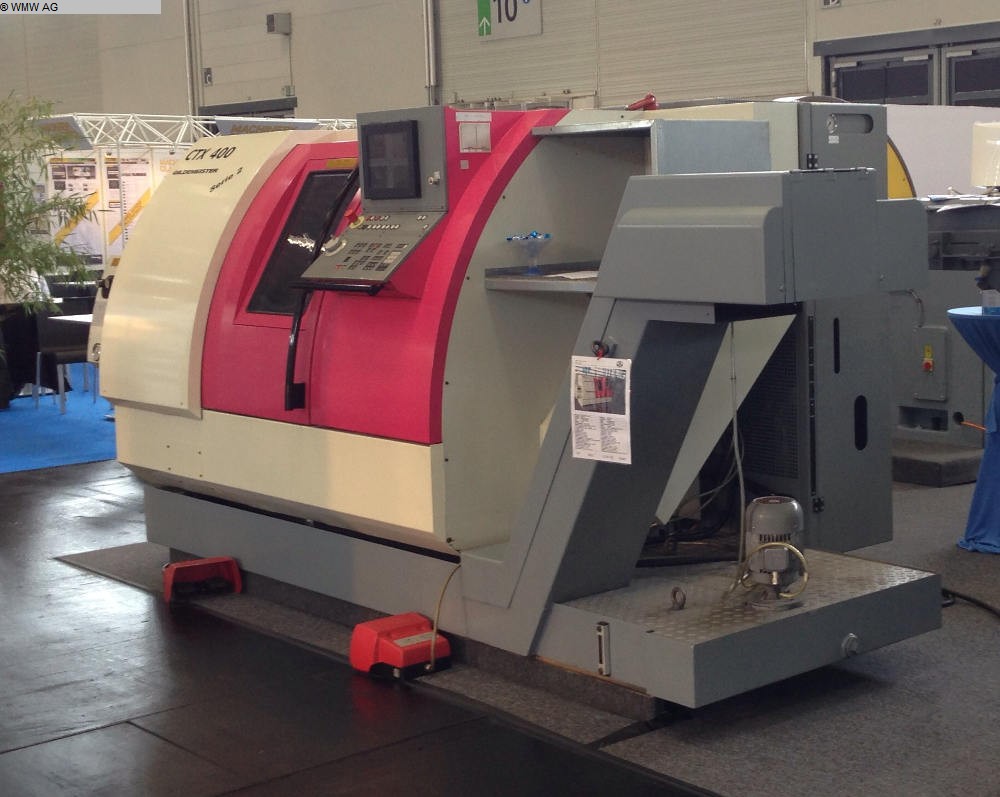

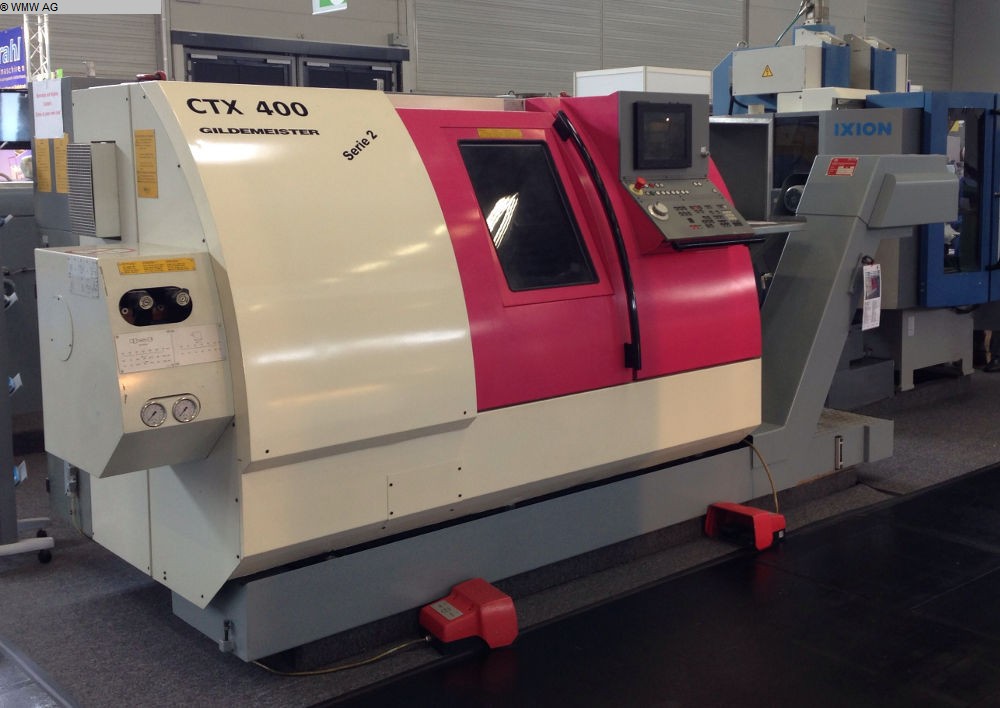

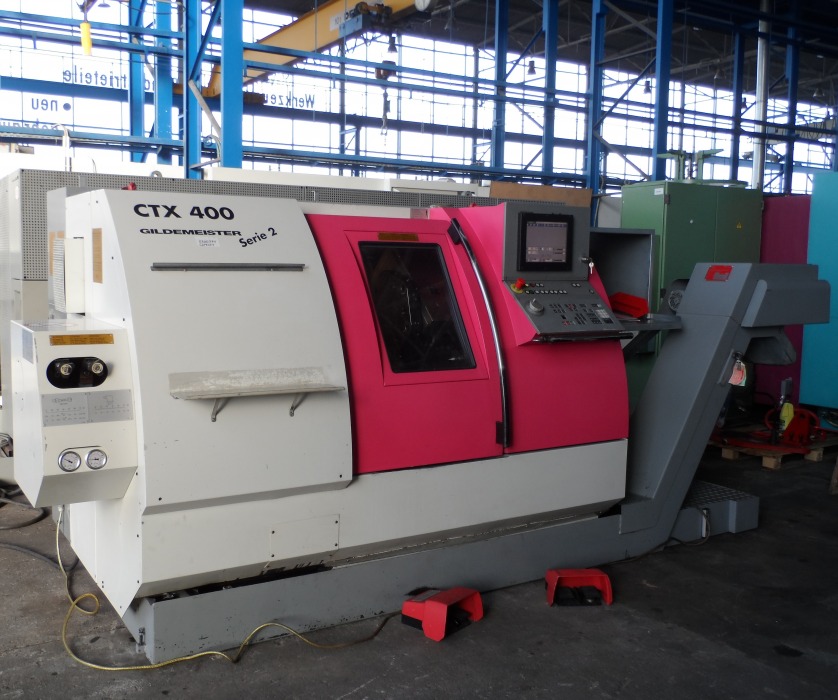

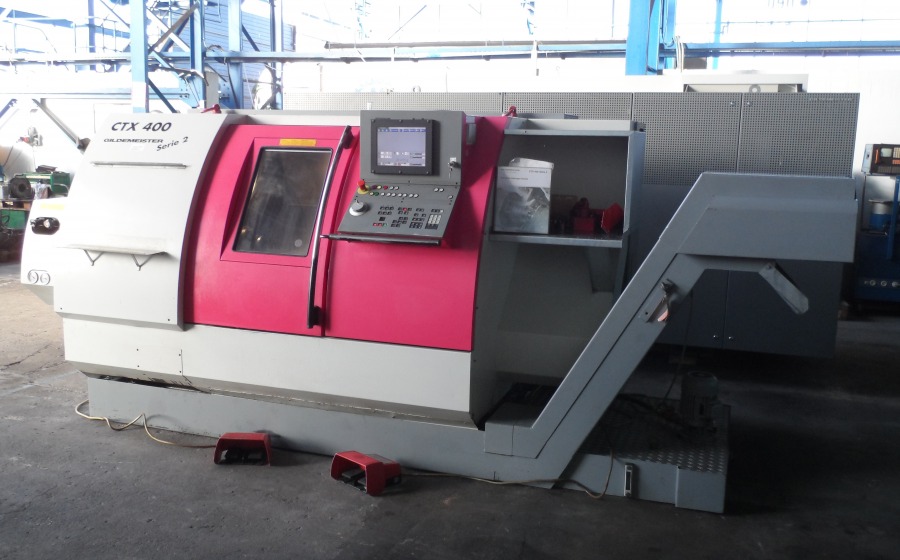

GILDEMEISTER CTX400 Serie2
CNC Lathe | Stock number: 0300541
Unfortunately, the machine has already been sold.
Machine data
- Machine type
- CNC Lathe
- Manufacturer
- GILDEMEISTER
- Type
- CTX400 Serie2
- Year of manufacture
- 1998
- Control type
- CNC
- Country of origin
- Federal Republic of Germany
Technical data
- turning diameter over bed
- 570 mm
- turning dia. over face-slide
- 420 mm
- turning length
- 635 mm

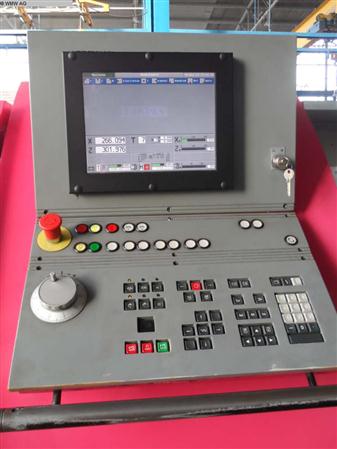

- control
- HdT PILOT 3190 Heidenhain
- spindle head
- 170h5
- spindle bore
- 79 mm
- turning speeds
- 25 - 5000 U/min
- rapid traverse X-axis
- 20 m/min
- rapid traverse Z-axis
- 24 m/min

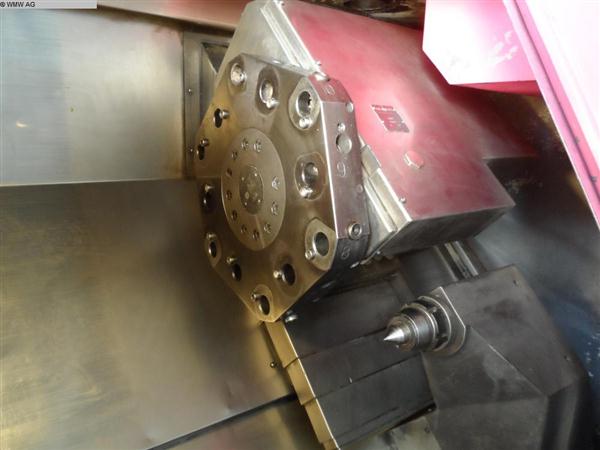

- tool turret - number of stations
- 12

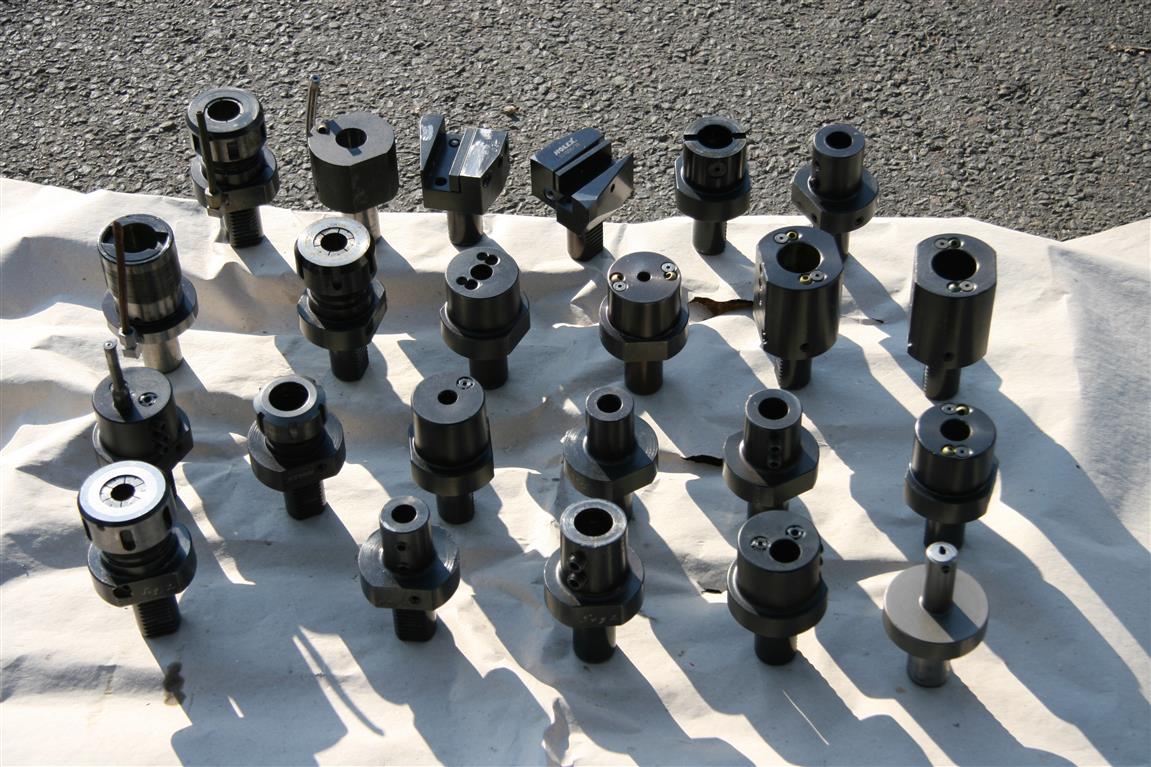

- tool taper - diameter
- VDI 30 (DIN 69880) mm
- tailstock adjustment
- 550 mm
- tailstock taper MT
- 4
- power capacity at 100 % load
- 21 kW
- operating hours - idle run
- 27335 h
- total power requirement
- 44 kVA
- weight of the machine ca.
- 5,5 t
- dimensions L x W x H
- ca. L:4,3 x T:1,8 x 2,0 m
Additional description
inclined bed typ CNC Lathe
equipment:

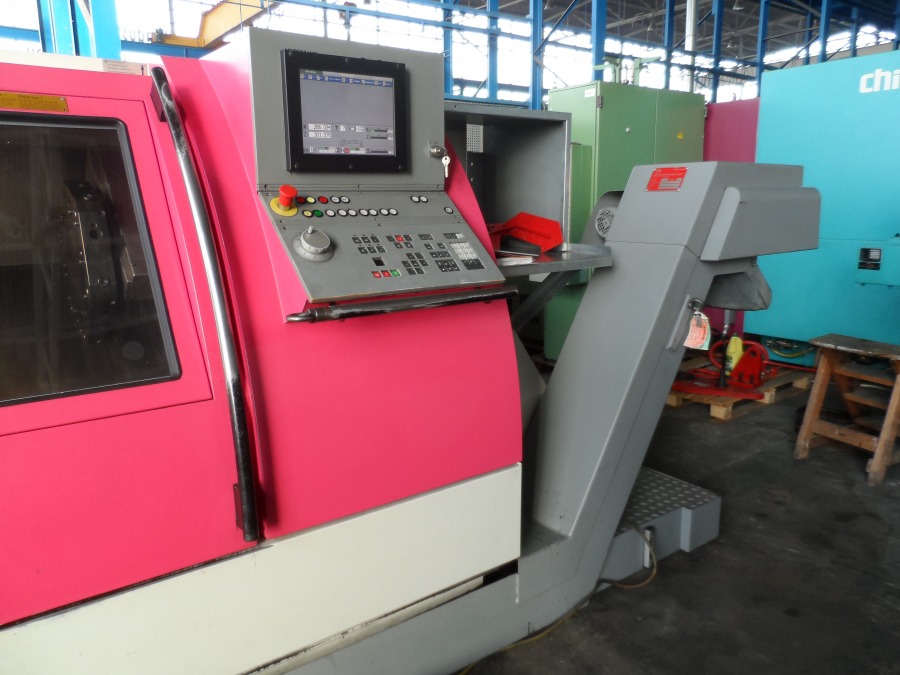

- swarf conveyor Bürener Type SPE 63/30-225 (4,0x1,3x1,6m)

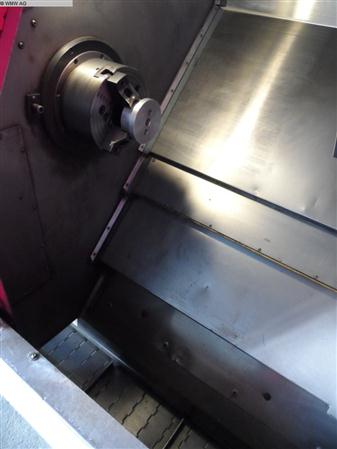

- 3-jaw chuck Ø 200 mm
- tailstock
-coolant device
- clamping cylinder
displayed hours are operation hours
Machine can be demonstrated under power
Terms of storage and delivery
- Freight base
- EXW -free on truck
- Storage location
- Leipzig 1
- Delivery time
- immediately
- Price
Subject to changes and errors in technical details and specifications, as well as prior sale.
