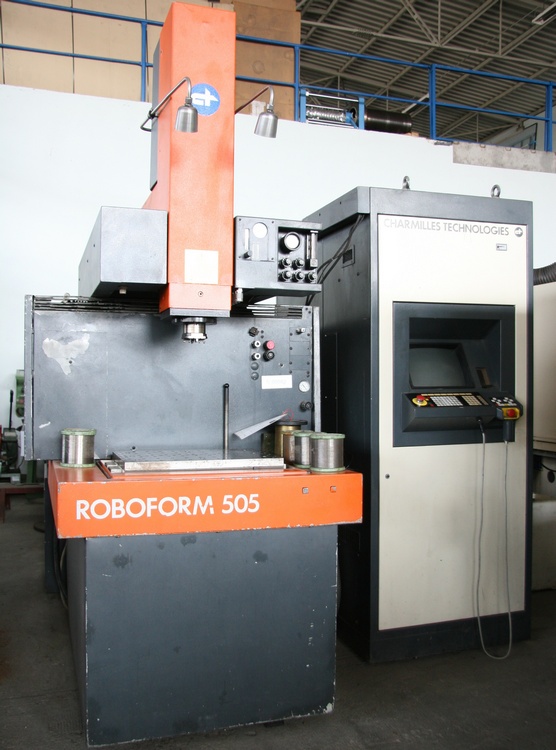

CHARMILLES TECHNOLOGIES ROBOFORM 505
Cavity Sinking EDM - Machine | Stock number: 1200002
Unfortunately, the machine has already been sold.
Machine data
- Machine type
- Cavity Sinking EDM - Machine
- Manufacturer
- CHARMILLES TECHNOLOGIES
- Type
- ROBOFORM 505
- Year of manufacture
- 09/1992
- Control type
- CNC
- Country of origin
- Germany
Technical data
- table length
- 560 mm
- Table width
- 380 mm
- ampere
- workpiece weight
- max:350 kg
- x-axis
- 350 mm
- y-axis
- 250 mm
- z-axis
- 300 mm
- generator - rated current
- 64 A
- workpiece height
- 200 mm
- electrics - voltage/frequency
- 380/50 V/Hz
- spindle nose
- (ohne Futter) 540 mm
- total power requirement
- 9,5 kW
- weight of the machine ca.
- 2,4 t
- space requirements of the machine approx.
- 2,05 x 3,3 x 2,50 BxLxH m
Additional description
SPARK EROSION CAVITY SINKING MACHINE DOCUMENTATION available
- C-type with fixed table

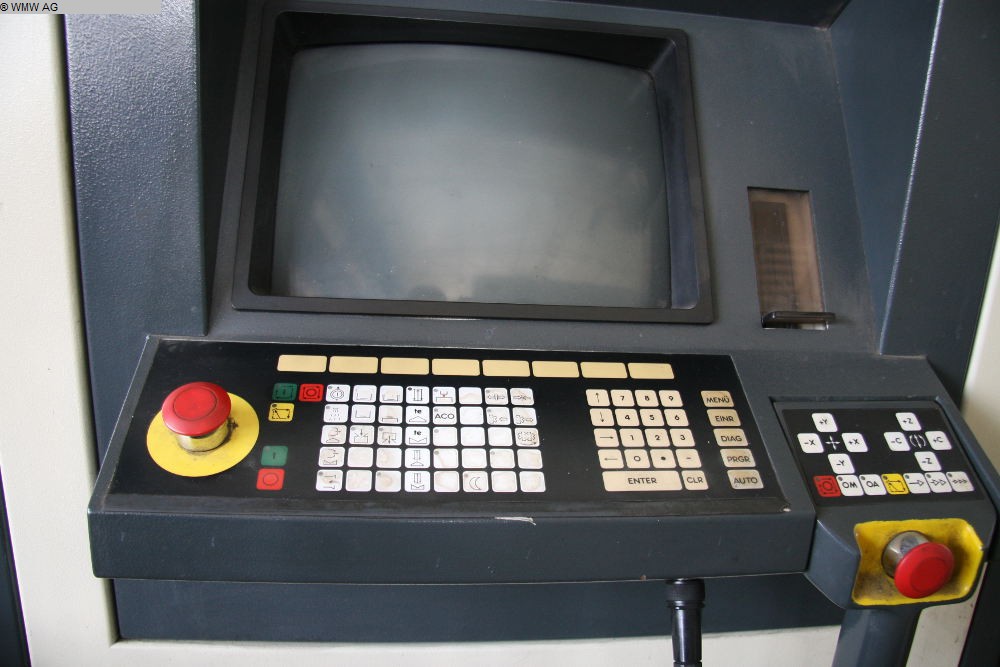

- Control: CNC - Charmilles technologies

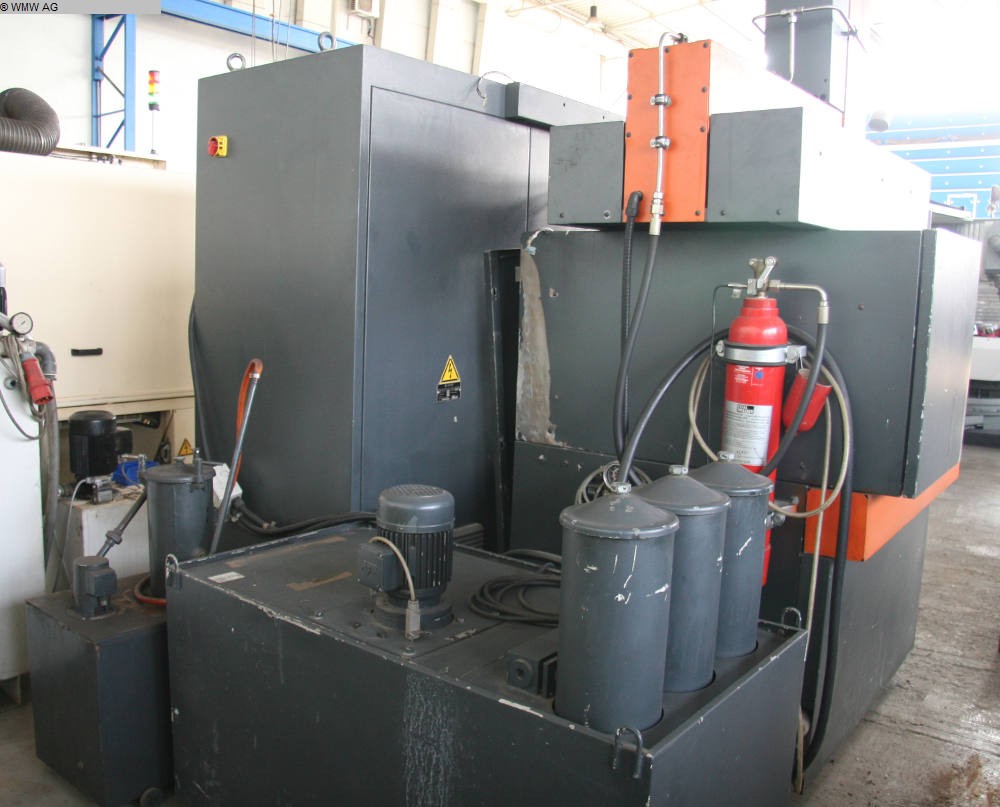

- With preliminary filter, type: PK3-480 and microfilter, dielectric fluid, cumulativ: 480 Liter, delivery volume of the slush pump: 150 l/min.
- separate switchboard
- nominal current: 380V; 50 Hz frequency
- size of spanner: 540 mm

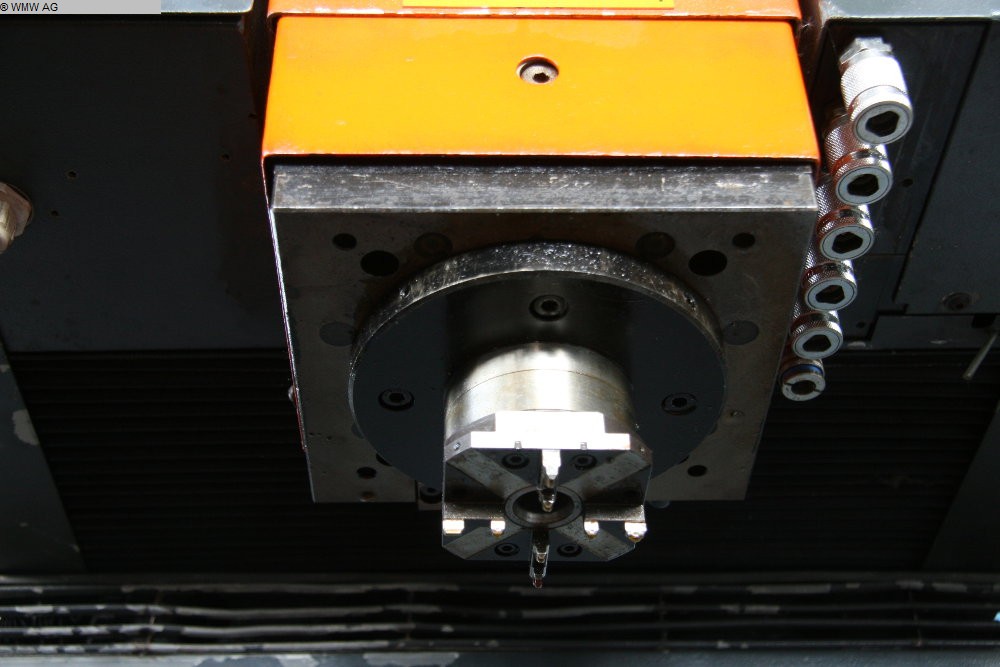

- working head: die carrier L/B=210/200 mm
- sleeve stroke: 300 mm
- feed rate: max. 1000 mm/min.
- distance betw. head and table: max. 540 mm, min. 240 mm

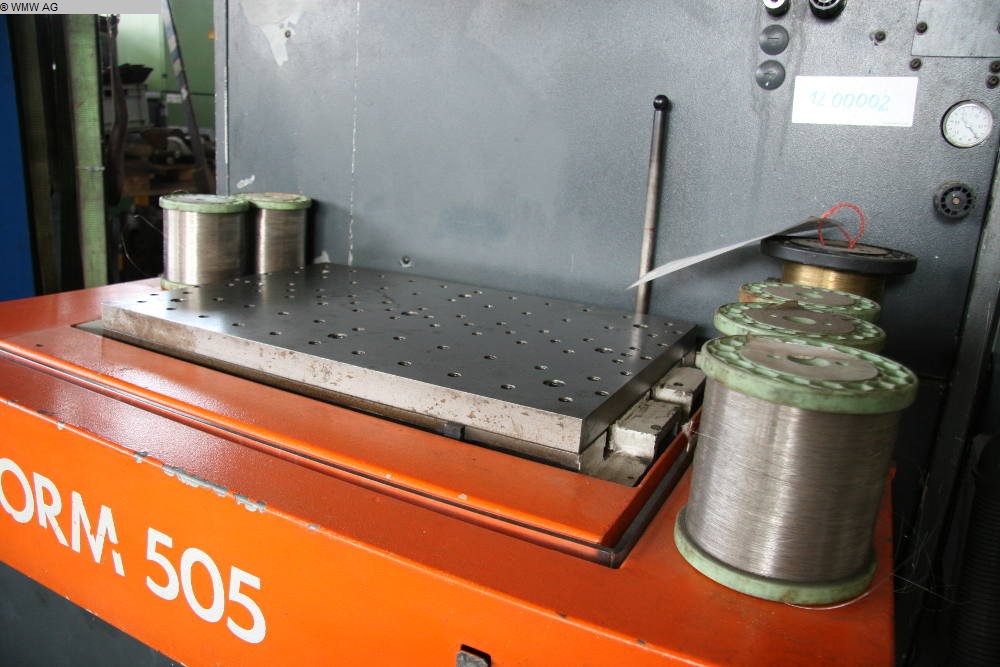

- fixed table: table area=L/B: 560/380 mm with 3 T-Slots
- 1 pc.extinguishing system
- machine lamps
Price "as is" untested, spare part donater.
Terms of storage and delivery
- Freight base
- EXW, free on truck unpacked
- Storage location
- Leipzig 1
- Delivery time
- immediately
- Price
Subject to changes and errors in technical details and specifications, as well as prior sale.
