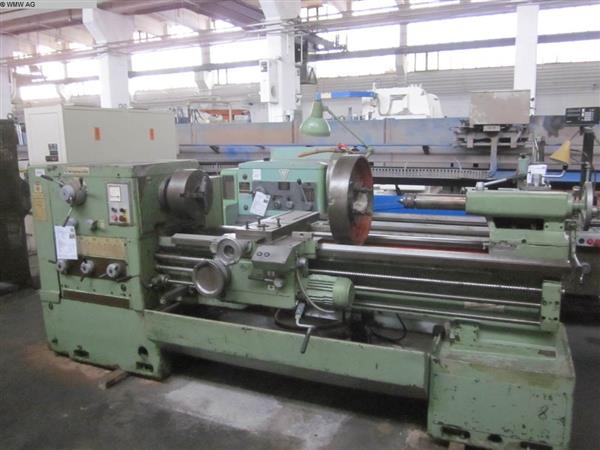

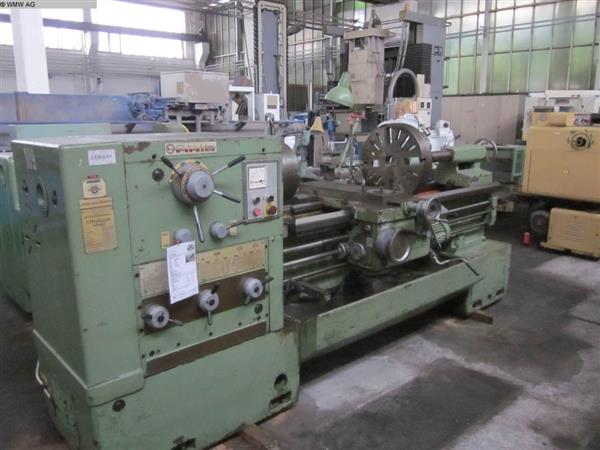

Center Lathe STRUNGURI ARAD SNA 500x1500

Offer

stock-no.:

0300680

type of machine:

Center Lathe

make:

STRUNGURI ARAD

model:

SNA 500x1500

year of manufacture:

ca. 1980

type of control:

konventionell

country of origin:

Romania

freight basis:

EXW -free on truck

storage location:

Leipzig 4

delivery time:

by agreement

price:

on request

technical details

turning diameter over bed:

500 mm

turning diameter over slide rest:

260 mm

turning dia. in gap:

700 mm

turning length:

1400 mm

throat:

Länge: 300 mm

centre height:

250 mm

spindle turning speed - stepless:

16-1600 / 24 step U/min

feed:

längs: 0,028-5 mm/U

total power requirement:

11 kW

weight of the machine ca.:

4,5 t

dimensions of the machine ca.:

3,3x1,4x1,35 m

additional information

technical details:
support:
biggest plan surface adjustment 320mm
biggets longitudinal adjustment 1430mm
scope of delivery:
1 x 3 jaw chuck dia=310mm
1 x plan surface disc dia. 500mm clamping chicks
tailstock ( taper MK5)
At the moment without upper tool slide and tool holder
