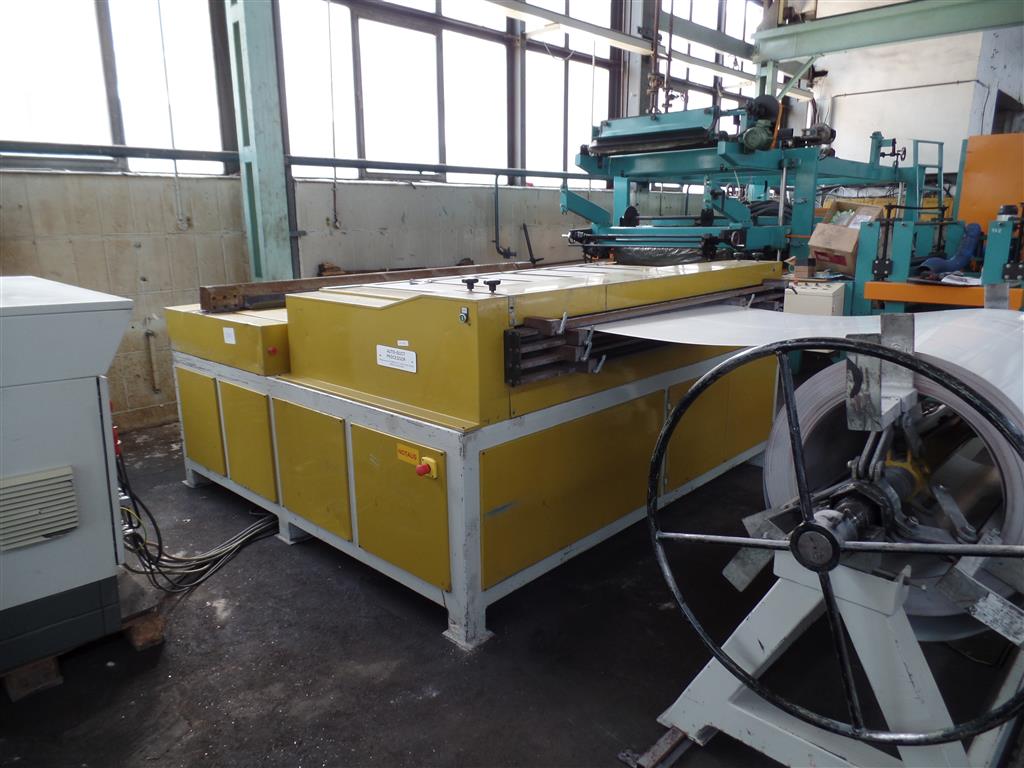

Duct forming machine Firmac Ltd. 2000/4

Offer

stock-no.:

0100028

type of machine:

Duct forming machine

make:

Firmac Ltd.

model:

2000/4

year of manufacture:

1993

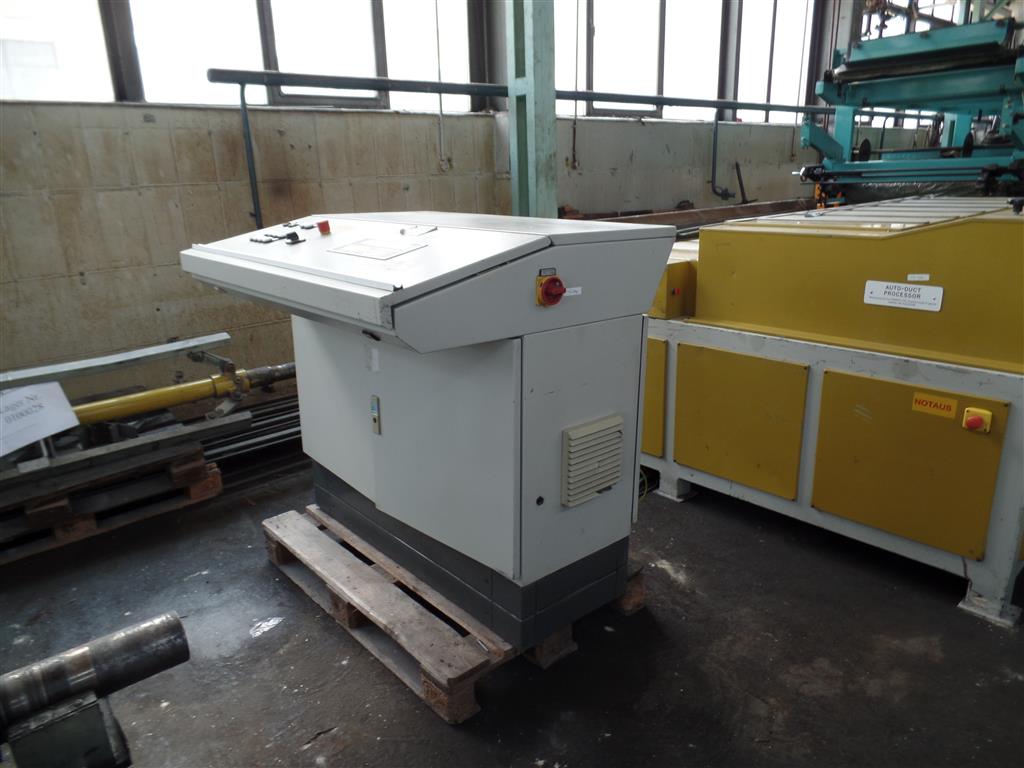

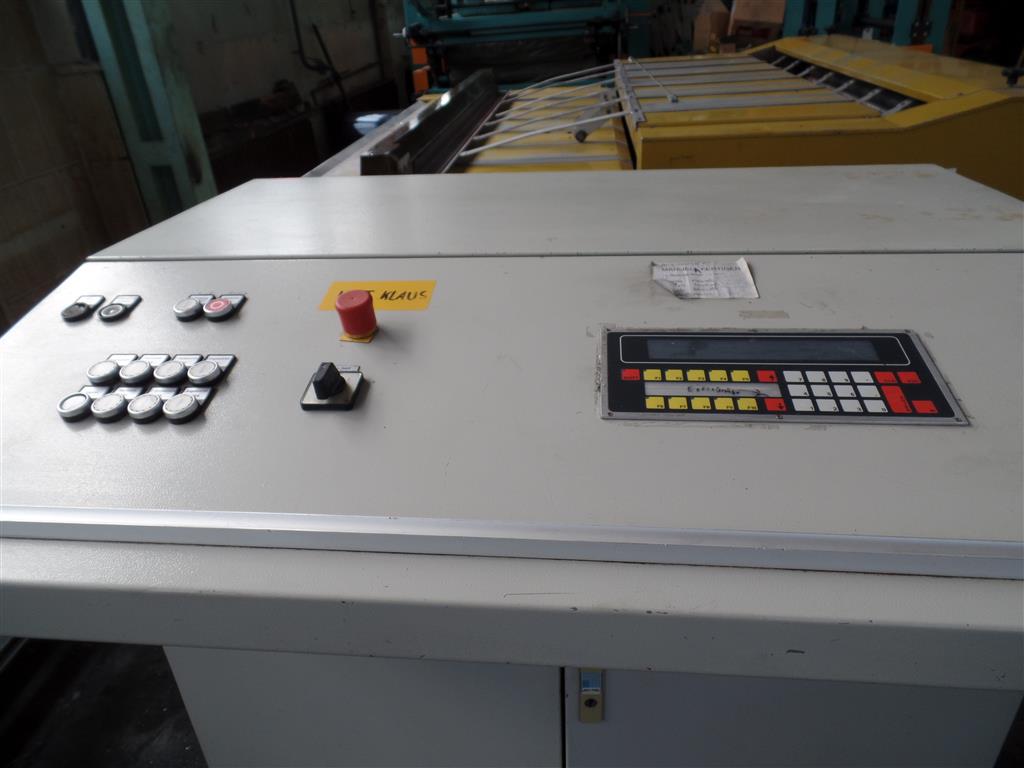

type of control:

conventional

country of origin:

UK

freight basis:

EXW, free on truck

storage location:

Leipzig 4

delivery time:

on request

price:

on request

technical details

sheet thickness - max.:

0,5 - 1,5 mm

Minimum duct dimensions:

125 x 125 mm

coil:

5 Stück/pcs

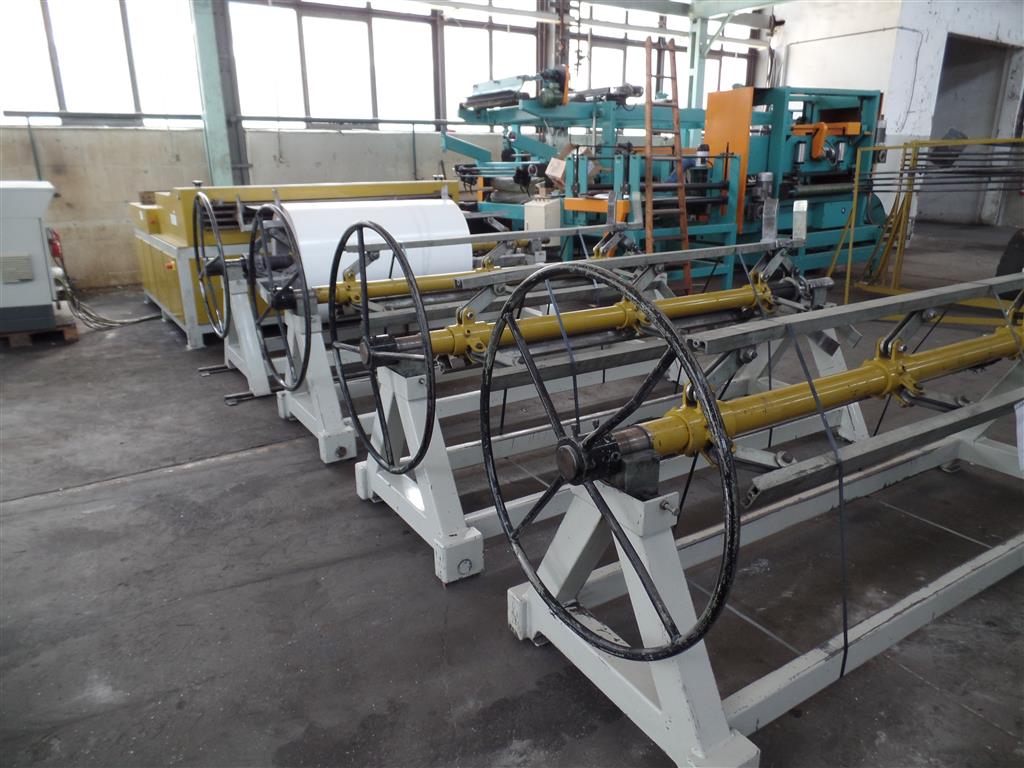

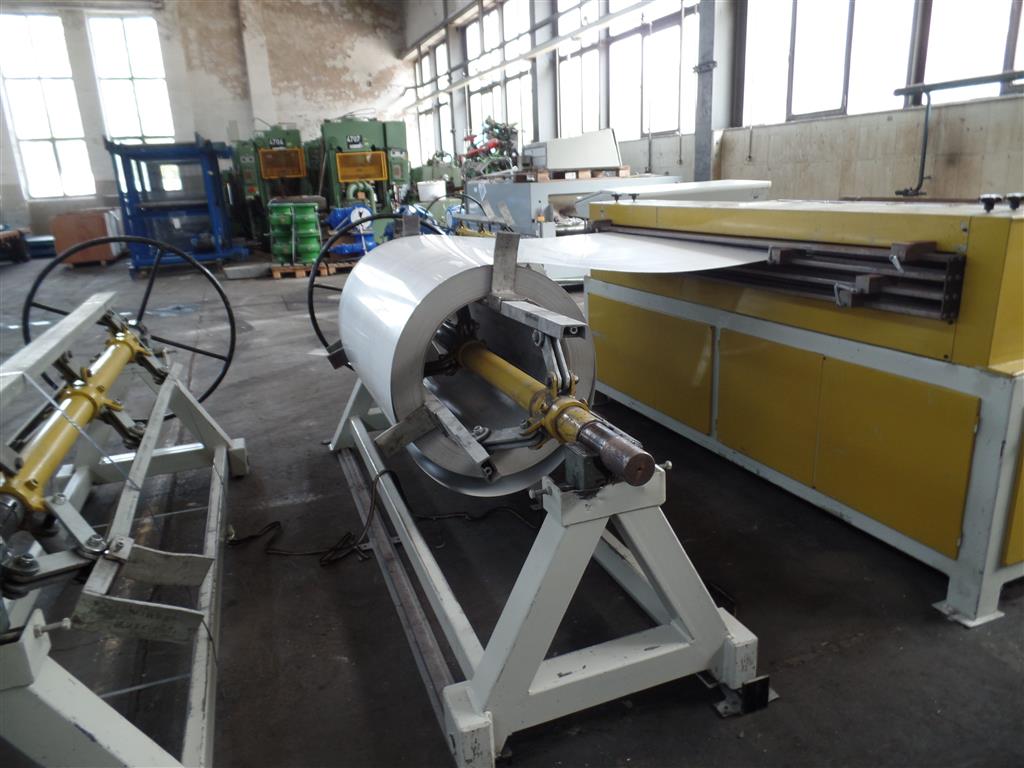

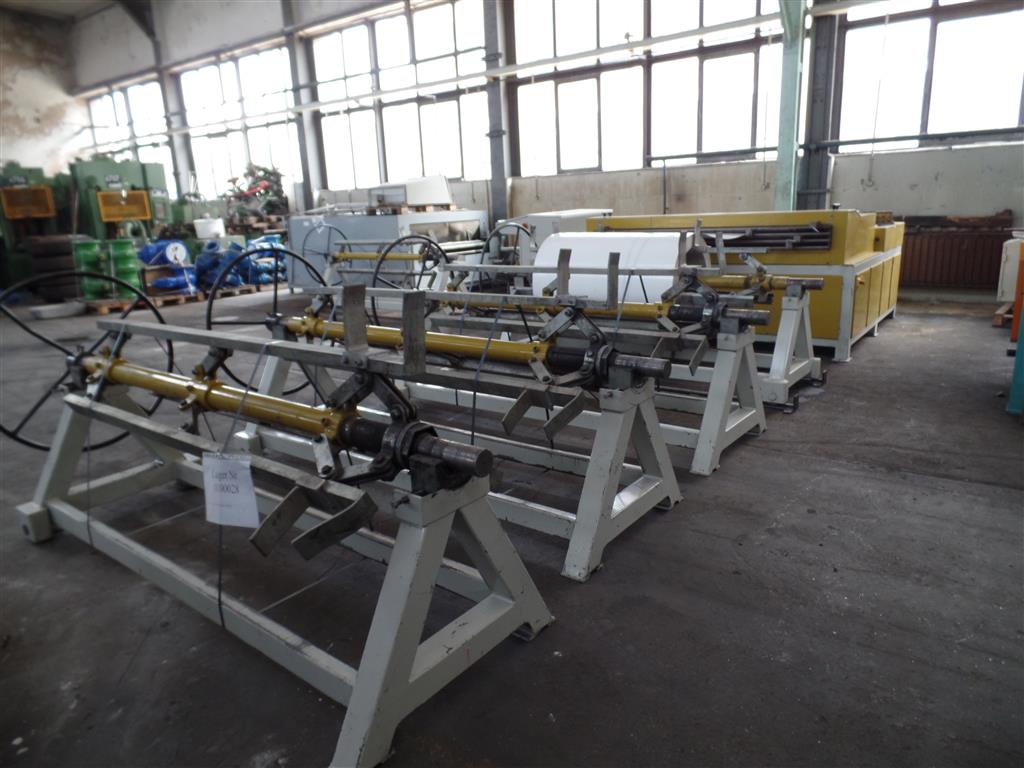

coiler: load capacity:

5 t

coiler: max. width of band:

1500 - 2000 (Coil) mm

Straightening unit, drive unit and Z-beading unit:

siehe unten / see below:

number of driving rolls:

2 Rollen/Rolls

feed travel :

10 mm

distance Z-beading :

150 mm

traversing speed:

max. 15 m/min

folding unit:

90° Grad

additional information

Coil unwinding - straightening - beading - punching - edging - cutting
shear:
longitudinal : 1600 - 2000mm
cutting area: up to : 1,5mm
Kanten: Kantwinkel 90°
