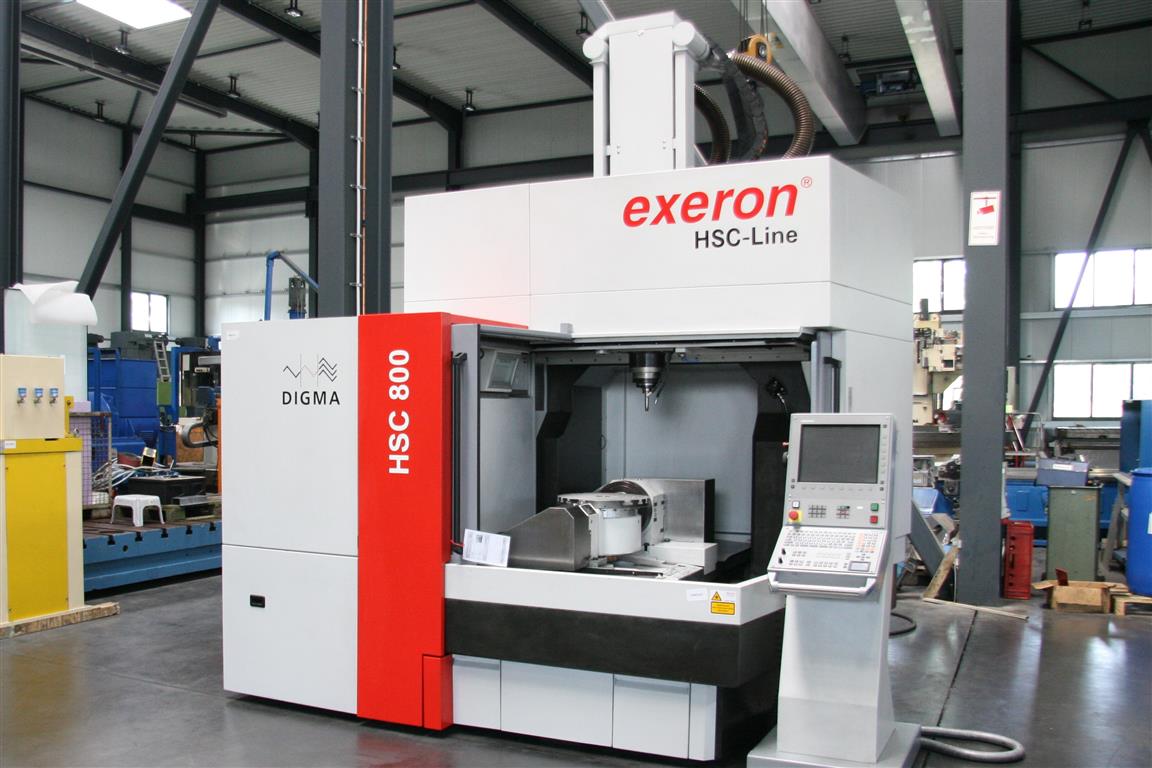

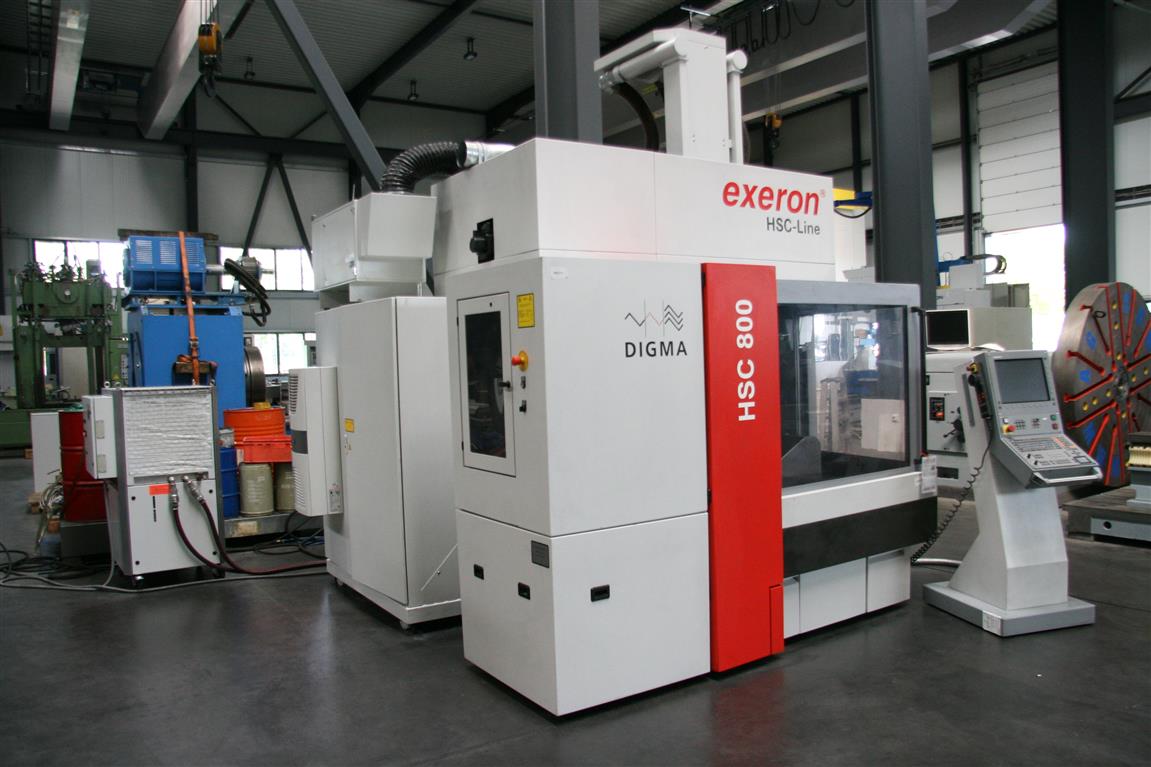

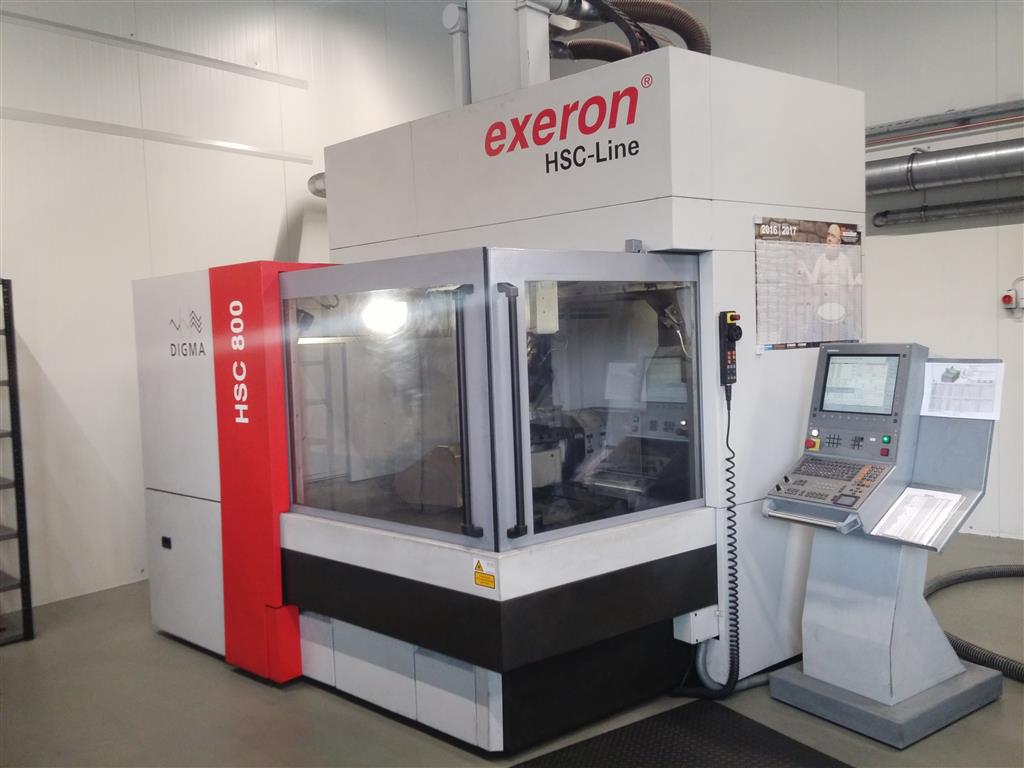

Machining Center - Universal Exeron HSC 800 - 5 Achsen

Offer

stock-no.:

0400545

type of machine:

Machining Center - Universal

make:

Exeron

model:

HSC 800 - 5 Achsen

year of manufacture:

2008

type of control:

CNC

country of origin:

Germany

freight basis:

EXW, free on truck

storage location:

Leipzig 5

delivery time:

immediately

price:

on request

technical details

x-travel:

800 mm

y-travel:

800 mm

z-travel:

500 mm

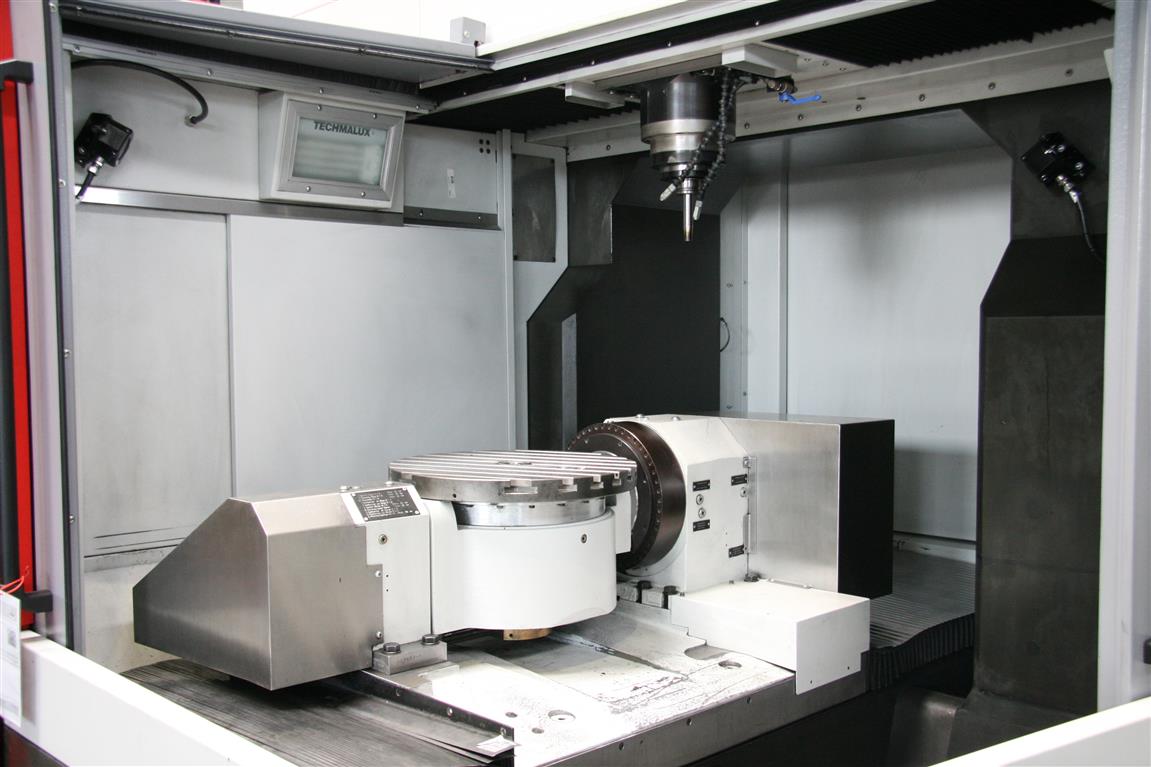

B-axis (table):

schwenken 105° re/li °

U-axis:

(Tisch Rotation) 360 °

control:

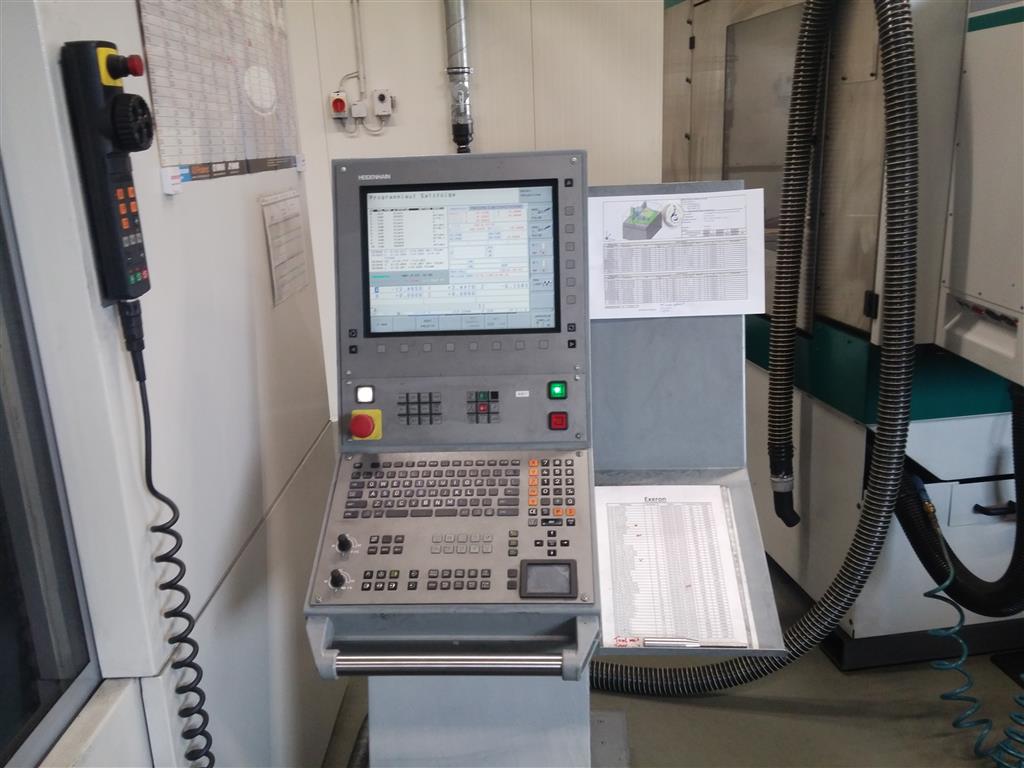

Heidenhain TNC 530i

table surface area:

Ø 460 mm

table load capacity - central/maximum:

200 kg

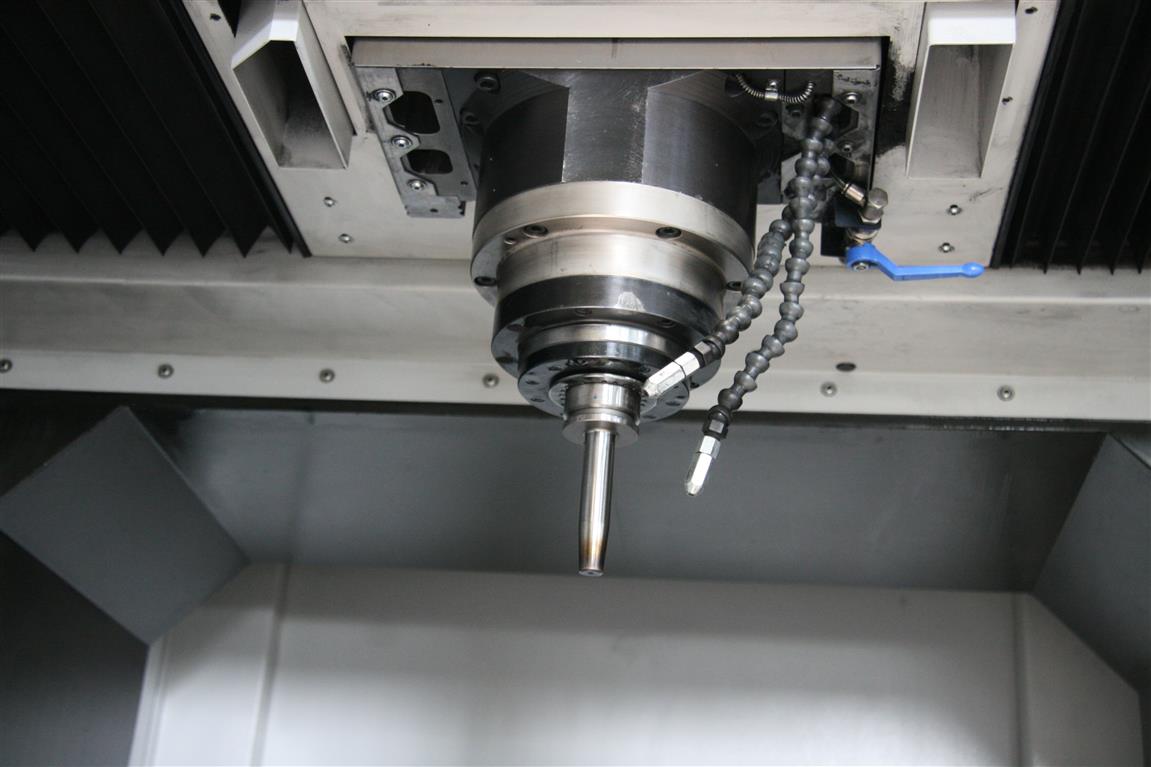

number of spindle speeds:

....40 000 U/min

column: max. dist. table - spindle nose:

650 mm

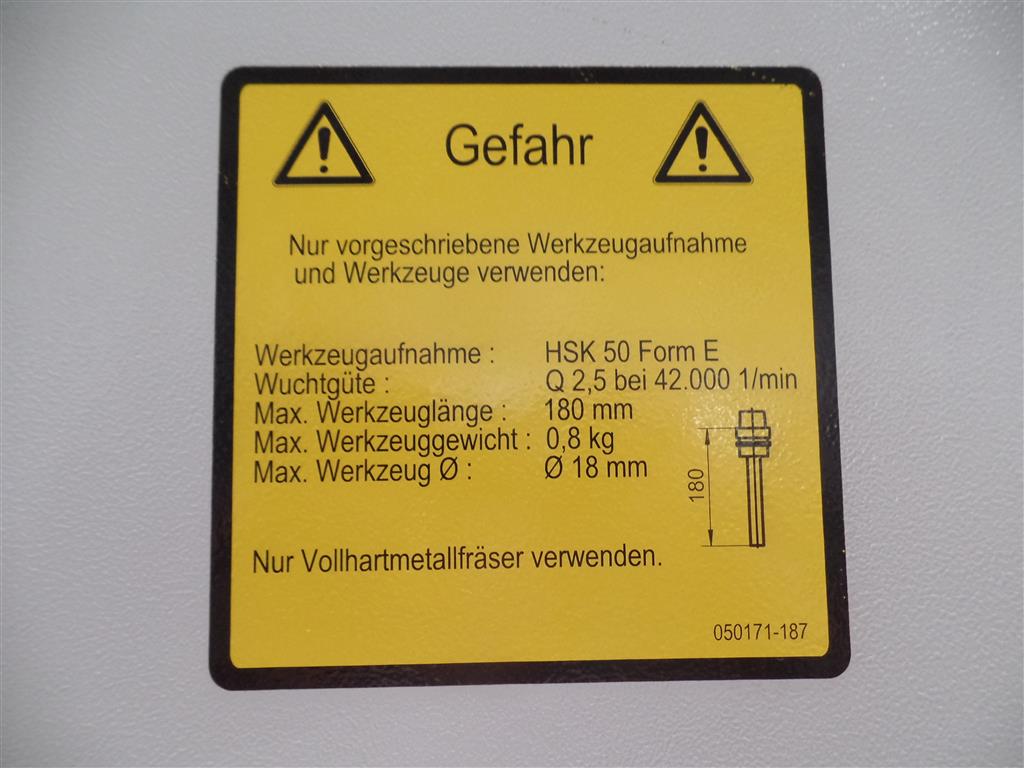

tool taper:

HSK 50 E

tool changer with:

81 places (3 floors/27 tools)

spindle hours:

3 576 (per 30.03.2017) h

operating hours - idle run:

25 060 (per 30.03.2017) h

Number of working hours:

29 635 Steuerung (per 30.03.2017) h

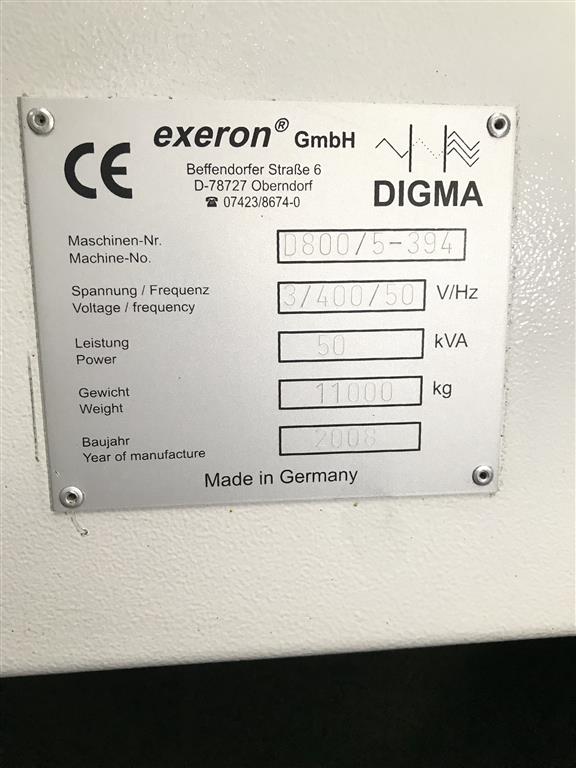

total power requirement:

35 kW

weight of the machine ca.:

11,0 - 12,5 t

space requirement approx.::

L: 3,5 x T: 4,4 x H: 3,3 m

additional information

high speed milling center 5 axis

application area: form milling, thread milling, general milling and fine drilling, high speed drilling, internal grinding, thread grinding
Materials which can be machined: metal, wood, plastic, graphite, glass

further details:
machine bed made of mineral casting ( extreme stiffness)

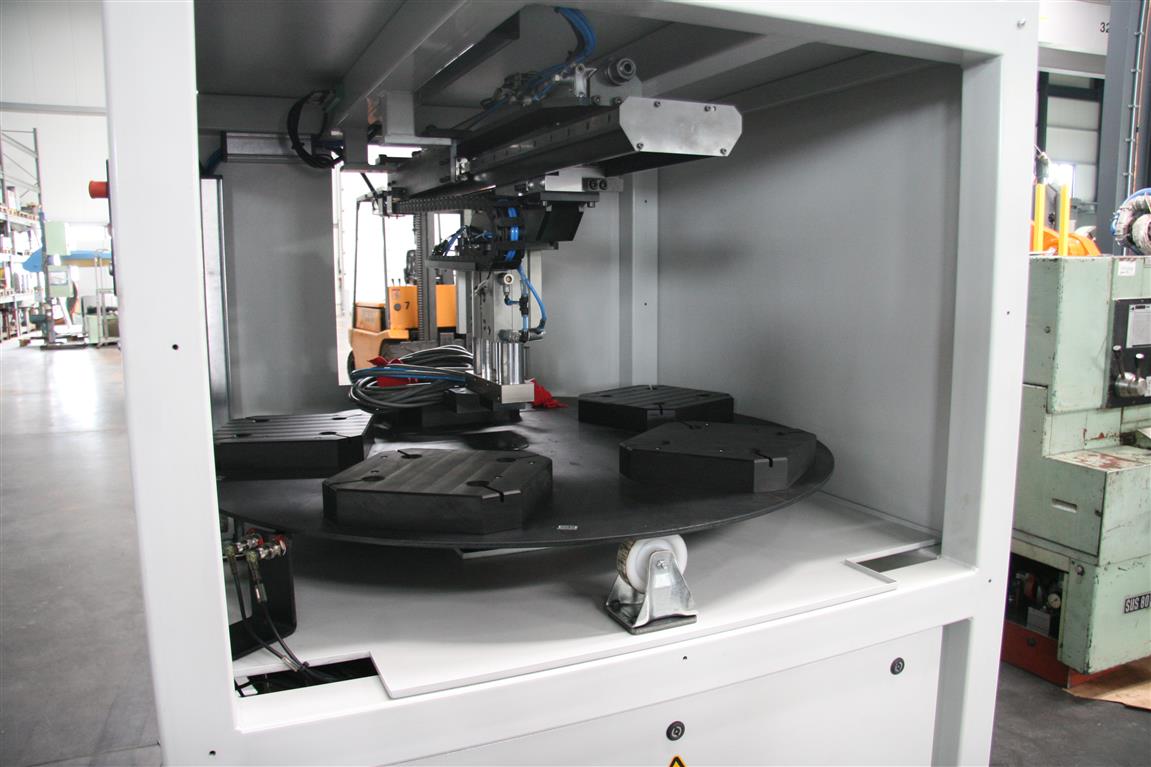

- with 5 times pallet changer
- electric hand wheel

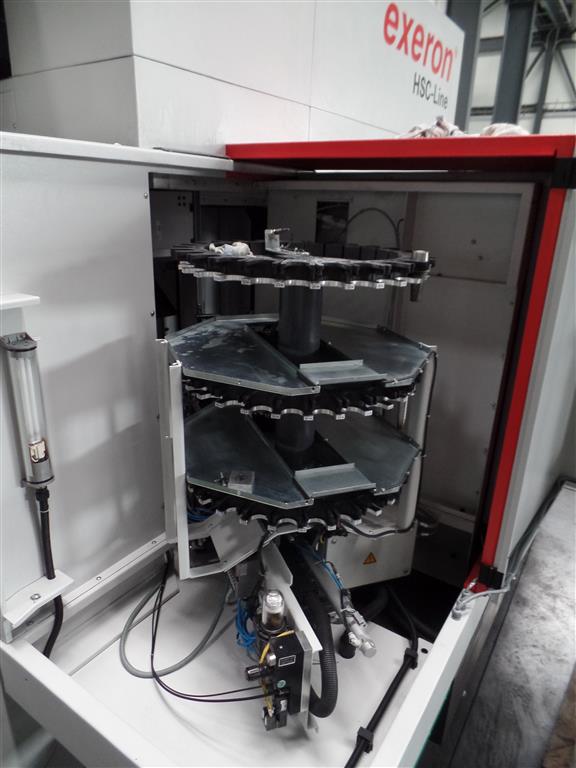

- ATC (Automatic Tool Changer) total number 81 , 3 tool plates each 27 places with gripper
-Renishaw-Lasermesssystem
-Meßtaster für Werkzeugvermessung
i.D.
