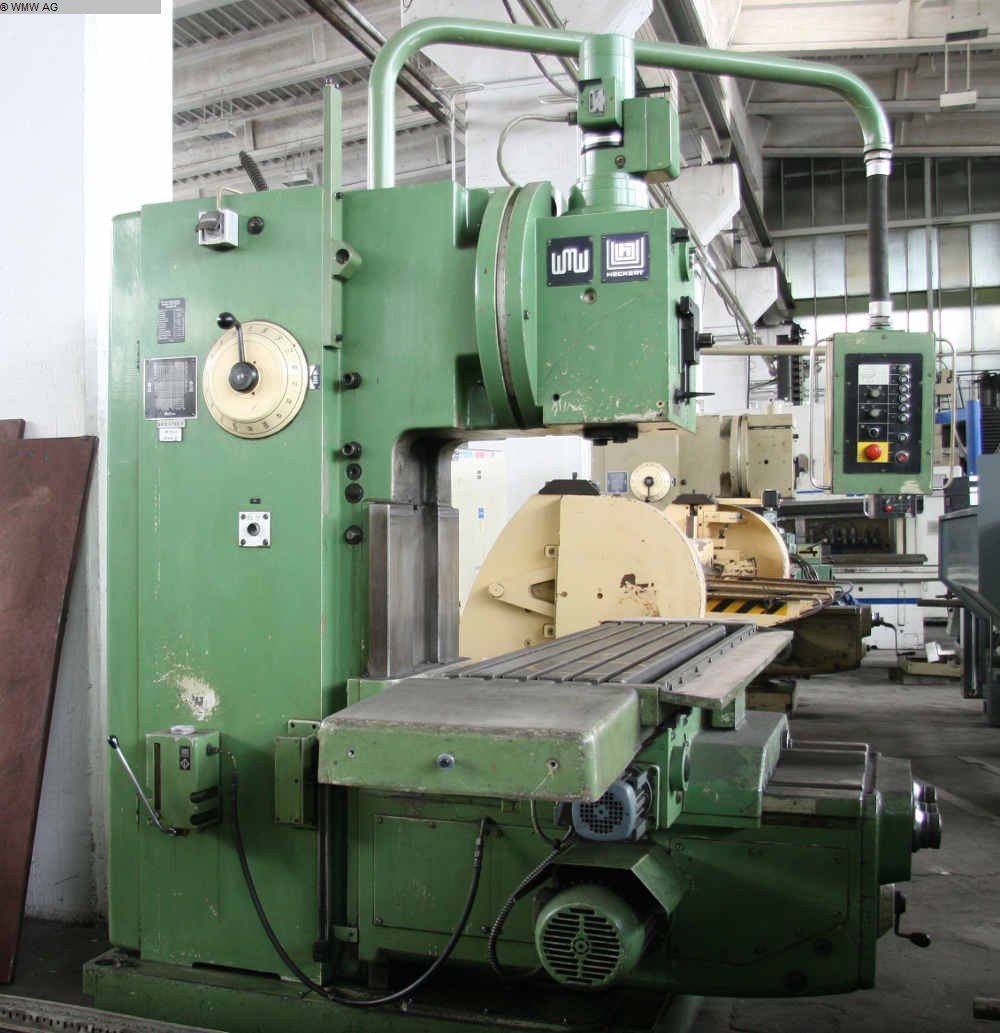

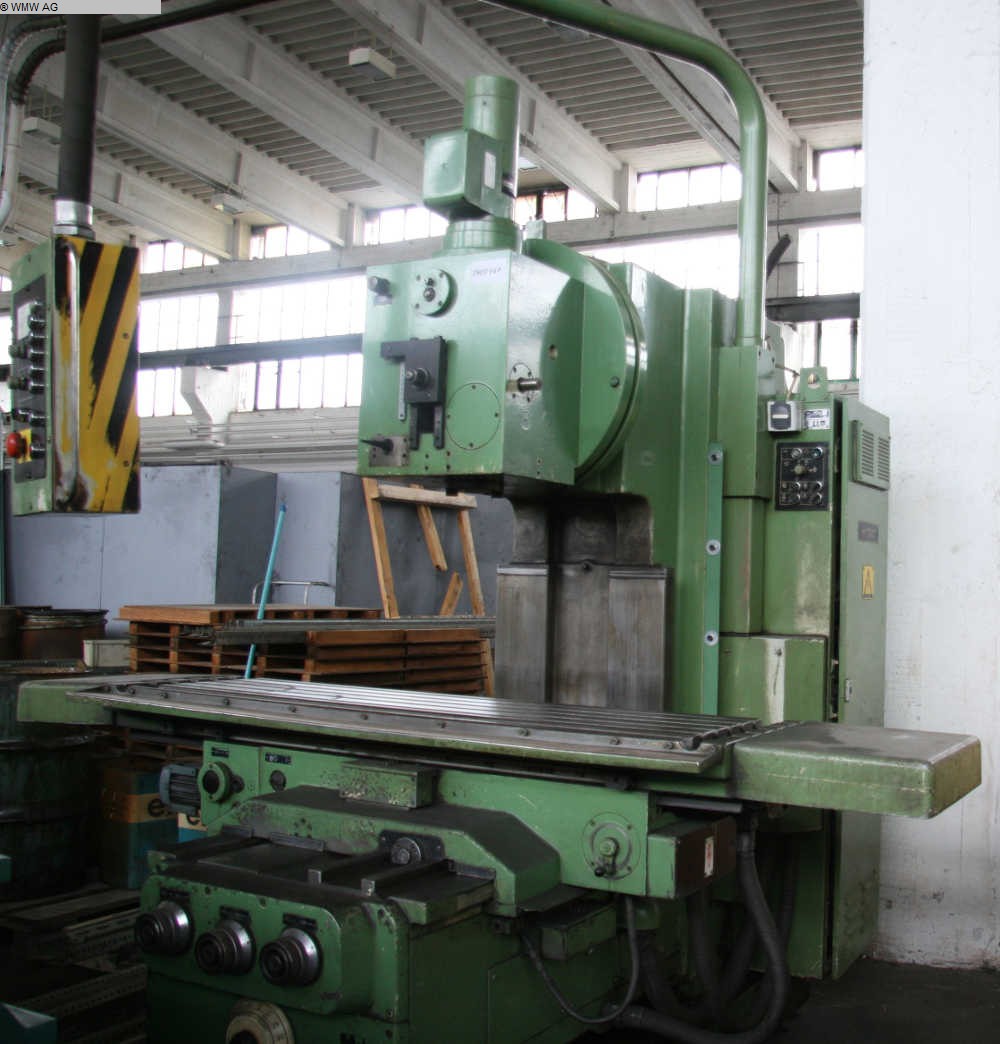

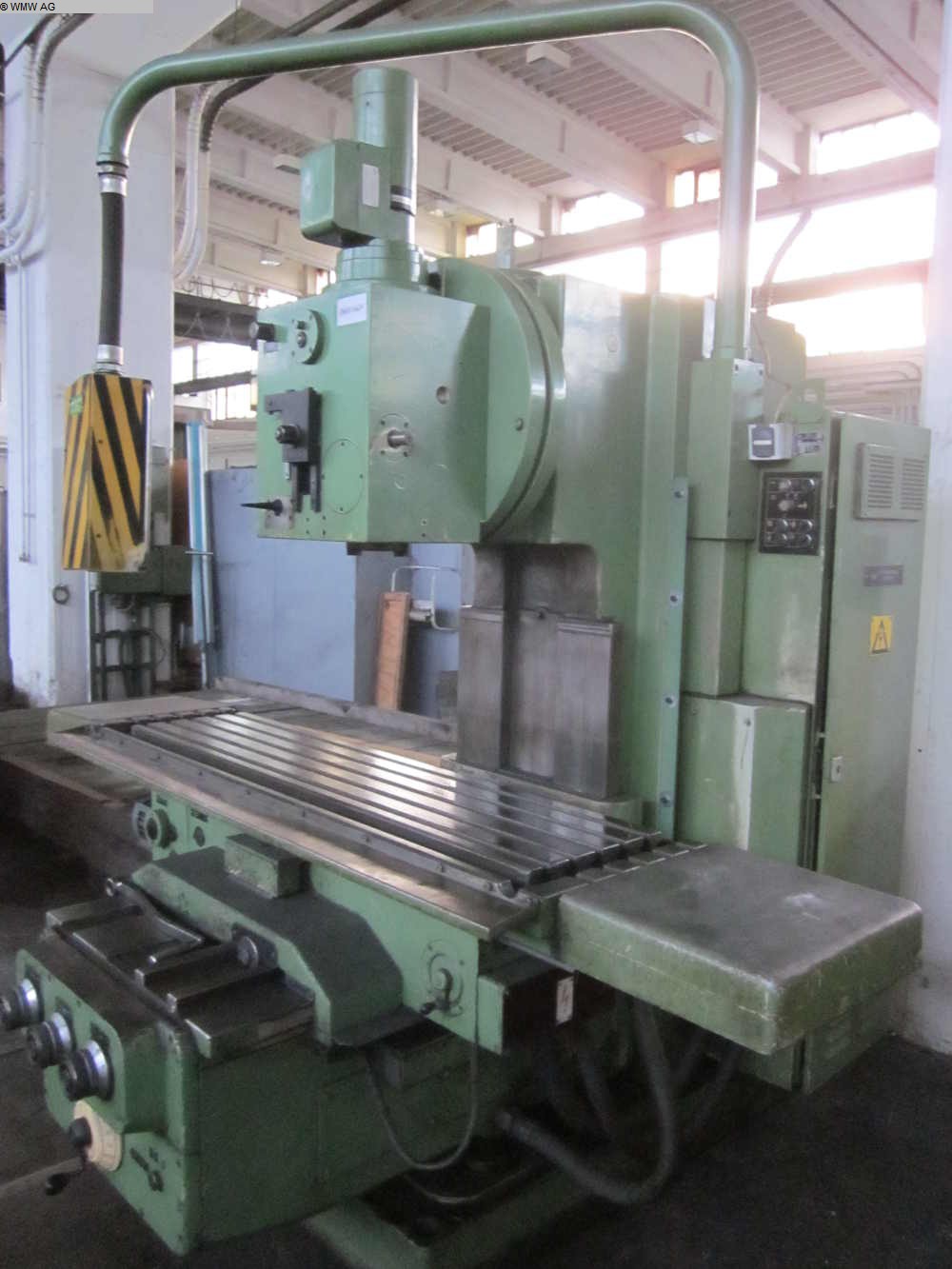

Milling Machine - Vertical WMW KARL-MARX-STADT FSS400/E

Offer

stock-no.:

0400467

type of machine:

Milling Machine - Vertical

make:

WMW KARL-MARX-STADT

model:

FSS400/E

year of manufacture:

1976

type of control:

conventional

country of origin:

Germany

freight basis:

EXW, free on truck

storage location:

Leipzig 4

delivery time:

immediately

price:

on request

technical details

x-travel:

1120 mm

y-travel:

400 mm

z-travel:

430 mm

control:

SPS 7

feed::

x+y=16...800/18Step

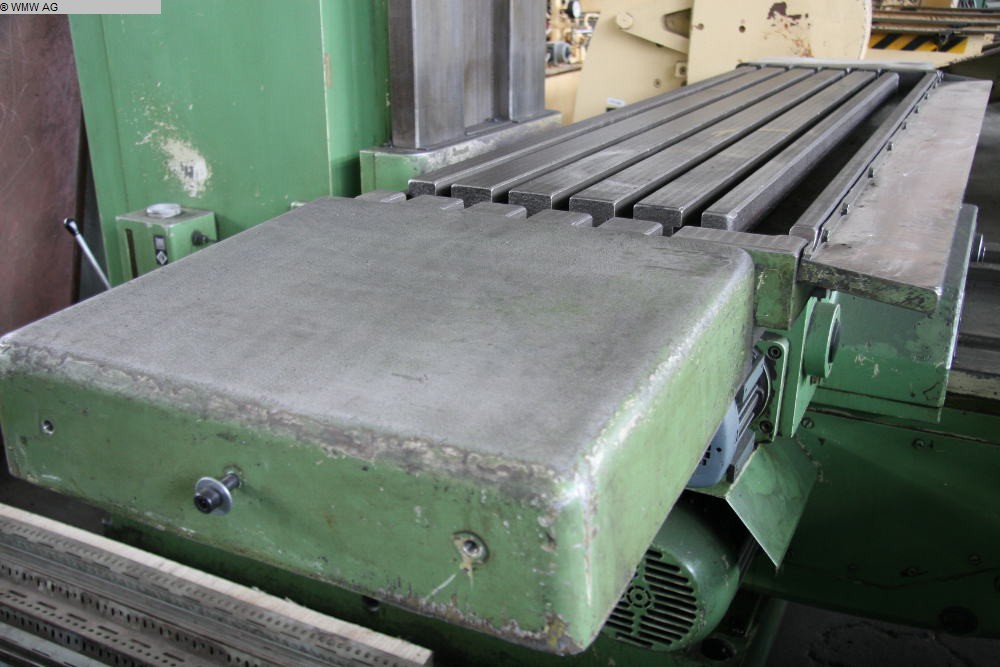

table::

fest / fixed/ fijo / fixo

table load:

1,5 t

clamping surface area:

1600x400 mm

distance spindle center to column:

450 mm

revolutions per minute:

28...1400/18Step U/min.

quill stroke:

100 mm

milling head swivability - left:

re+li=0-45° °

spindle taper:

SK 50

total power requirement:

14,5 kW

weight of the machine ca.:

4,0 t

dimension machine approx.LxWxH:

1,90x2,40x2,70 m

transport measurements machine:

2,0x2,4x2,72 m

additional information

distance rear edge table / column guidance min/max=125/470mm
distance spindle nose up to clamping area min/max=100/500mm
SPS 7 control
i.D.
