Planer-Type Milling M/C - Double Column MIKROMAT M20V

Offer

stock-no.:

0400531

type of machine:

Planer-Type Milling M/C - Double Column

make:

MIKROMAT

model:

M20V

year of manufacture:

2011

type of control:

CNC

country of origin:

Germany

freight basis:

From location

storage location:

Sachsen

delivery time:

on demand

price:

on request

technical details

x-travel:

5700 mm

y-travel:

3400 mm

z-travel:

1250 mm

control:

Siemens 840D

table clamping surface LxW:

2400x5000 mm

max. table load:

150 kN

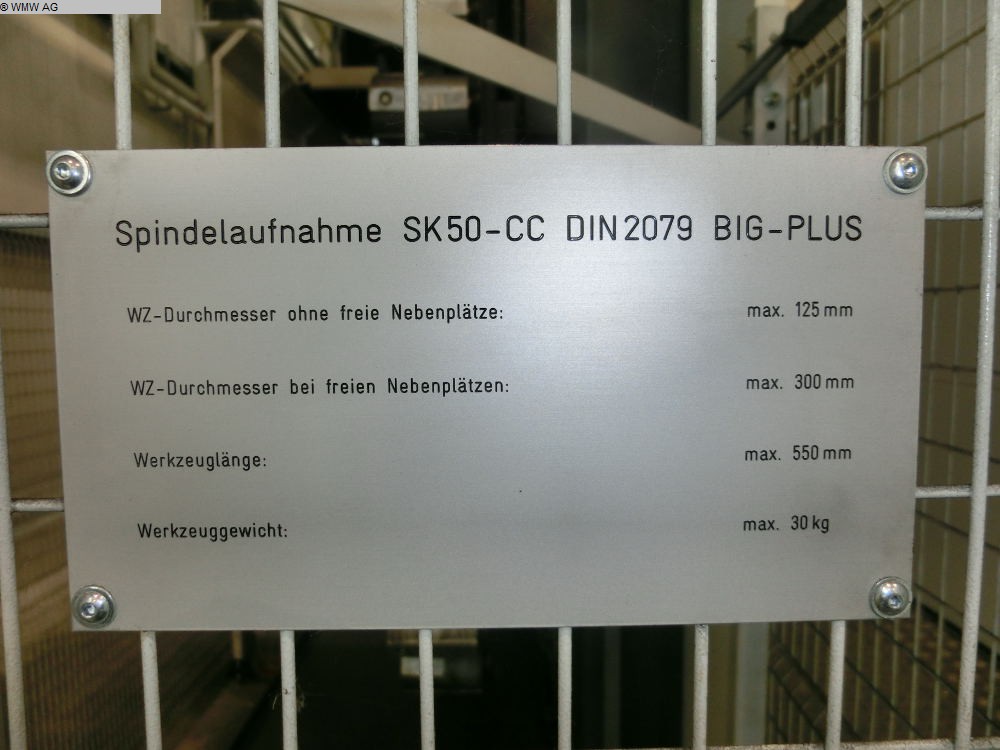

spindle taper ISO:

SK 50

spindle speed max.:

10...6000 U/min

distance between columns:

2650 mm

distance spindle nose and table:

700-1950 mm

power: 1 motor:

Spindel: 37/100 kW/%

Torque:

Spindel: 800/100 Nm/%

feed:

x: 0-22 000 mm/min

feed:

y: 0-30 000 mm/min

feed:

z: 0-25 000 mm/min

total power requirement:

156 kW

weight of the machine ca.:

62 t

dimensions LxWxH:

19,0x9,4x7,5 m

additional information

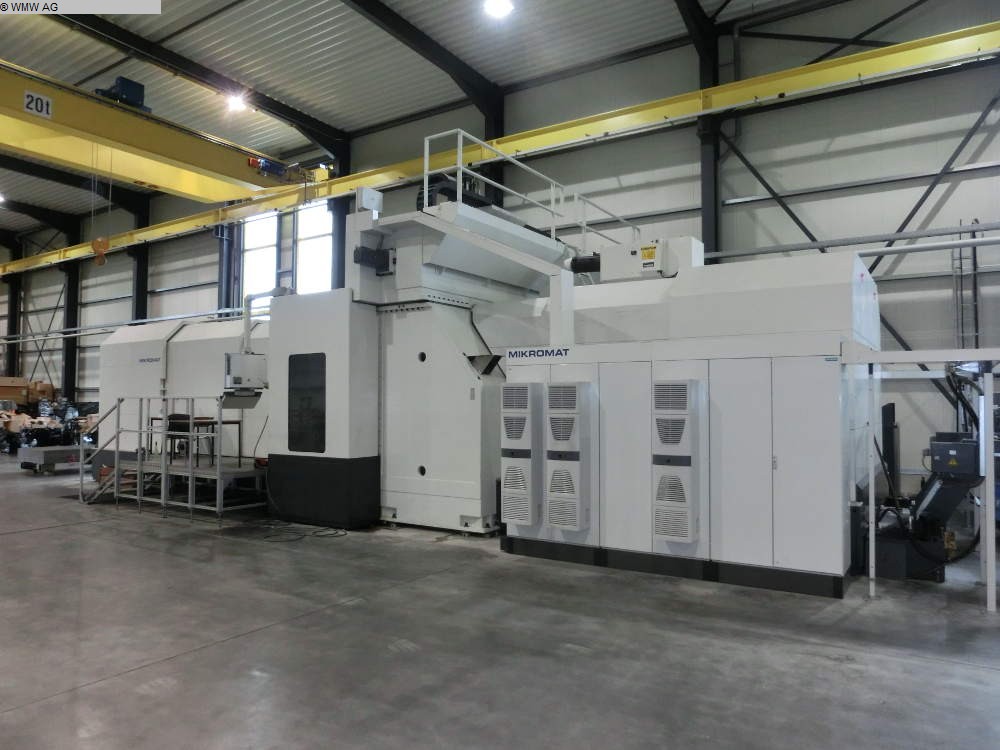

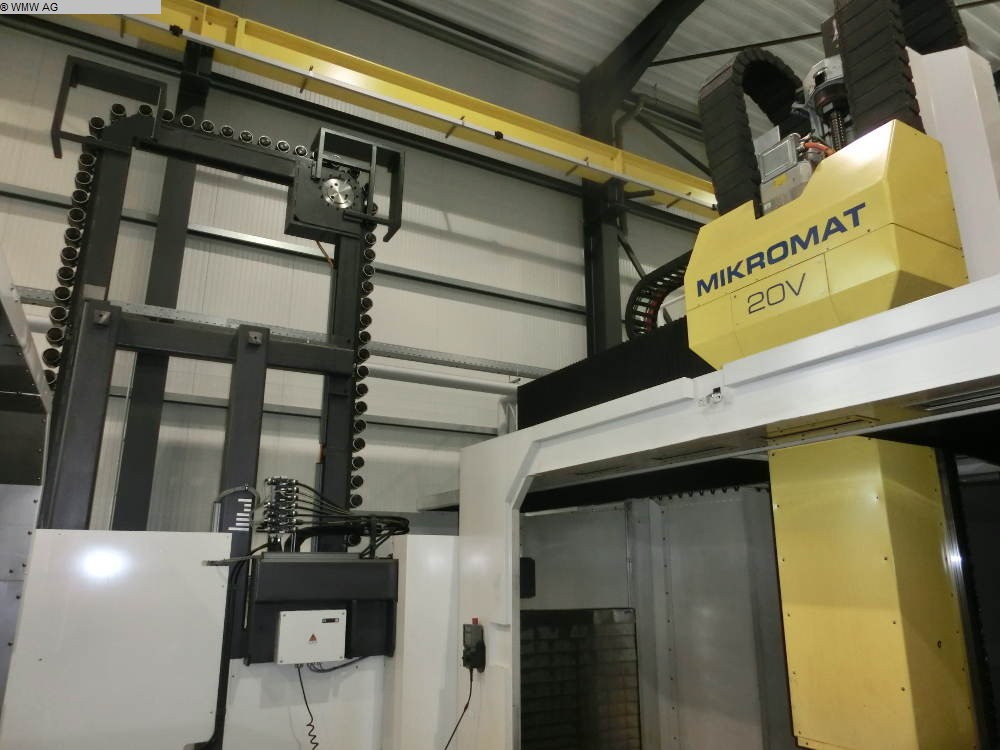

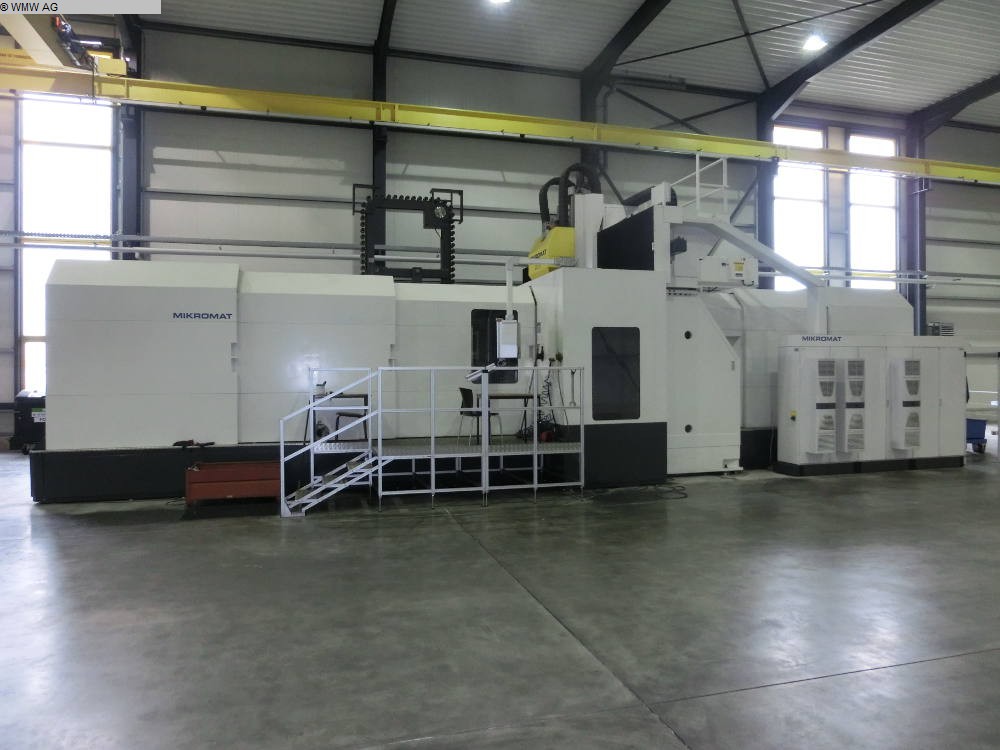

5 axis MIKROMAT 20V high speed precision milling machine with vertical spindle
accuracy according manufacturer +/- 0,003
application:

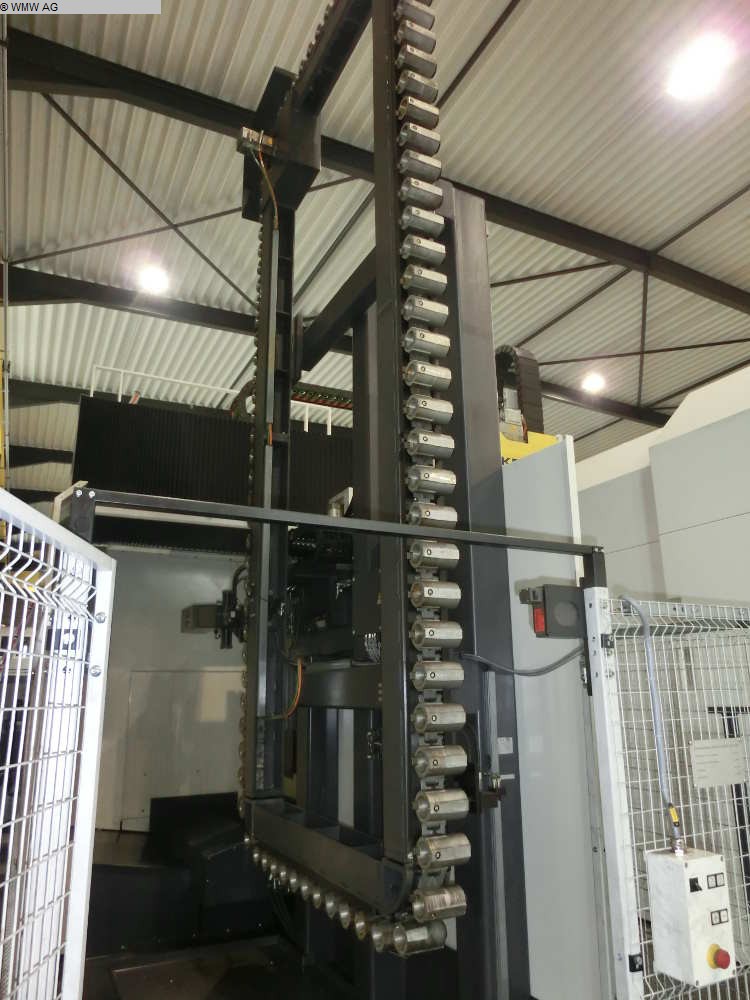

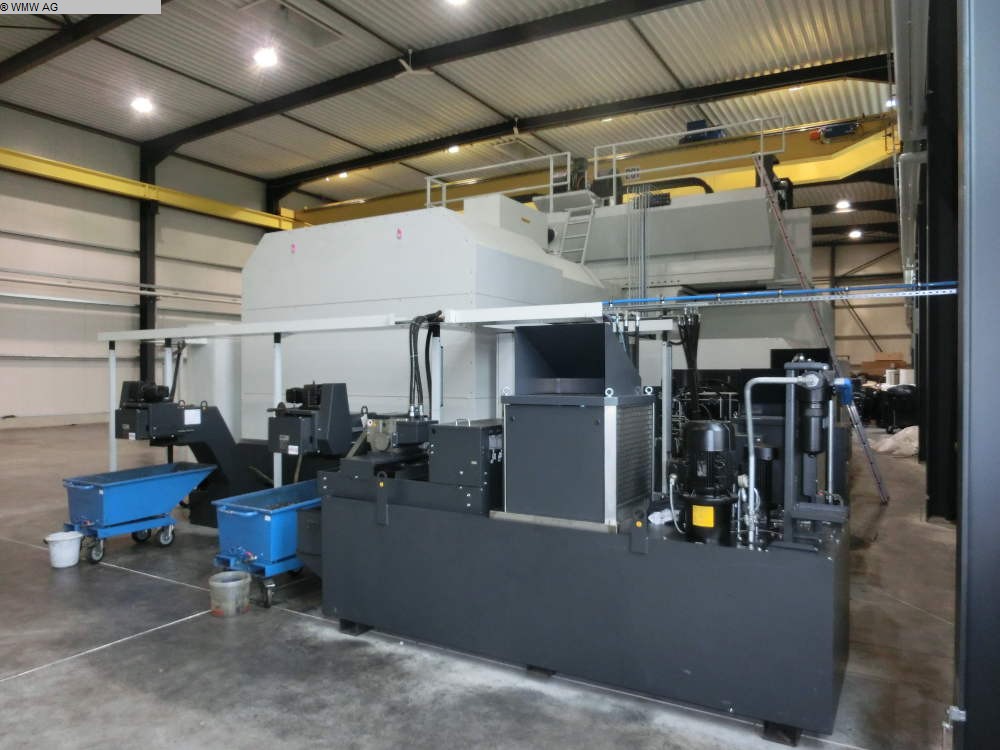

machine housing, tool magazine with tool changer, pick up station, KSS system with chip ejection and chip conveyor , wet vacuuming
equipment:
Universal drilling- and milling head UFC 90/50-HR
angular drill -and milling head WBFK 90/50
spindle exension SV 600/50
measuring probe Renishaw RMP 60
Test arbor for concentricity measuring
Remote diagnosis system Siemens 840D / remote diagnosis via Netviewer
Mode 3 "extended manual intervention"
Dimensions are named after installation plan!
