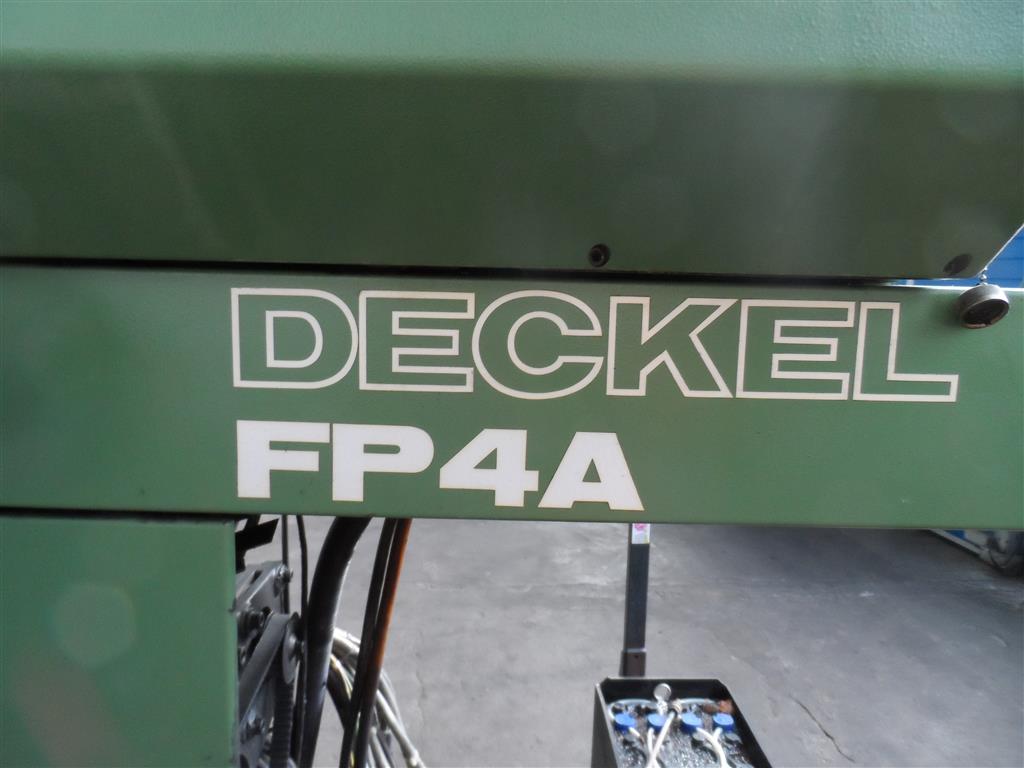

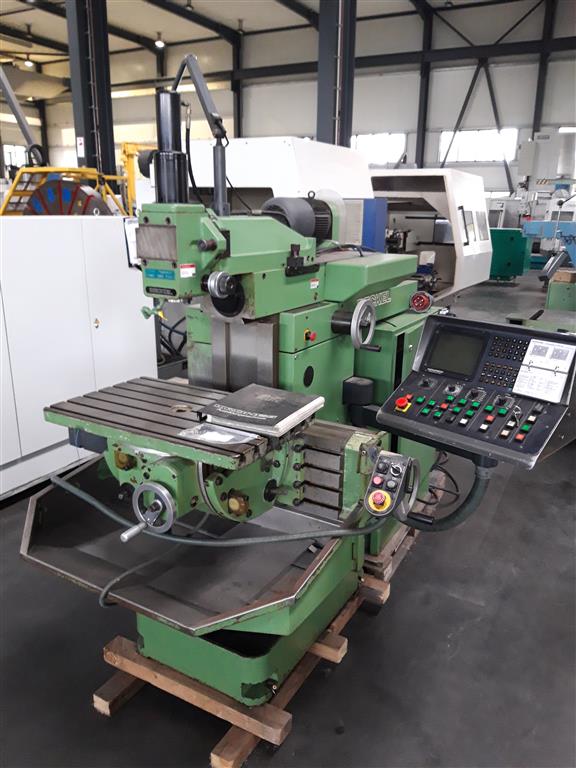

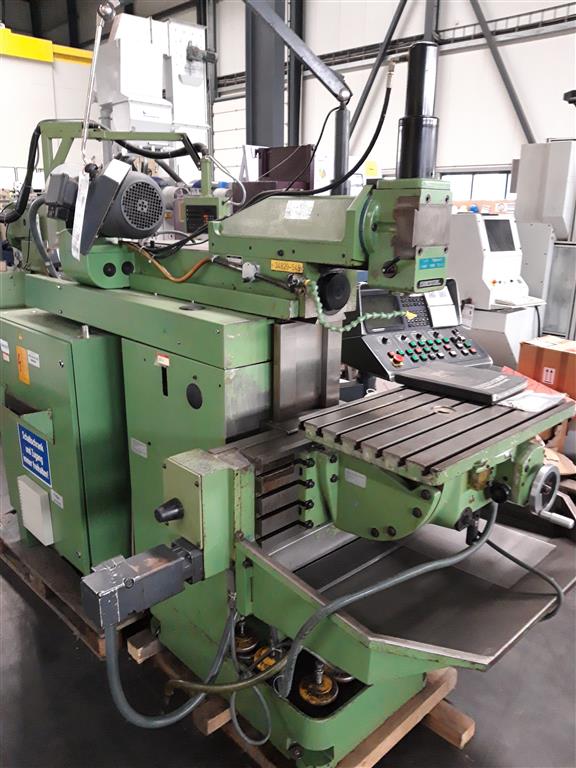

Universal Milling Machine Deckel FP 4A

Offer

stock-no.:

0400565

type of machine:

Universal Milling Machine

make:

Deckel

model:

FP 4A

year of manufacture:

1989

type of control:

CNC

country of origin:

Germany

freight basis:

EXW, free on truck unpacked

storage location:

Leipzig 4

delivery time:

immediately

price:

on request

technical details

x-travel:

485 mm

y-travel:

385 mm

z-travel:

380 mm

control:

Contour 2 Bahnsteuerung

spindle taper ISO:

SK 40

quill stroke vertical:

80 mm

turning speed range:

63...3150 / 18 step U/min

spindle head swivable left - right:

nur rechts= 90° °

feed::

2....3000 programmierbar / stufenlos mm/min

rapid traverse:

X+Y+Z: 3000 mm/min

table surface area:

430 x 710 mm

table swivelabel +/-:

interface:

RS 232

total power requirement:

12,5 kW

weight approx.:

3670 kg

dimension machine approx.LxWxH:

2,7 x 1,8 x 2,4 m

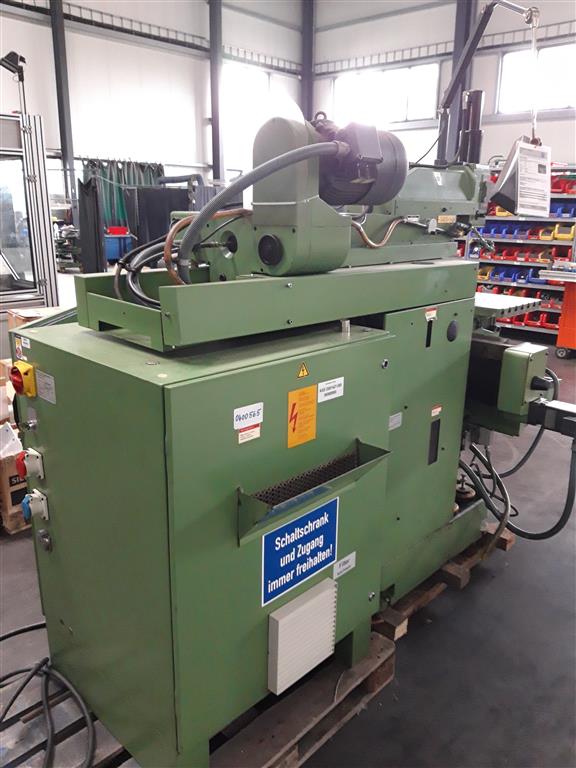

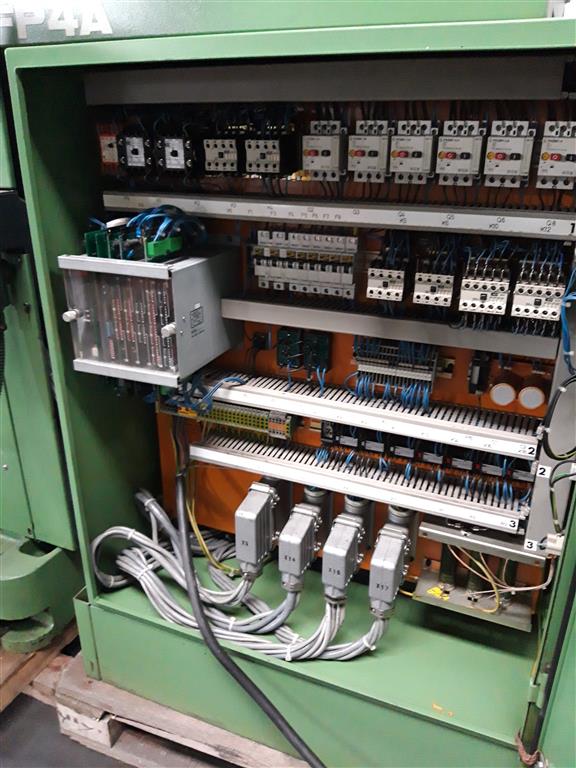

dimensions electric cabinet:

L: 800 x B: 900 x H: 1100 an Maschine mm

additional information

The milling machine is currently in the technical department!

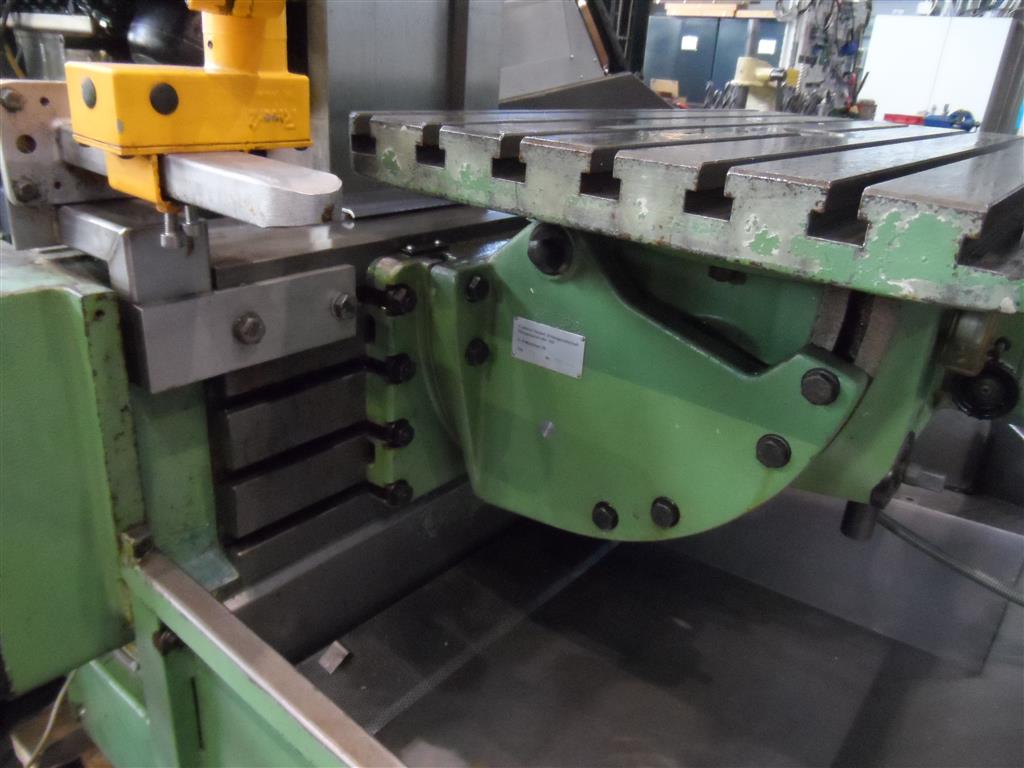

The machine is equipped with a universal table that can be rotated horizontally 360° and swivelled 45° right/left. It can be rotated horizontally by 360° and swivelled 45° to the right/left. Furthermore, it can be tilted 45° towards the column and 15° away from the column.
The horizontal spindle has SK 40 tool holder, max. speed 1,000 rpm. The milling beam can be shifted 385mm. Counterholder not included!

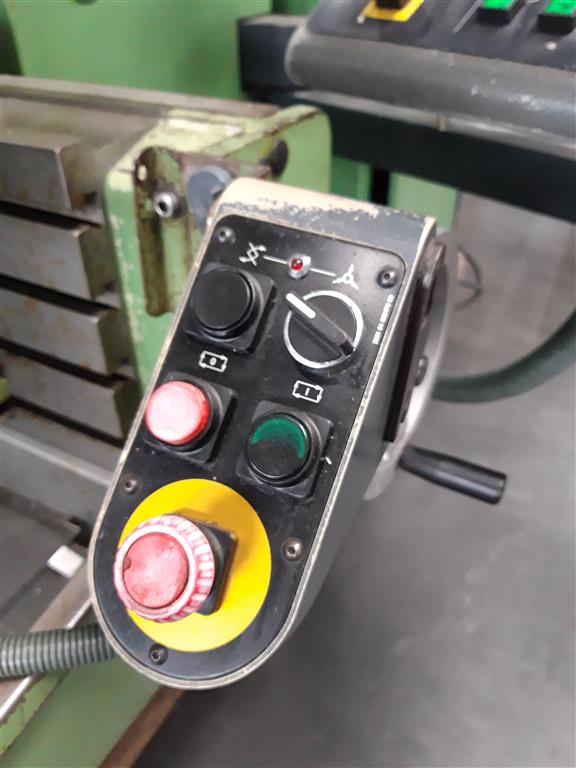

Operation via control panel GRUNDIG electronic, with extension arm.

Equipment:
4x machine feet

Machine is on sale with a control error ( unknown error)!
