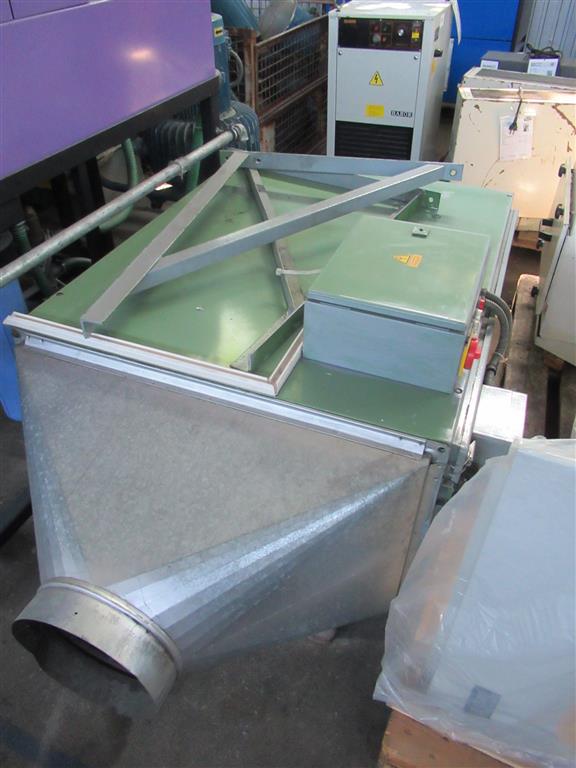

SMOG-HOG SH-20-PE
Welding Smoke Suction | Stock number: 1400440
Unfortunately, the machine has already been sold.
Machine data
- Machine type
- Welding Smoke Suction
- Manufacturer
- SMOG-HOG
- Type
- SH-20-PE
- Year of manufacture
- 1992
- Control type
- conventional
- Country of origin
- Germany
Technical data
- tank capacity
- l
- percentage of cleaning
- µ
- total power requirement
- 1,5 kw
- volume capacity
- 4000 m³/h
- filter
- 2 Stück
- weight of the machine approx.
- kg
- dimensions L x W x H
- 1,1 x 1,7 x 0,75 m
Additional description
Electrostatic precipitator for air filtration with fan for emulsion mist separation.
Based on the electrostatic charging of the pollutant particles.
Fields of application:
Extraction of oil smoke and welding fumes, as well as almost all aerosols and sublimates.

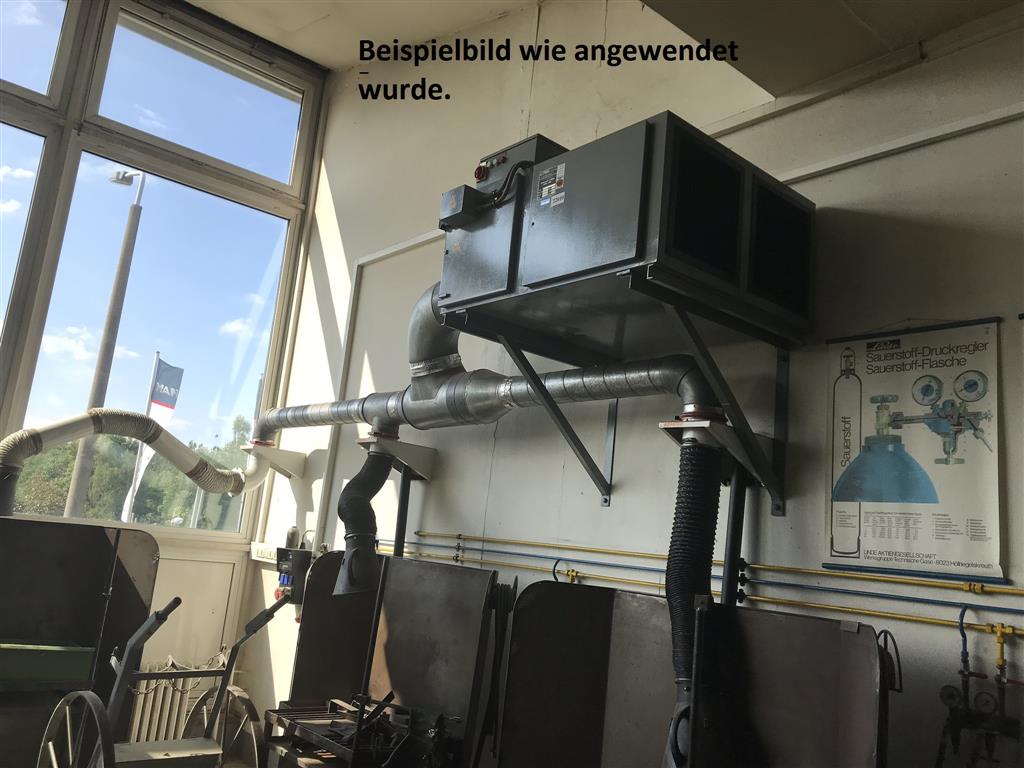

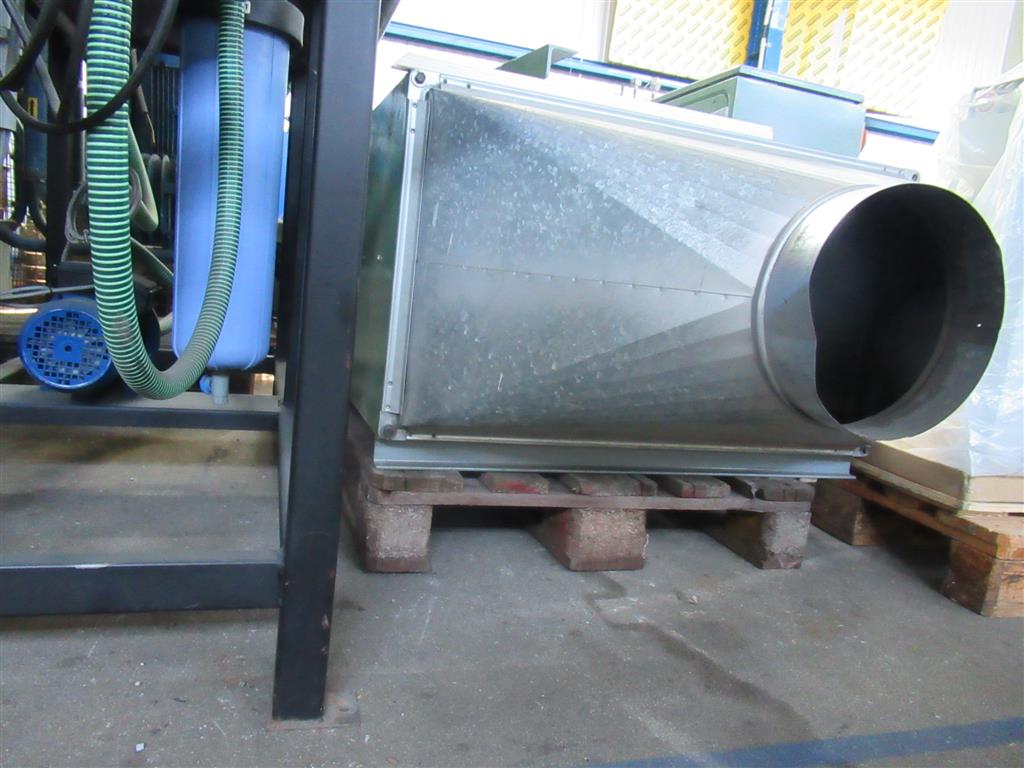

Air inlet via funnel and pipe connection.
Equipment:
2 pieces pre-filter, mechanical, 450 x 260 x 470mm, several layers (stretched material).

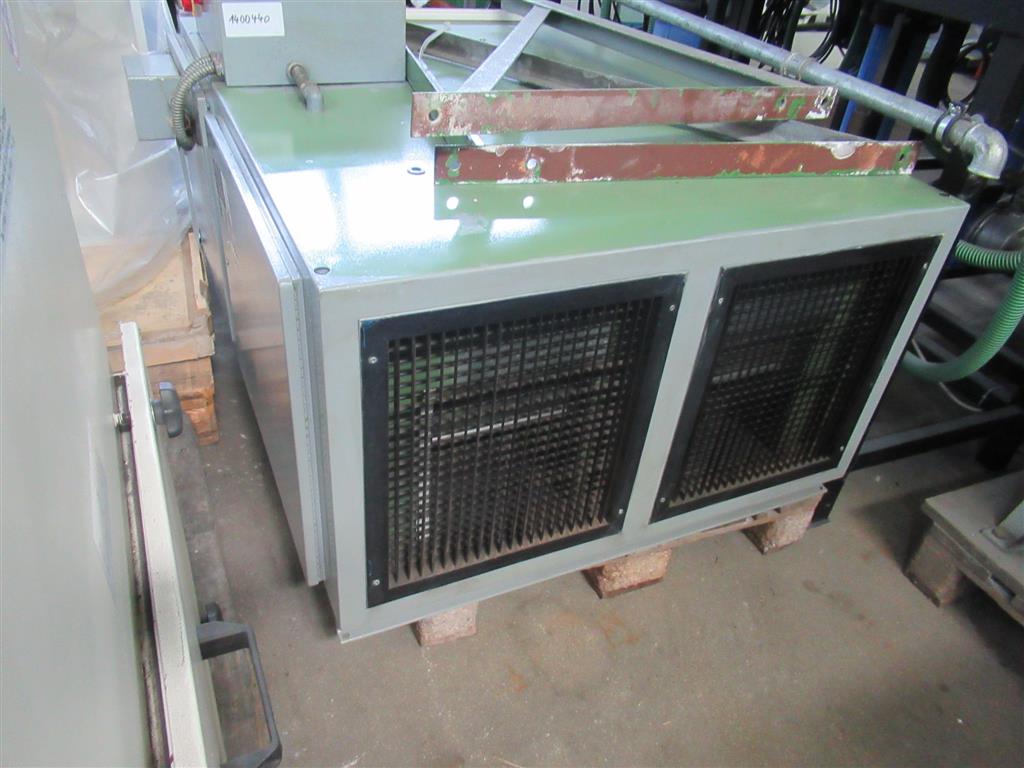

Exhaust air W x H: 400 x 450mm, mechanical
Accessories:
-2x wall support LxW: 950 x 750mm made of angle steel
Terms of storage and delivery
- Freight base
- EXW, free on truck unpacked
- Storage location
- Leipzig 3
- Delivery time
- immediately
- Price
Subject to changes and errors in technical details and specifications, as well as prior sale.
