Folding Machine
Offer
- stock-no.:
- 0100144
- type of machine:
- Folding Machine
- make:
- RAS
- model:
- 64.25
- year of manufacture:
- 2004
- type of control:
- conventional
- country of origin:
- Germany
- freight basis:
- EXW, free on truck unpacked
- storage location:
- Leipzig 5
- delivery time:
- by agreement
- price:
- on request
technical details
- plate width:
- 2540 mm
- plate thickness:
- 2,5 mm
- distance between columns:
- 2830 mm
- stroke adjustment:
- 30 mm
- bending angle max.:
- 0 - 180 °
- bending radius min.:
- 1,25 mm
- daylight opening:
- Oberwange: 200 mm
- back gauge - adjustable:
- kein Hinteranschlag mm
- height over floor:
- 900 mm
- total power requirement:
- 2,0 kW
- weight of the machine ca.:
- 1,7 t
- dimension machine approx.LxWxH:
- 3,35 x 1,0 x 1,5 m
additional information

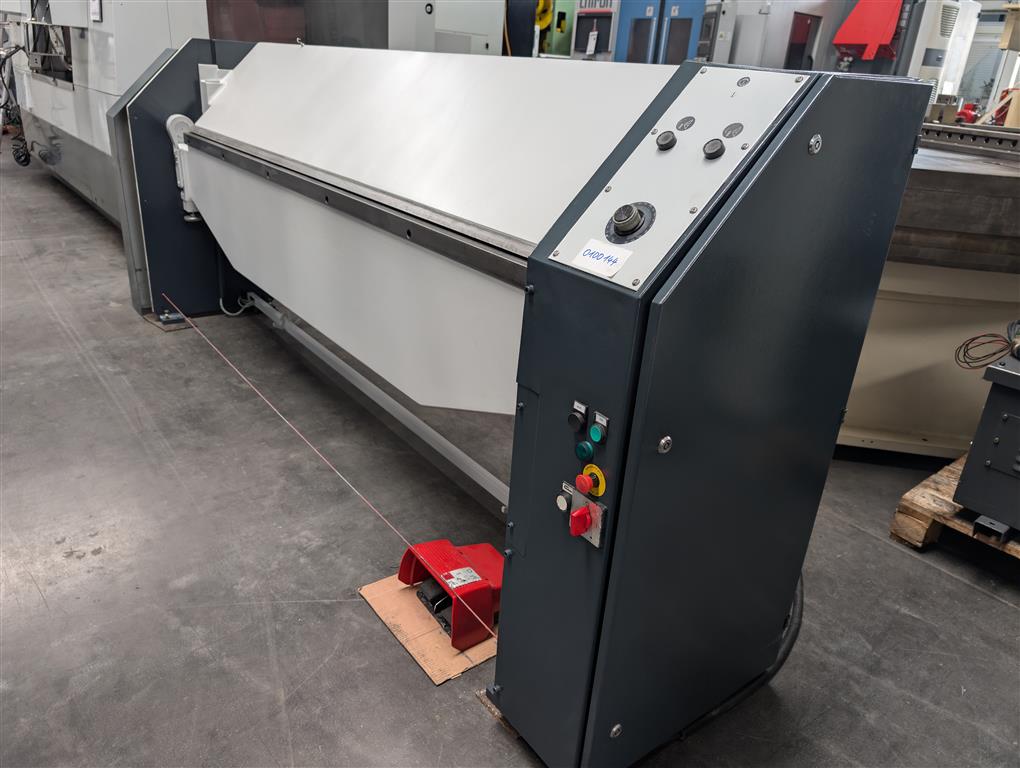

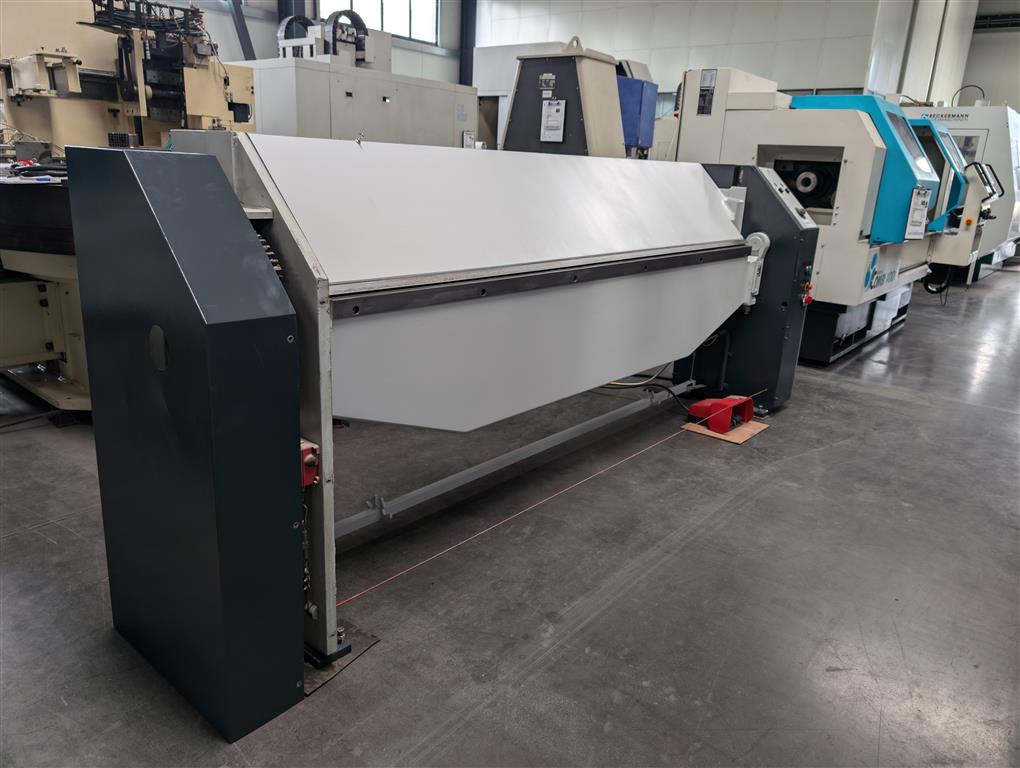

Hydraulic Folding Machine, electronically controlled.
-max. sheet thickness at 400 N/mm² 2,5 mm according to manufacturer
-smallest permissible bending radius 1.25 x sheet thickness
-opening of the upper beam max. 200mm (motor driven)
-bending trough is manually operated
-Lower beam is fixed

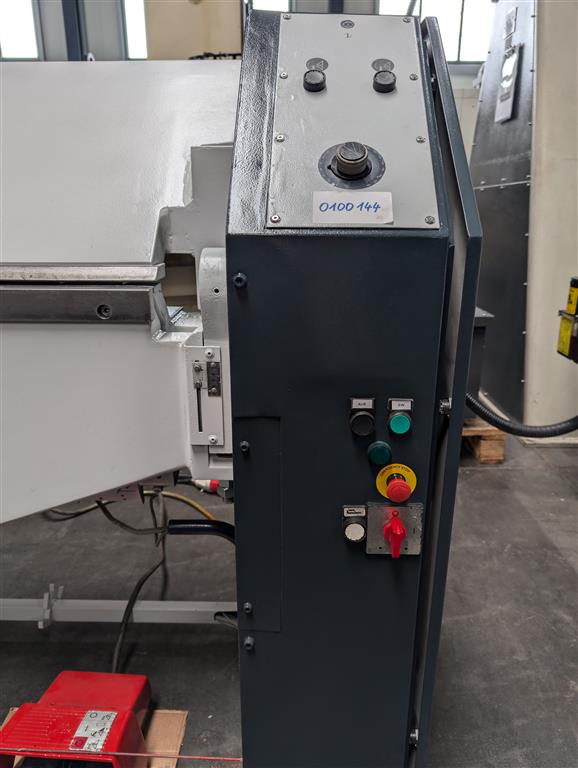

-operated by pushbutton / double foot switch
