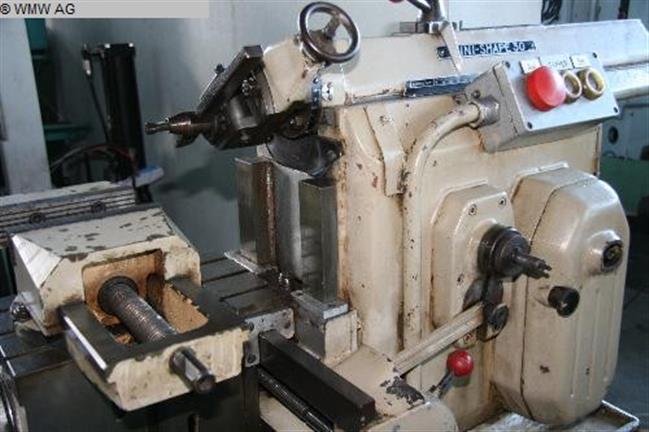

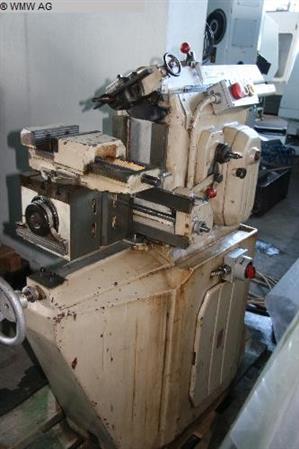

T-Slot Shaping Machine METALSKI ZAVOD TITO SKOPJE MINI - SHAPE 30

Offer

stock-no.:

0900004

type of machine:

T-Slot Shaping Machine

make:

METALSKI ZAVOD TITO SKOPJE

model:

MINI - SHAPE 30

year of manufacture:

1977

type of control:

conventional

country of origin:

Yugoslavia

freight basis:

EXW, free on truck

storage location:

Leipzig 1

delivery time:

immediately

price:

on request

technical details

slot length:

300 mm

stroke length max.:

ca./approx. 300 mm

slot depth:

je nach Zustellung mm

tool - head swivelling:

r+l 60 °

table::

235x200x200 mm

table adjustment:

90° r+l °

adjustment of stroke:

200 mm

double strokes/min.:

32 - 180 Stück

feed::

verstellbar

total power requirement:

ca./approx. 0,8 kW

weight of the machine approx.:

350 kg

dimension machine approx.LxWxH:

1,4x0,7x1,5 m

transport dimensions LxWxH:

1,3x0,6x1,4 m

additional information

Shaping machine - horizontal
tool head vertikal adjustable manual: 100mm
transversal movement of the table mechanic:300mm
vertical movement of the table via hand:140mm
distance chisel holder flap up to table clamping area max.:240mm
accessories:
1 vise - jaw width 160mm
1 finishing chisel
i.D.
