core insulation line

Offer

stock-no.:

1210028

type of machine:

core insulation line

make:

model:

year of manufacture:

überholt 2013

type of control:

conventional

country of origin:

freight basis:

Ex-Location

storage location:

delivery time:

on request

price:

on request

technical details

screw Ø:

- mm

screw length:

- D

cable Ø min:

- mm

up to now used for:

Folien

examples of production:

Folien, Beutel

extruder:

6 Stück

additional information

Plant for bag production and foils
Consists of:
1.granules produktion:

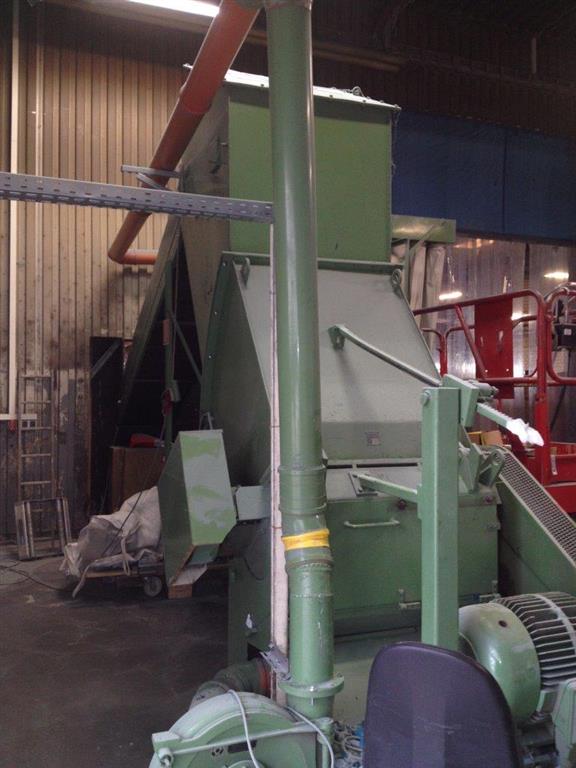

  -Mill YOM 1998 (overhauled 2013) NW 45 kWh; VW 35 kWh; Power min. 350 kg / h and max. 650 kg / h

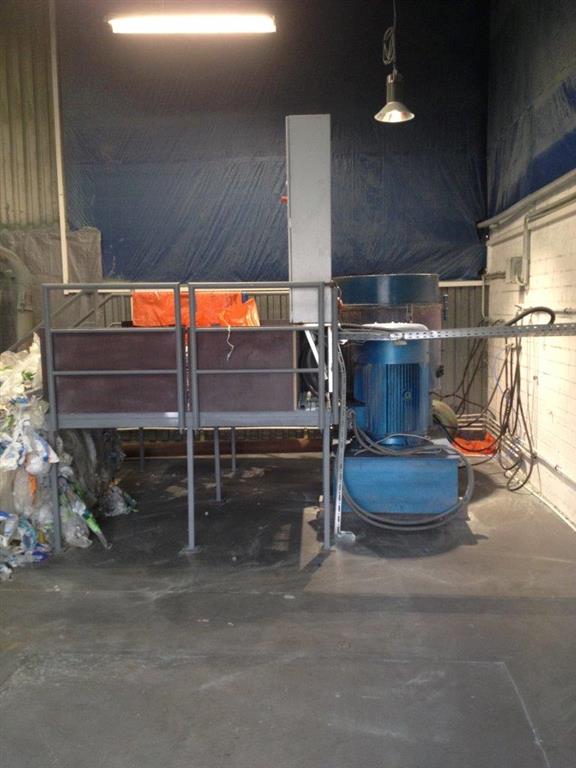

  Agglomerator year 2006 (overhauled 2013) NW 95 kWh; VW 75 kWh; Power min. 200 kg / h and max. 350 kg / h

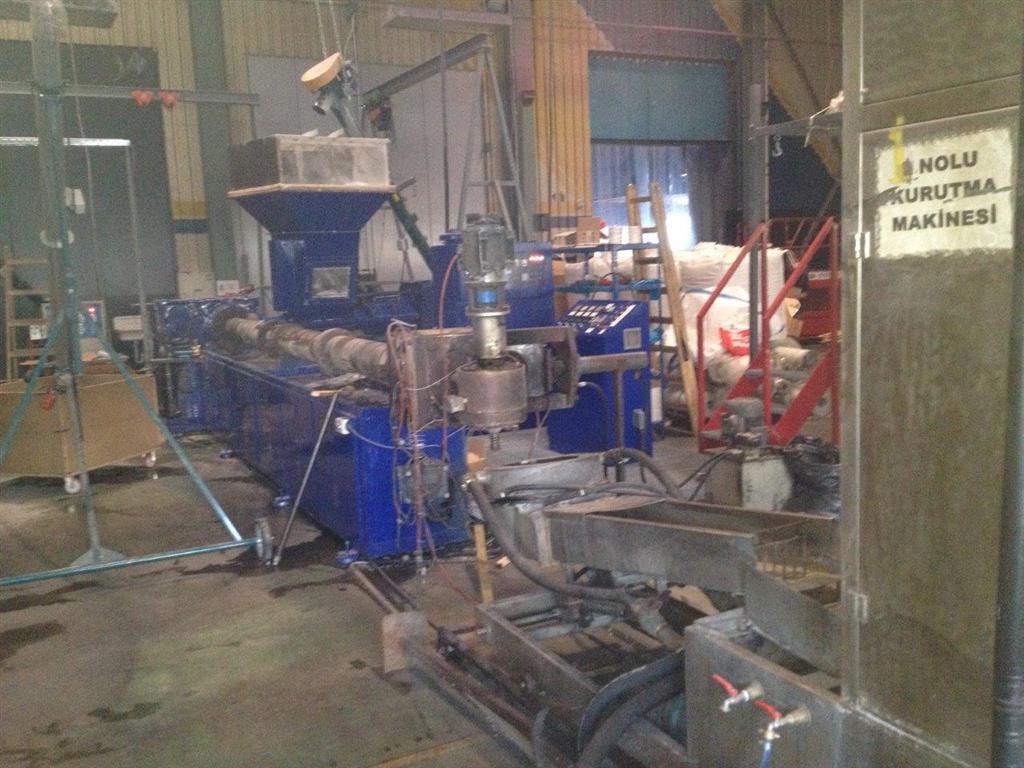

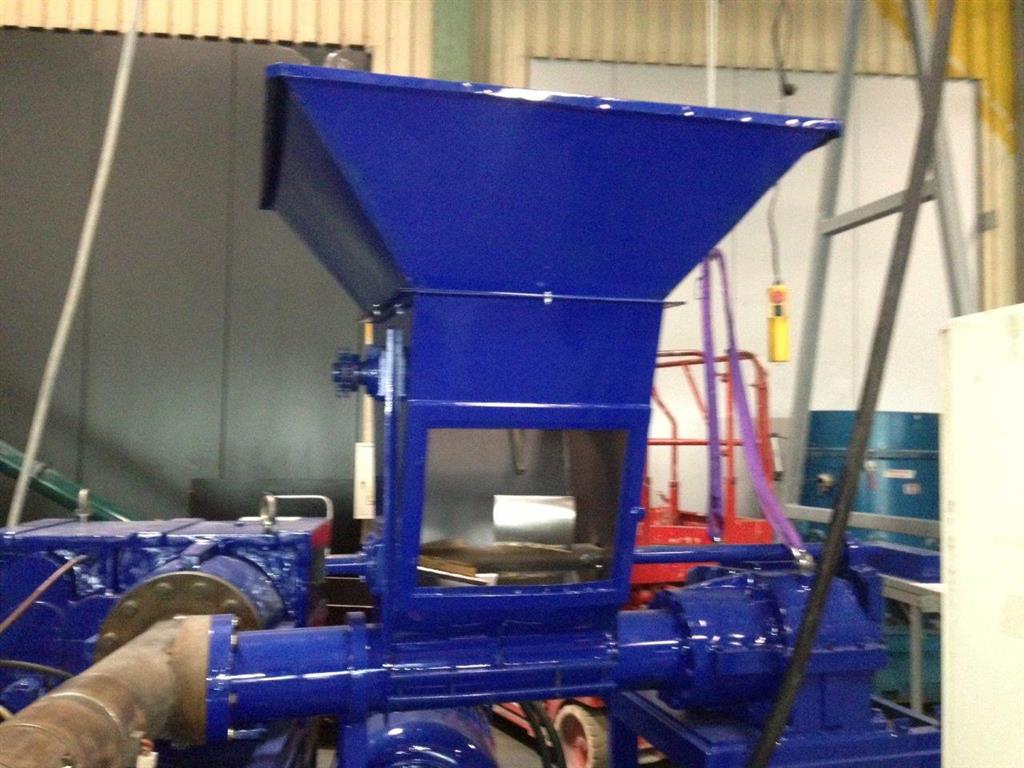

  -Granulier Extruder 1 YOM 2002 (overhauled 2013) NW 140 kWh; VW 90 kWh; Power min. 200 kg / h and max. 350 kg / h
  -Granulier Extruder 2 YOM 2007 (overhauled 2013) NW 30 kWh; VW 25 kWh; Power min. 100 kg / h and max. 150 kg / h
2.Bubble extruder 5 Pieces:

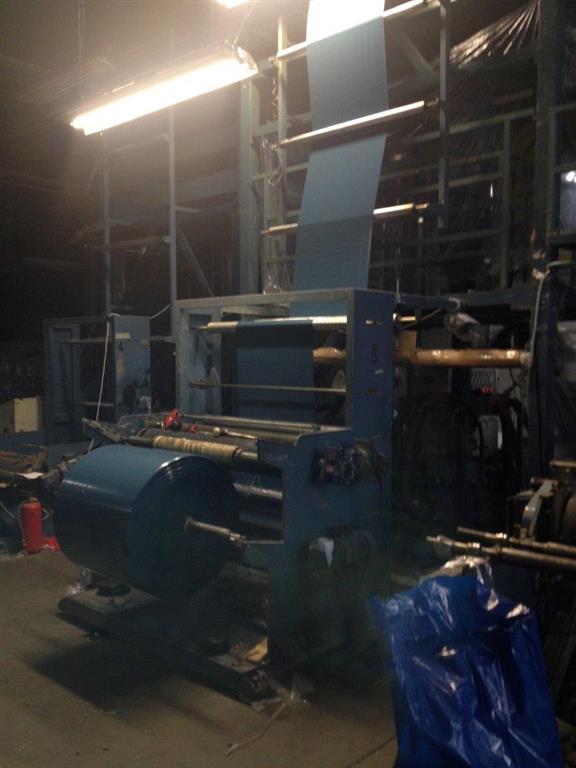

  -Bubble extruder 1-3 YOM 2003 (overhauled 2013) NW 45 kWh, VW 27 kWh; Power min / max: 75/95 kg / h; Foil thickness min / max: 0,020 / 0,300mm; Roll width min / max: 300 / 1200mm
  -Bubble extruder 4 YOM 2001 (overhauled 2013) NW 30kWh; VW 20 kWh; Power min / max: 30/45 kg / h; Foil thickness min / max: 0,020 / 0,300mm; Roll width min / max: 150 / 1000mm
  -Bubble extruder 5 YOM 1998 (overhauled 2013) NW 15kWh; VW 9 kWh; Power min / max: 15/25 kg / h; Foil thickness min / max: 0,020 / 0,300mm; Roll width min / max: 150 / 500mm
3.Confection 2pieces
  -made 1 YOM 2008 (overhauled 2013) NW 30kWh; VW 20 kWh; Power min / max: 130/150 cycles / min; Power min / max: 250/300 double cycles / min; Capacity about 90 kg / h
  -made 2 YOM 1990 (overhauled 2013) NW 15 kWh; VW 10kWh; Power min / max: 150/180 cycles / min; Power min / max: 300/360 double cycles / min; Capacity about 95 kg / h
4.Druck (flexography)

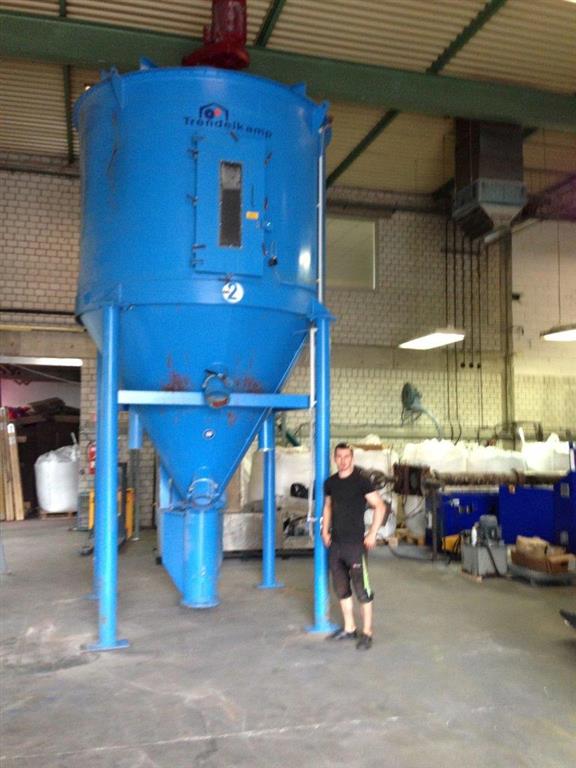

5.Mixing Silo and Vertical Baler

For this production line Mr. Kies is our contact person for further info..
Canh be reached under telephone 0341 52046 -16
