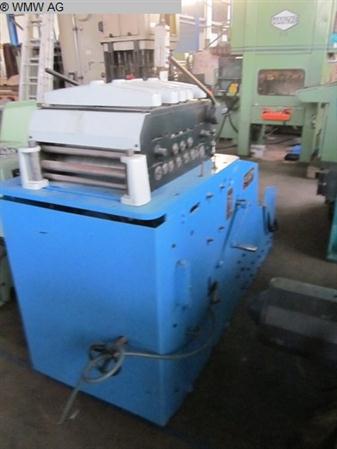

Roller levellerRoller leveller L.A.S.A. RH 16-200

Roller leveller L.A.S.A. RH 16-200Roller leveller L.A.S.A. RH 16-200Roller leveller L.A.S.A. RH 16-200Roller leveller L.A.S.A. RH 16-200

Offer

stock-no.:
0100557
type of machine:
Roller leveller
make:
L.A.S.A.
model:
RH 16-200
year of manufacture:
ca. 1995
type of control:
conventional
country of origin:
Spain
freight basis:
ex location Bitterfeld, free truck
storage location:
GOG Bitterfeld
delivery time:
on request
price:
on request

technical details

material width:
400 mm
material thickness:
2 mm
Number of Straightening rolls:
oben/upper/arriba: 5x
Number of Straightening rolls:
unten/lower/abjo: 6x
roll width:
410 mm
throughput speed:
9-20 m/min
total power requirement:
5,5 kW
Weight approx.:
1,3 t
space requirement of the machine approx.:
L:2,1xB:1,0xH:1,35 m

additional information

description:

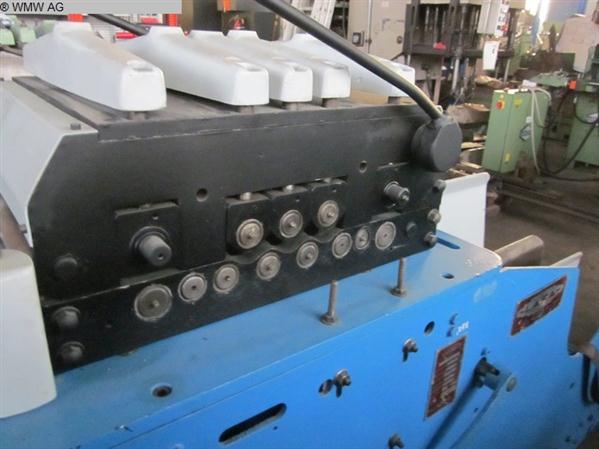

- upper rolls adjustable around 14mm, not driven
- lower rolls not adjustable, driven
- each 1 intake/output roll (dia 35x410mm)

equipment:

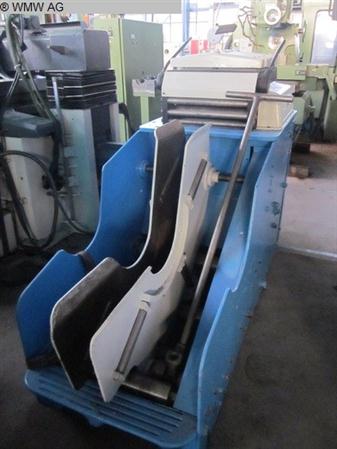

- drum intake (L:1,2xW:0,7xH:1,16m), with 4 pcs rolls and guidance waggon
- 2 intake limits / output limits

This straightening machine must be electrically integrated by the customer!
