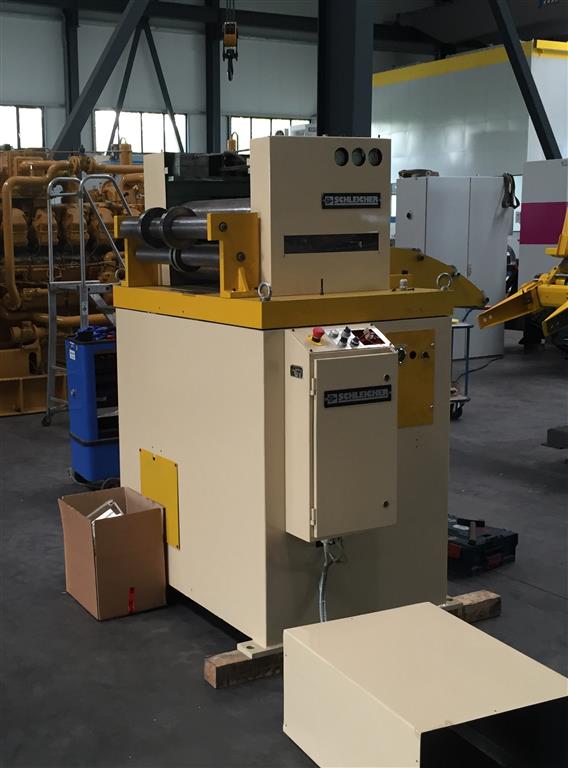

Roller levellerRoller leveller Schleicher RML 6-70/160

Roller leveller Schleicher RML 6-70/160Roller leveller Schleicher RML 6-70/160Roller leveller Schleicher RML 6-70/160Roller leveller Schleicher RML 6-70/160

Offer

stock-no.:
0100561
type of machine:
Roller leveller
make:
Schleicher
model:
RML 6-70/160
year of manufacture:
1981
type of control:
conventional
country of origin:
Germany
freight basis:
ex location Bitterfeld, free truck
storage location:
GOG Bitterfeld
delivery time:
immediately
price:
on request

technical details

material width:
650 mm
material thickness:
0,6 - 1,0 mm
no. of straightening rolls:
3
no. of straightening rolls:
unten/down/abajo:3
diameter of upper rolls:
Ø 71 x 690 mm
diameter of lower rolls:
Ø 71 x 690 mm
throughput speed:
50 m/min
height over floor:
1400 mm
total power requirement:
14 kW
weight of the machine ca.:
1,4 t
dimension machine approx.LxWxH:
1,35 x 1,4 x 1,8 m

additional information

3 pieces feeding rolls Ø 80 x 680mm, not adjustable, travelling
top rolls: 3 straightening rolls Ø 71 x 690mm, adjustable approx. 10mm, travelling and 1 guide roll Ø 160 x 690mm, adjustable, driven over bottom roll
Bottom rolls: 3 pieces straightening rolls Ø 71 x 690mm, not adjustable, driven and 1 piece guide roll Ø 160 x 690mm, adjustable, driven via chain drive

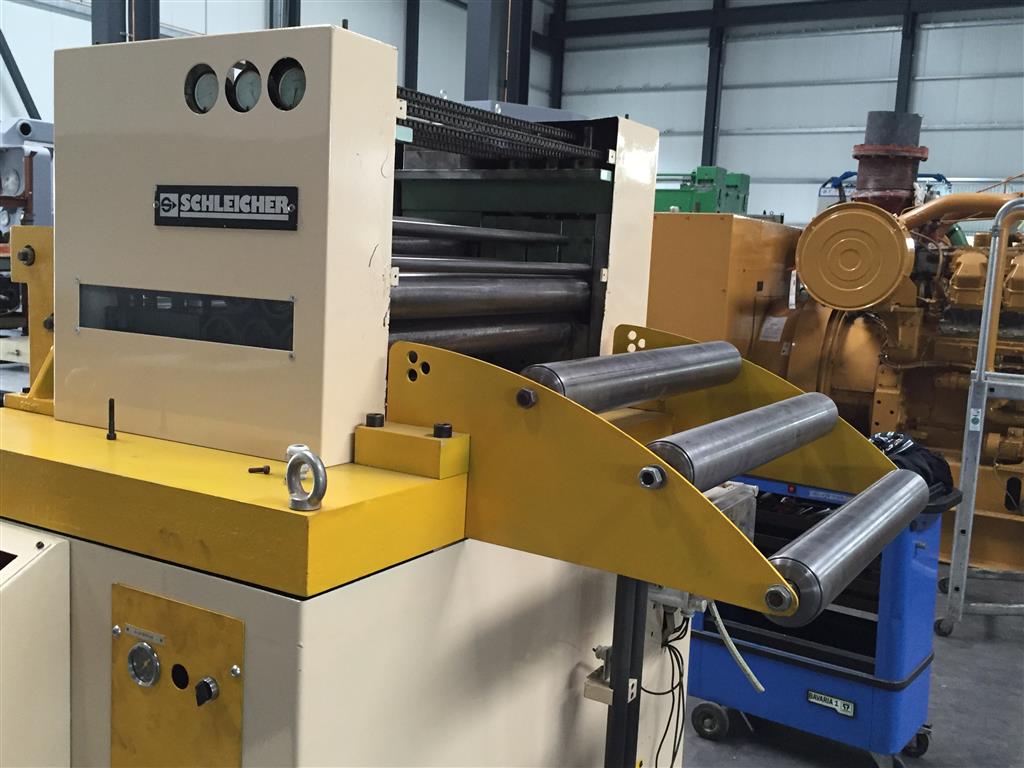

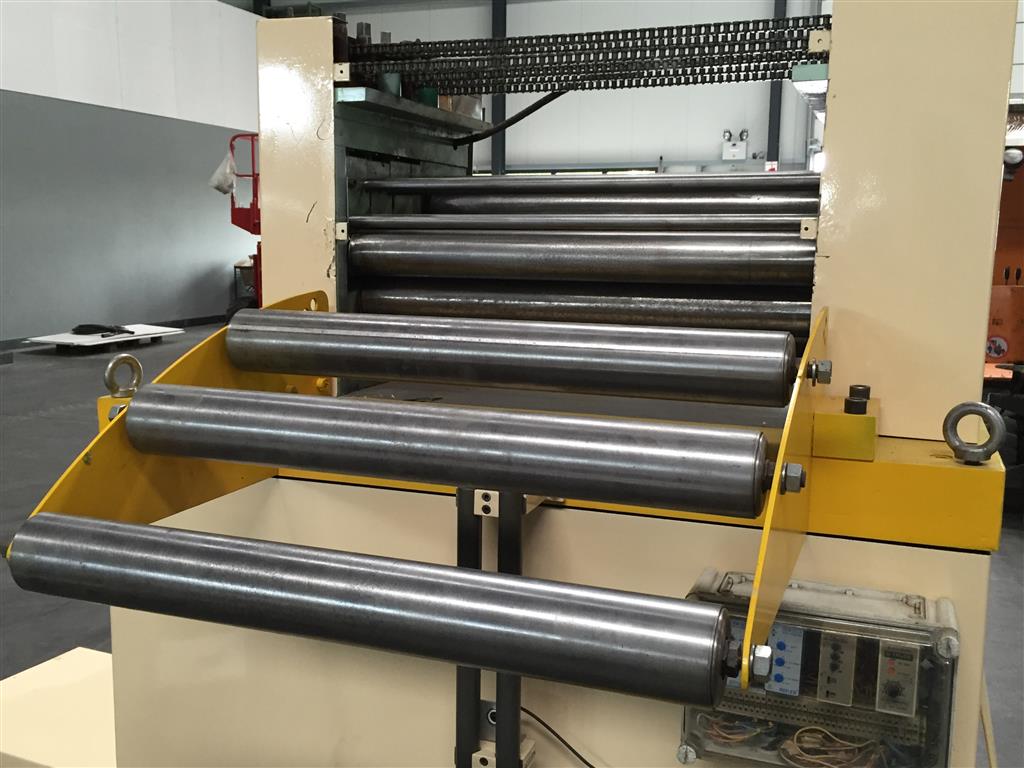

discharge rollers: 1x bottom and top roller Ø 80 x 760mm, adjustable side limit, driven -
Sold as is, without connection.
