Machining Center - Horizontal UNION CHEMNITZ KCUX 130 CNC 840 D

Offer

stock-no.:

0200910

type of machine:

Machining Center - Horizontal

make:

UNION CHEMNITZ

model:

KCUX 130 CNC 840 D

year of manufacture:

2002/ Überholt 2020

type of control:

CNC

country of origin:

Germany

freight basis:

EXW, free on truck unpacked

storage location:

Leipzig 5

delivery time:

immediately

price:

on request

technical details

boring spindle diameter:

130 mm

x-axis:

3200 mm

y-axis:

2500 mm

z-axis:

1500 mm

b-axis:

360 °

w-axis:

750 +200 mm

U-axis:

220 mm

control:

Siemens 840 D

tool taper:

HSK 100

revolution per minute:

2,5-280 Plansupport U/min

range of rpm - spindle:

5-3000 U/min

clamping table:

1600x2000 mm

feed speeds:

Z/Y/W , 1....6.000 mm/min

rapid traverse :

Z/Y/W , 15 m/min

max. torque on the spindle:

2415 Nm

weight of tools max.:

25 kg

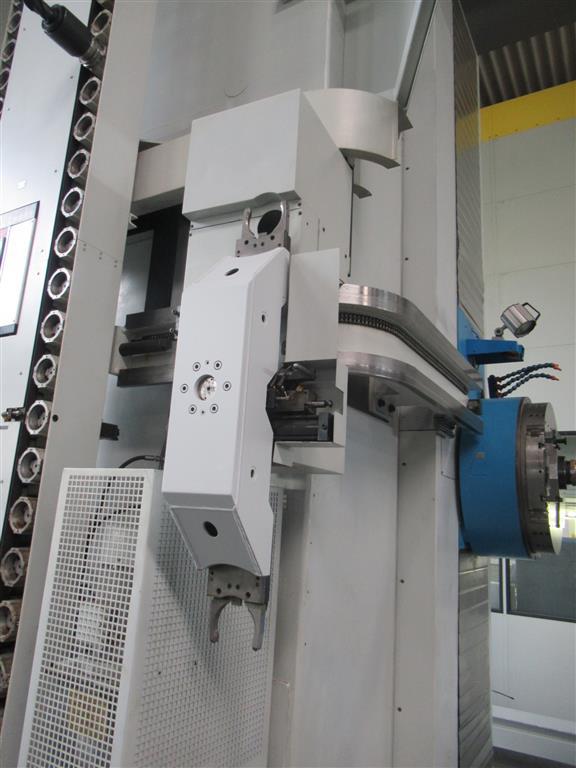

tool changer with:

60 Plätzen/place

diameter of tools max.:

250 mm

tool length - max.:

500 mm

table load:

6,5 t

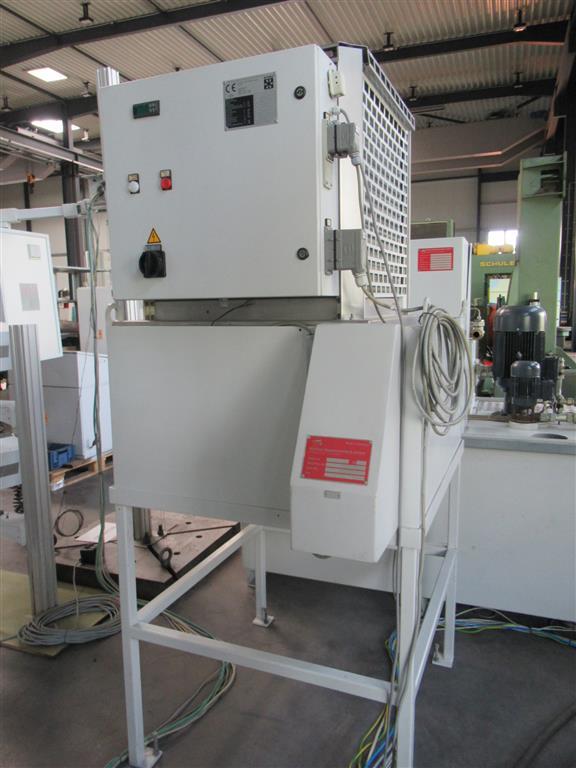

coolant device:

IKZ / CTS

coolant tank:

1245 l

total power requirement:

51 kW

weight of the machine ca.:

32 t

dimension machine approx.LxWxH:

8,5 x 8,2 x 4,5 m

dimensions electric cabinet LxWxH:

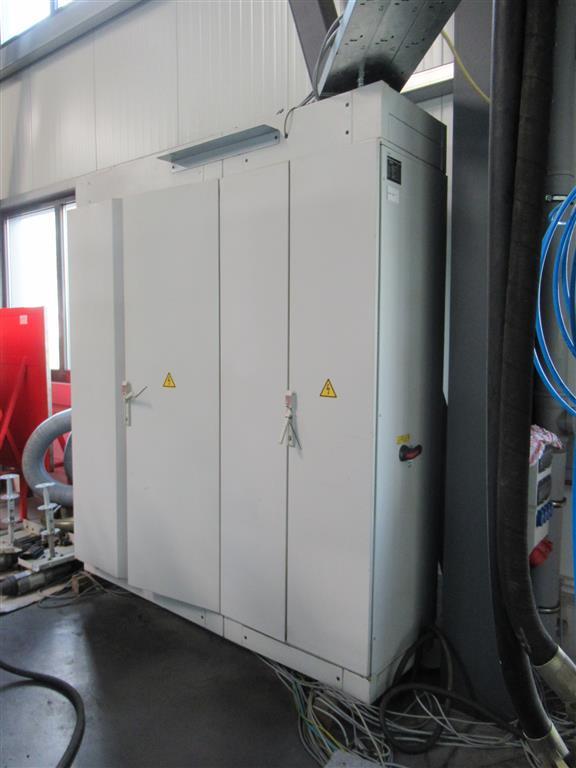

2,0x0,68x2,3 m

additional information

7-AXIS Machining CENTRE HORIZONTAL / Domestic Warranty 6 months!

The table boring machine has been mechanically overhauled.
Further details:
- Tool holding intake boring spindle taper hollow shank HSK-A 100
- Tool holder face support taper hollow shank HSK-C 100
- CTS and external cooling

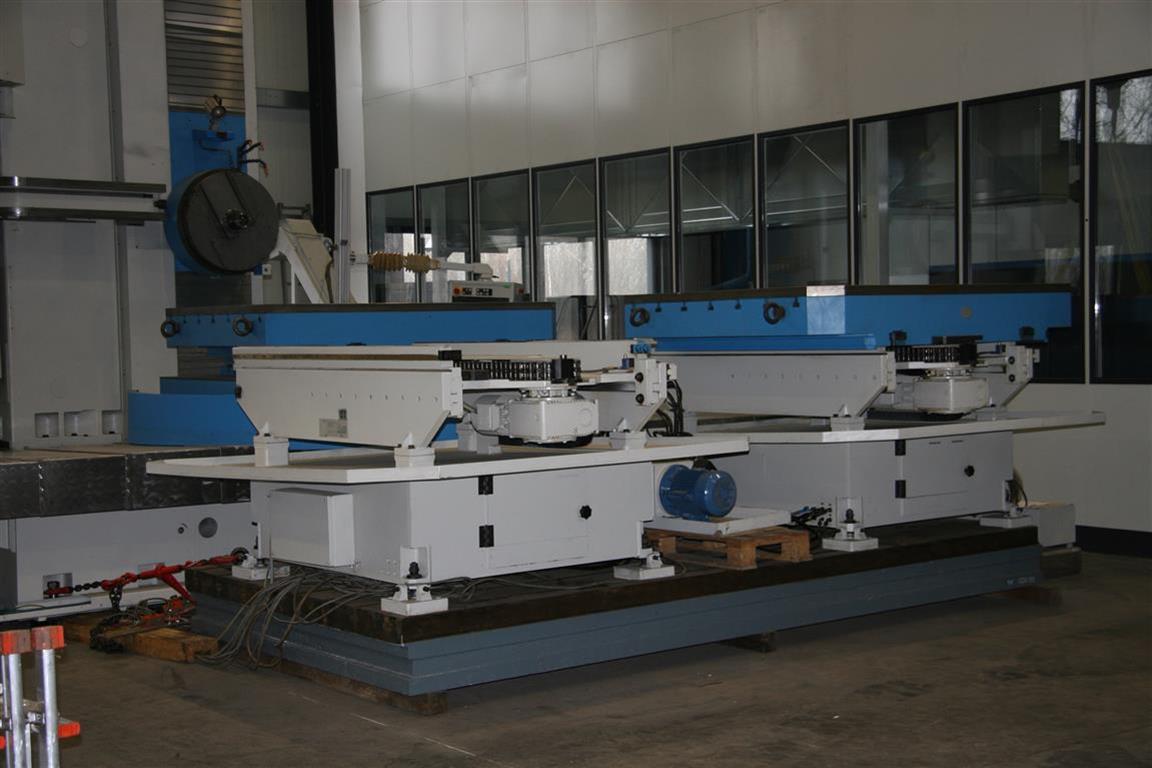

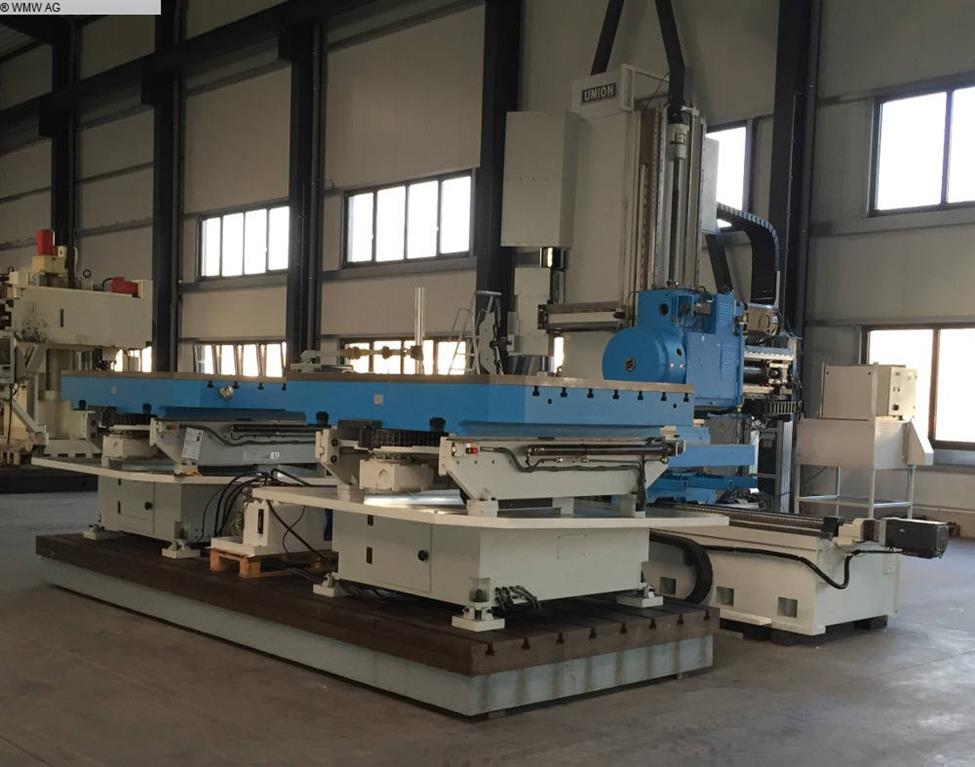

- Work table with pallet changing system (automatic workpiece change) Standard pallet change with 2 stations in z-axis direction.
- Exchange of workpieces (max. 6.5to) in the machining work cycle.

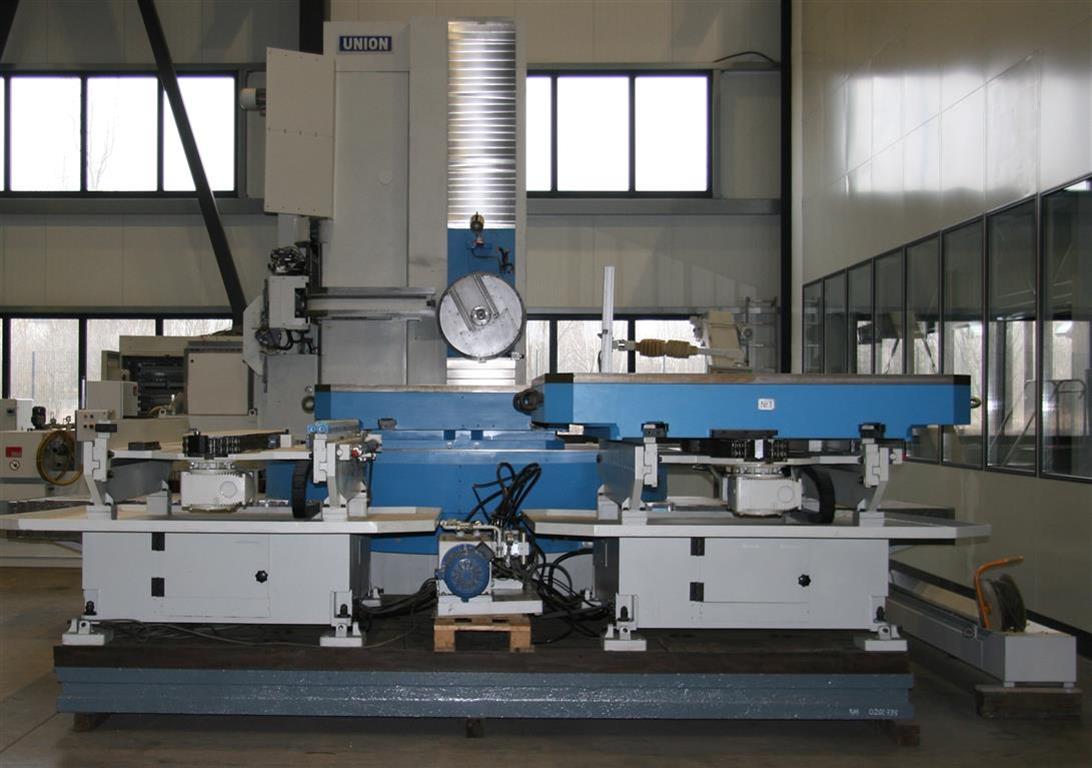

- Loading and unloading station for 2 pallets size each 1600x2000mm

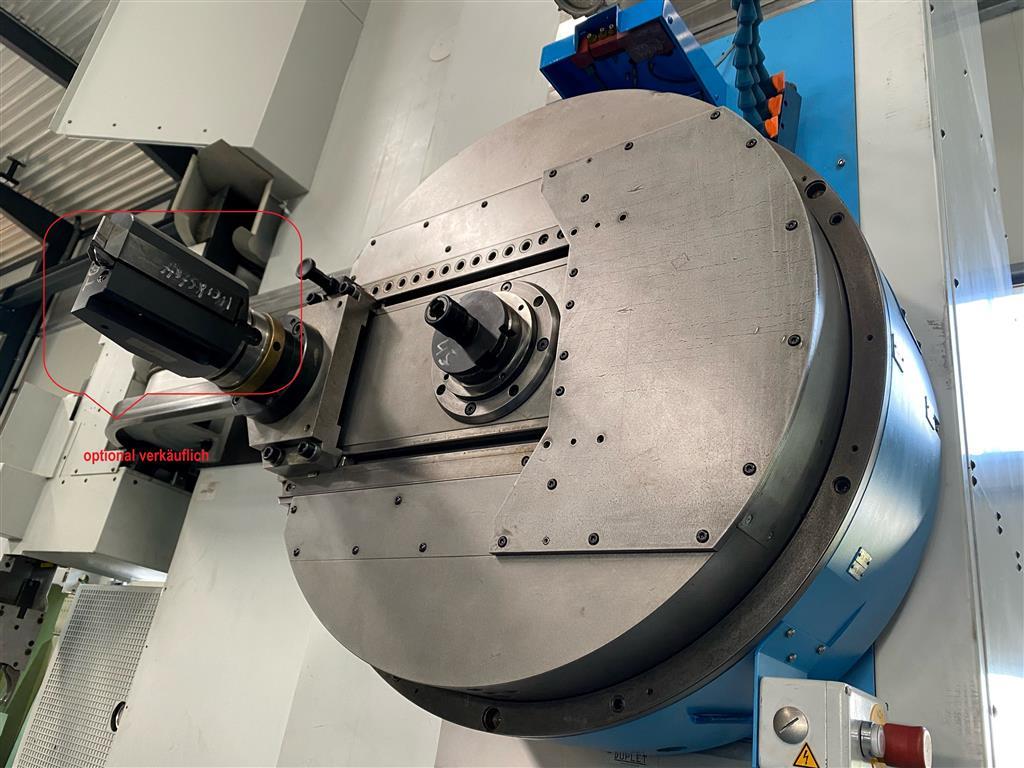

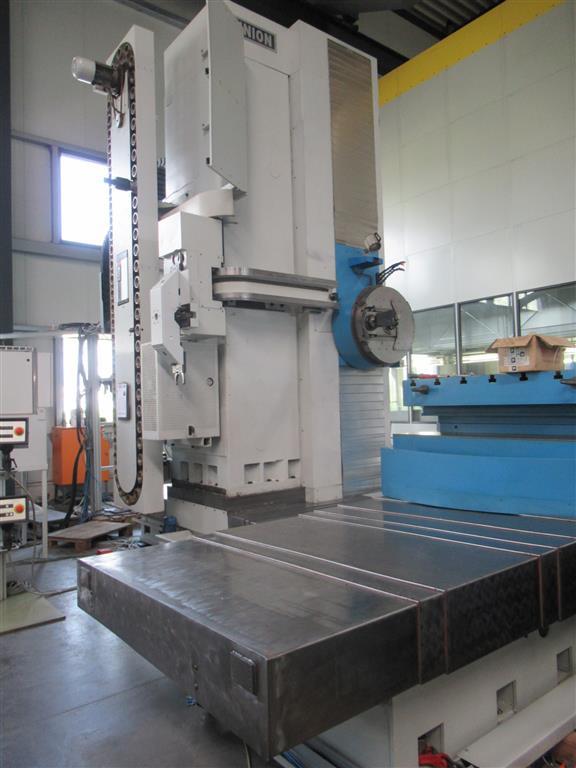

- controlled cross slide Ø=700mm (interpolation with other axes possible)

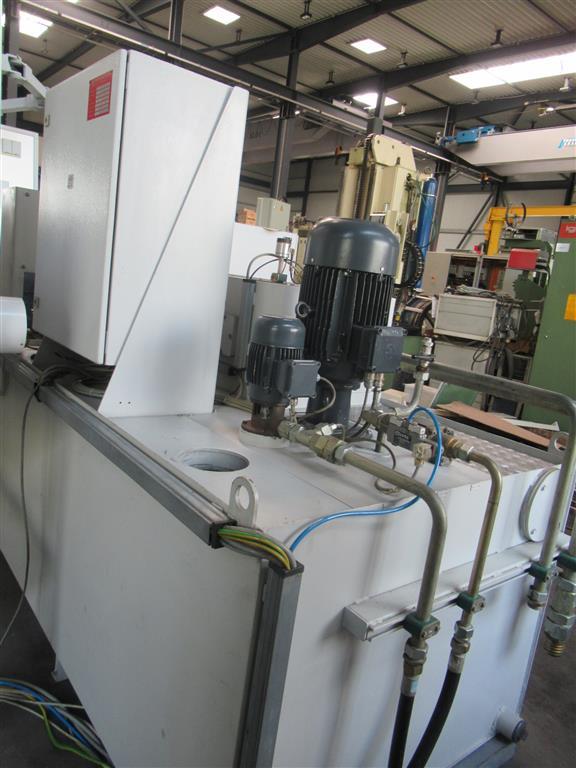

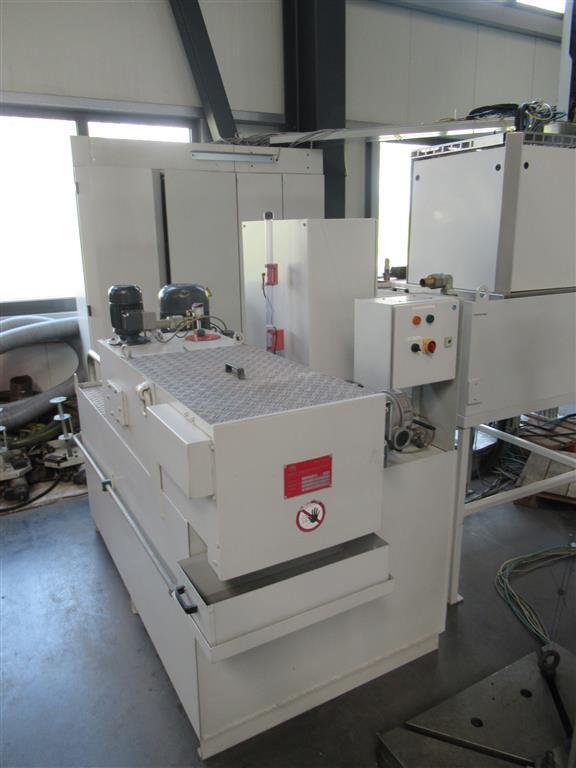

- Cooling device/ belt filter system brand Bürener

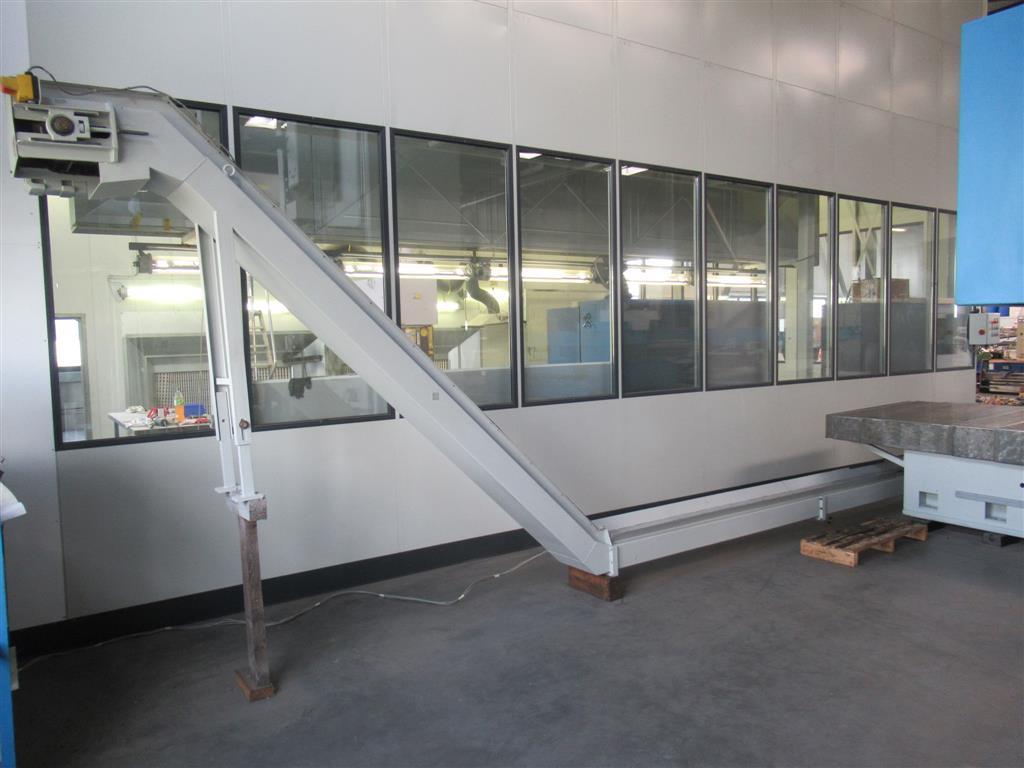

- Slat-band chain conveyor

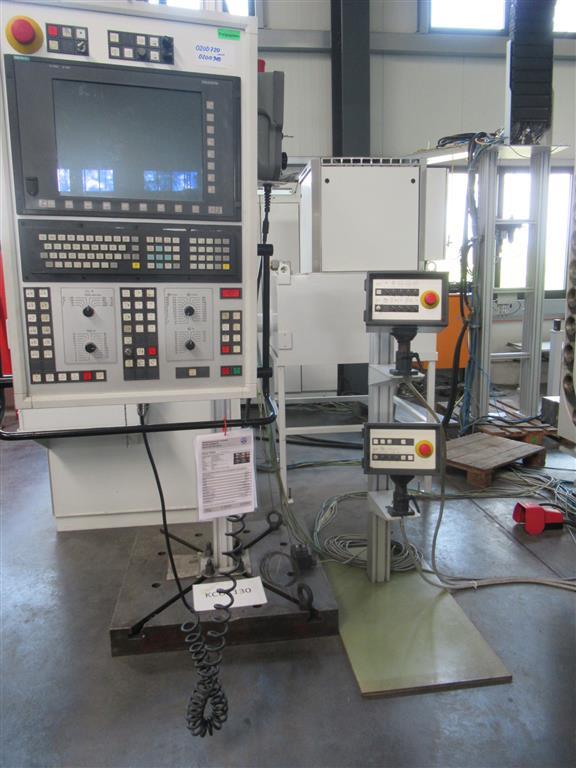

- Display Monitor control panel 15 Inch
- Funk Meßtaster 20.00 Multi Radio Waveprobe
- Werkzeugmeßgerät Laser Blum

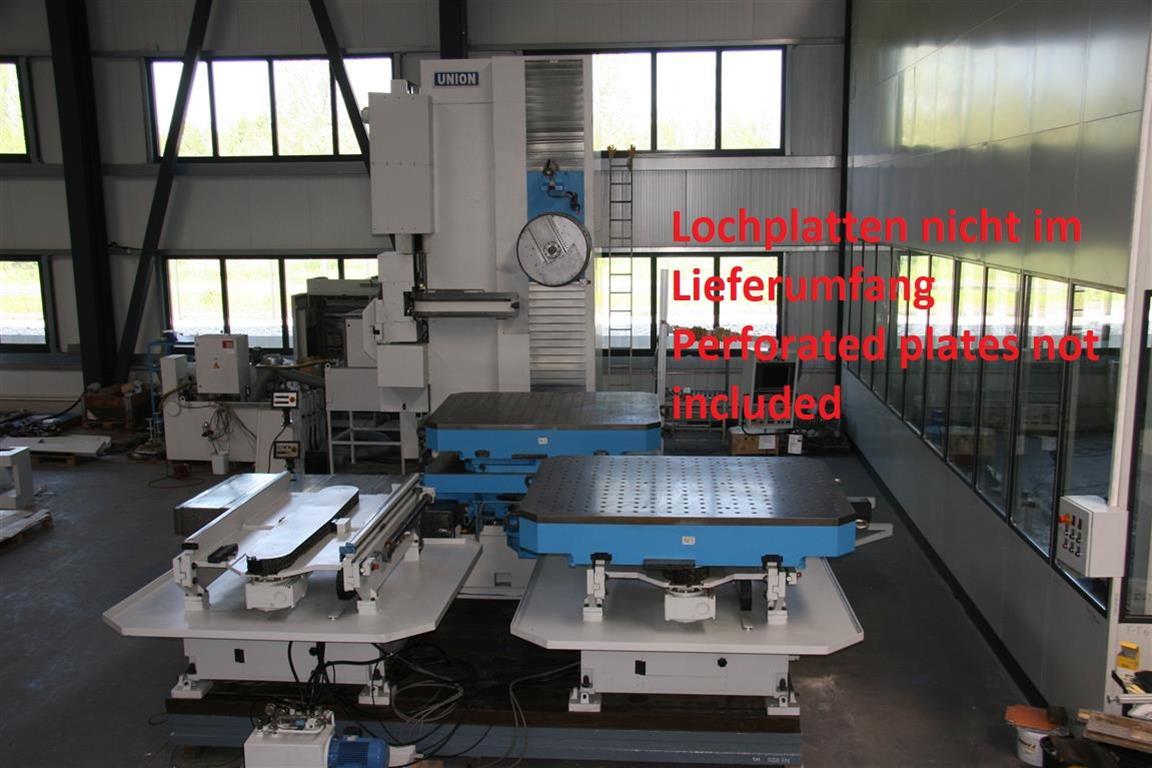

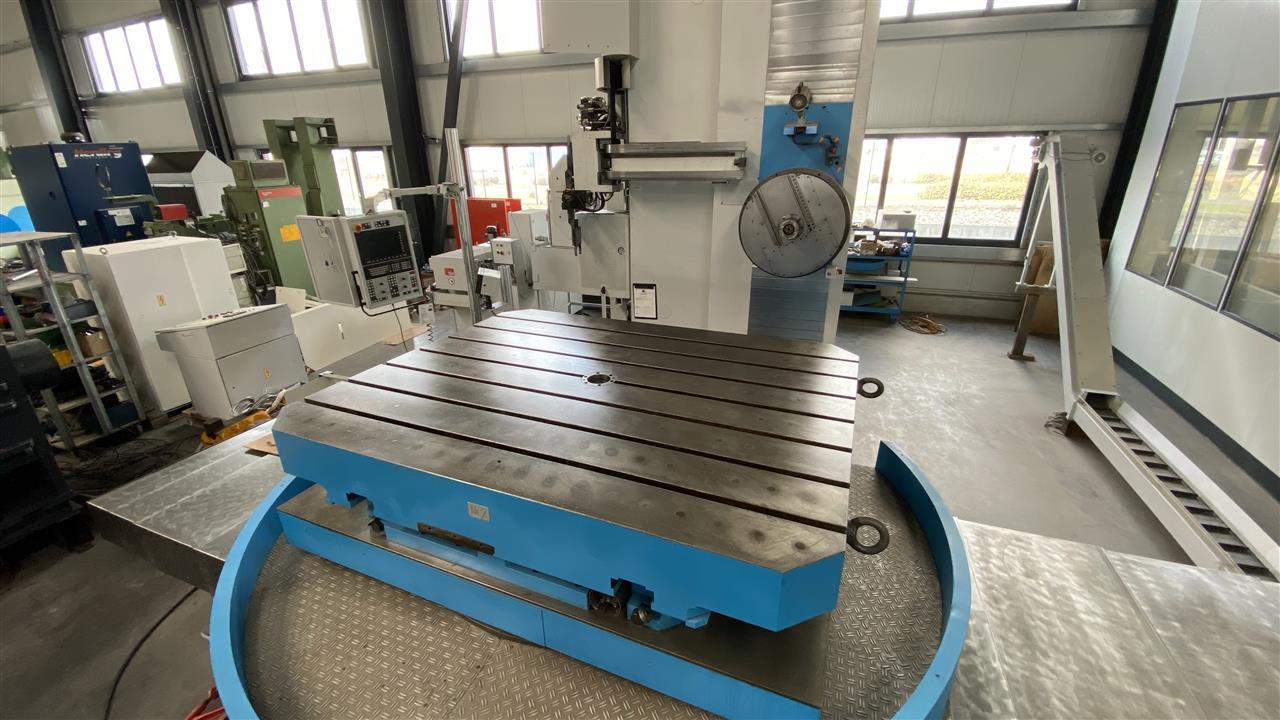

The T-slot clamping plate shown in the photo is not included in the offer!

work carried out:
- Overhaul of the complete headstock
- W-axis optimized for better lifetime / wear resistance (sleeve with ceramic coating)
- Renewal of the linear guides of x-, w-, z- and y-axis
- Headstock overhauled by manufacturer.
- Assembly, reconditioning and reassembly of the facing slide
- Renewal of all hydraulic hoses according to DIN 20 066
- Renewal of the lubrication pipes
- Renewal of the central lubrication unit of the X-axis
- Dismantling of the clamping shoes of the X and Y axis, cleaning, renewing of linings
- Seals of hydraulic components renewed
- guideway covers refurbished and wiper lips renewed
- Chip conveyor cleaned, checked, defective bearings replaced
- Pallets cleaned, checked, defective rollers replaced
- Cleaning, inspection, painting of the coolant system
- Tool changer checked, and partly overhauled by the manufacturer
- Complete repainting of the machine
