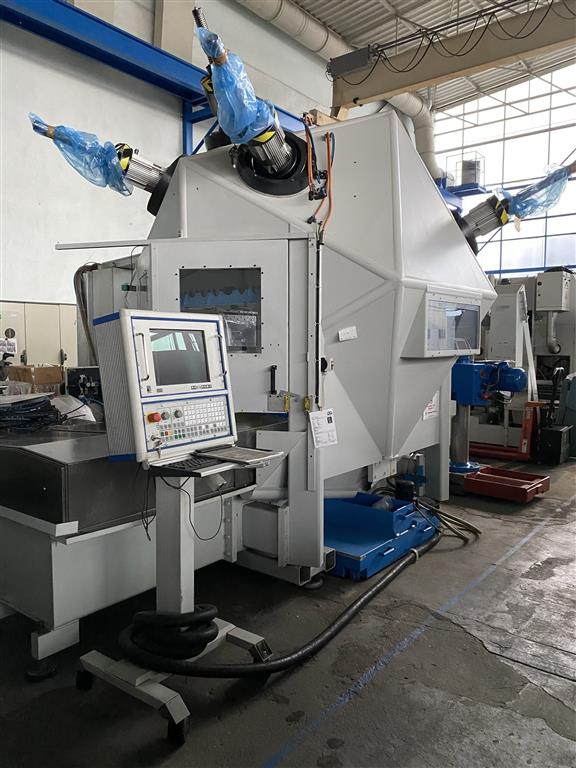

Machining Center - Universal METROM P1000 / 5 Achsen - 5 Axis

Offer

stock-no.:

0200868

type of machine:

Machining Center - Universal

make:

METROM

model:

P1000 / 5 Achsen - 5 Axis

year of manufacture:

2007

type of control:

CNC

country of origin:

Germany

freight basis:

EXW, free on truck unpacked

storage location:

Leipzig 1

delivery time:

immediately

price:

on request

technical details

x-travel:

1000 mm

y-travel:

1000 mm

z-travel:

500 mm

B-axis (table):

360 °

spindle taper:

HSK A63

working spindle range of revolution per minute :

15000 U/min

rotary table:

260 mm

control:

Andronic 2060PKM

feed:

1 - 5000 mm/min

rapid traverse X,Y:

15 m/min.

rapid traverse Z-axis:

12 m/min

total power requirement:

ca. 42 kW

weight of the machine ca.:

6,0 t

dimensions electric cabinet LxWxH:

2,4x0,6x2,2 m

dimension machine approx.LxWxH:

3,5x2,4x3,2 m

additional information

5-axis BAZ in parallel kinematics suitable for prototypes.

i.D.
