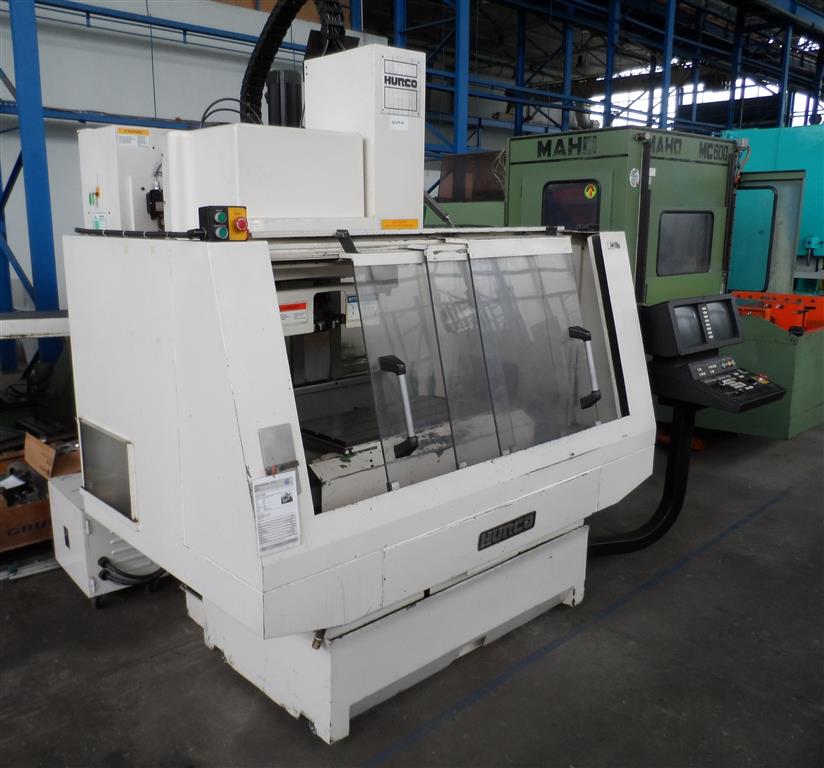

Machining Center - VerticalMachining Center - Vertical Hurco BMC 20

Machining Center - Vertical Hurco BMC 20Machining Center - Vertical Hurco BMC 20Machining Center - Vertical Hurco BMC 20Machining Center - Vertical Hurco BMC 20Machining Center - Vertical Hurco BMC 20Machining Center - Vertical Hurco BMC 20Machining Center - Vertical Hurco BMC 20

Offer

stock-no.:
0208010
type of machine:
Machining Center - Vertical
make:
Hurco
model:
BMC 20
year of manufacture:
1984
type of control:
CNC
country of origin:
UK
freight basis:
EXW, free on truck
storage location:
Leipzig 1
delivery time:
immediately
price:
on request

technical details

x-travel:
559 mm
y-travel:
356 mm
z-travel:
356 mm
distance spindle center to table:
min./max.=102/457 mm

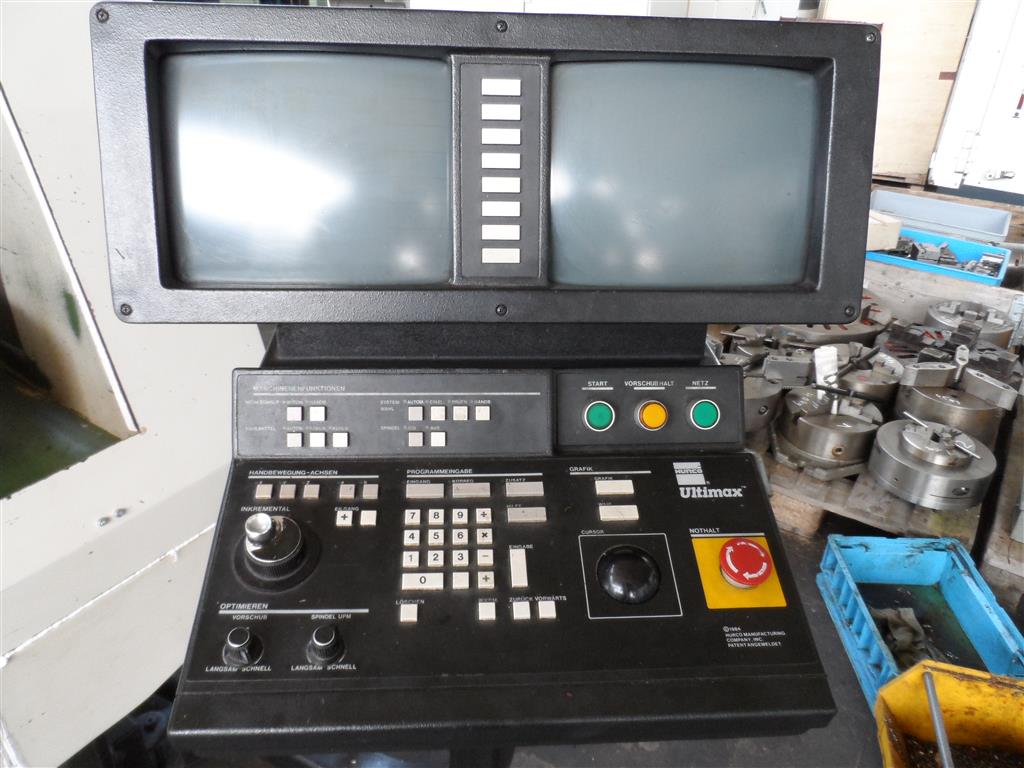

control:
Hurco Ultimax 3 Control
spindle speed::
60 - 6000 U/min
tool taper:
SK 40

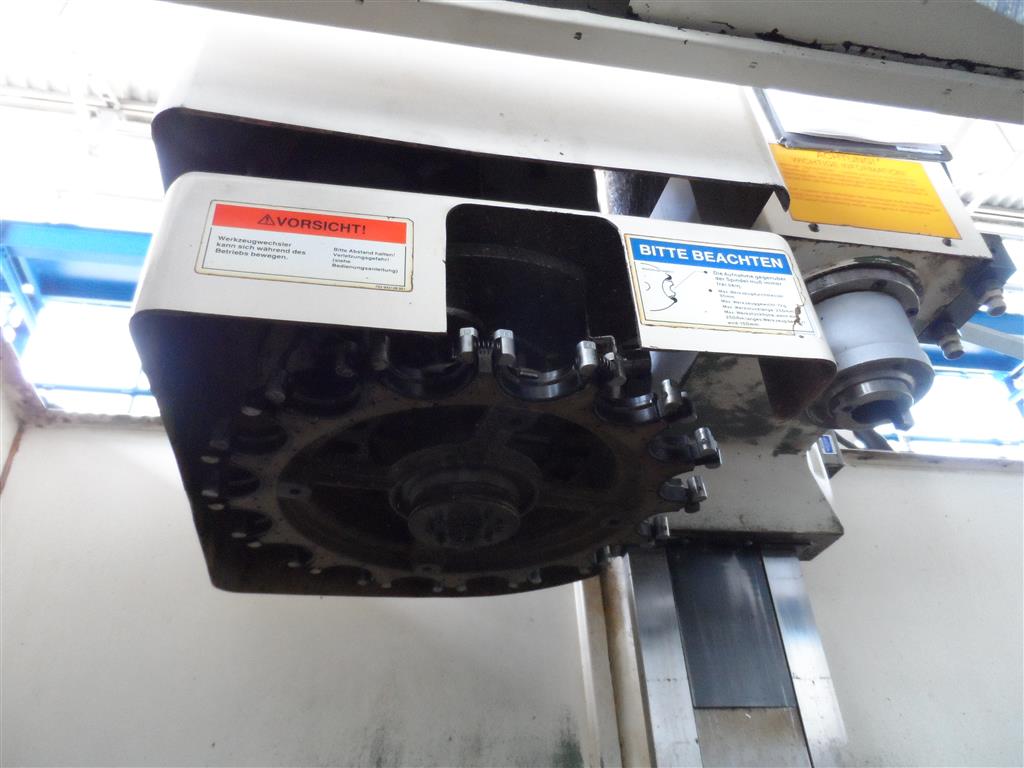

tool changer with:
16 tools (Magazinteller) places
feed speed:
1 - 3810 mm/min
rapid traverse::
1 - 10160 mm/min

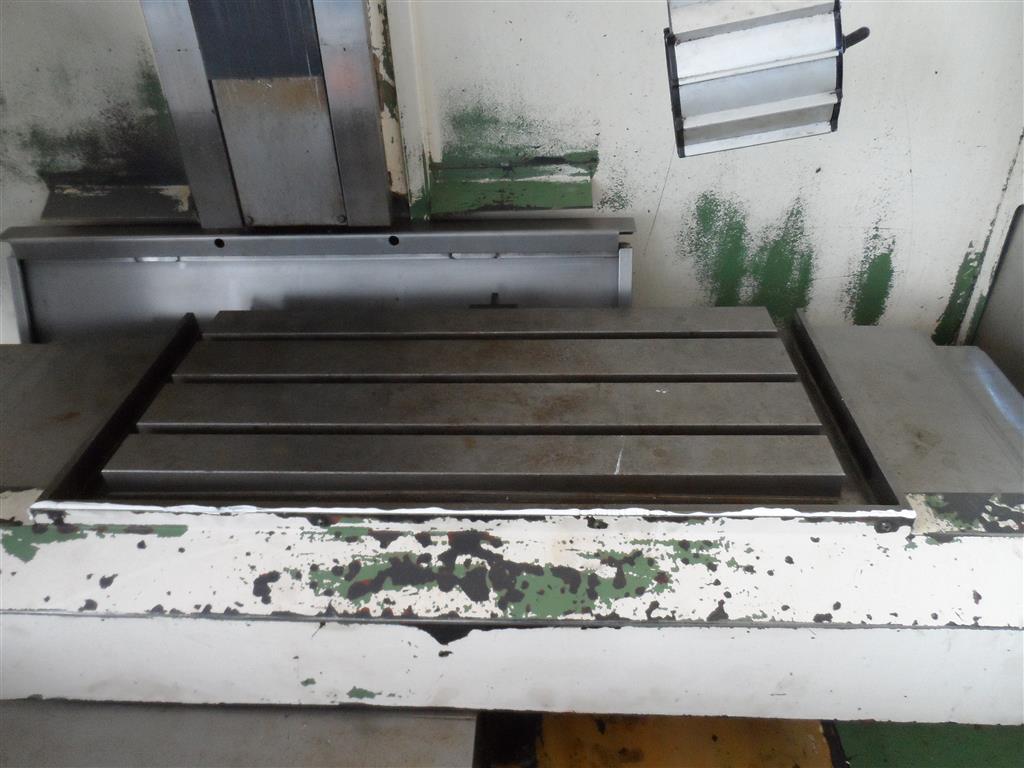

table-size:
765 x 349 mm
table load:
0,25 t
Number of working hours:
18001 (laut Zähler) h
Total power requirement:
12 kW (15 kVA) kVA
Weight approx.:
3,0 t
dimension machine approx.LxWxH:
2,8 x 2,15 x 2,6 m
transport measurements machine:
2,2 x 2,1 x 2,6 m
transport dimensions LxWxH:
Transformator: 0,55 x 0,38 x 0,48 m

additional information

other technical features of the machine:

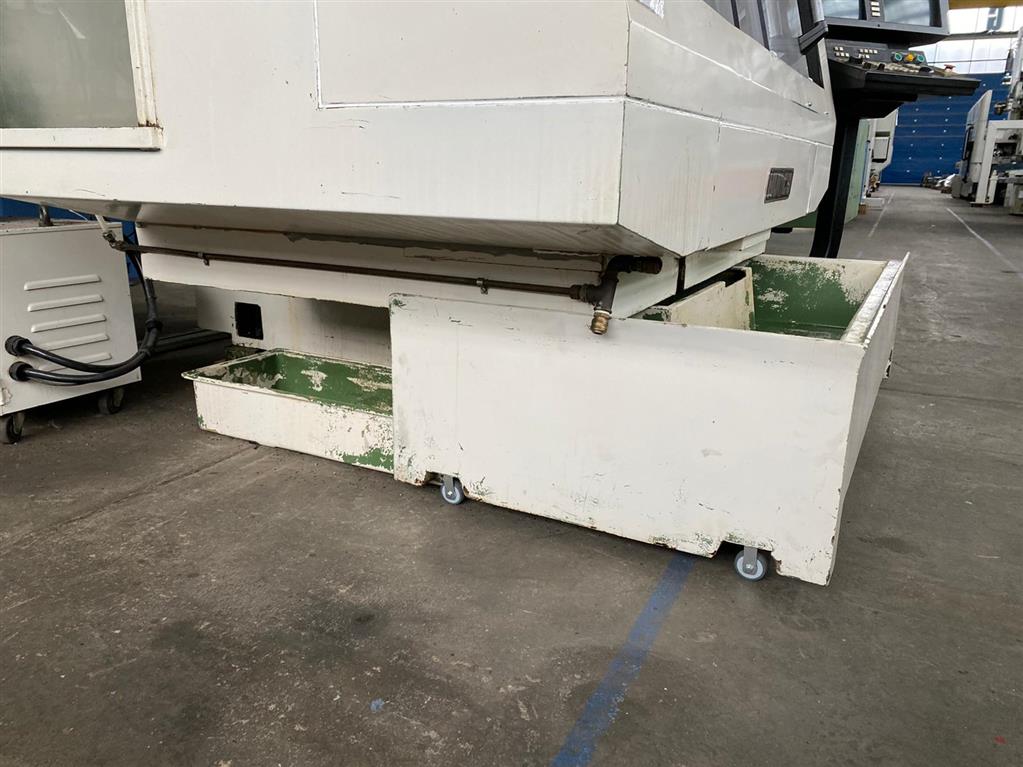

- with coolant system
- operation via control panel with jib
- transformer
