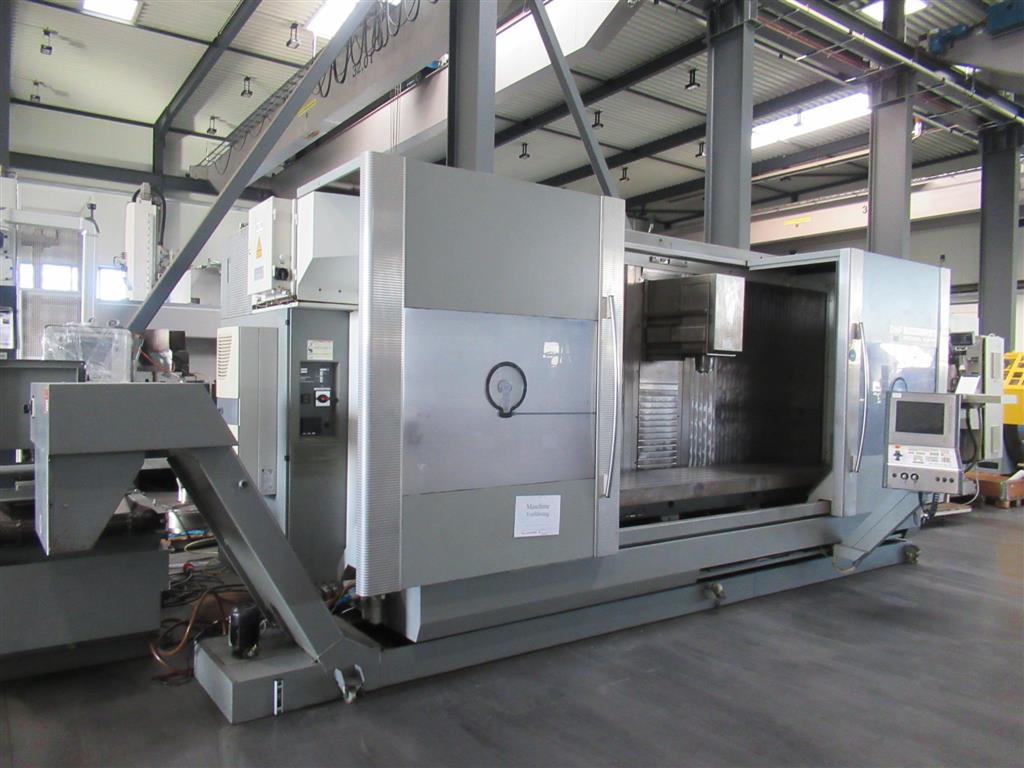

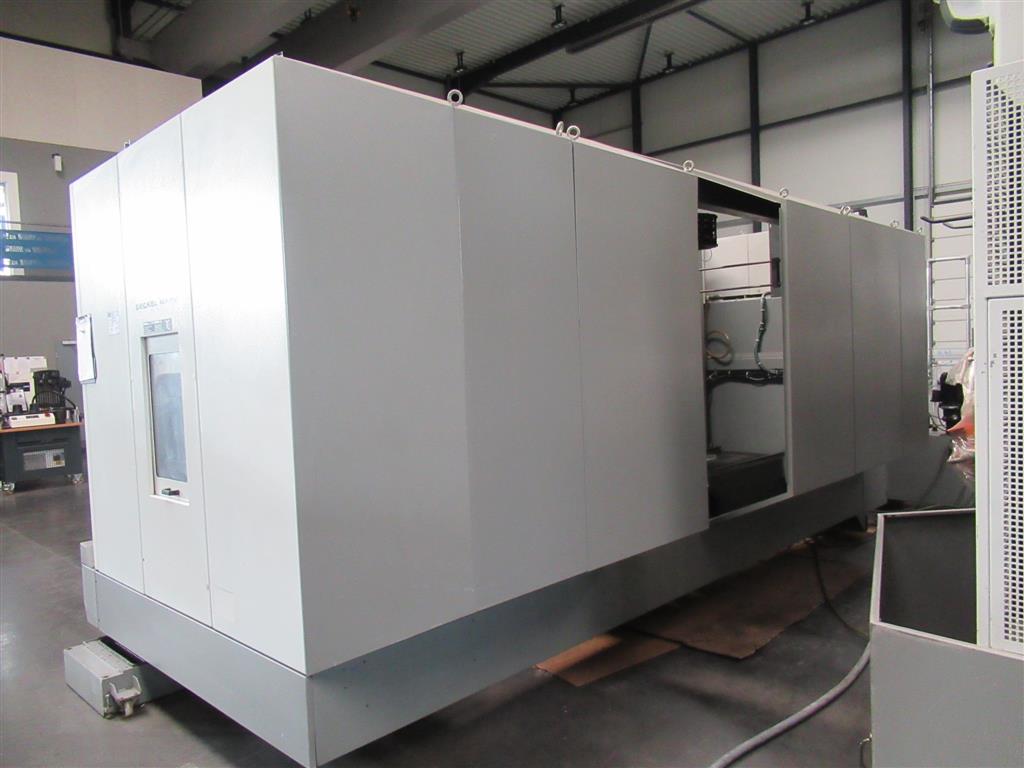

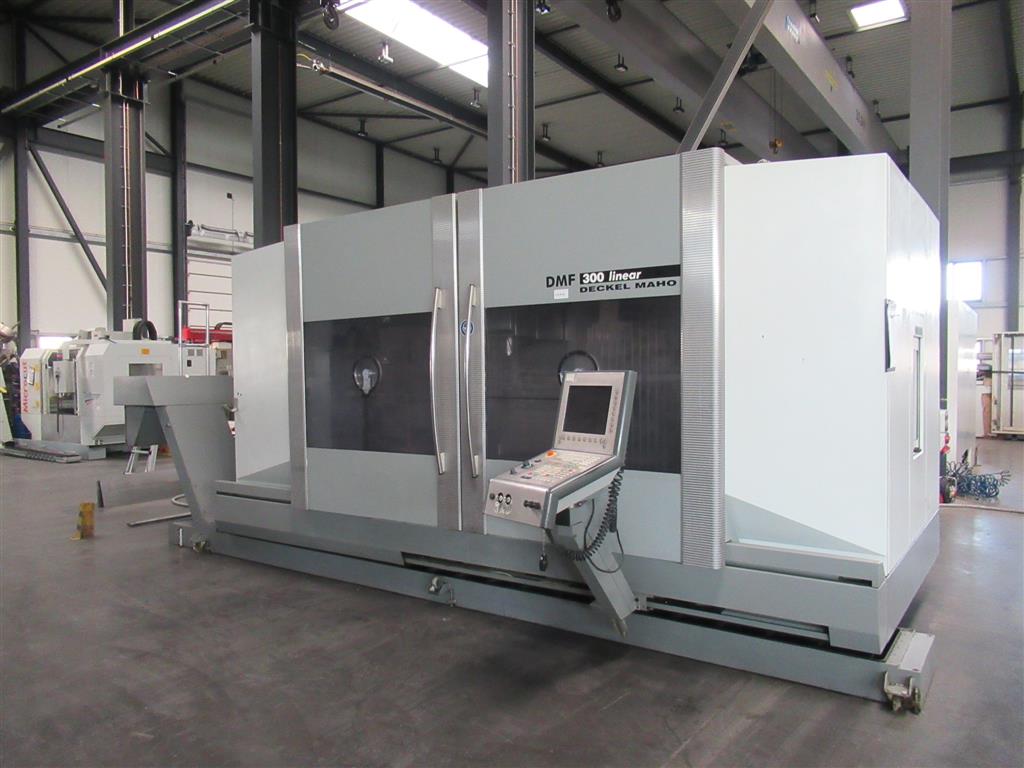

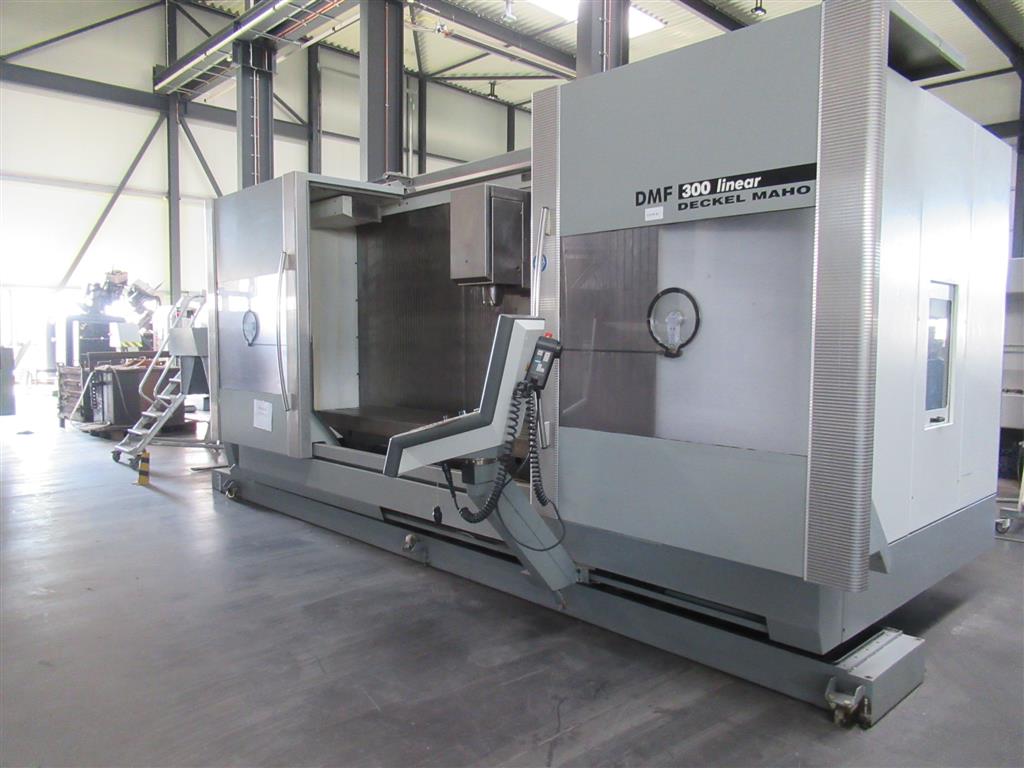

Machining Center - VerticalMachining Center - Vertical DECKEL MAHO DMF 300 linear

Machining Center - Vertical DECKEL MAHO DMF 300 linearMachining Center - Vertical DECKEL MAHO DMF 300 linearMachining Center - Vertical DECKEL MAHO DMF 300 linearMachining Center - Vertical DECKEL MAHO DMF 300 linearMachining Center - Vertical DECKEL MAHO DMF 300 linearMachining Center - Vertical DECKEL MAHO DMF 300 linearMachining Center - Vertical DECKEL MAHO DMF 300 linearMachining Center - Vertical DECKEL MAHO DMF 300 linear

Offer

stock-no.:
0208016
type of machine:
Machining Center - Vertical
make:
DECKEL MAHO
model:
DMF 300 linear
year of manufacture:
2003
type of control:
CNC
country of origin:
Germany
freight basis:
EXW, free on truck
storage location:
Leipzig 5
delivery time:
immediately
price:
on request

technical details

x-travel:
3000 mm
y-travel:
560 mm
z-travel:
720 mm
control:
Siemens 840D shopmill
tool changer with:
30 Plätze
tool taper:
SK 40 - HSK-A63
Revolution per minute:
20 - 18.000 stufenlos U/min.
feed speeds infinitely variable:
X-, Y-, Z-Axis: ...20.000 mm/min
rapid traverse::
X-Axis: 100 m/min
rapid traverse::
Y- und Z-Axis: 50 m/min.
spindle hours:
ca. 18 130 h
operating hours - idle run:
ca. 33 960 h

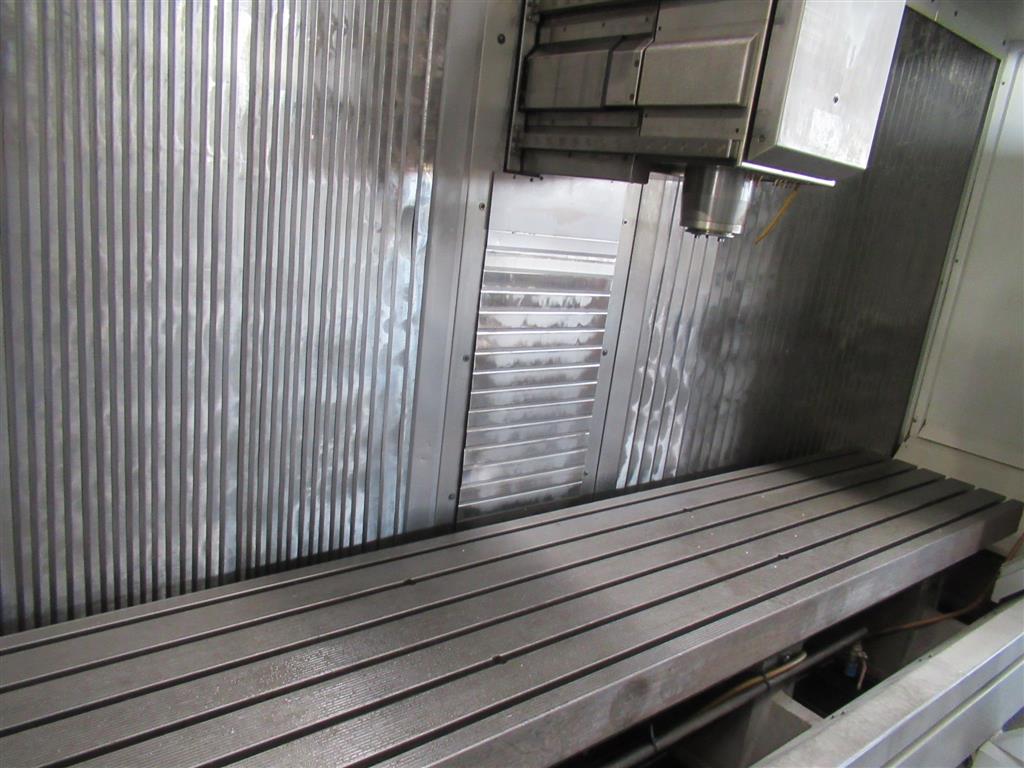

table-size:
3400 x 600 starr mm
table load capacity:
3000 kg
interface:
232
spindle hours:
ca. 18 200 h
operating hours - idle run:
ca. 34 100 h
total power requirement:
70 kVA = 56 kW kW
Weight approx.:
14,6 + Anbauteile t
dimension machine approx.LxWxH:
5,3 x 2,95 x 2,7 (ohne Späneförderer) m
dimension swarf conveyor LxWxH:

additional information

other technical characteristics:

- Main drive with AC servo motor / motor spindle, 12 000 rpm. for axes X, Y and Z
- Measuring system with resolution in all axes 0.001mm
- Tool clamping hydraulic and mechanical (Interlit SPB 3/600, BJ: 2003)
- Main drive with AC servo motor / motor spindle, 12 000 rpm. for axes X, Y and Z
- Measuring system with resolution in all axes 0.001mm
- Tool clamping hydraulic and mechanical
- Automatic and manual tool change
- Power supply: 3N/PE alternating current 50/60 Hz; 400/230 V
- Spindle through cooling (CTS)
- 4.axis in the electrical cabinet pre-equipped

Equipment:

- Mineral bed
- Chip conveyor (scraper conveyor) Bürener KFE

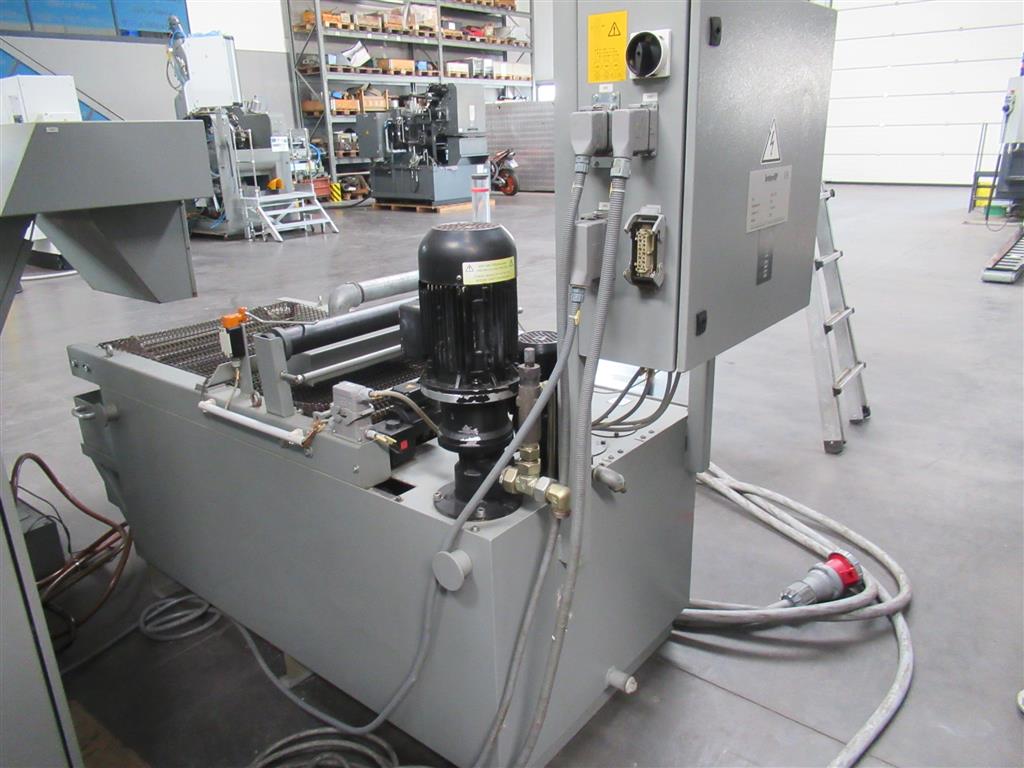

- Cooling lubricant system
- Tool magazine (chain magazine)
- Spindle
- Main drive with AC servo motor / motor spindle, 12 000 rpm. for axes X, Y and Z
- Measuring system with resolution in all axes 0.001mm
- Tool clamping hydraulic and mechanical
- Power supply: 3N/PE alternating current 50/60 Hz; 400/230 V

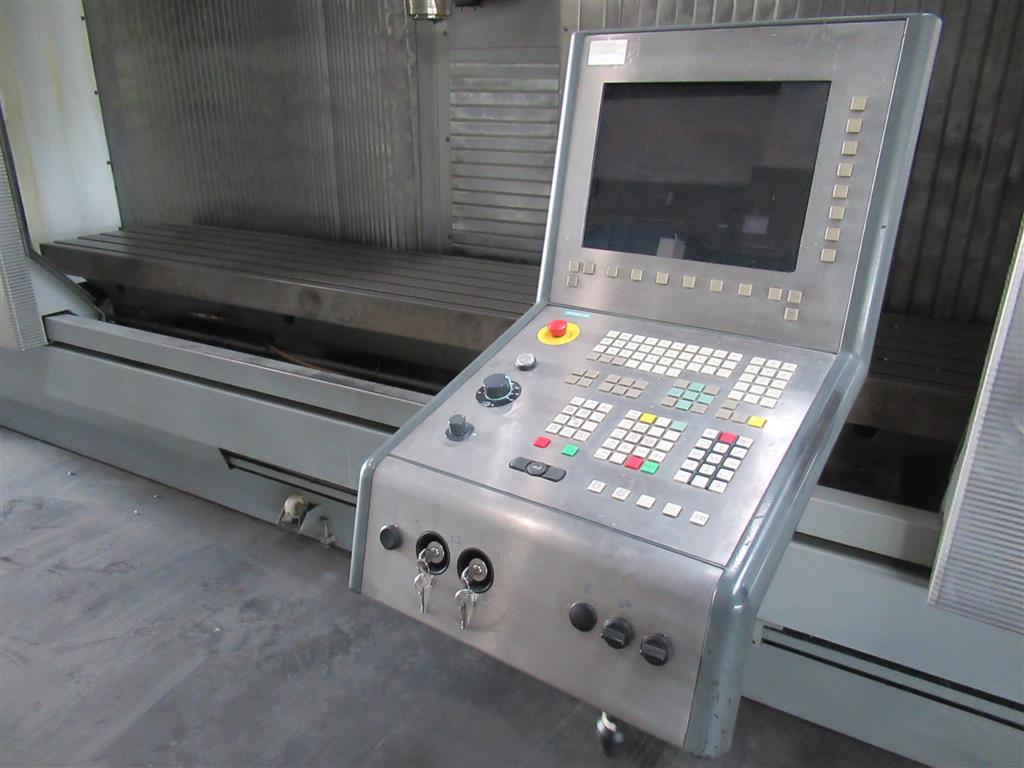

- Control panel
- electronic handwheel

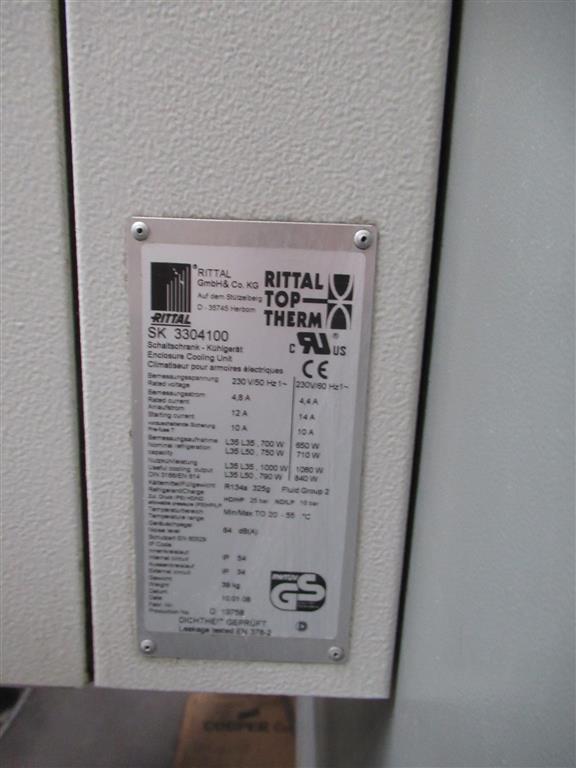

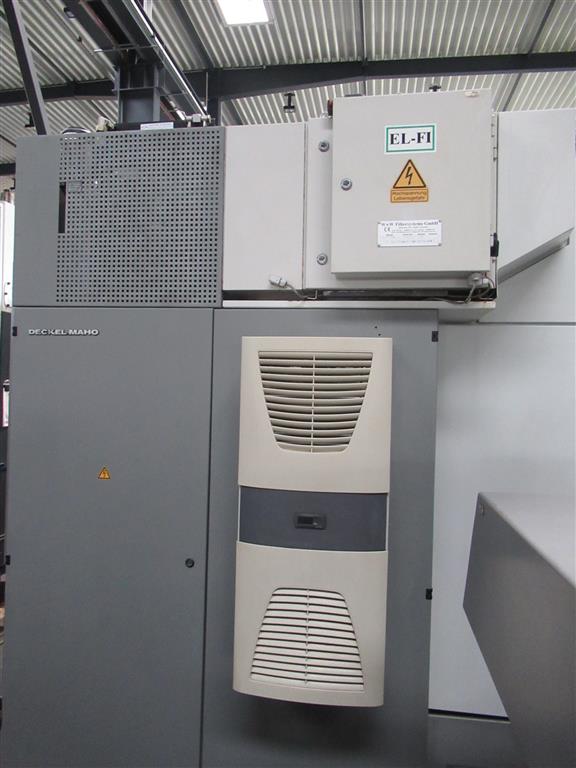

- Electrical cabinet
