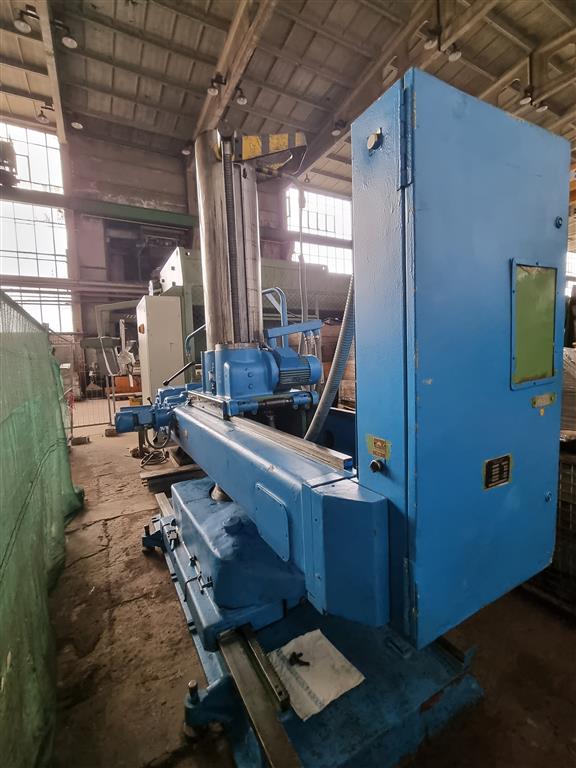

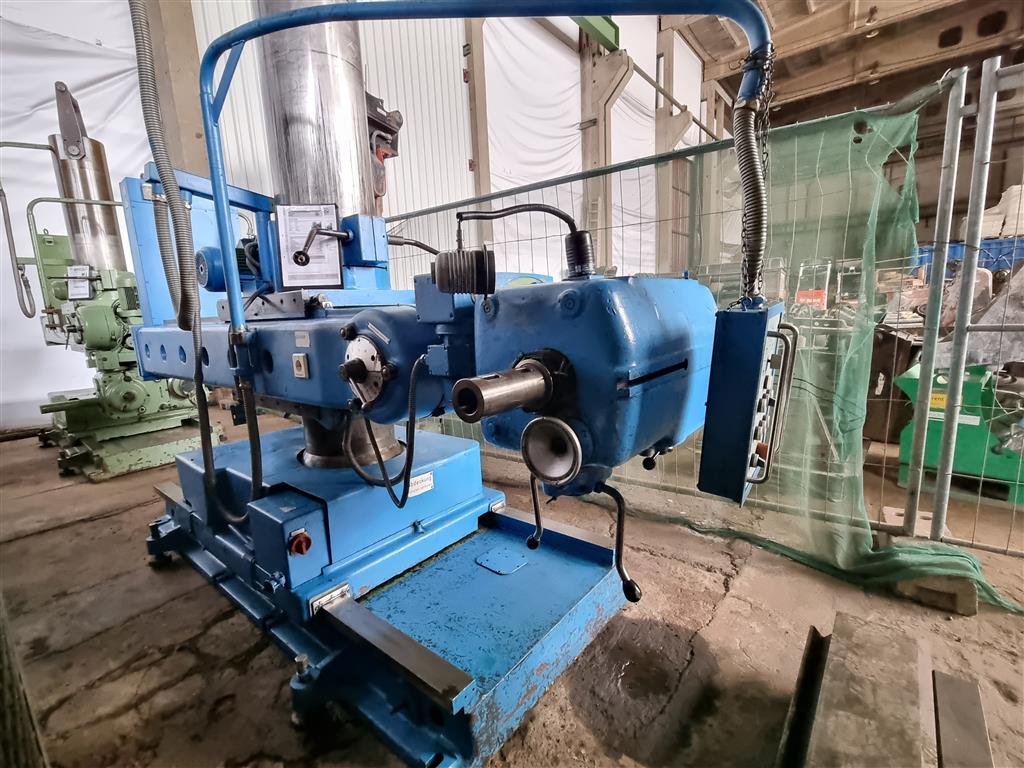

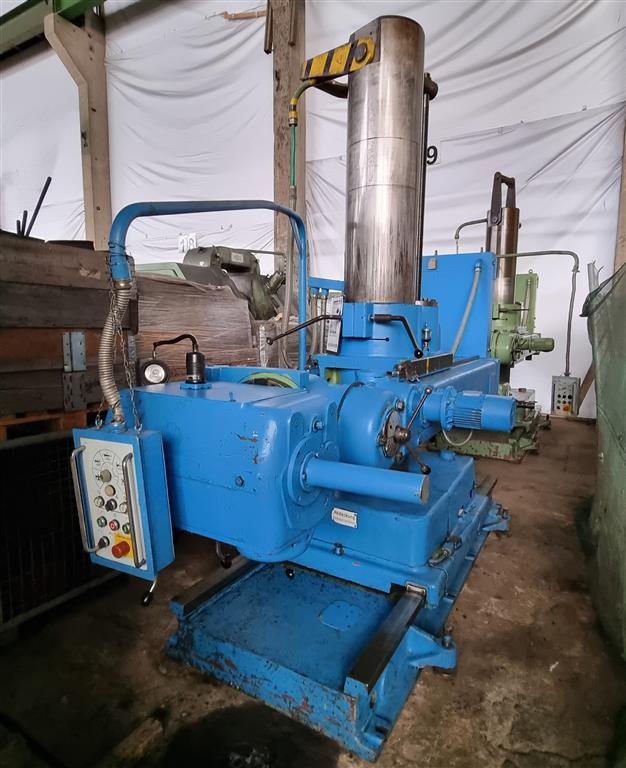

Radial Drilling Machine - Portable KOVOSVIT VOM50

Offer

stock-no.:

0200511

type of machine:

Radial Drilling Machine - Portable

make:

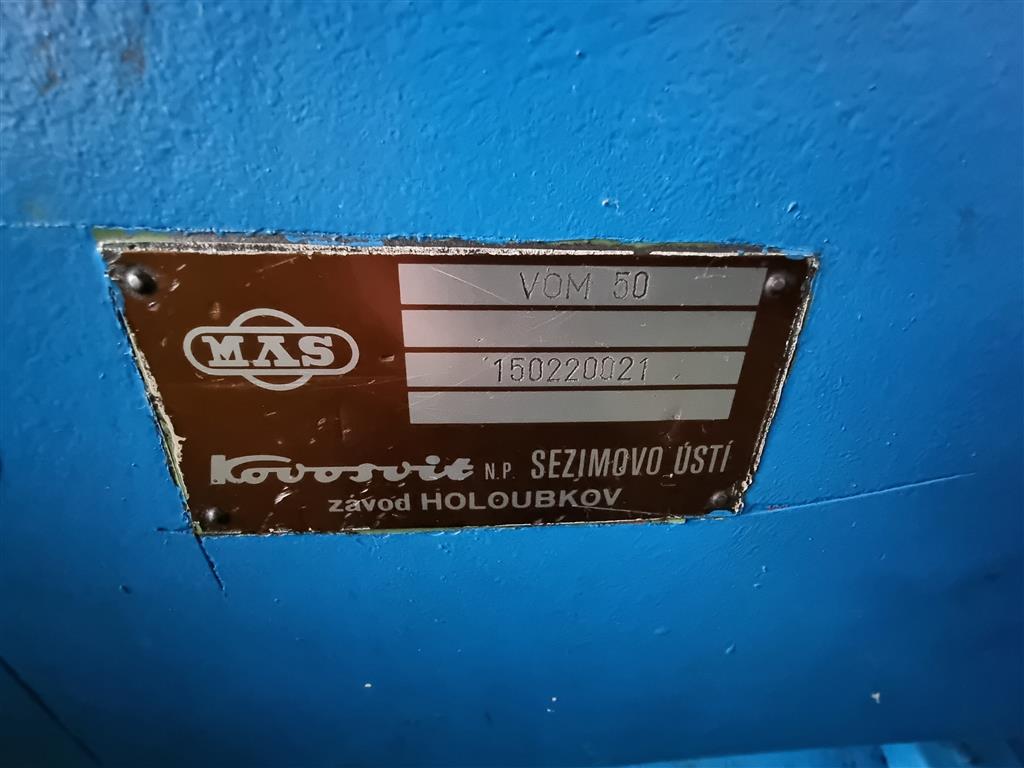

KOVOSVIT

model:

VOM50

year of manufacture:

1994

type of control:

conventional

country of origin:

Czech Republic

freight basis:

EXW, free on truck unpacked

storage location:

Leipzig 2

delivery time:

immediately

price:

on request

technical details

bore capacity in steel (diameter):

mm

x-travel:

mm

y-travel:

mm

revolution per minute:

16 - 800 / 15 step U/min

feed steps:

0,02/0,05/0,08/0,125/0,313/0,5 mm/U

bore spindle stroke:

350 mm

boring spindle diameter:

75 mm

drill spindle - Morse Taper:

MK5

vertical adjustment of the arm:

1200 mm

throat max.:

2200 mm

throat min.:

1200 mm

column diameter:

400 mm

swivel range of the arm:

360° mm

headstock swivable +/-:

oben / unten: 90° °

total power requirement:

ca. 13 kVA

weight of the machine ca.:

6000 kg

dimension machine approx.LxWxH:

3,4 x 1,5 x 3,0 m

additional information

The machine is placed on a stable base body (cast steel) with adjustable feet.
