Radial Drilling Machine - Portable
Offer
- stock-no.:
- 0200512
- type of machine:
- Radial Drilling Machine - Portable
- make:
- KOVOSVIT
- model:
- VOM50
- year of manufacture:
- 1994
- type of control:
- conventional
- country of origin:
- Czech Republic
- freight basis:
- EXW, free on truck unpacked
- storage location:
- Leipzig 2
- delivery time:
- immediately
- price:
- on request
technical details
- bore capacity in steel (diameter):
- mm
- x-travel:
- mm
- y-travel:
- mm
- turning diameter over bed:
- mm
- turning diameter over bed slide:
- center height over support:
- mm
- revolution per minute:
- 16 - 800 / 15 step U/min
- feed steps:
- 0,02/0,05/0,08/0,125/0,313/0,5 mm/U
- bore spindle stroke:
- 350 mm
- boring spindle diameter:
- 75 mm
- drill spindle - Morse Taper:
- MK5
- vertical adjustment of the arm:
- 1200 (motorisch) mm
- throat max.:
- 2200 (Bohrspindel) mm
- throat min.:
- 1200 (Bohrspindel) mm
- column diameter:
- 400 mm
- swivel range of the arm:
- 360° mm
- headstock swivable +/-:
- oben / unten: 90° °
- total power requirement:
- ca. 13 kVA
- weight of the machine ca.:
- 6000 kg
- dimension machine approx.LxWxH:
- 2,5 x 1,5 x 3,5 m
additional information

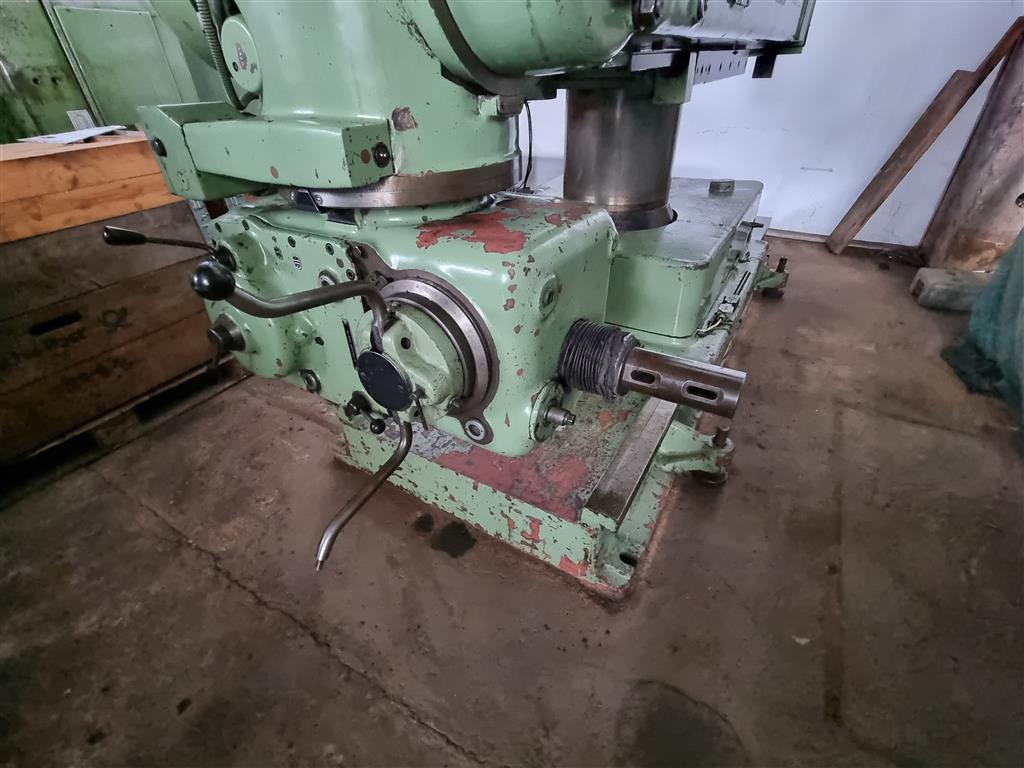

The machine is mounted on a stable base body (cast steel) with adjustable feet.
