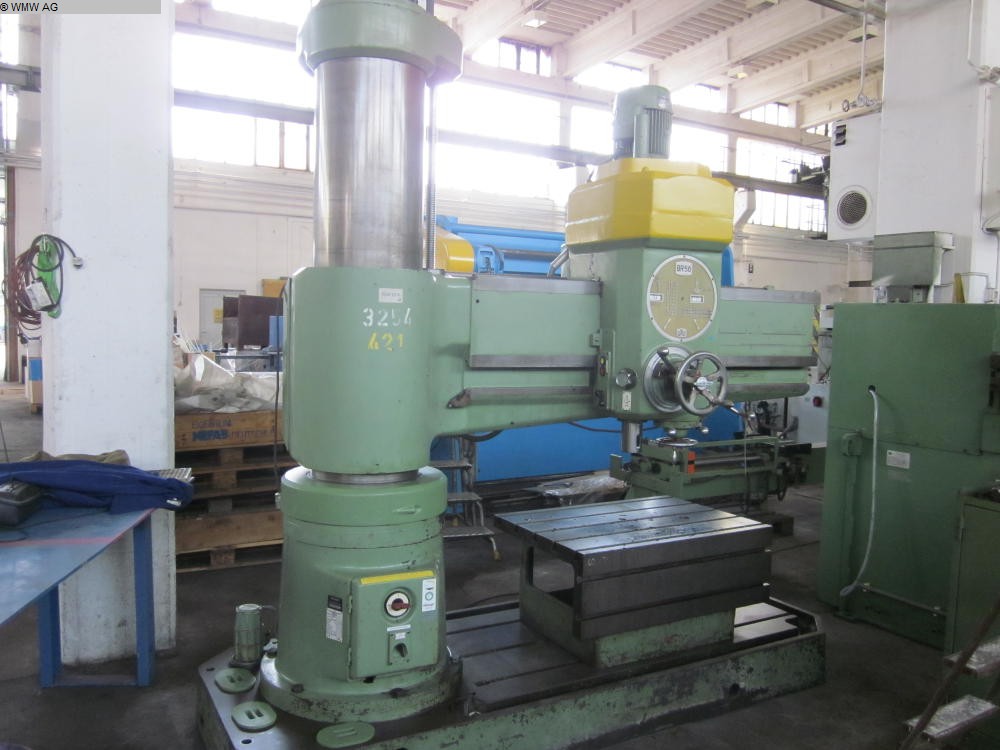

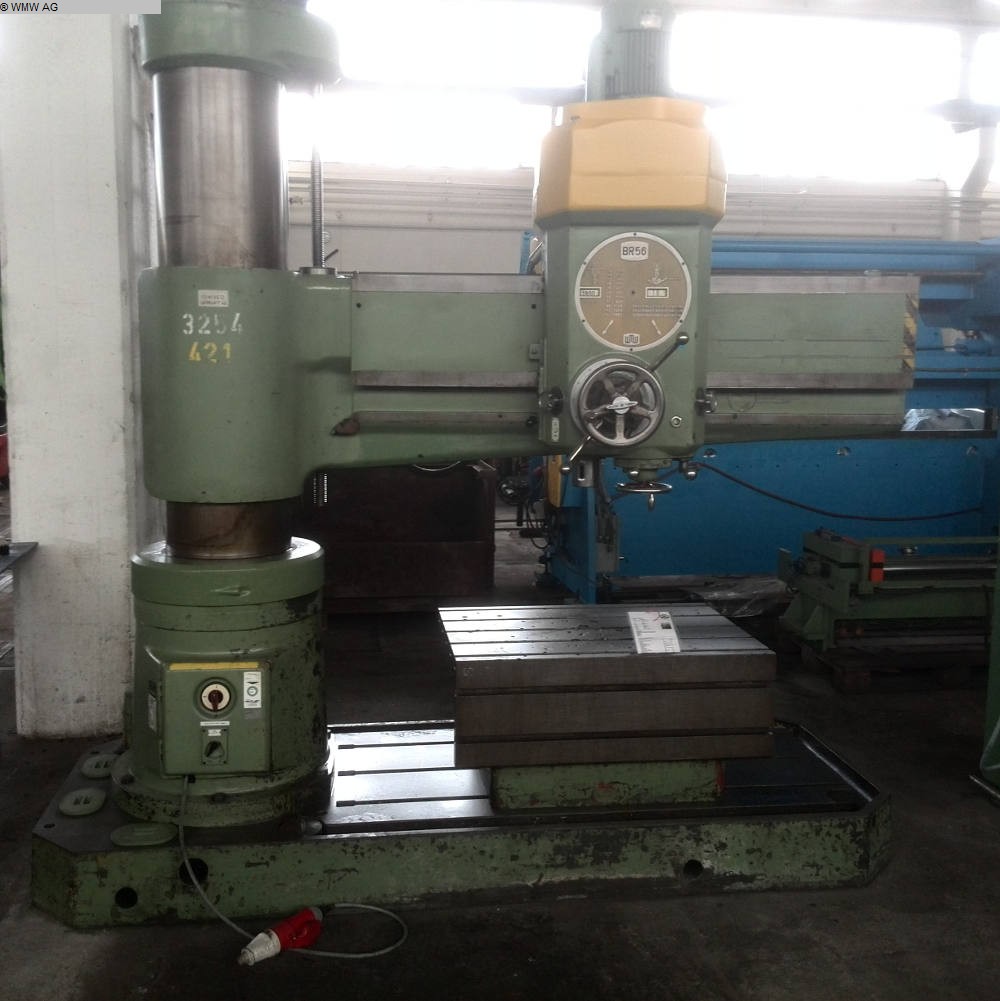

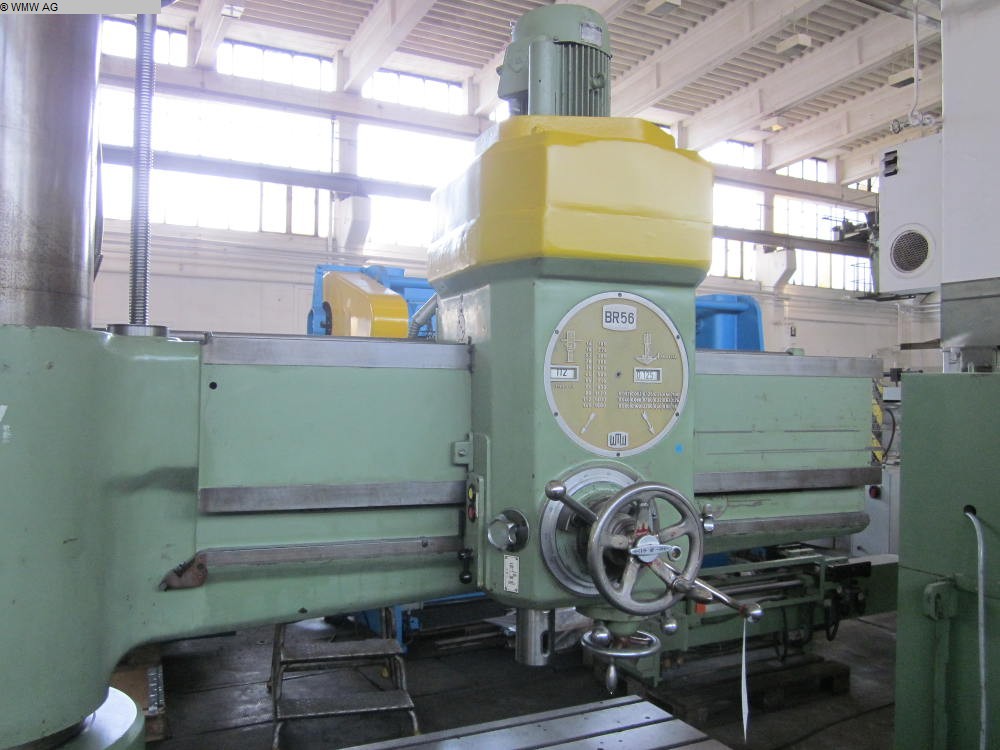

Radial Drilling Machine WMW BR 56 / 1600

Offer

stock-no.:

0200350

type of machine:

Radial Drilling Machine

make:

WMW

model:

BR 56 / 1600

year of manufacture:

ca.1970

type of control:

conventional

country of origin:

Germany

freight basis:

EXW -free on truck

storage location:

Leipzig 4

delivery time:

immediately

price:

on request

technical details

bore capacity in steel (diameter):

56 mm

arm length:

1600 mm

bore spindle stroke:

360 mm

threading:

2" und metrische Gew.

distance spindle nose and table:

min/max.:870-1570 mm

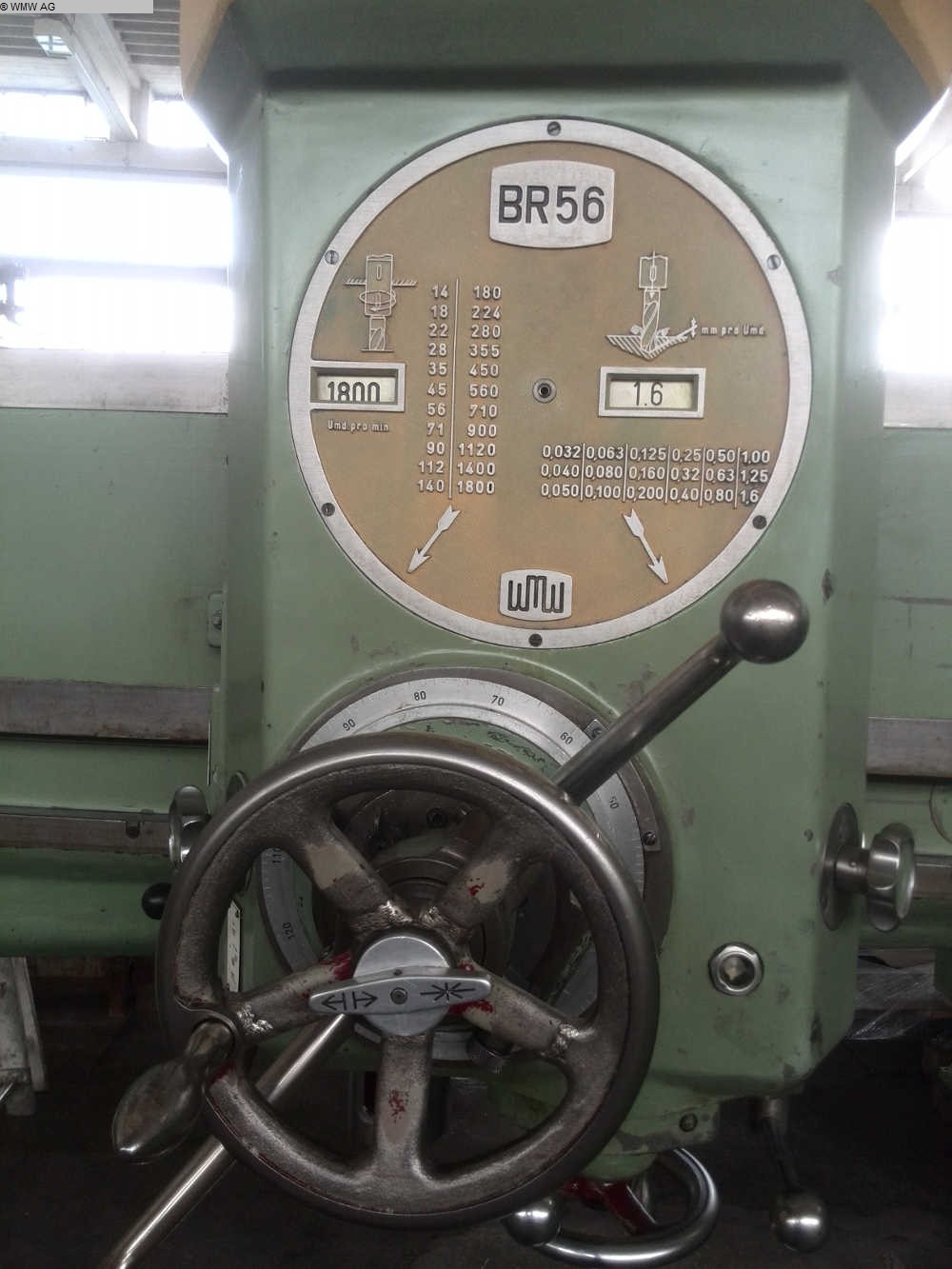

spindle turning speed range:

14-1800 / 22 step U/min

morse taper:

MK5

bore feed range:

0,0315-1,6 7 18 step mm/U

crossrail adjustment vertical:

700 mm

base plate surface area:

1700x1000 mm

swivelling range:

360 Grad

column diameter:

400 mm

total power requirement:

7,2 kW

weight of the machine ca.:

4,6 t

dimensions of the machine ca.:

L:2,8xB:1,1xH:3,05 m

additional information

drill capacity:
to drill St60=45-90mm/ to drill out St60=90-110mm
thread cutting=2" Withworth and fine pinch thread 65mm
equipment:
coolant pump
drilling cube

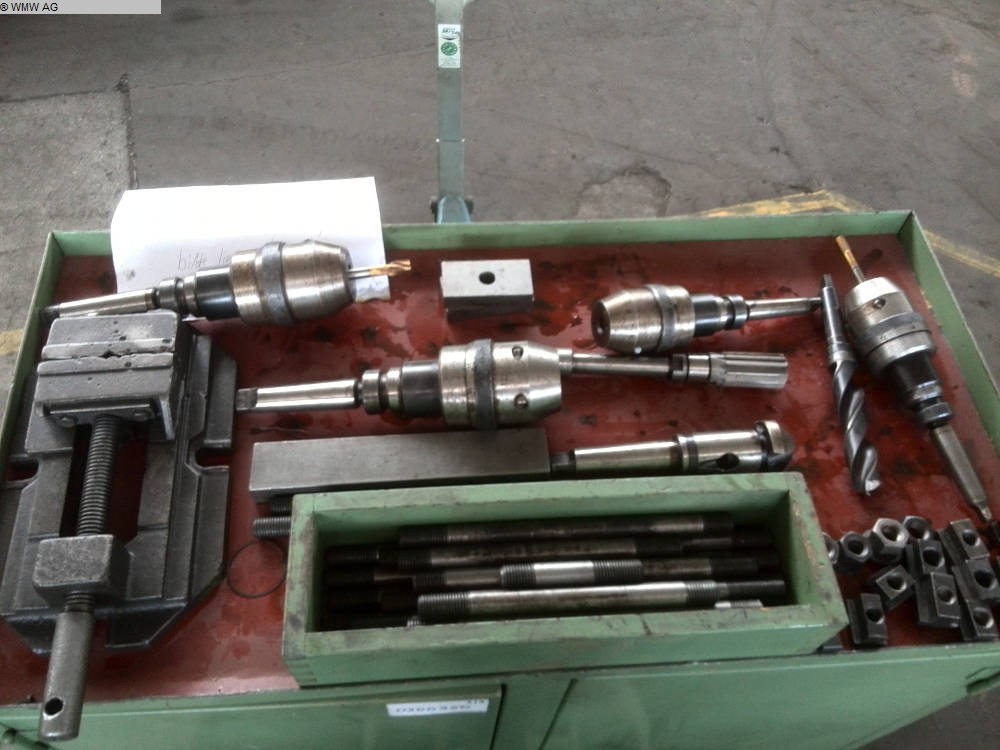

accessories:
diverse tools
i.D.
