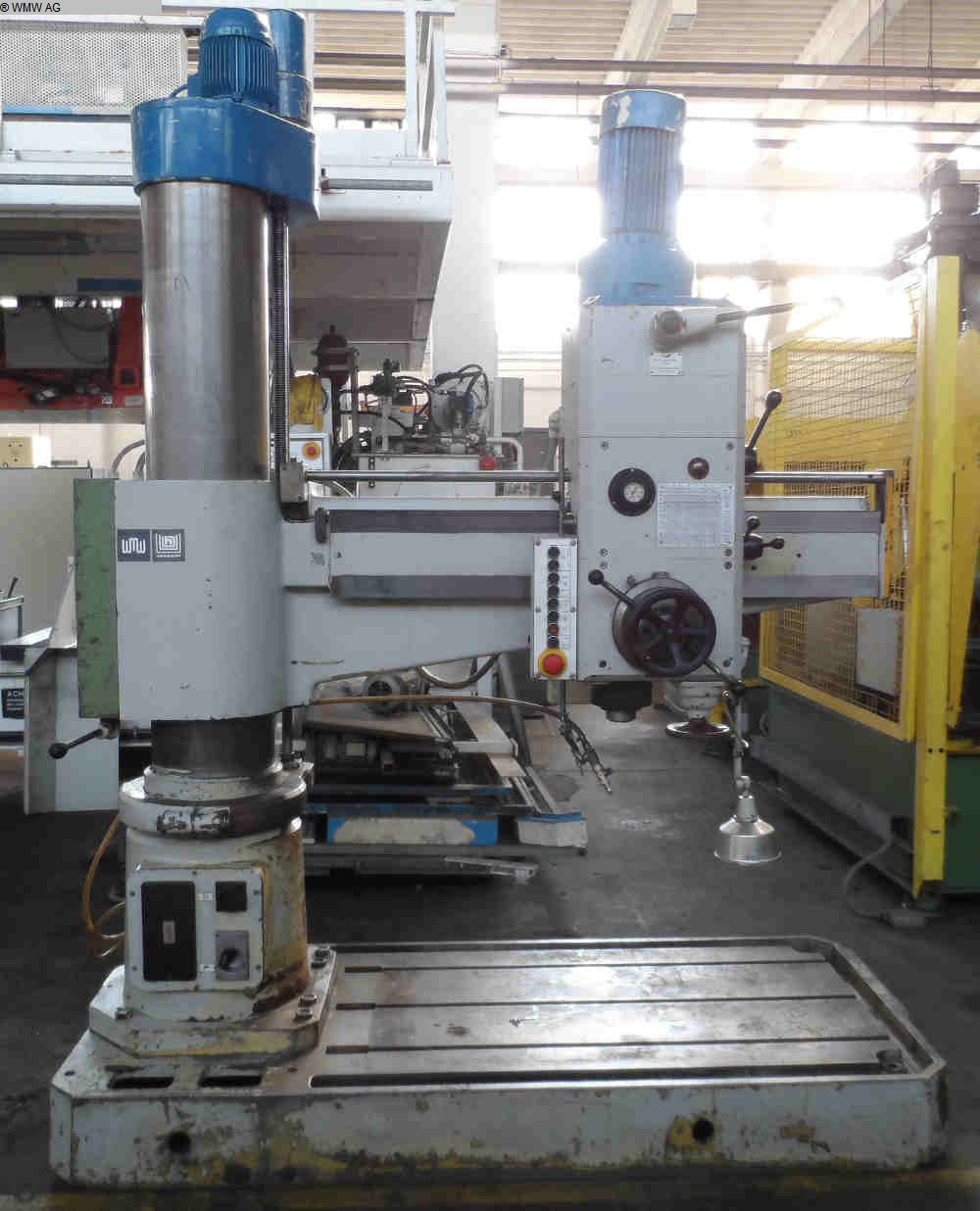

Radial Drilling Machine WMW HECKERT BR 40/2x1250

Offer

stock-no.:

0200351

type of machine:

Radial Drilling Machine

make:

WMW HECKERT

model:

BR 40/2x1250

year of manufacture:

ca.1980

type of control:

conventional

country of origin:

Germany

freight basis:

EXW -free on truck

storage location:

Leipzig 4

delivery time:

immediately

price:

on request

technical details

bore capacity in steel (diameter):

40 / 55 mm

arm length:

300 /1250 mm

table surface area:

1400 x 750 mm

spindle taper MT:

MK 5

cantilever arm length from center column:

1700 mm

cantilever adjustment vertical:

800 mm

bore spindle stroke:

355 mm

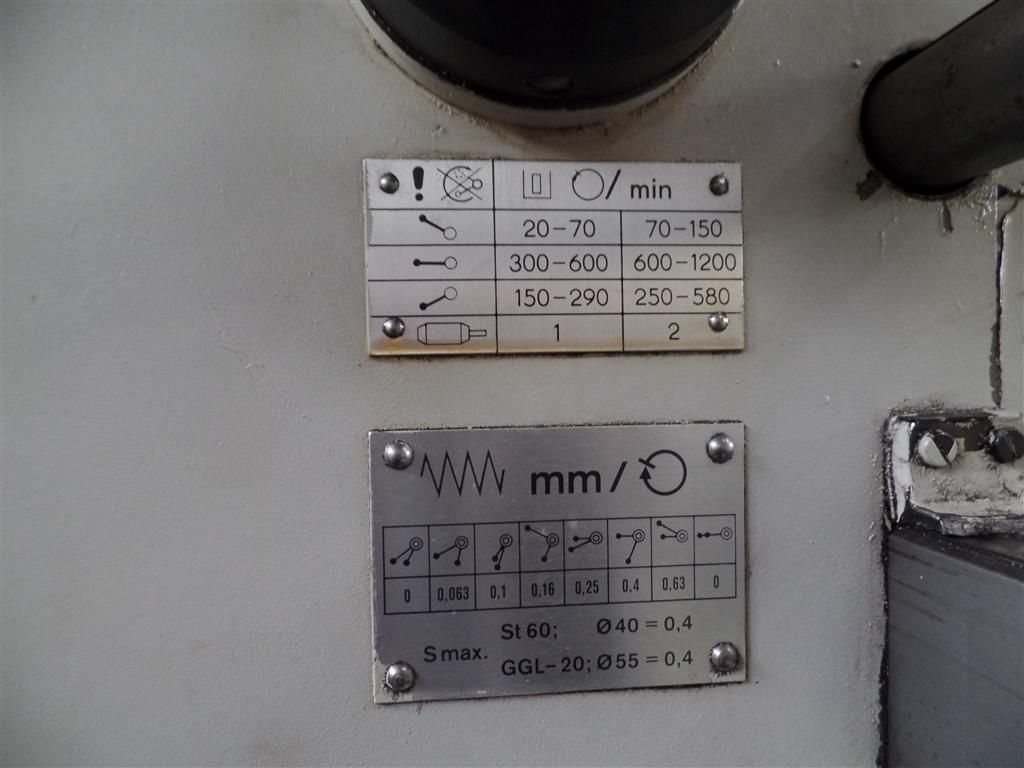

turning speed range - spindle:

20 - 1200; 6 Stufen/steps U/min

feed:

0,063-0,63; 6 Stufen/step mm/U

total power requirement:

5 kW

weight of the machine ca.:

3,0 t

dimension machine approx.LxWxH:

2,2x1,0x2,8 m

additional information

distance drill spindle / table min./max. 375 /1375 mm
