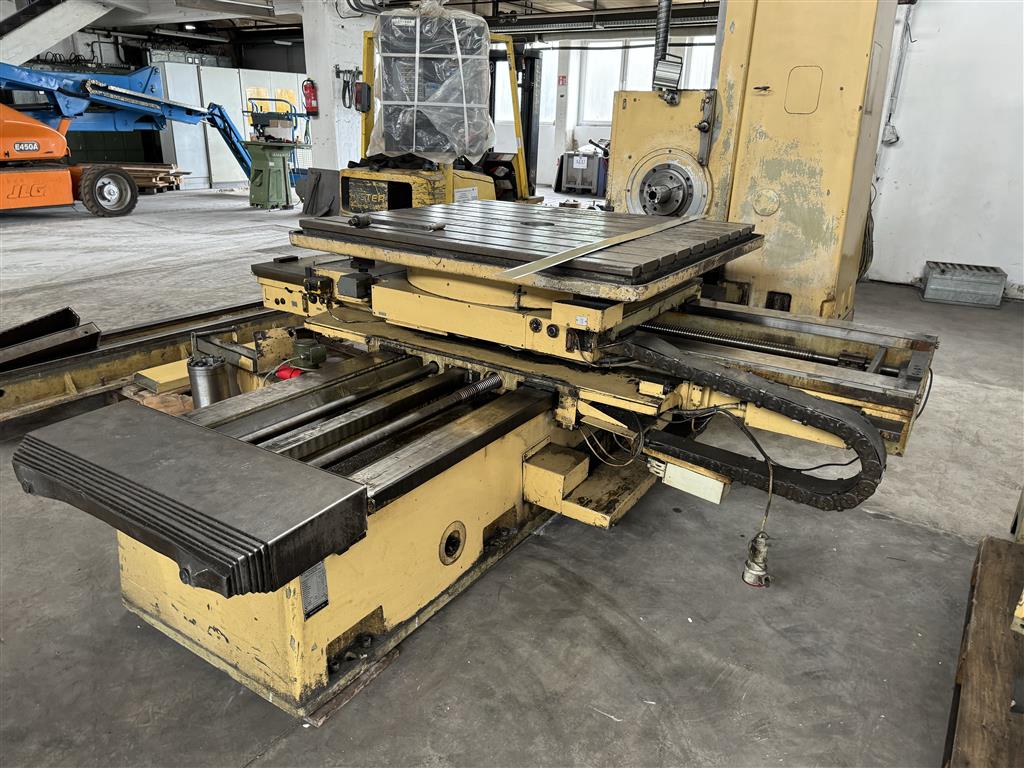

Table Type Boring and Milling Machine WMW UNION BFT 90/5-1

Offer

stock-no.:

0200753

type of machine:

Table Type Boring and Milling Machine

make:

WMW UNION

model:

BFT 90/5-1

year of manufacture:

?

type of control:

CNC

country of origin:

Germany

freight basis:

EXW, free on truck unpacked

storage location:

GOG Bitterfeld

delivery time:

immediately

price:

on request

technical details

spindle diameter:

90 mm

x-travel:

1250 mm

y-travel:

1560 mm

z-travel:

1600 mm

B-axis (table):

360 °

bore spindle stroke:

W = 710 mm

control:

Sienumerik CNC-H 642

tool taper:

SK40

range drill spindle revolution per minute:

4-169 / 170-519 / 520-1600 U/min

max. torque on the spindle:

1450 Nm

table-size:

1400 x 1250 mm

table rotating:

360 °

table load:

3000 kg

feed steps:

X/Y/Z+W: 1...3150 steples mm/min

rapid traverse:

X/Y+Z: 4000 mm/U

rapid traverse:

W: 3150 mm/U

rapid traverse:

B: 2 mm/U

total power requirement:

ca. 25 kW

weight of the machine ca.:

9,7 t

dimensions L x W x H:

Maschine: 5.,2 x 3,85 x 3,0 m

dimensions L x W x H:

E-Schrank: 2,5 x 0,66 x 2,2 m

dimensions L x W x H:

Hydr.Aggregat: ca. 0,6 x 0,4 x 0,8 m

additional information

Possible processes:
Drilling cycles = centering and drilling, drilling with chip breaking, countersinking, deep drilling and deep boring, tapping with longitudinal compensation, reaming, boring, drilling from 2 working depths, chamfering with rapid traverse,
Milling cycles = meander, meander-interrupted cut, straight multiple cuts in Z, inner frame, pocket, outer frame, annular groove

Technical design:
with cross-moving rotary table with 360° scaling and automatic 90° rotary table positioning
T-slots according to DIN 650 a= 22 mm
Main drive by DC motor which drives directly onto the three-stage speed gearbox
All axes have a central feed motor (adjustable DC motor)
Automatic circulation lubrication
Operation via control panel with boom
Coolant system (without feed)
Hydraulic unit
