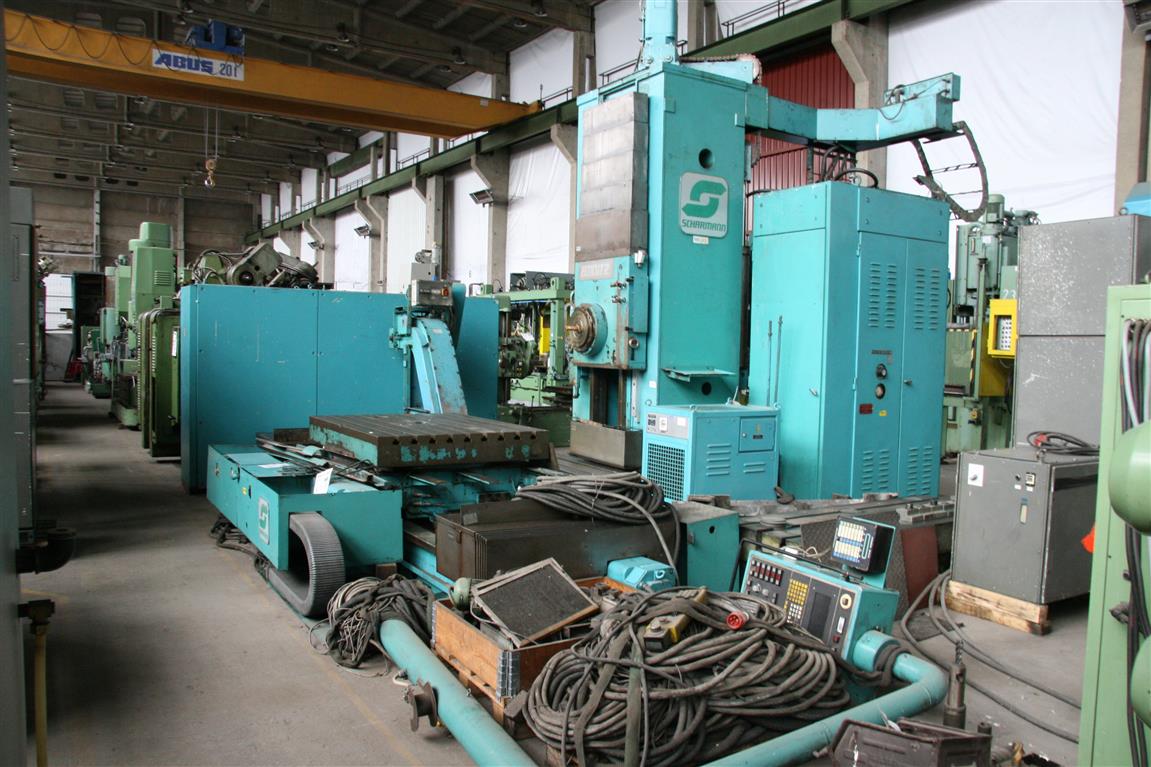

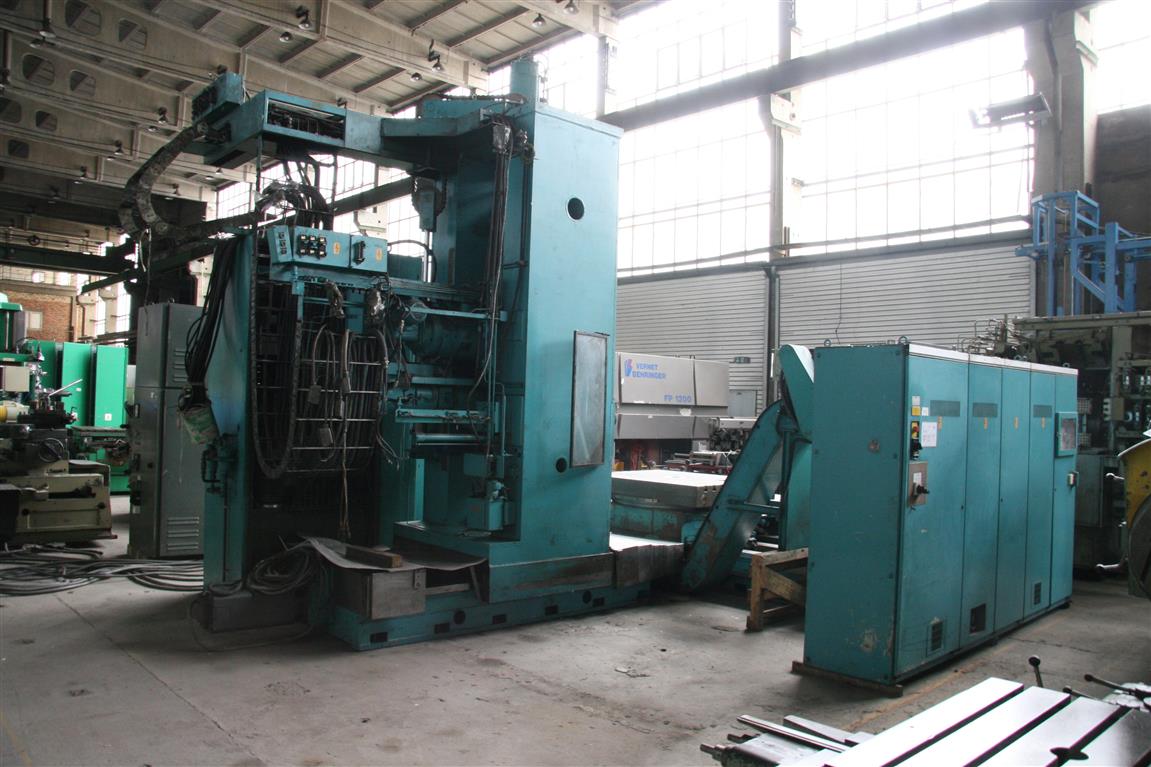

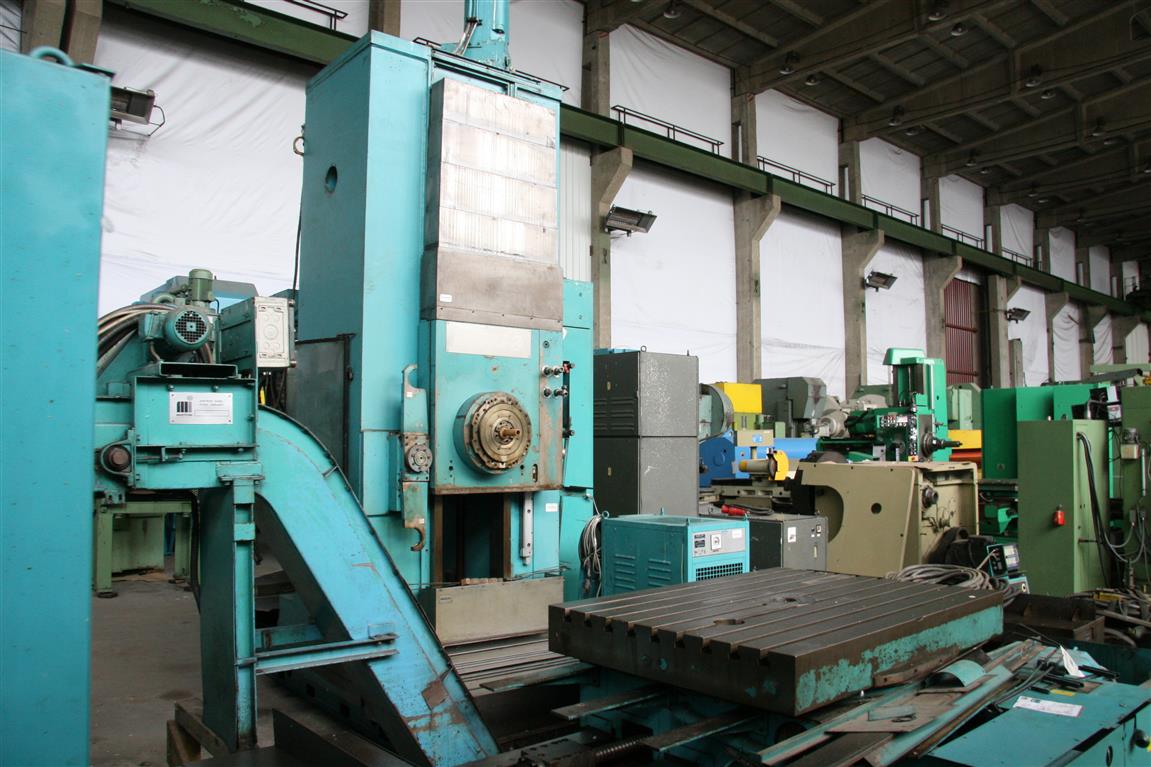

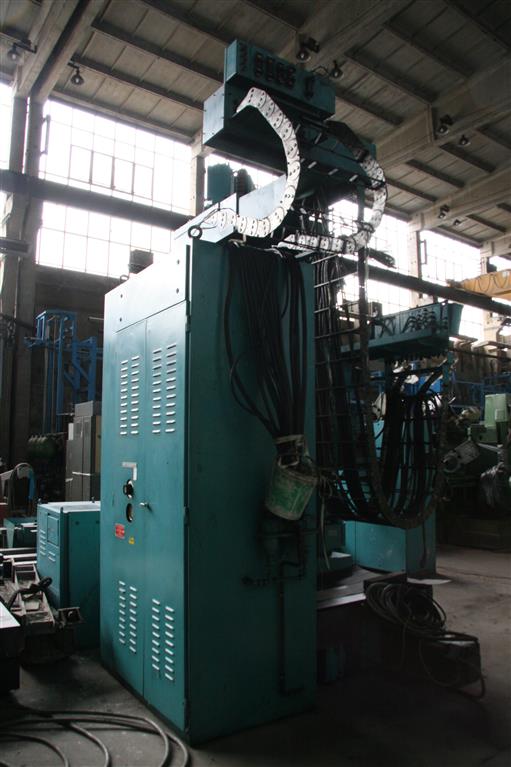

SCHARMANN - NC Ecocut 2.3/TDV3
Table Type Boring and Milling Machine | Stock number: 0200737
Unfortunately, the machine has already been sold.
Machine data
- Machine type
- Table Type Boring and Milling Machine
- Manufacturer
- SCHARMANN - NC
- Type
- Ecocut 2.3/TDV3
- Year of manufacture
- 1981
- Control type
- CNC
- Country of origin
- Germany
Technical data
- spindle diameter
- 130 mm
- x-travel
- 2000 mm
- y-travel
- 1600 mm
- z-travel
- 1000 mm
- W-axis (spindle longitudinal)
- 600 mm
- work table:
- B-Achse: 4x90°
- control
- Siemens System 8

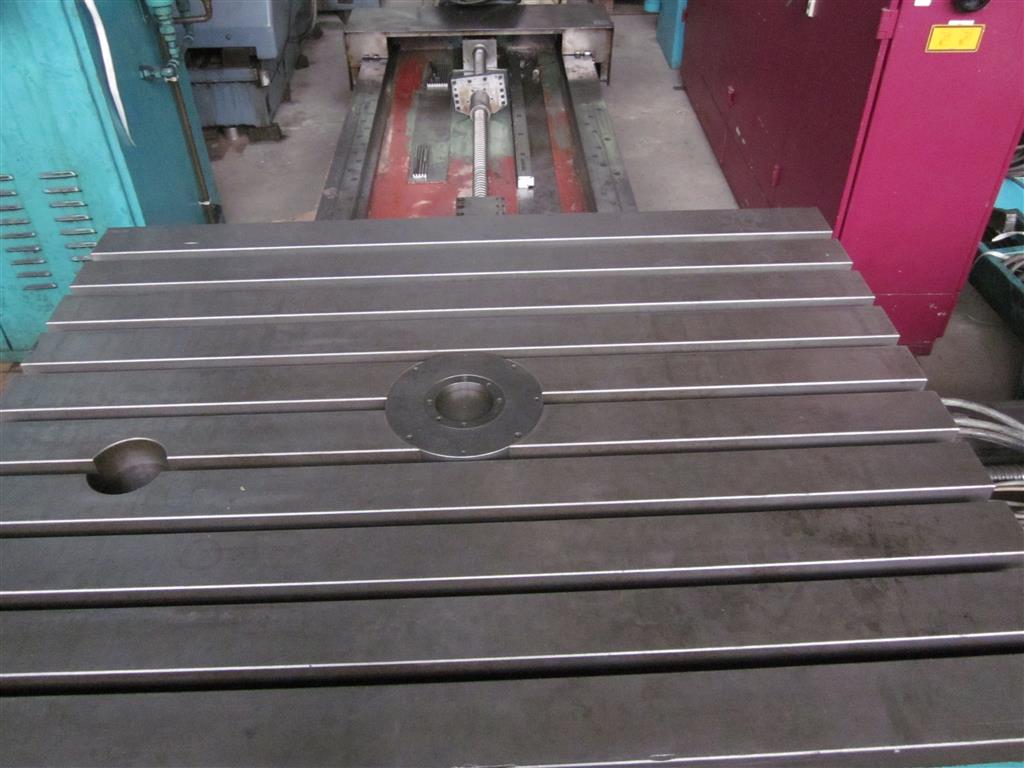

- clamping surface area
- 1250x1600 mm
- table load
- 12000 kg
- tool taper
- ISO 50 DIN 2079 SK50
- revolution per minute
- 12-3000 U/min
- feed
- x/b-Achse:1-6000 m/min
- rapid traverse X-axis
- 12 000 mm/min
- rapid traverse:
- b-Achse: 3,06 min-1
- tool turret
- 55 Plätze
- spindle stroke - max.
- w-Achse: 600 mm
- total power requirement
- 95 kVA
- weight of the machine ca.
- 32,6 t
- dimension machine approx.LxWxH
- 6,0x5,5x5,0 m
- dimensions of hydaulic
- L:2,3xB:0,9xH:4,5 mm

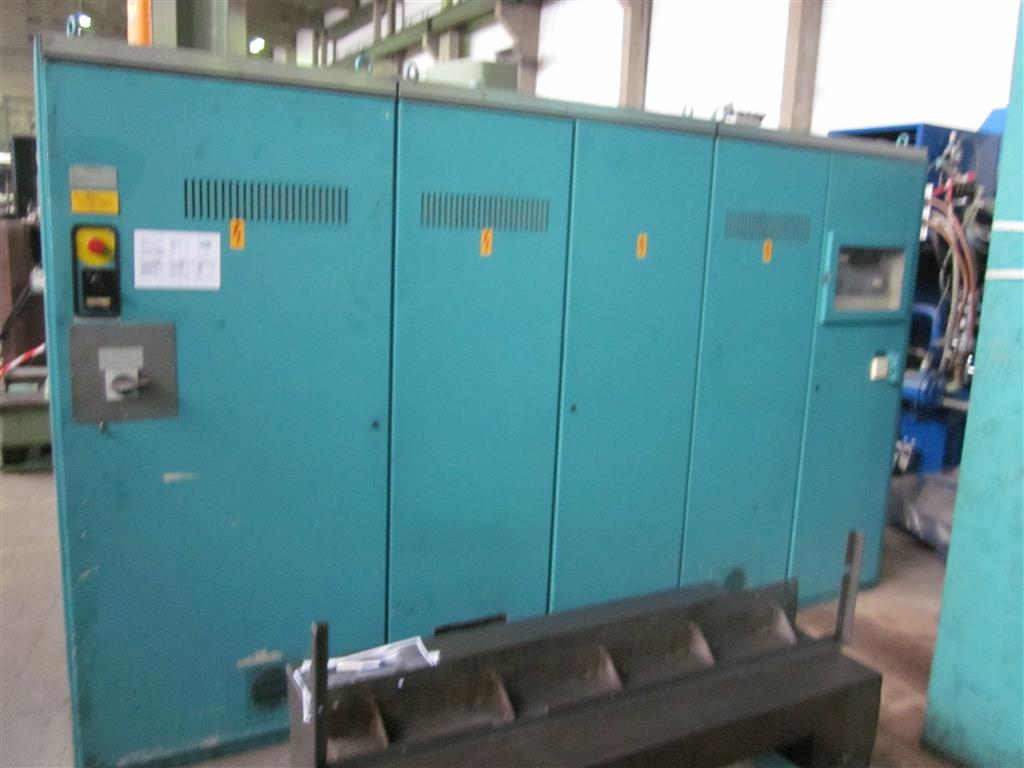

- dimensions electric cabinet LxWxH
- 2,3x0,9x0,45 m
- dimension coolant device LxWxH
- 0,82x0,6x1,2 m
Additional description
MACHINING CENTRE FOR DRILLING AND MILLING
technical data:
- distance from the working spindle until clamping plate min./max. 0/160mm
equipment:
- coolant device Schimpf - Haan
- hydraulic aggregate Rexroth (250 bar and 250 liter)
- swarf conveyor Myfran GmbH (dimension L:2,6xB:0,68xH:2,2 m)
- control panel with jib arm 1800mm
- manual switch
Table Type Boring and Milling machine is offered in a transportable condition.
Terms of storage and delivery
- Freight base
- EXW, free on truck unpacked
- Storage location
- Leipzig 2
- Delivery time
- immediately
- Price
Subject to changes and errors in technical details and specifications, as well as prior sale.
