milling machining centers - vertical
Offer
- stock-no.:
- 0200893
- type of machine:
- milling machining centers - vertical
- make:
- KITAMURA
- model:
- Mycenter 2X
- year of manufacture:
- 1999
- type of control:
- CNC
- country of origin:
- Japan
- freight basis:
- EXW, free on truck
- storage location:
- Leipzig 1
- delivery time:
- immediately
- price:
- on request
technical details
- x-travel:
- 510 mm
- y-travel:
- 355 mm
- z-travel:
- 460 mm

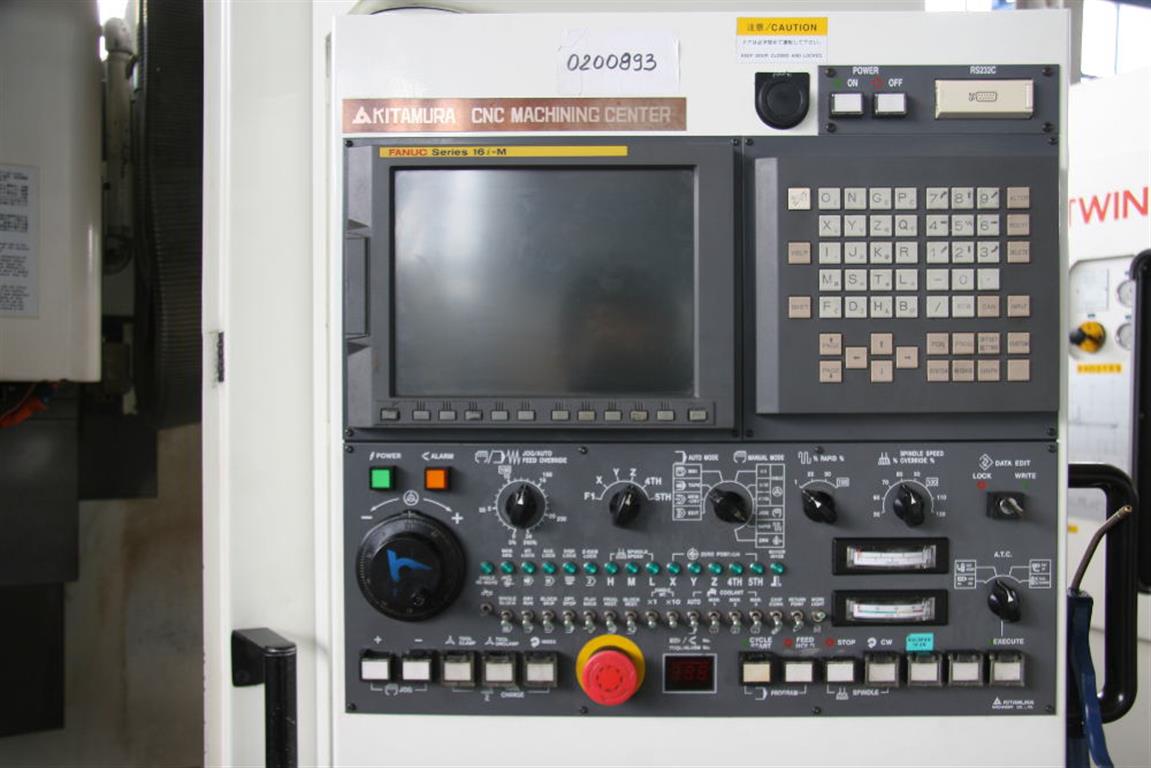

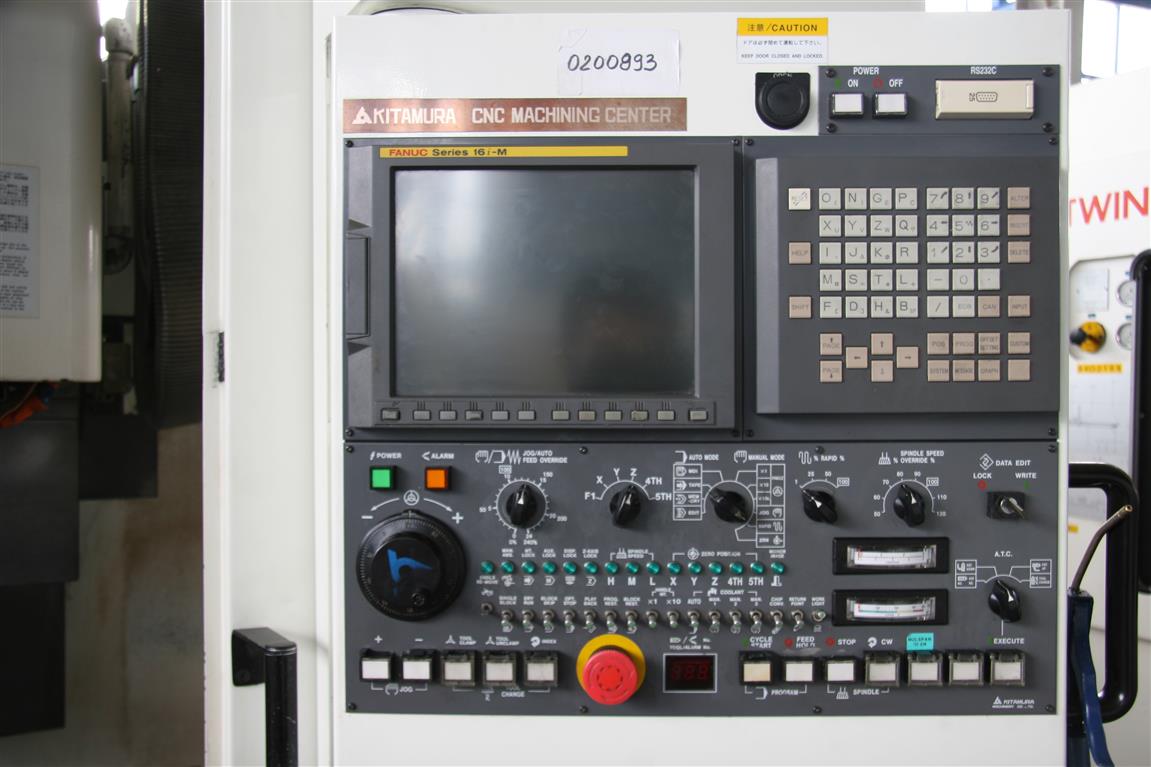

- control:
- Fanuc series 16-iM
- spindle taper:
- BT 40
- spindle speed max.:
- 20-15 000 U/min
- table-size:
- 355x786 mm
- table load:
- 240 kg
- tool turret:
- 20-fach
- feed::
- x/y/z: 0-15 000 mm/min
- rapid traverse X,Y:
- 36 000 mm/min.
- rapid traverse Z-axis:
- 24 000 mm/min.
- total power requirement:
- 25 kVA
- weight of the machine ca.:
- 4,8 t
- dimension machine approx.LxWxH:
- 2,4x2,2x2,9 m
- dimension coolant device:
- L:1,9xB:1,3xH:0,55 m
additional information
equipment:
coolant through spindle (CTS)
swarf basin
coolant-lubricant tank
with closed oil filtering device (oil dust suction)
mit geschlossener Ölfilteranlage
Machine can be demonstrated.
Sorry the machine has been sold already! Here you will find more machines referring to your required category.
