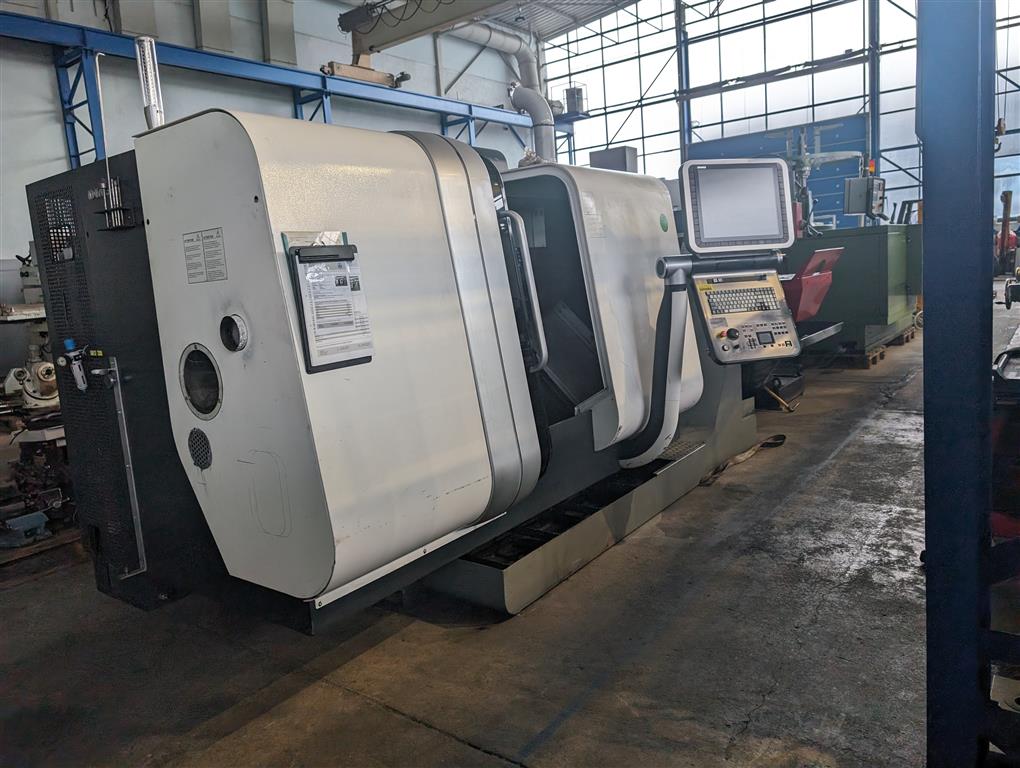

CNC LatheCNC Lathe DMG GILDEMEISTER CTX Alpha 300

CNC Lathe DMG GILDEMEISTER CTX Alpha 300CNC Lathe DMG GILDEMEISTER CTX Alpha 300CNC Lathe DMG GILDEMEISTER CTX Alpha 300CNC Lathe DMG GILDEMEISTER CTX Alpha 300CNC Lathe DMG GILDEMEISTER CTX Alpha 300CNC Lathe DMG GILDEMEISTER CTX Alpha 300CNC Lathe DMG GILDEMEISTER CTX Alpha 300CNC Lathe DMG GILDEMEISTER CTX Alpha 300CNC Lathe DMG GILDEMEISTER CTX Alpha 300CNC Lathe DMG GILDEMEISTER CTX Alpha 300CNC Lathe DMG GILDEMEISTER CTX Alpha 300

Offer

stock-no.:
0300588
type of machine:
CNC Lathe
make:
DMG GILDEMEISTER
model:
CTX Alpha 300
year of manufacture:
2011
type of control:
CNC
country of origin:
Germany
freight basis:
EXW, free on truck unpacked
storage location:
Leipzig 1
delivery time:
immediately
price:
on request

technical details

turning diameter over bed:
mm
turning dia. over face-slide:
mm
turning length:
310 mm
swing diameter over bed:
500 mm
swing diameter over bed slide:
290 mm
centre distance:
500 mm
x-axis:
190 mm
z-axis:
z1: 335 / z3: 370 mm
y-axis:
80 mm
revolution per minute:
6000 U/min
Control:
Heidenhain CNC Pilot 4290
spindle bore:
73 mm
bar material dia.:
50 mm
tool turret - number of stations:
12
tool taper:
VDI 30 mm
rapid traverse x + z axis:
30 m/min

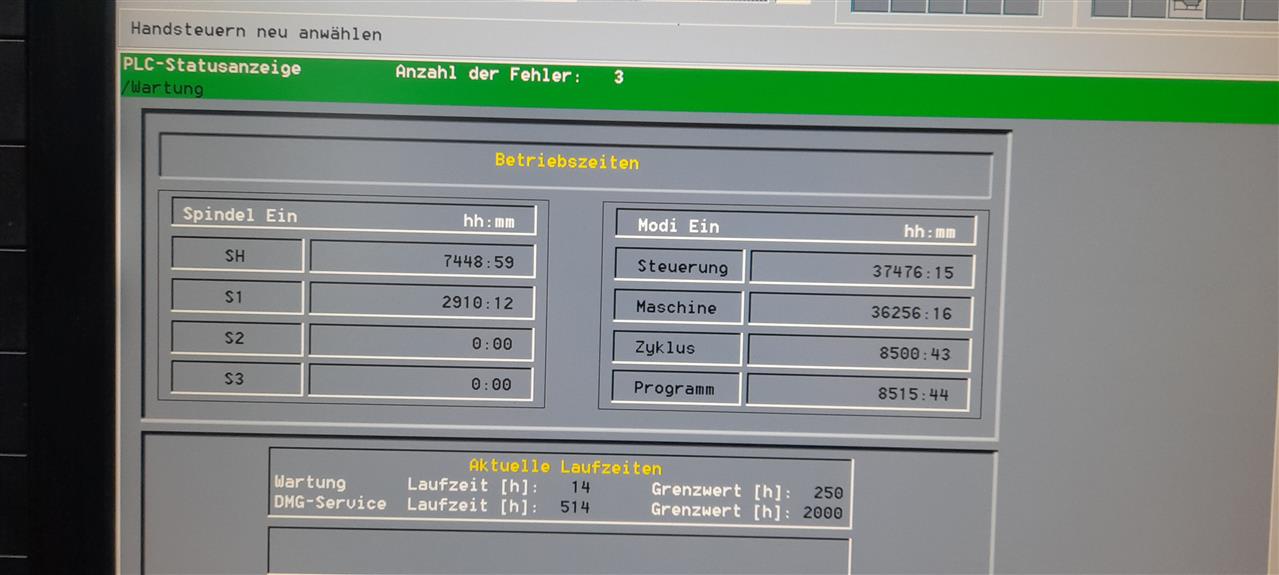

operating hours - idle run:
36443 h
spindle hours:
8545 h
interface:
ja
total power requirement:
20 kVA kW
Weight approx.:
t
dimensions L x W x H:
m
dimension swarf conveyor LxWxH:
3,2 x 0,45 x 1,5

additional information

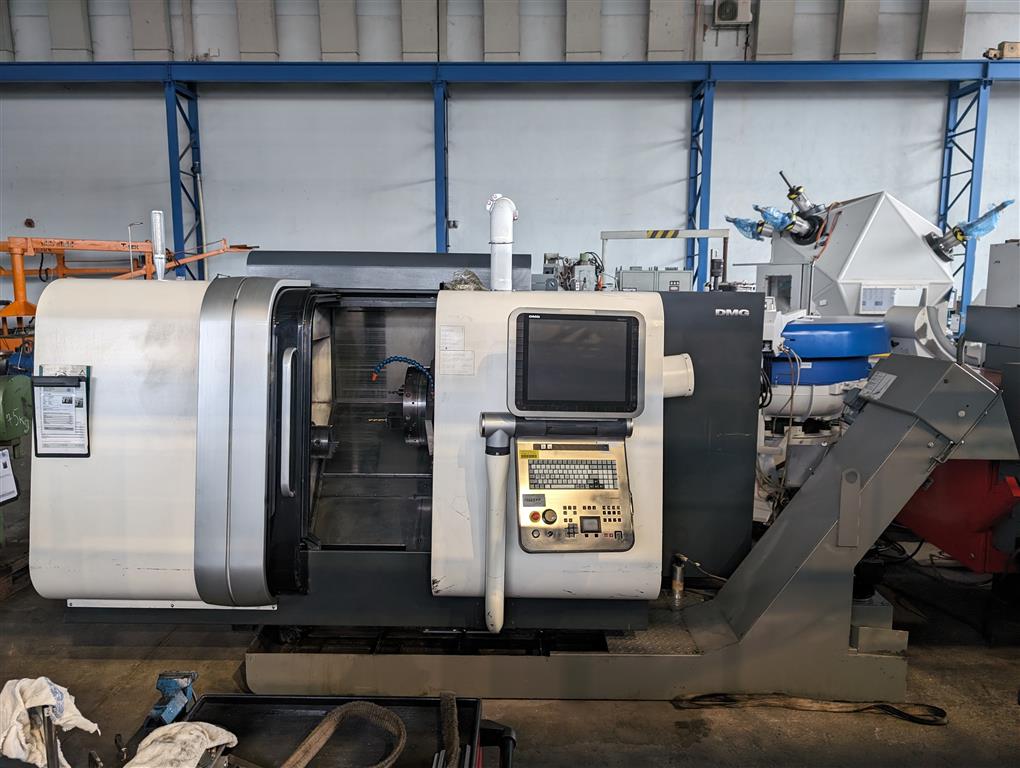

CNC inclined bed lathe

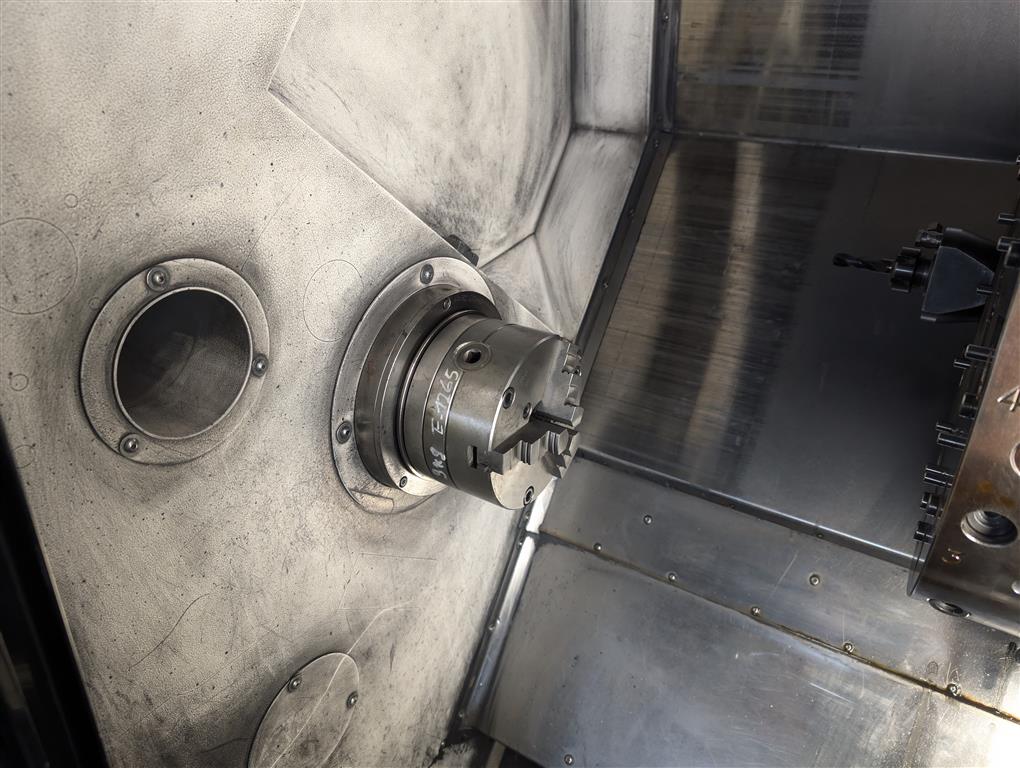

With a 3-jaw chuck Ø 160mm with matching flange (max. speed 4500 rpm) and 2 additional sets of spare jaws.

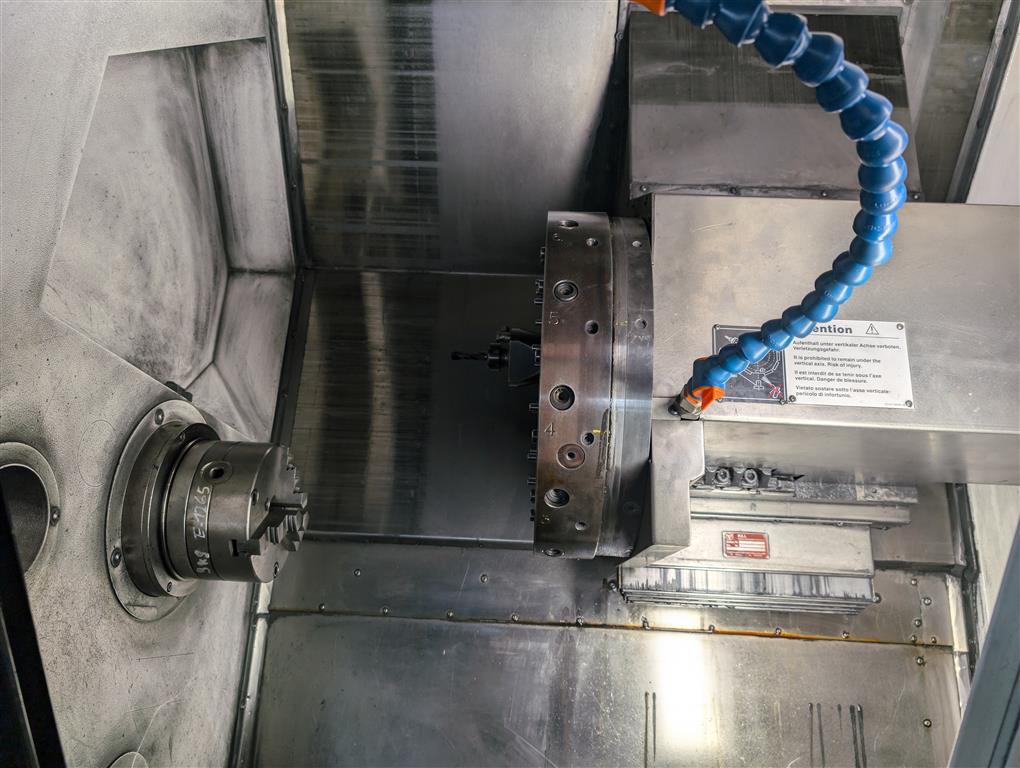

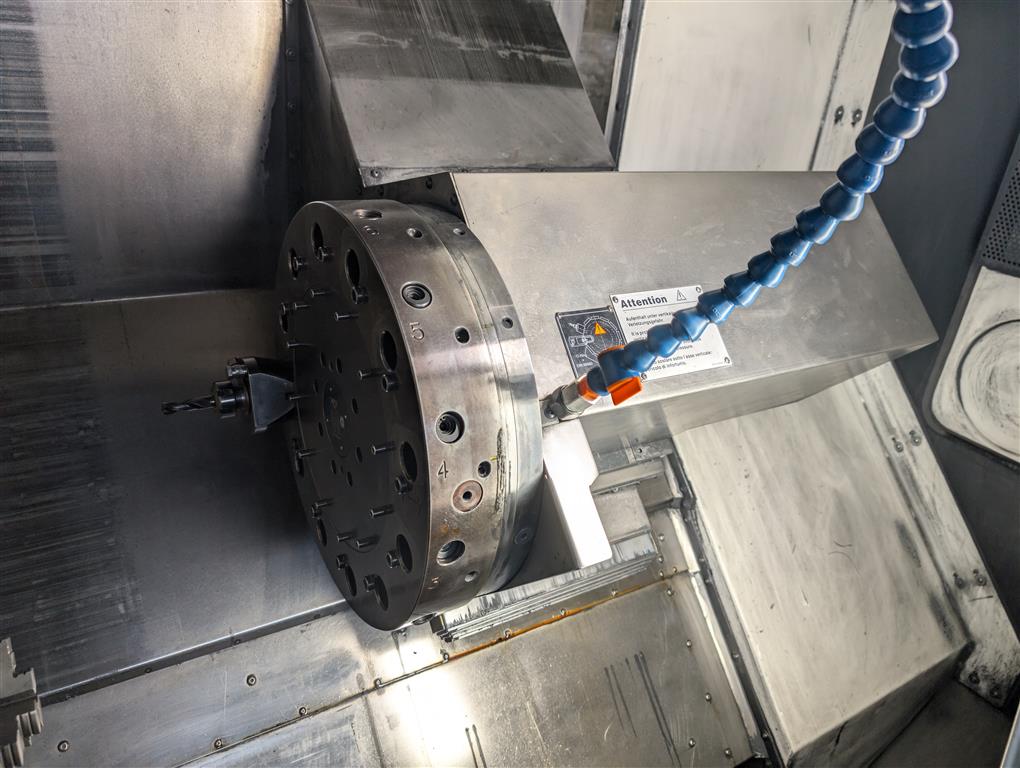

Turret head for 12 tools all with tool drive; Sauter disk turret (C-axis = 300 rpm)
Torque main spindle: 95 Nm at 100% and 127 Nm at 40%

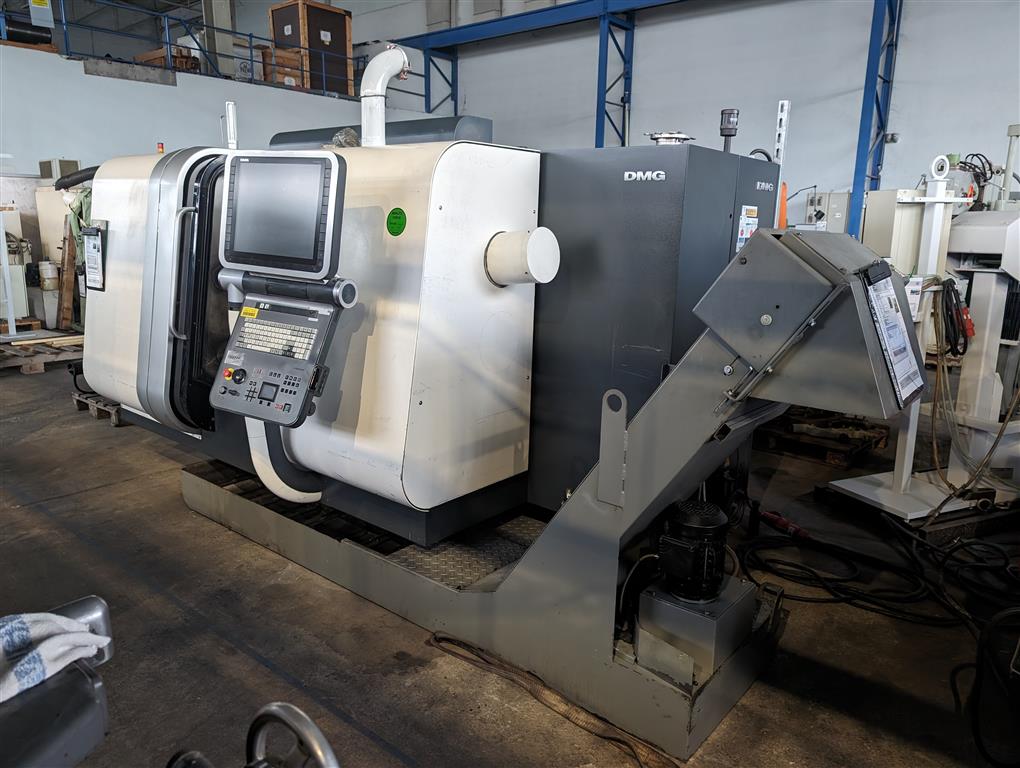

Chip conveyor 450 K-1/250; year of manufacture 2000

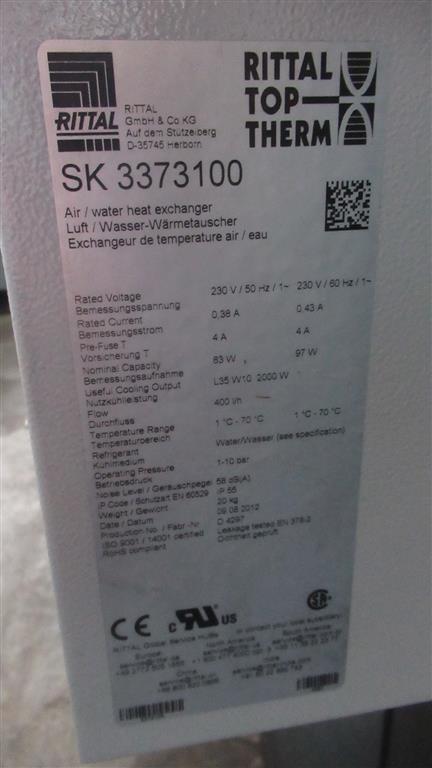

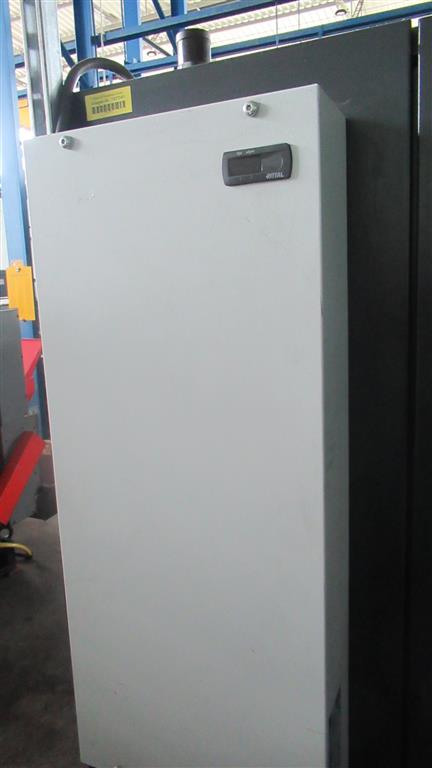

Electric cabinet with Rittal cooling
The machine does not have a hydraulic lathe chuck. This can be offered optionally at the customer's request (hydraulics and incl. chuck Ø=250mm).
Installation should then be carried out by the customer.
