CNC LatheCNC Lathe Shenyang - Fermat CAK 61

CNC Lathe Shenyang - Fermat CAK 61CNC Lathe Shenyang - Fermat CAK 61CNC Lathe Shenyang - Fermat CAK 61CNC Lathe Shenyang - Fermat CAK 61CNC Lathe Shenyang - Fermat CAK 61CNC Lathe Shenyang - Fermat CAK 61CNC Lathe Shenyang - Fermat CAK 61

Offer

stock-no.:
0300591
type of machine:
CNC Lathe
make:
Shenyang - Fermat
model:
CAK 61
year of manufacture:
2004
type of control:
CNC
country of origin:
Czech Republic
freight basis:
EXW, free on truck unpacked
storage location:
Leipzig 1
delivery time:
immediately
price:
on request

technical details

turning diameter over bed:
610 mm
turning dia. over face-slide:
350 mm
turning length:
mm
swing diameter over bed:
610 mm
centre distance:
1390 mm
control:
Fanuc 0i-Mate TC
x-axis:
plan: ca. 305 mm
z-axis:
längs: ca. 1350 mm
revolution per minute:
22 - 2200 U/min
feed::
X + Z-Achse: 5 / 10 m/min.
spindle bore:
Ø 70 mm

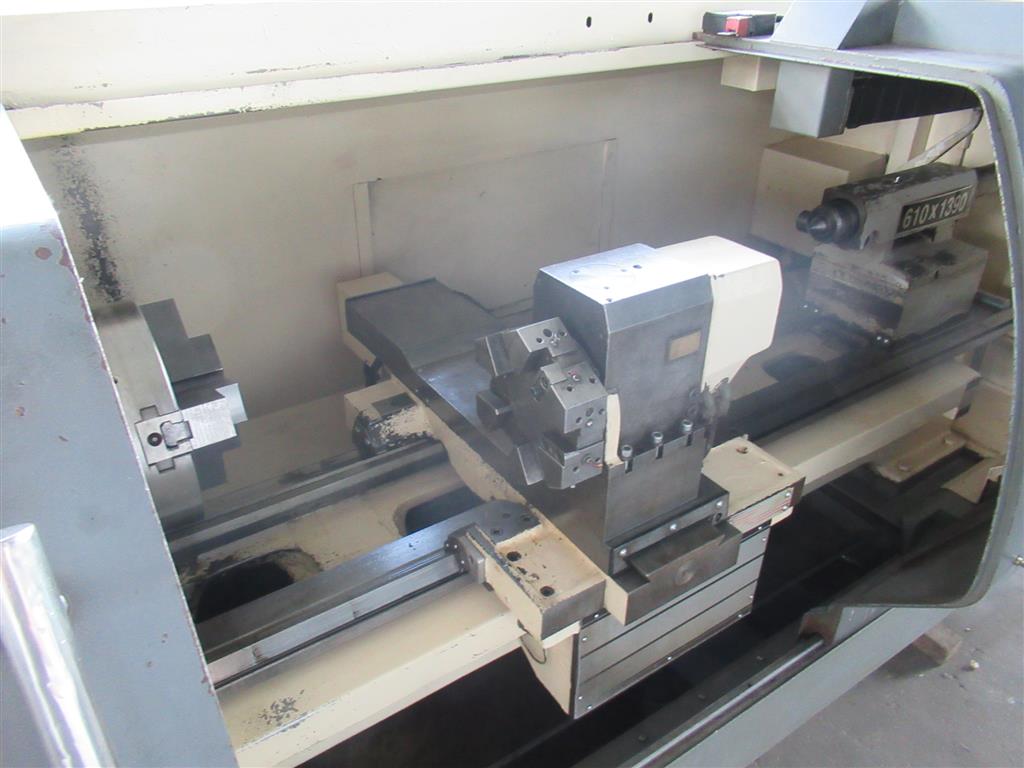

tool turret - number of stations:
6
Number of working hours:
h
interface:

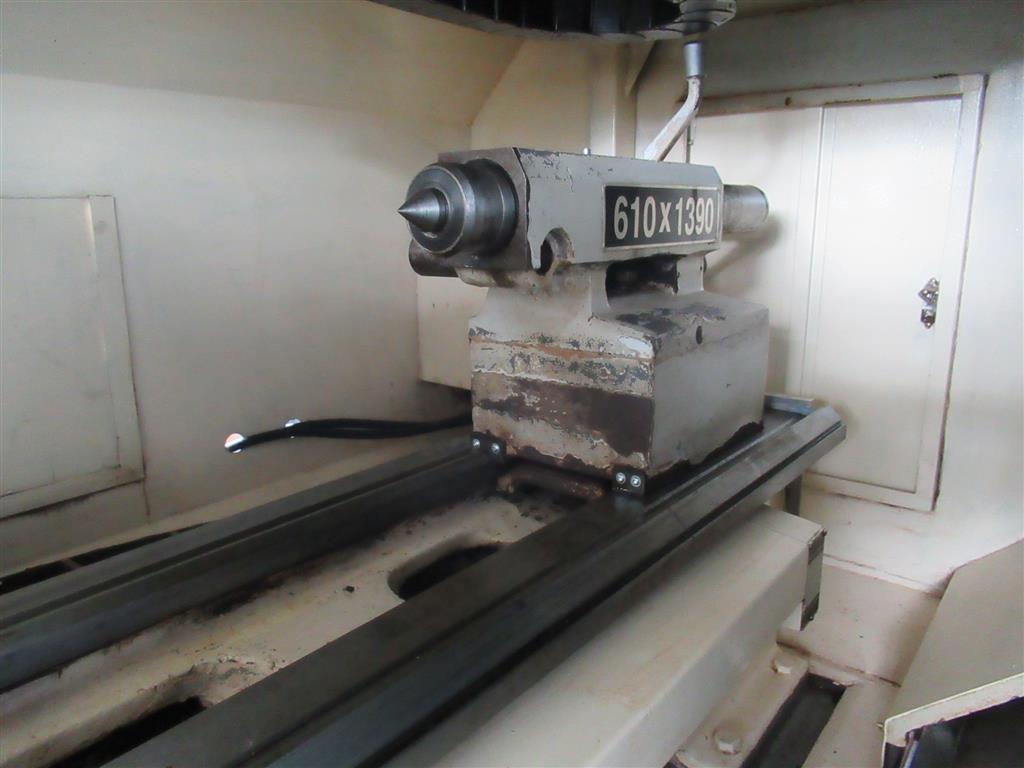

tailstock quill taper MT:
MK5
tailstock quill stroke:
150 mm
Weight approx.:
2,7 t
total power requirement:
15 kW
dimension machine approx.LxWxH:
3,7 x 1,7 x 1,7 m
dimensions of hydaulic:
630 x 460 x 900 mm

additional information

other features:

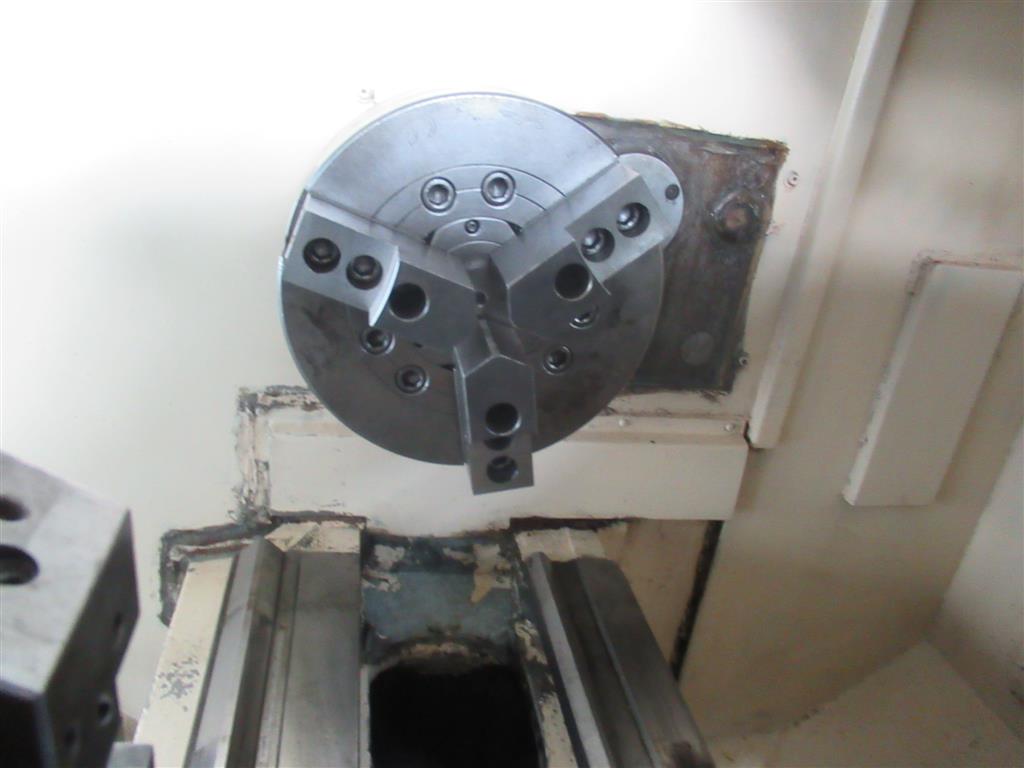

-hydr. chuck TONFAU Ø 300mm
-hydraulics
-Coolant system
-control panel
-double foot switch

accessories:
-div. mold jaws
-div. soft jaws
-6 footrests
