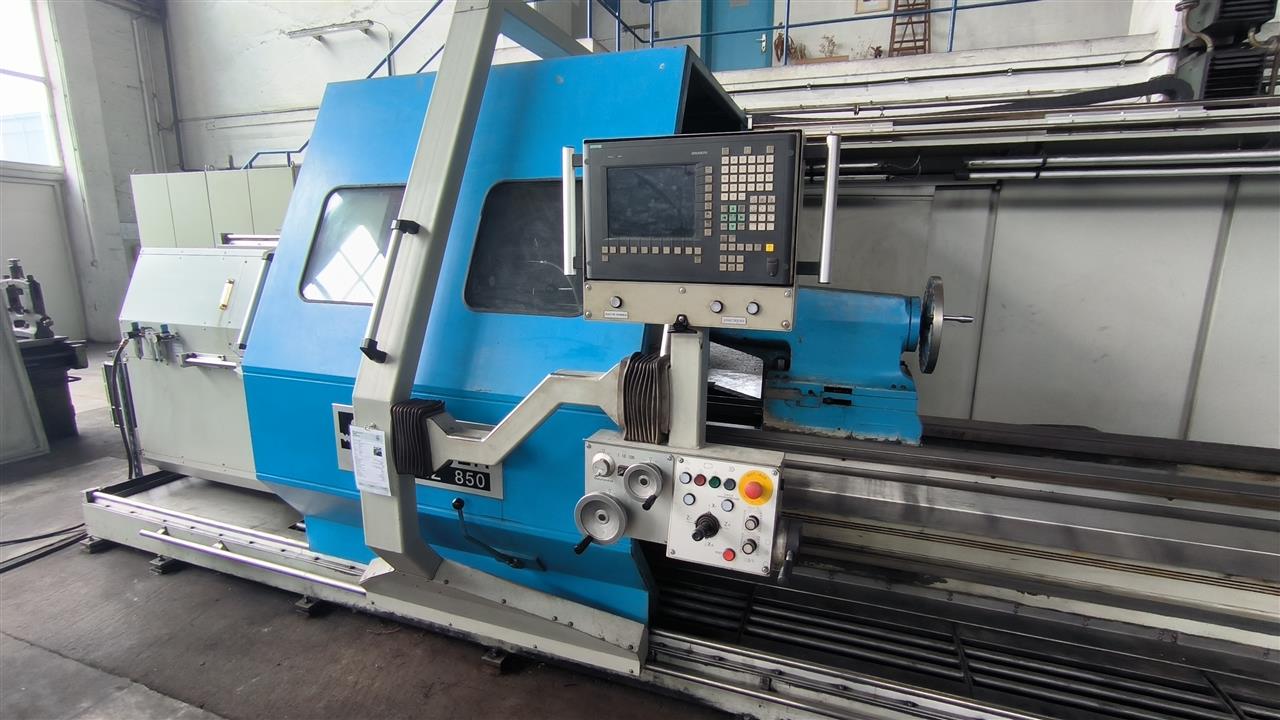

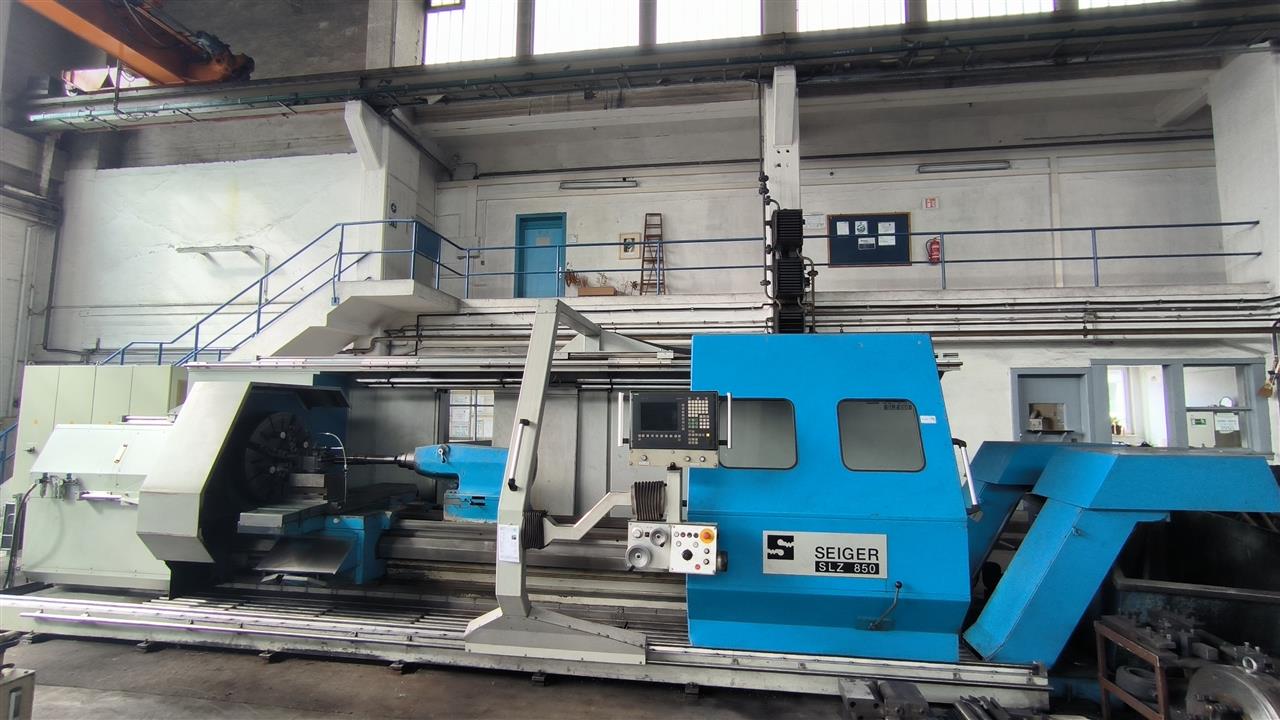

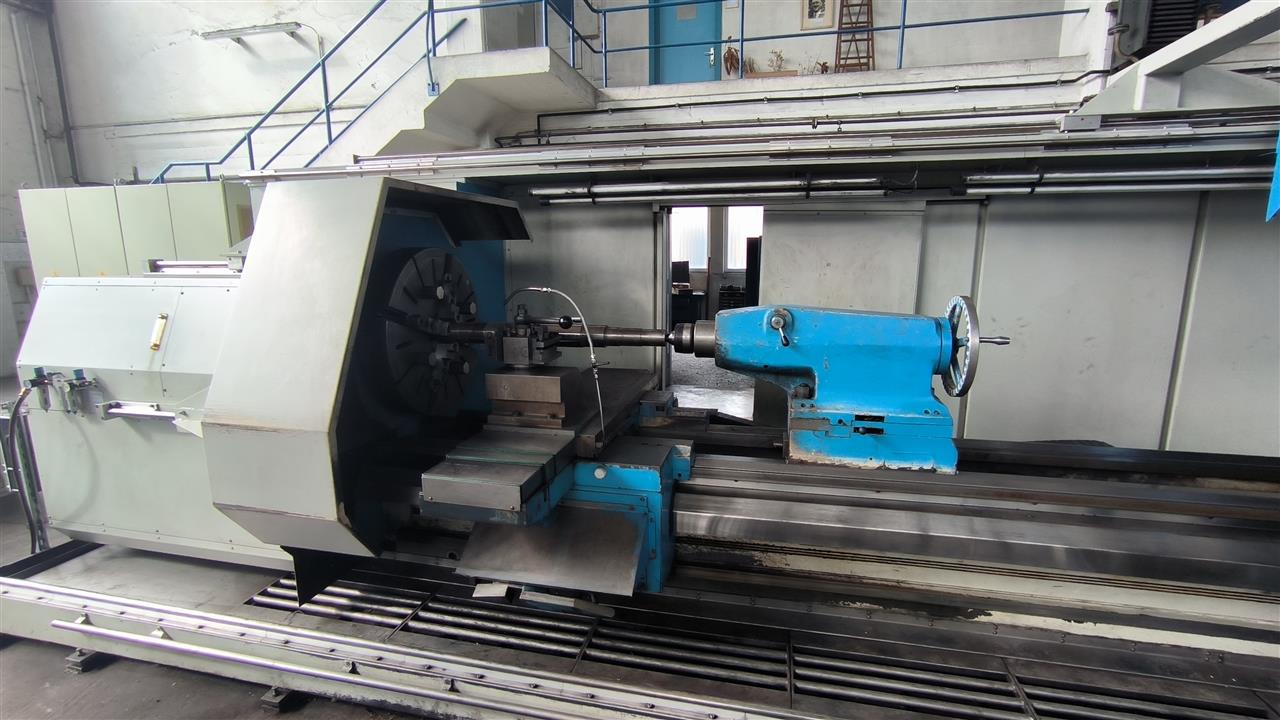

CNC Lathe
Offer
- stock-no.:
- 0300596
- type of machine:
- CNC Lathe
- make:
- SEIGER
- model:
- SLZ 850x4000
- year of manufacture:
- 2004
- type of control:
- CNC
- country of origin:
- Germany
- freight basis:
- Ex-Location
- storage location:
- GOG Bitterfeld
- delivery time:
- immediately
- price:
- on request
technical details
- turning diameter over bed:
- 850 mm
- turning dia. over face-slide:
- 580 mm
- turning length:
- 4500 mm
- centre distance:
- 4500 mm

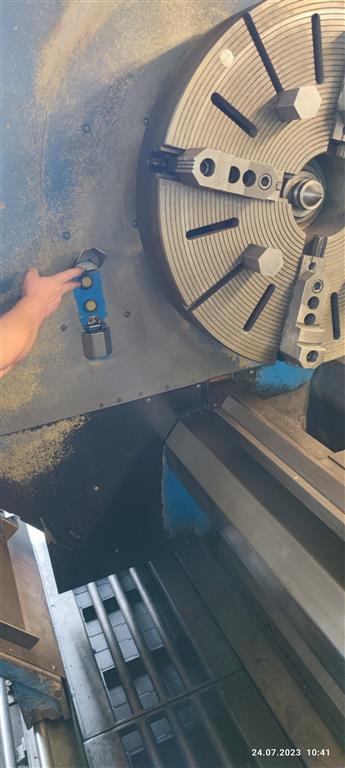

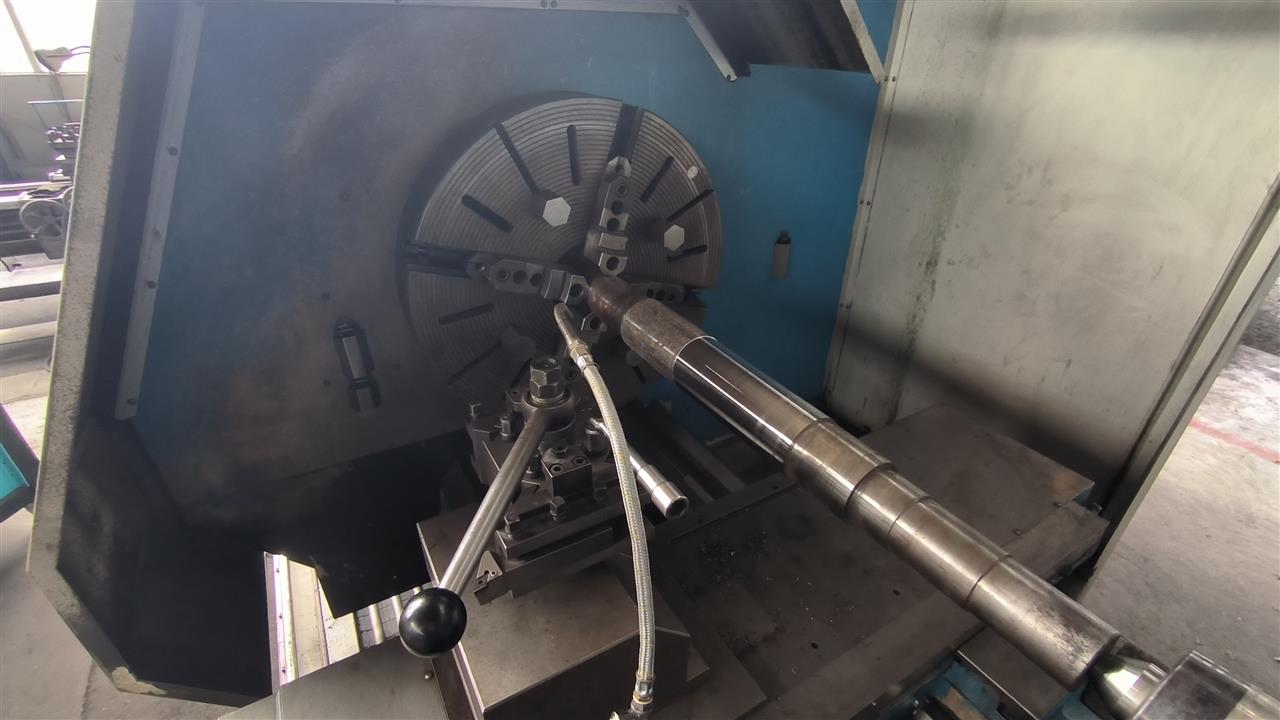

- faceplate diameter:
- 800 mm
- turning diameter over support:
- mm
- center height over support:
- mm
- x-axis tool holder:
- mm
- longitudinal traverse (z-axis):
- mm
- control:

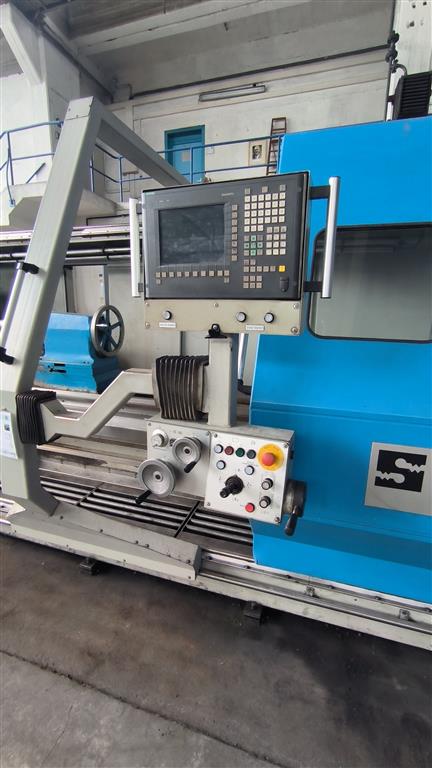

- Siemens 810D Manual Turn
- revolution per minute:
- 1 - 1600 U/min
- max. torque on the spindle:
- 6000 Nm
- spindle passage:
- 130 (Spindelkopf DIN 55027 Gr. 11) mm
- operating hours - idle run:
- werden noch ausgelesen h
- feed motor:
- X= plan + Z= längs: 16000 / 20000 N
- rapid motion - x-axis:
- 4 m/min
- rapid motion - y-axis:
- 7 m/min
- tailstock taper ISO:
- MK 6
- tailstock quill stroke:
- 350 mm
- total power requirement:
- ca. 52 kW
- Weight approx.:
- 14,0 t
- dimension machine approx.LxWxH:
- 2,6 x 9,1 x 2,5 m
additional information
with Siemens cycle control
Motor: 37kW, rated speed 1500 rpm; max. speed 6500 rpm; torque 235 Nm
Two gear stages
Stage II: Spindle torque 258.9 to 1364.6 Nm
Stage I: Spindle torque 1050.4 - 5536.1 Nm

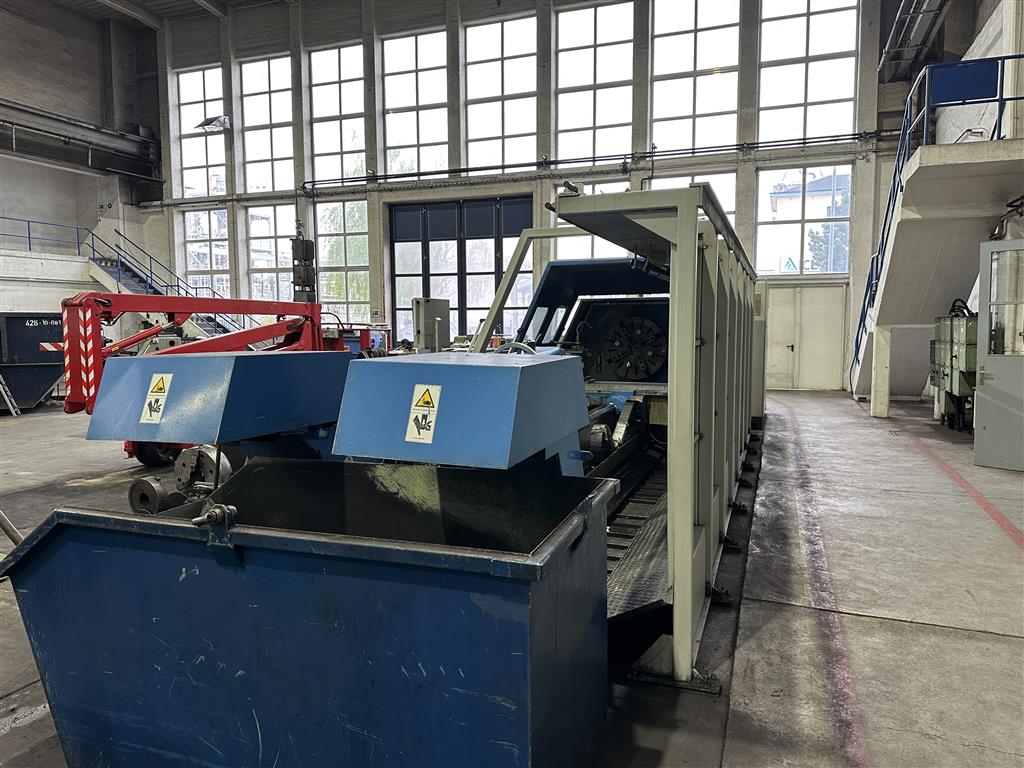

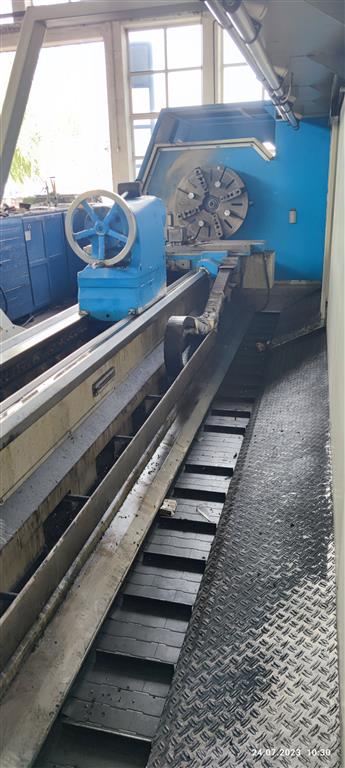

2x chip conveyor

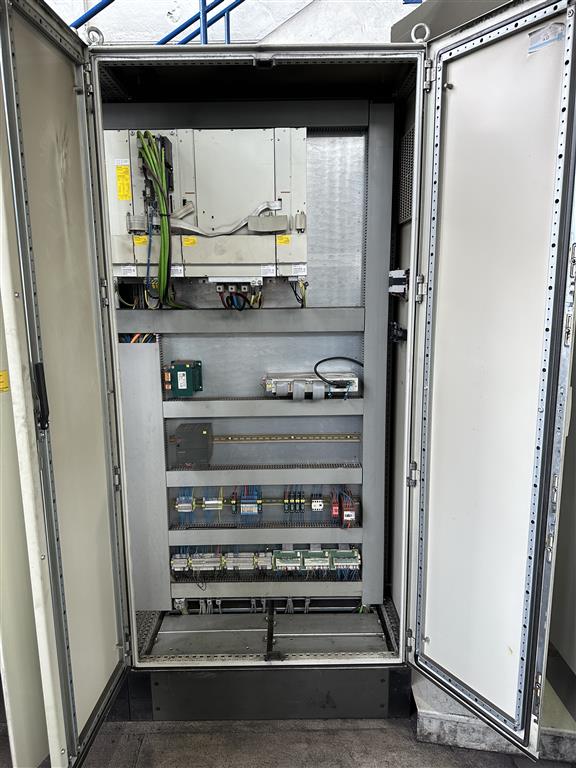

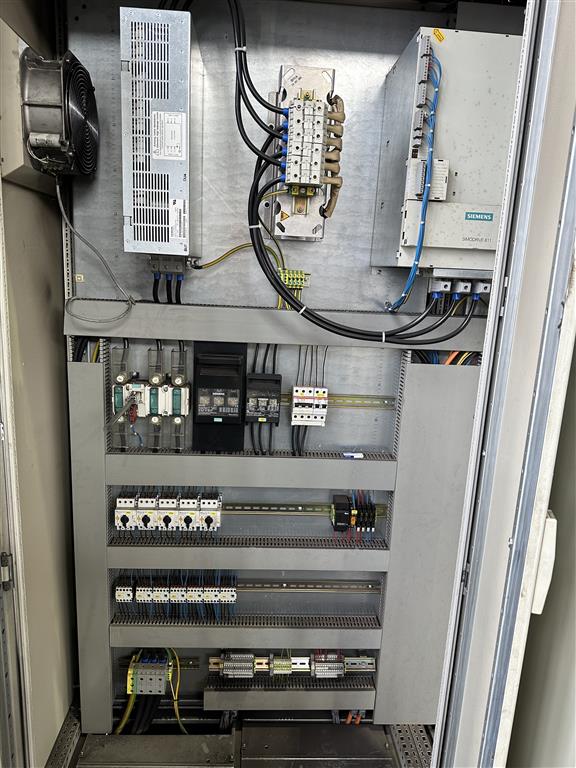

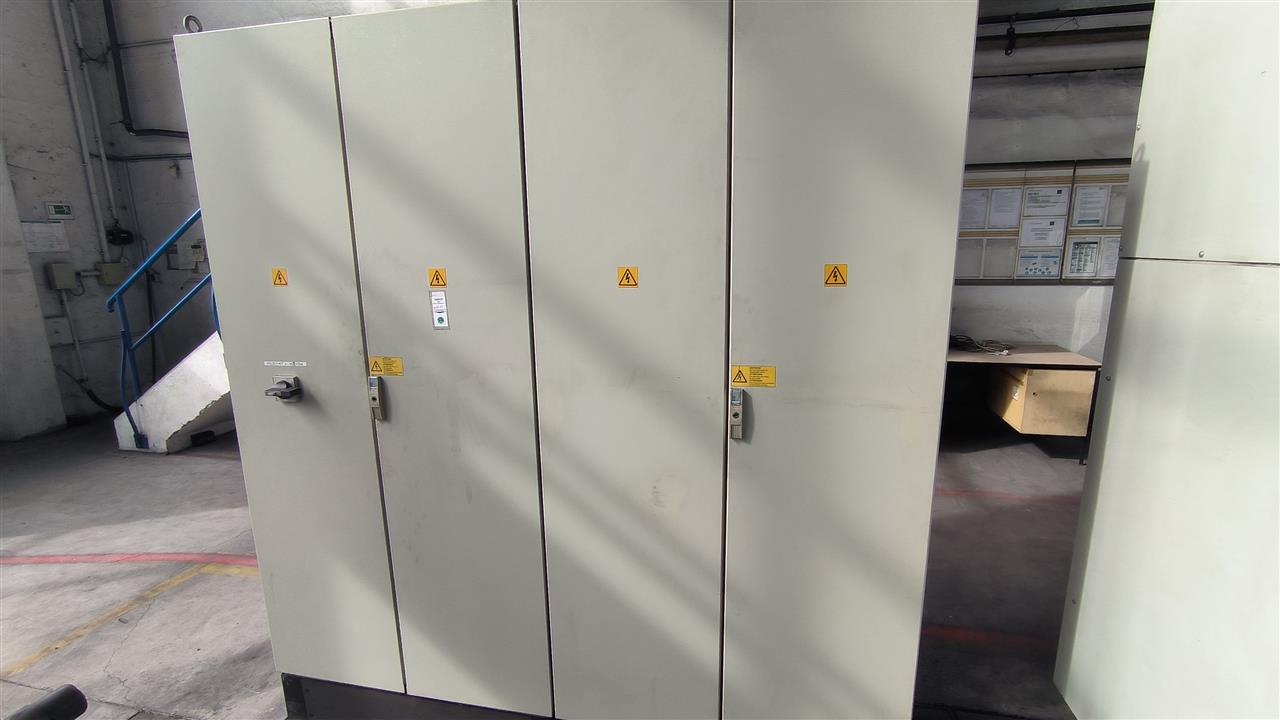

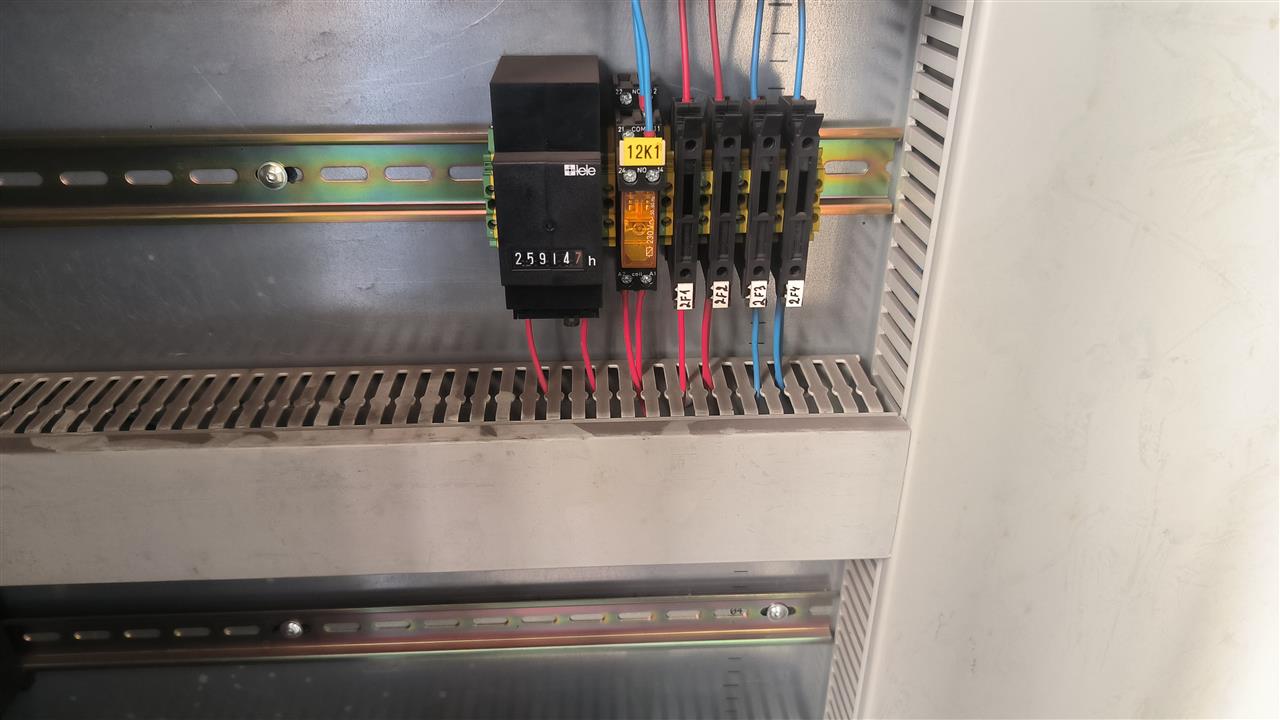

Double E-cabinet

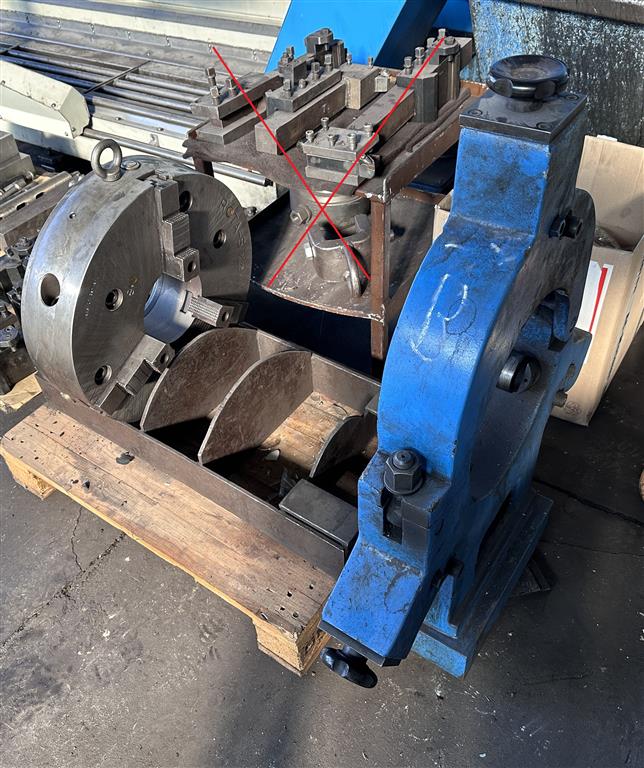

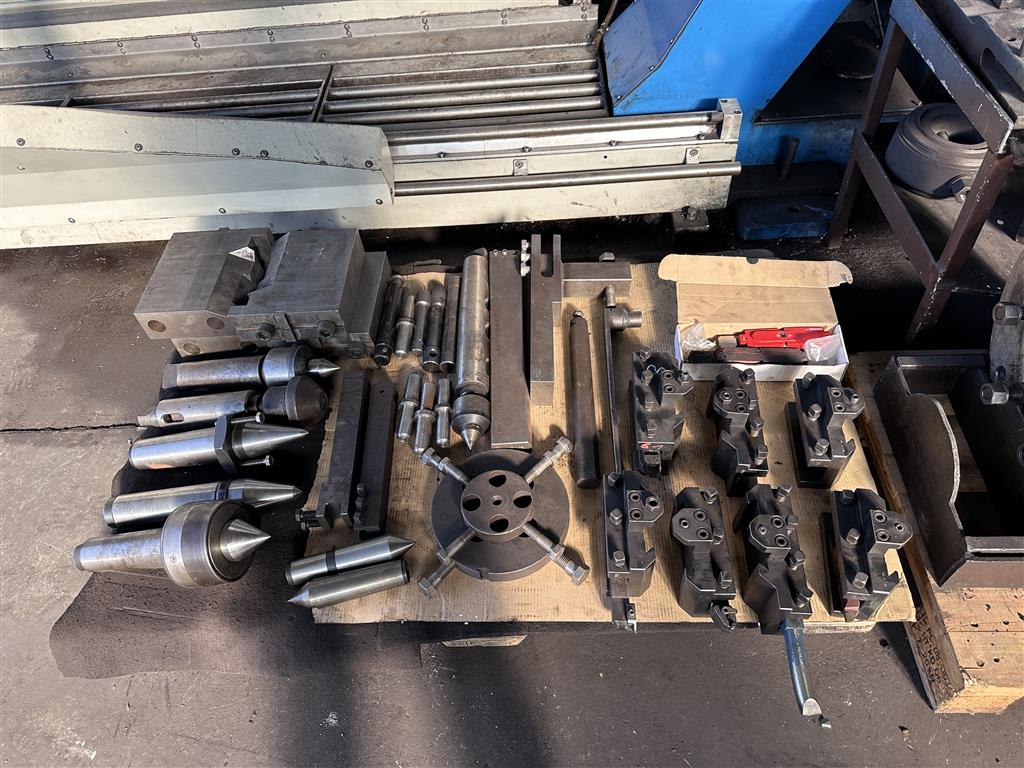

incl. various accessories inkl. div. Zubehör siehe Foto, sowie Lünette und 3-Backen Futter Ø 500mm Rota-S plus
