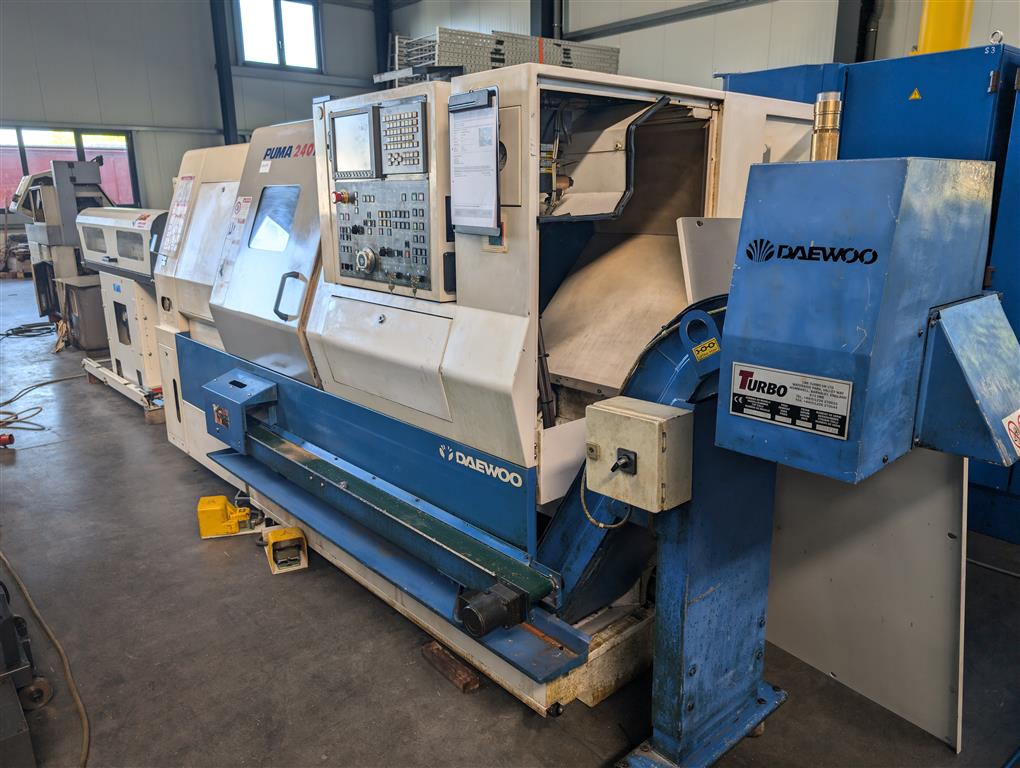

DOOSAN DAEWOO PUMA Puma 240MB
CNC Lathe | Stock number: 0300598
Unfortunately, the machine has already been sold.
Machine data
- Machine type
- CNC Lathe
- Manufacturer
- DOOSAN DAEWOO PUMA
- Type
- Puma 240MB
- Year of manufacture
- 2004
- Control type
- CNC
- Country of origin
- Korea
Technical data
- turning diameter over bed
- 550 mm
- turning dia. over face-slide
- 390 mm
- turning length
- 513 mm
- max. turning diameter
- 300 mm
- z-axis
- 580 längs mm
- x-axis
- 205 plan mm
- control

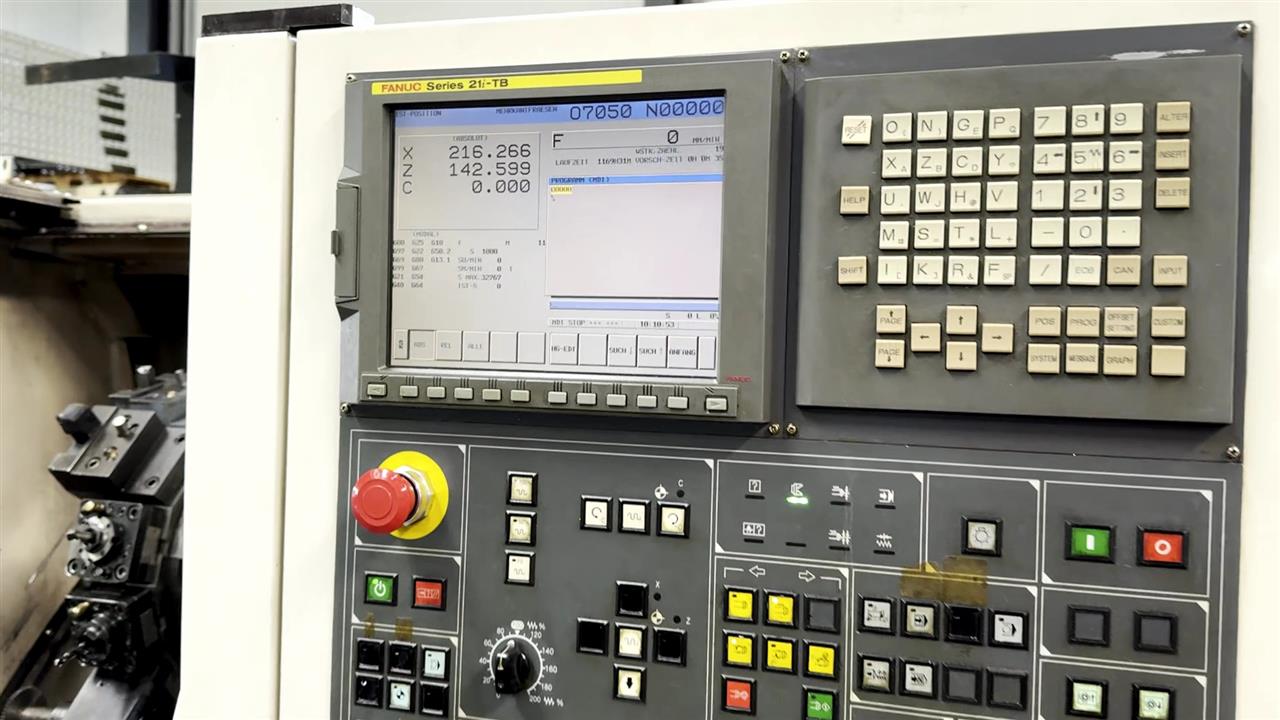

- Fanuc 21i-TB
- spindle head
- A2-6

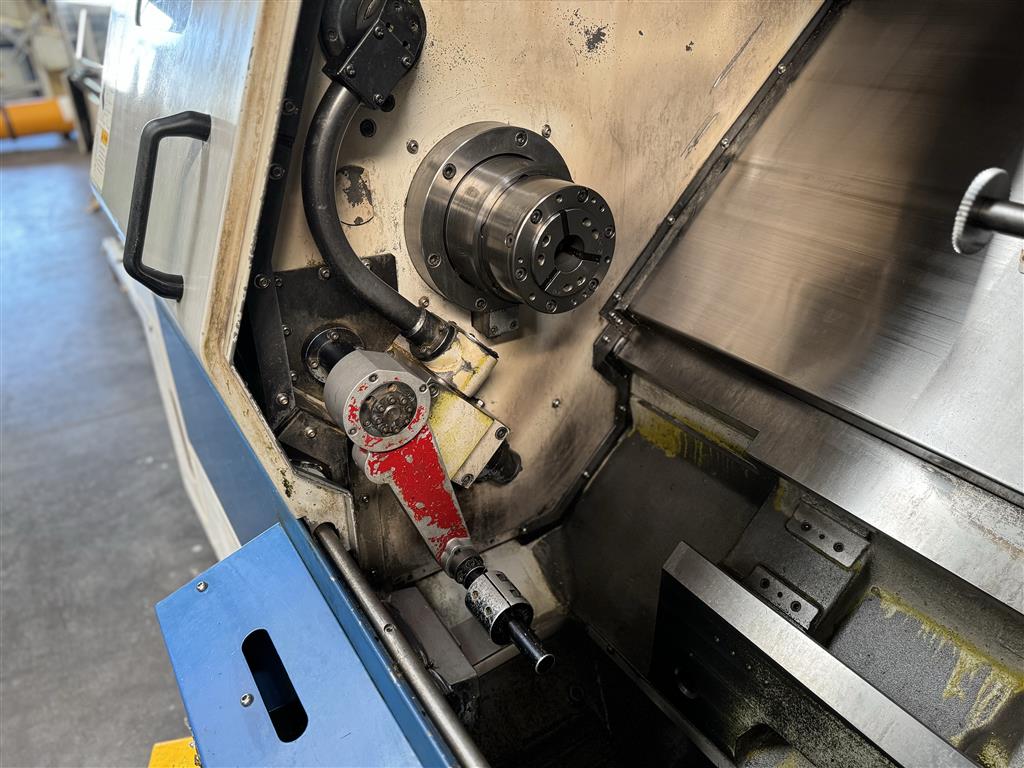

- workpiece spindle bore
- max. Ø 65 mm
- spindle passage
- Ø 76 mm
- revolution per minute
- max. 4.500 U/min
- rapid power traverse in X-and Z direction
- 24 / 30 mm/min
- tool turret - number of stations
- 12
- spindle hours
- 20742 h
- operating hours - idle run
- 63097 h

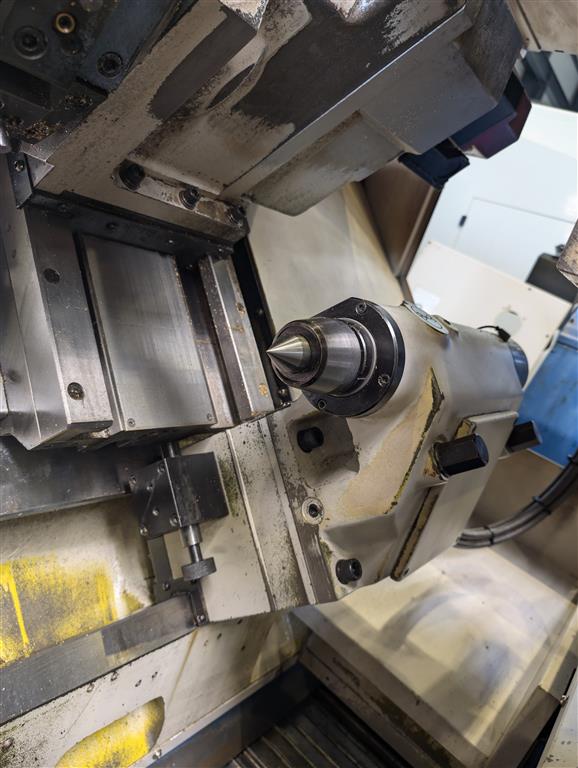

- tailstock taper ISO
- Konus MT#4
- tailstock quill stroke
- 80 mm
- current type
- 3~, 200/220V / 50/60 Hz
- total power requirement
- ca. 23 (28,95 kVA) kW
- Weight approx.
- 4,15 t
- dimension machine approx.LxWxH
- Tiefe: 4,0 x 1,8 x 1,8 m
- dimensions L x W x H
- Stangenlader: 2,0 x 0,9 x 1,3 m
Additional description
Further technical information:

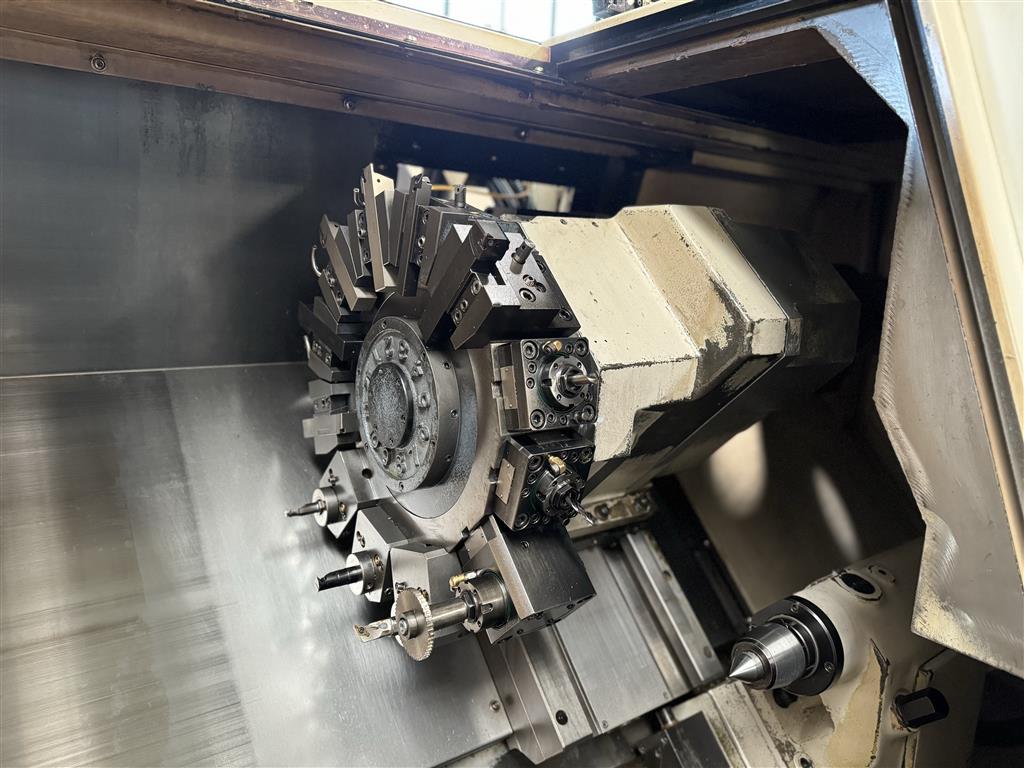

Tool turret with 12 positions, including 3 positions for driven tools (max. speed 5,000 rpm), largest tool Ø 40 mm
Tailstock operation via foot switch

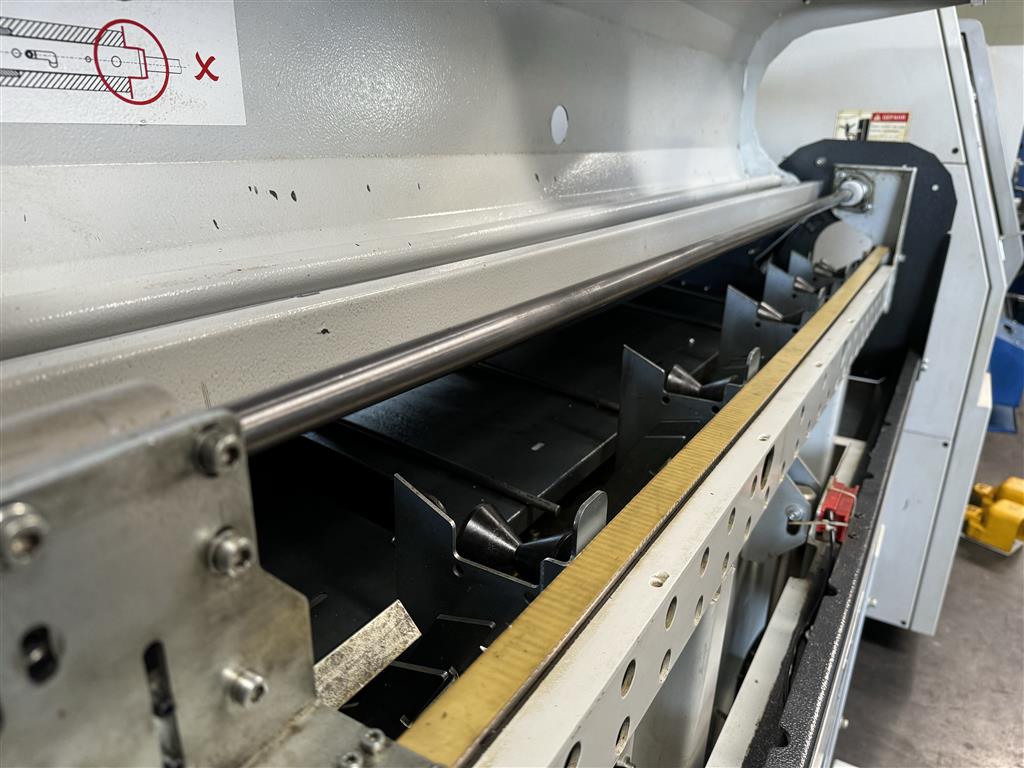

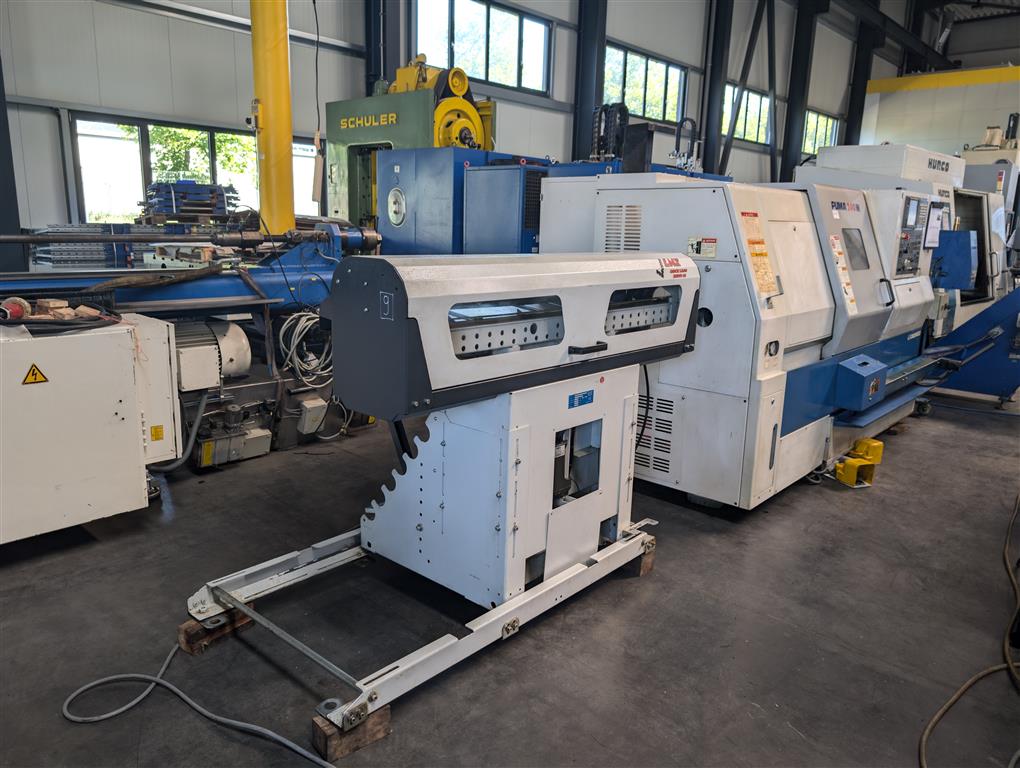

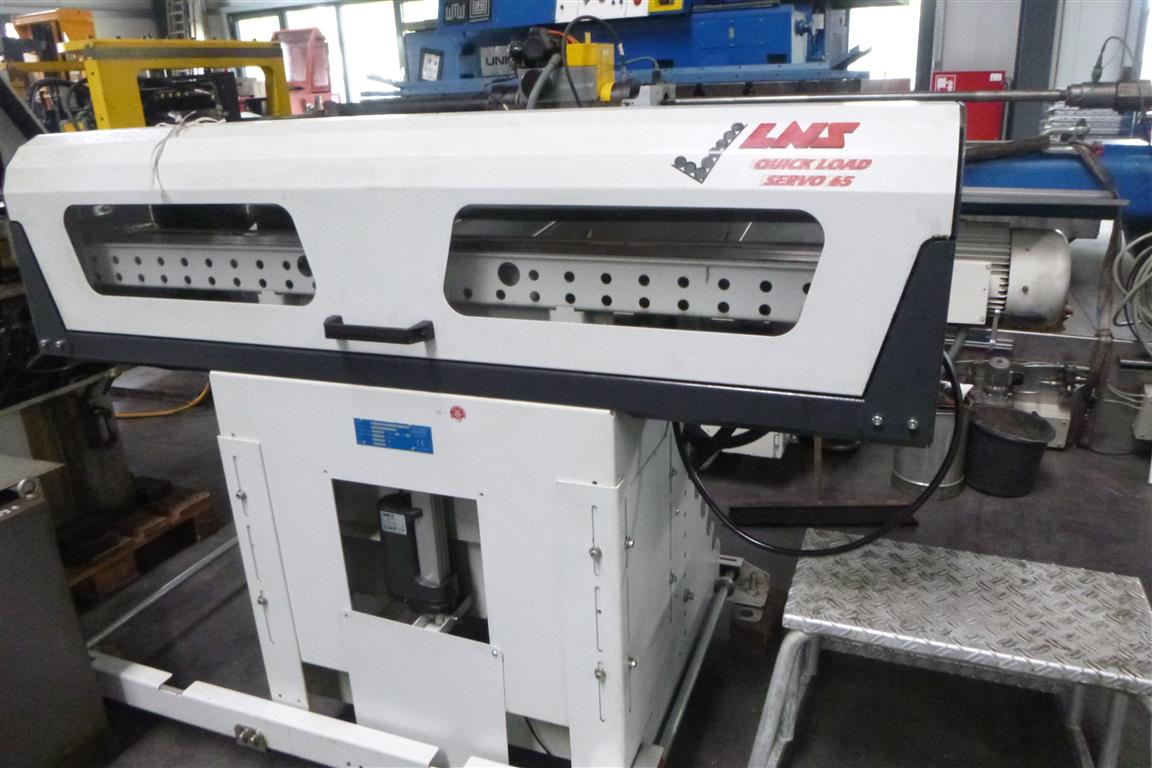

Bar loader LNZ Quick Load Servo 65, with 600mm pull-off device, material Ø min./max.: 6.0/65mm; bar length min./max.: 350 / 1300mm
movable hinged belt chip conveyor LNS Turbo, with coolant tank and pump

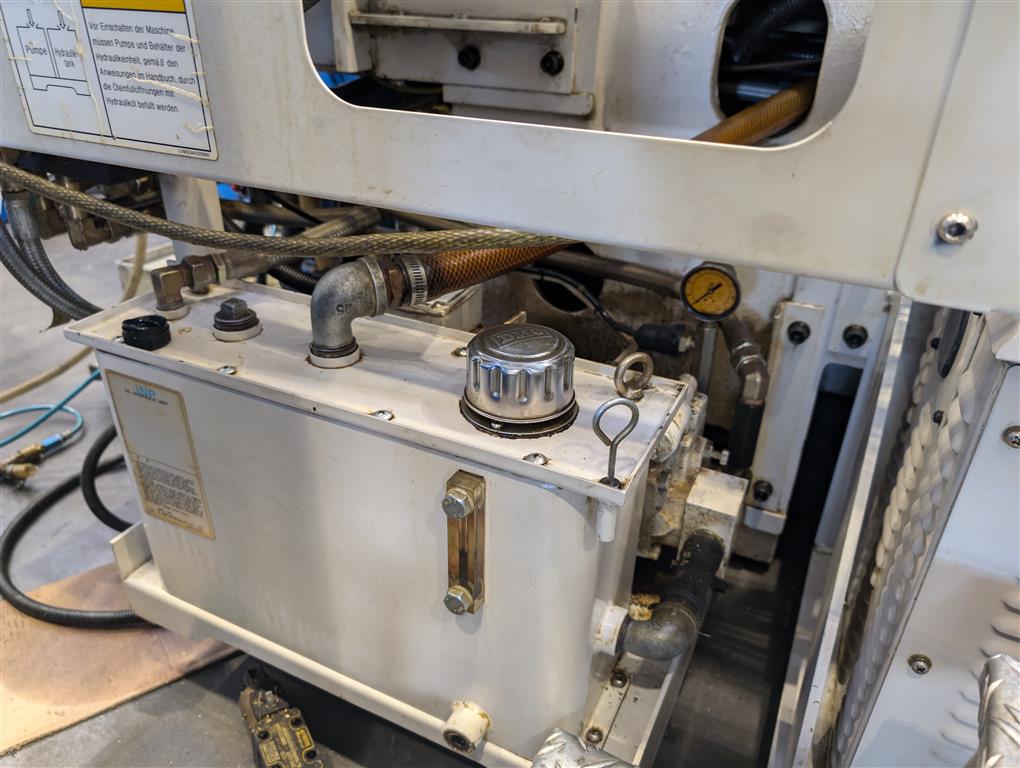

hydraulic unit
Equipment:
-controlled parts catcher for workpieces
-machine lighting
i.D.
Terms of storage and delivery
- Freight base
- EXW, free on truck unpacked
- Storage location
- Leipzig 5
- Delivery time
- immediately
- Price
Subject to changes and errors in technical details and specifications, as well as prior sale.
