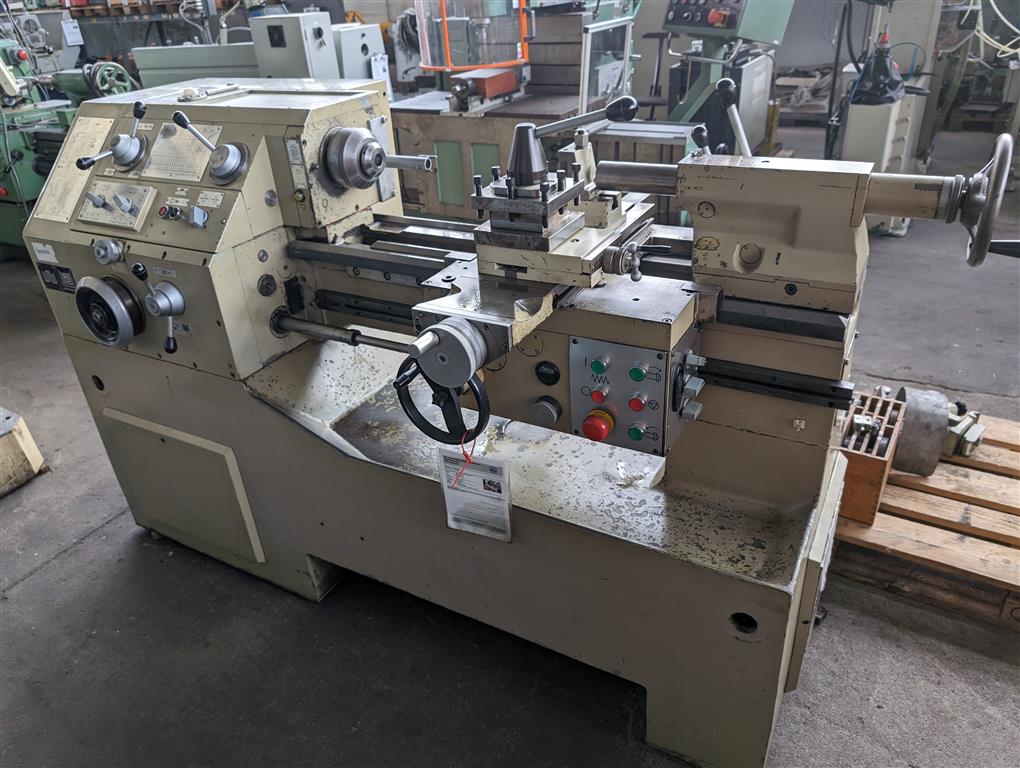

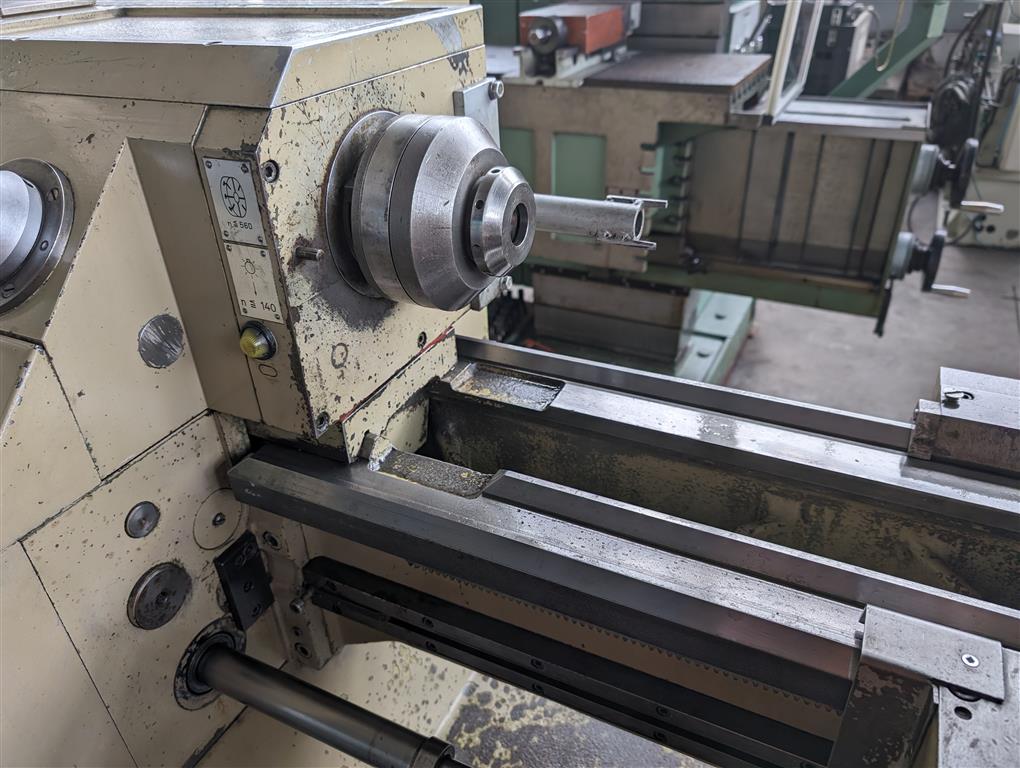

Center Lathe
Offer
- stock-no.:
- 0303006
- type of machine:
- Center Lathe
- make:
- WMW Mikromat
- model:
- DZFG 200x500
- year of manufacture:
- 1986
- type of control:
- conventional
- country of origin:
- Germany
- freight basis:
- EXW, free on truck unpacked
- storage location:
- Leipzig 1
- delivery time:
- immediately
- price:
- on request
technical details
- turning diameter over bed:
- 315 mm
- turning diameter over support:
- 200 mm
- turning length:
- 500 mm
- turning diameter over bed:
- 315 mm
- swing diameter over face slide:
- 200 mm
- center height measured in bed:
- 180 mm
- spindle passage:
- Ø 32 mm

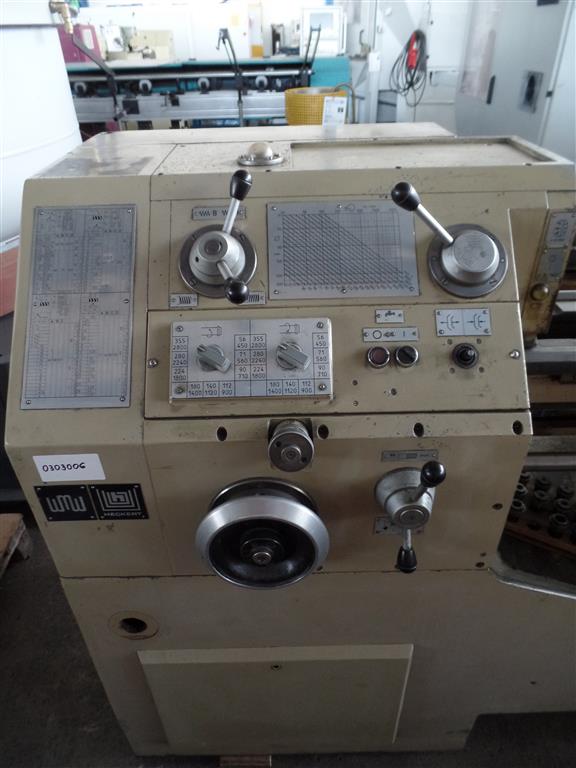

- range of revolution per miute:
- 56...2.800 / nur only 6 step links-rechts U/min
- range of feed in x - axis:
- längs: 0,02..0,8 m/min
- range of feed in y - axis:
- plan: 0,01..0,4 m/min

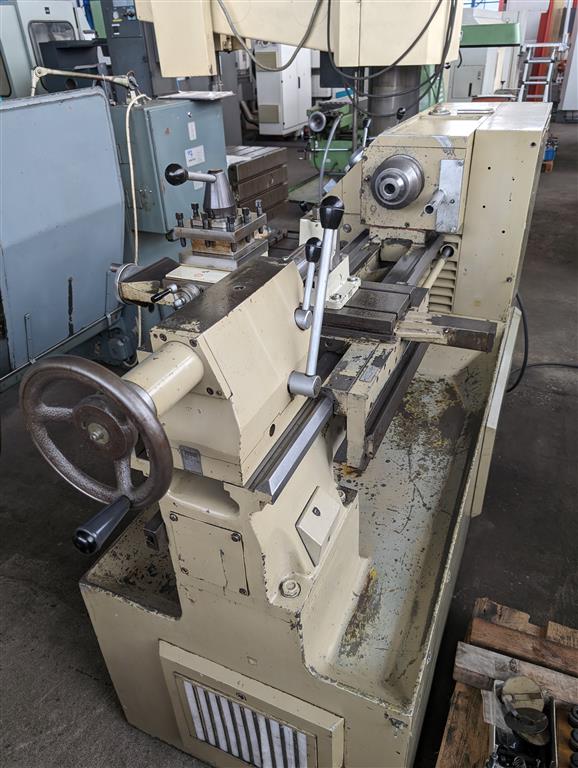

- tailstock quill taper MT:
- MK 4
- tailstock quill adjustment::
- 140 mm

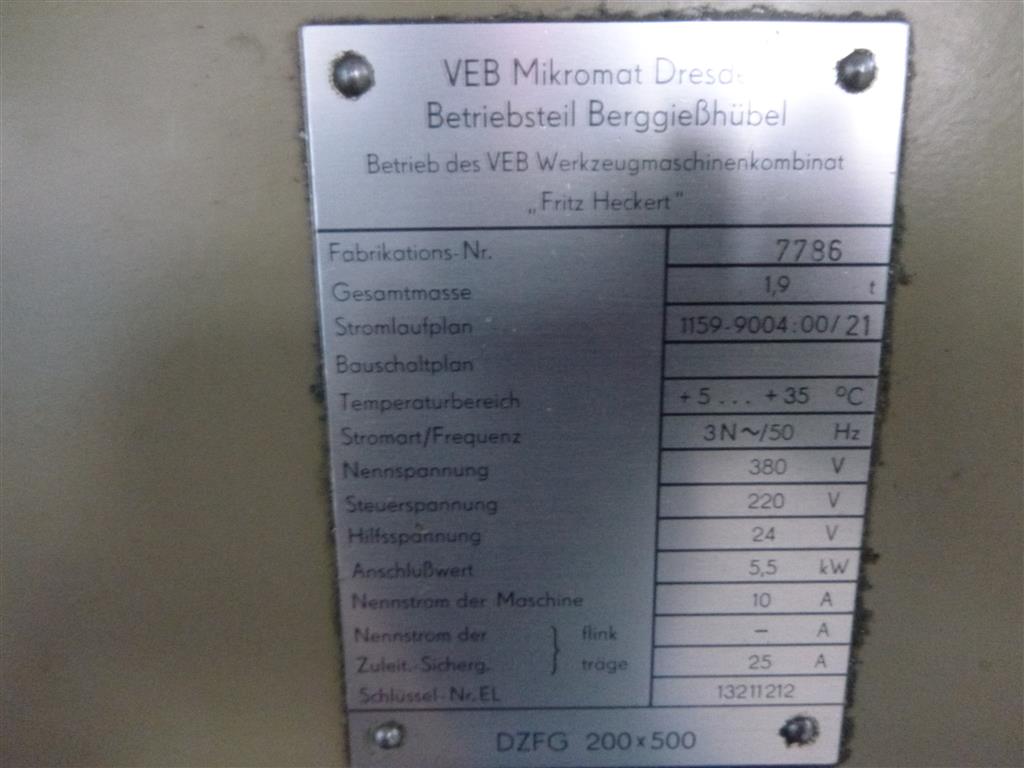

- total power requirement:
- 5,5 kW
- weight of the machine ca.:
- 2,0 t
- dimension machine approx.LxWxH:
- 2,1x 1,1 x 1,4 m
additional information

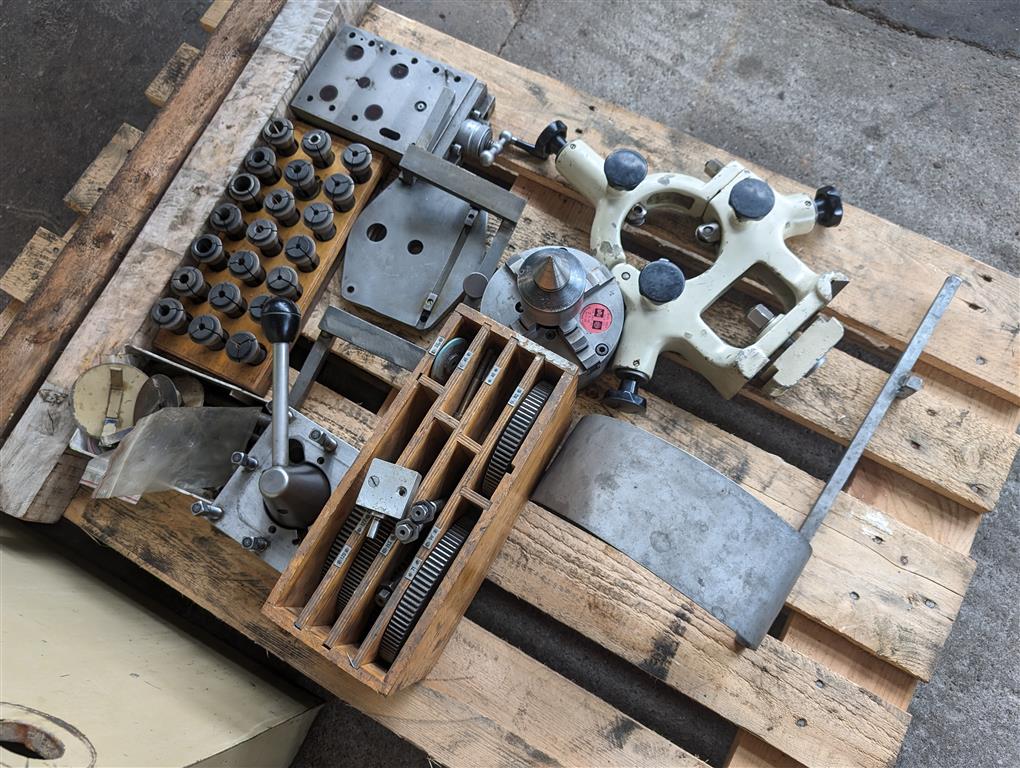

-Workpiece pick-up via collet chuck
-travels longitudinal slide= 580mm and cross slide=170mm
-incl. tooling device lathe support
-incl. change gears

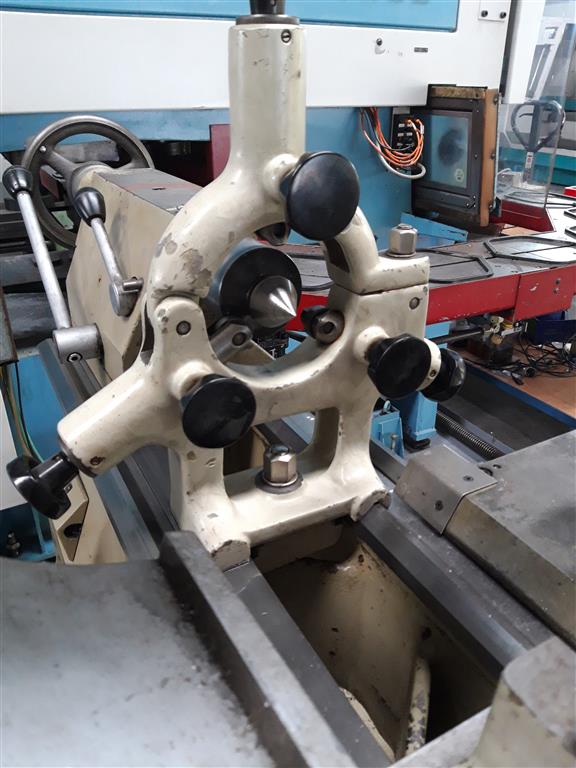

-steady rest Ø 100mm

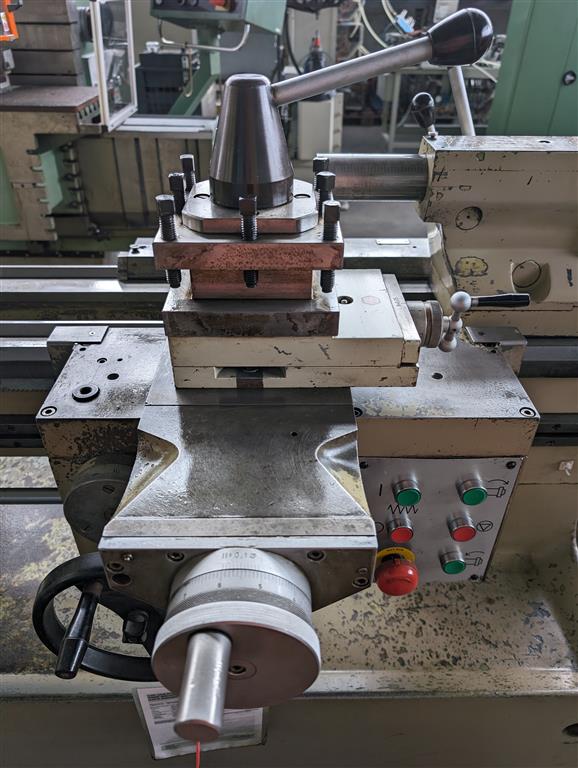

-fourfold tool holder
The machine works with limited function!
6 speeds are currently selectable! (224/1800 ; 280/2240; 355/2800 rpm.)
