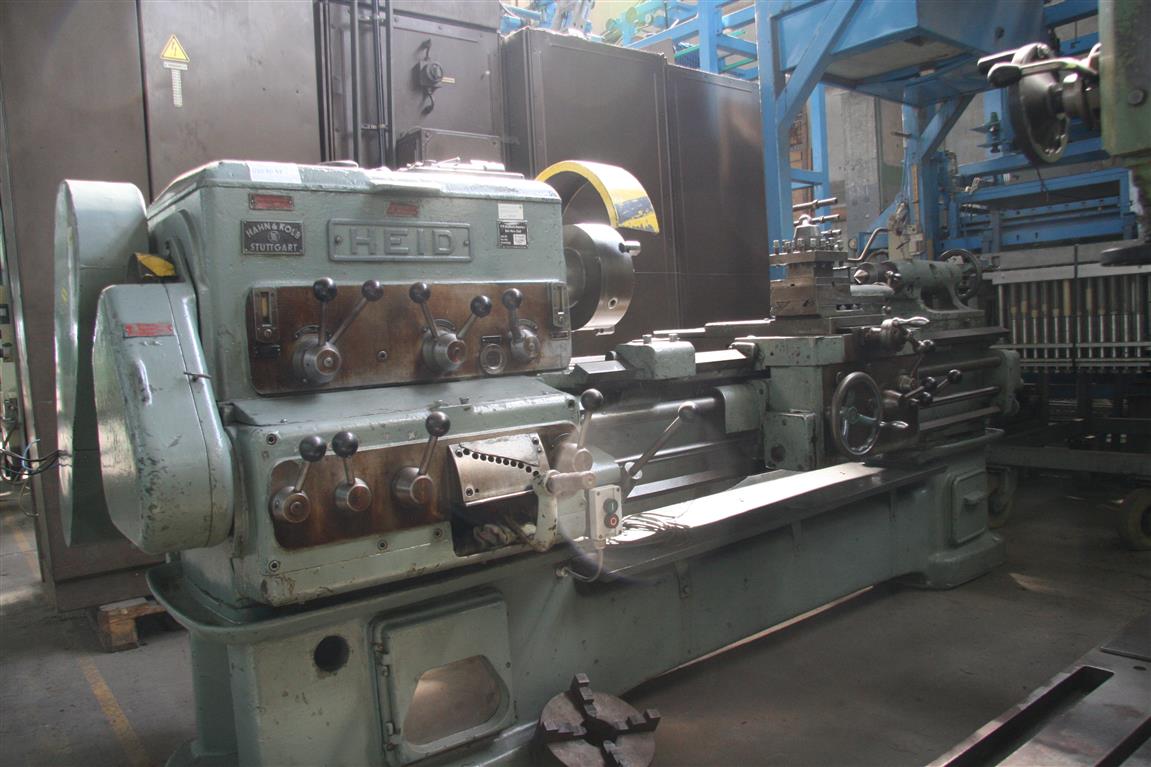

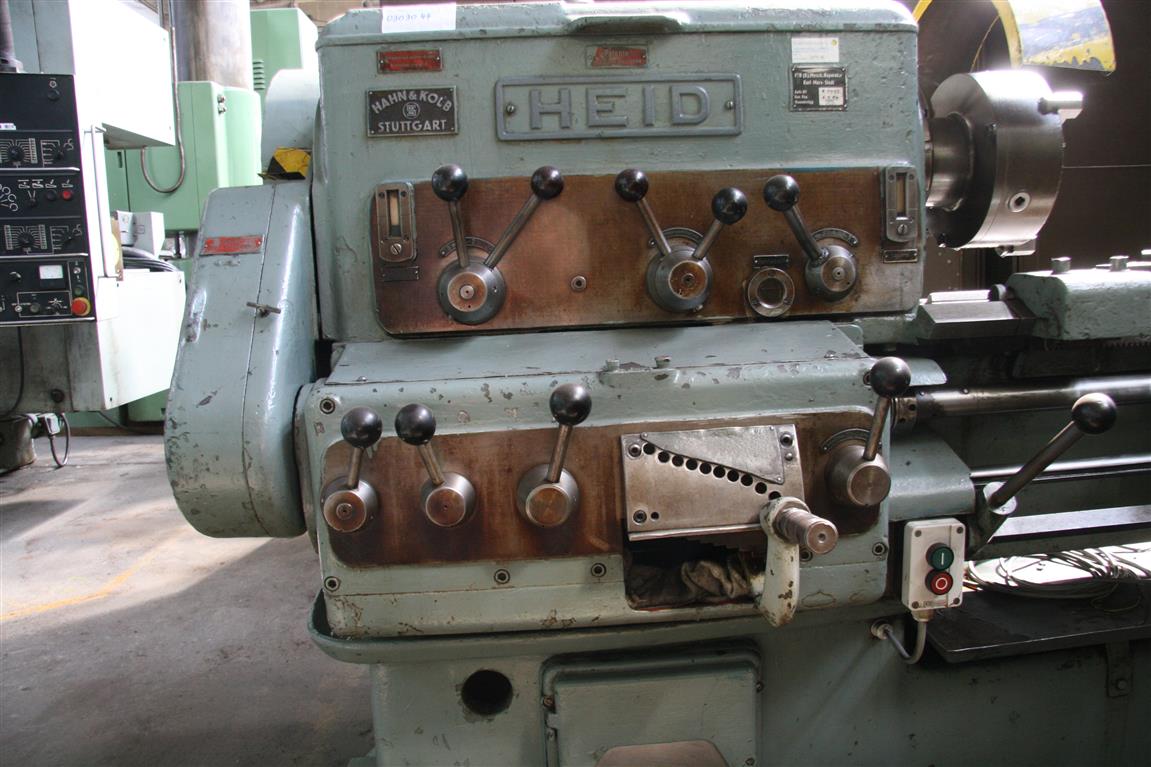

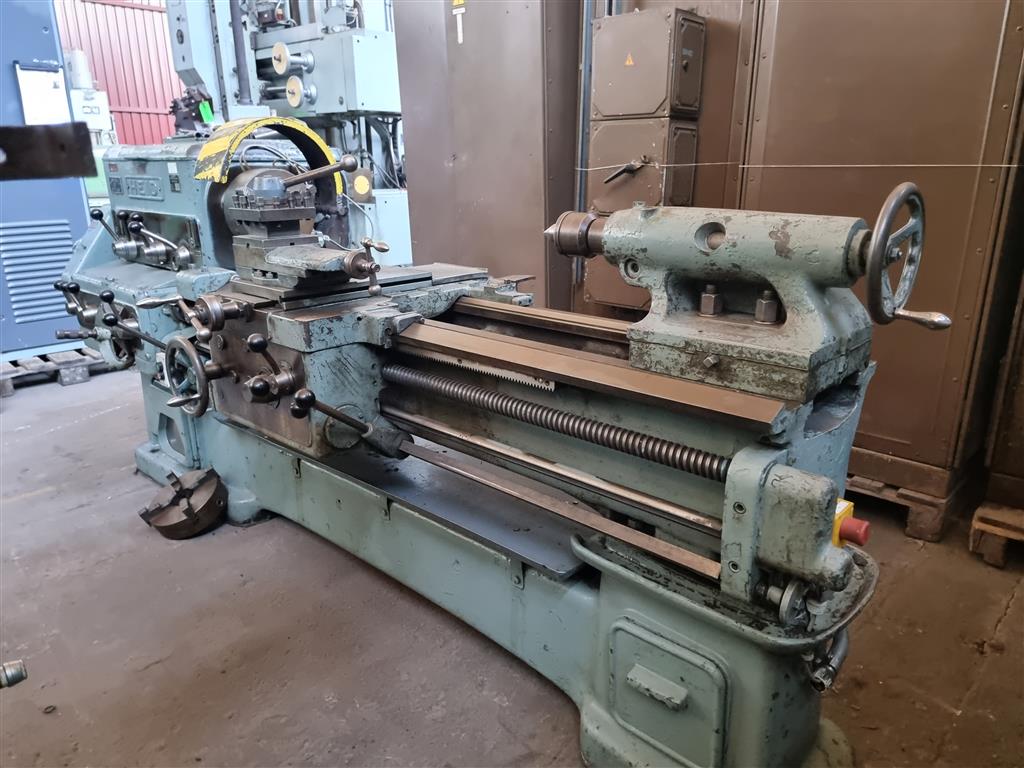

Center LatheCenter Lathe Hahn&Kolb (HEID) DLZ 460x1200

Center Lathe Hahn&Kolb (HEID) DLZ 460x1200Center Lathe Hahn&Kolb (HEID) DLZ 460x1200Center Lathe Hahn&Kolb (HEID) DLZ 460x1200Center Lathe Hahn&Kolb (HEID) DLZ 460x1200Center Lathe Hahn&Kolb (HEID) DLZ 460x1200Center Lathe Hahn&Kolb (HEID) DLZ 460x1200

Offer

stock-no.:
0303044
type of machine:
Center Lathe
make:
Hahn&Kolb (HEID)
model:
DLZ 460x1200
year of manufacture:
-
type of control:
conventional
country of origin:
Germany
freight basis:
EXW, free on truck unpacked
storage location:
Leipzig 2
delivery time:
on request
price:
on request

technical details

turning diameter over bed:
460 mm
turning diameter over support:
250 mm
turning length:
1200 mm
center height measured in bed:
200 mm
support travel z-axis:
1200 mm
support travel x-axis:
350 mm
spindle passage:
Ø 50 mm
range of revolution per miute:
U/min
tailstock quill taper MT:
5
tailstock quill adjustment::
240 mm
total power requirement:
12
weight of the machine ca.:
2,3 t
dimension machine approx.LxWxH:
3,0 x 1,4 x 1,3 m

additional information

Turning diameter in the offset = Ø 520mm; offset length = 360mm
3-jaw lathe chuck Ø 250mm

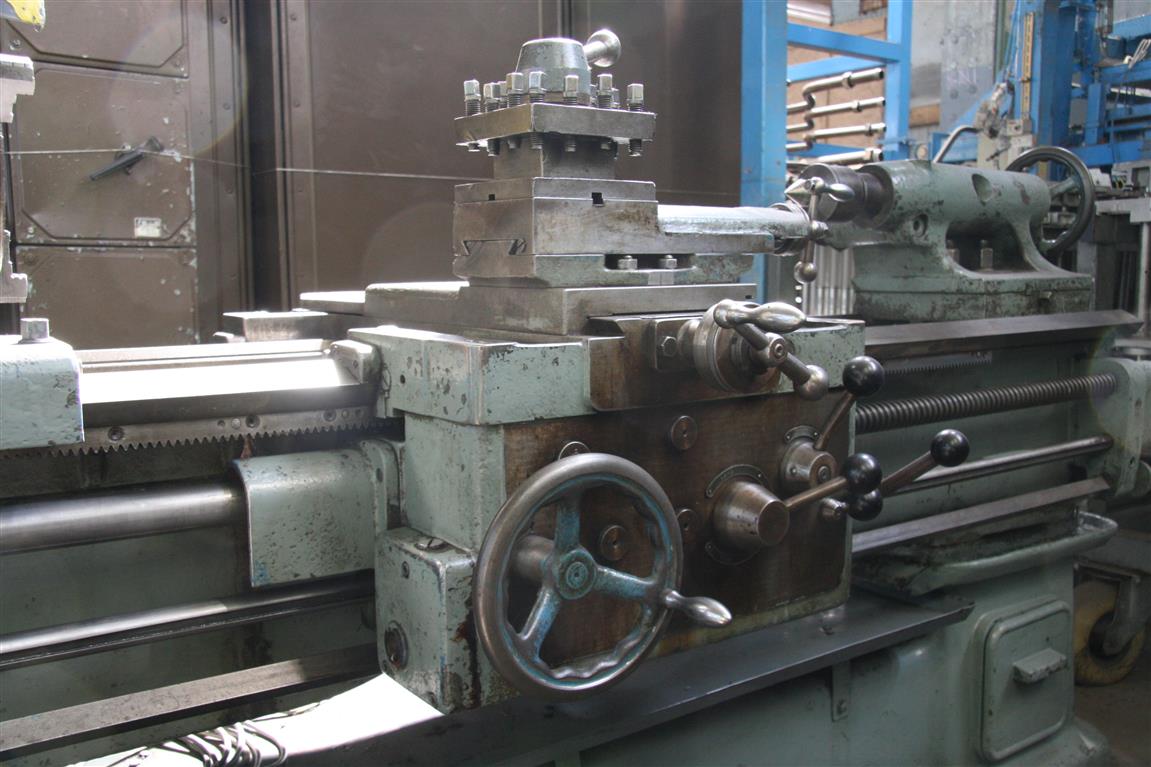

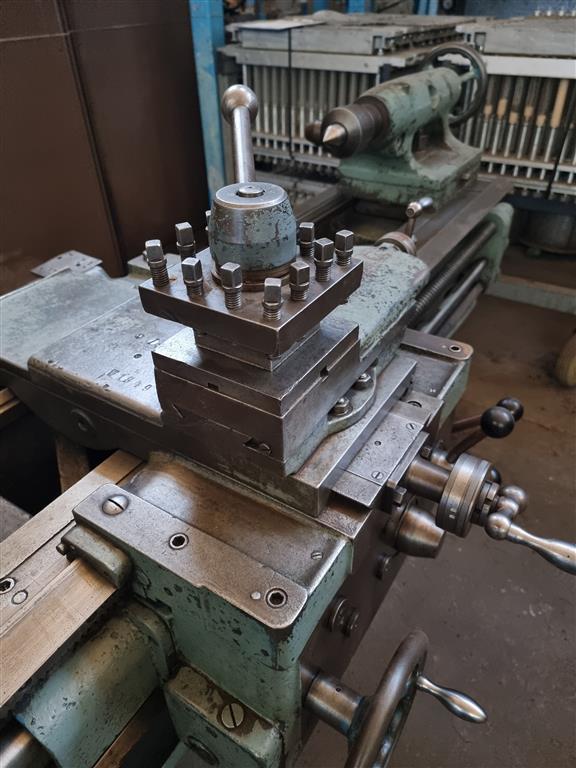

4-fold tool holder, right/left 45° swiveling
Lathe chuck guard

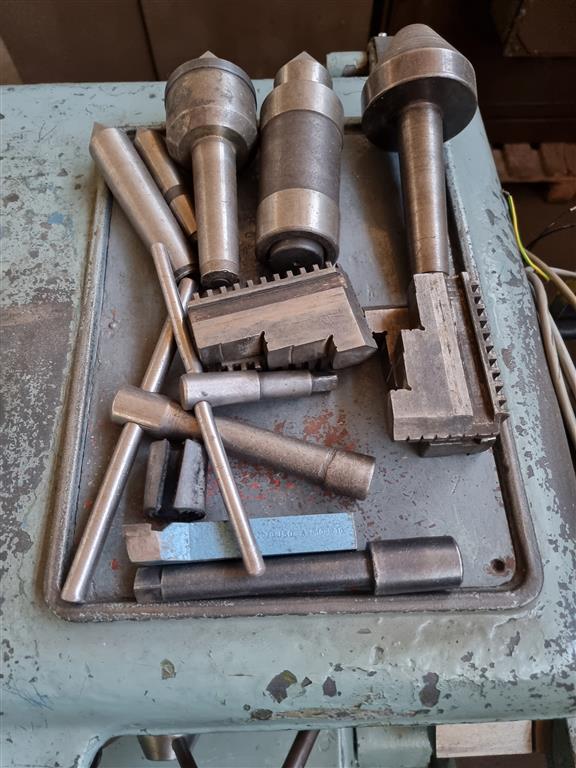

Accessories:
1x 4-jaw lathe chuck Ø 245mm
1x fixed and 1x revolving tip

The machine is suitable for rough work.
i.D.
