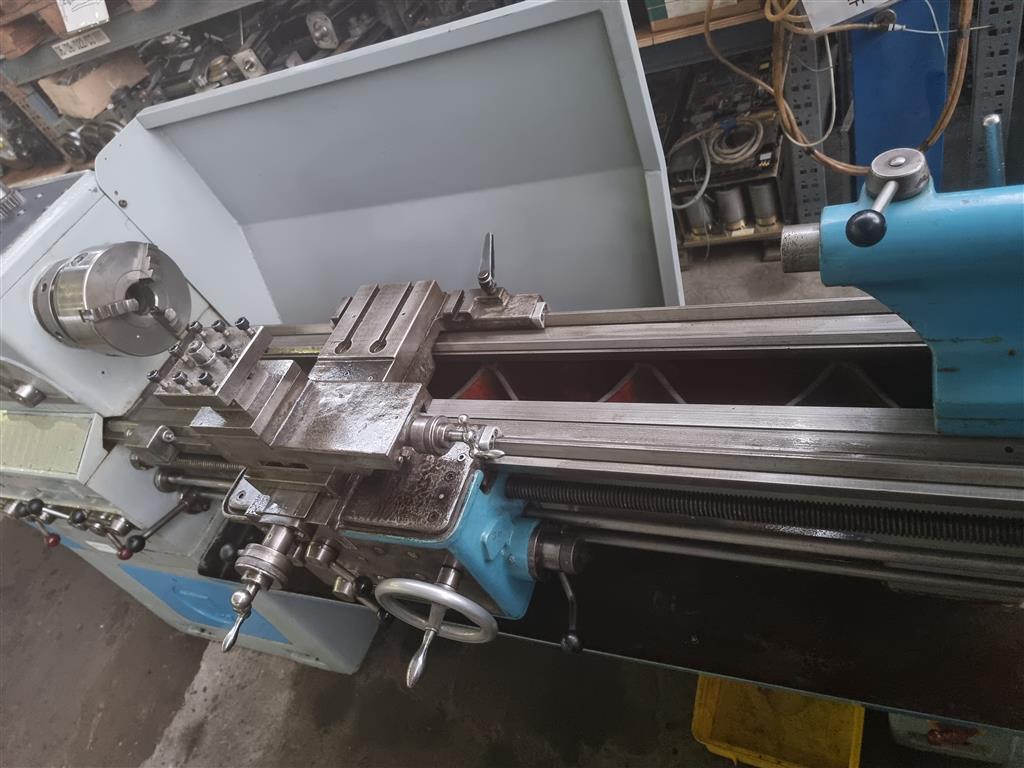

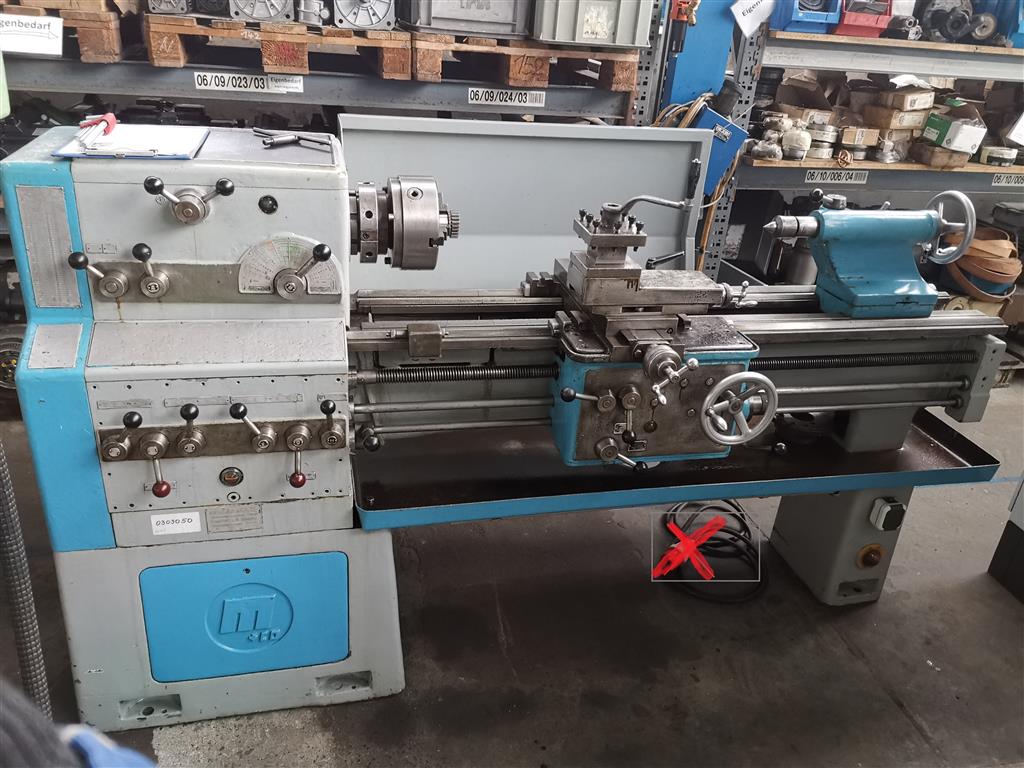

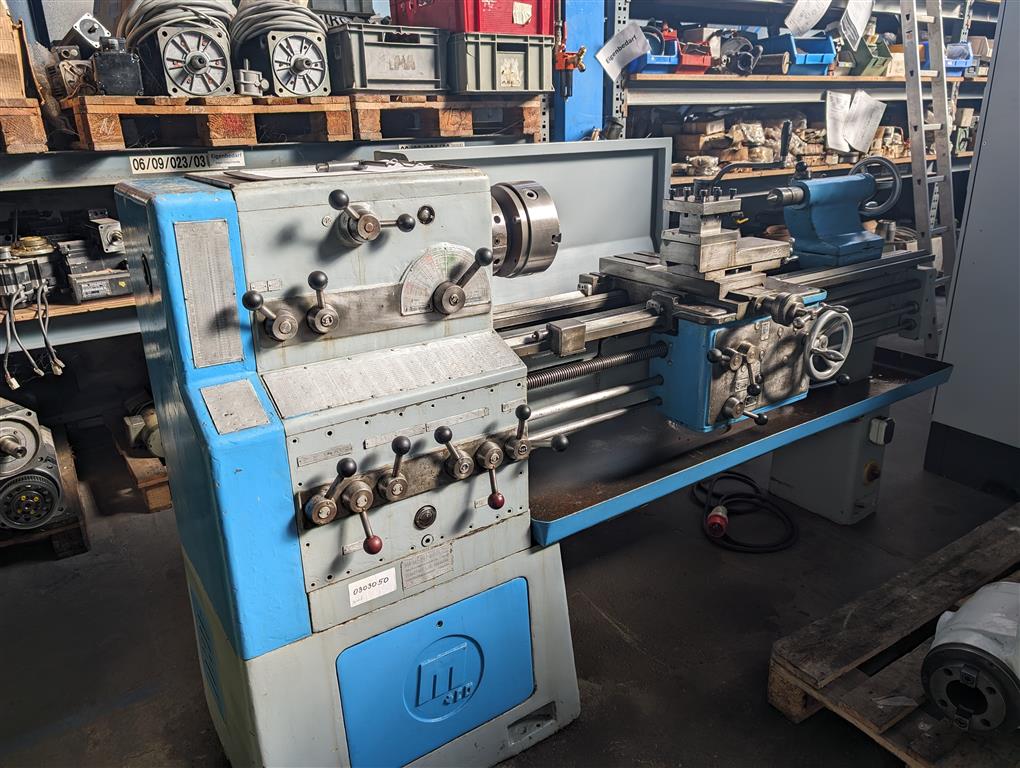

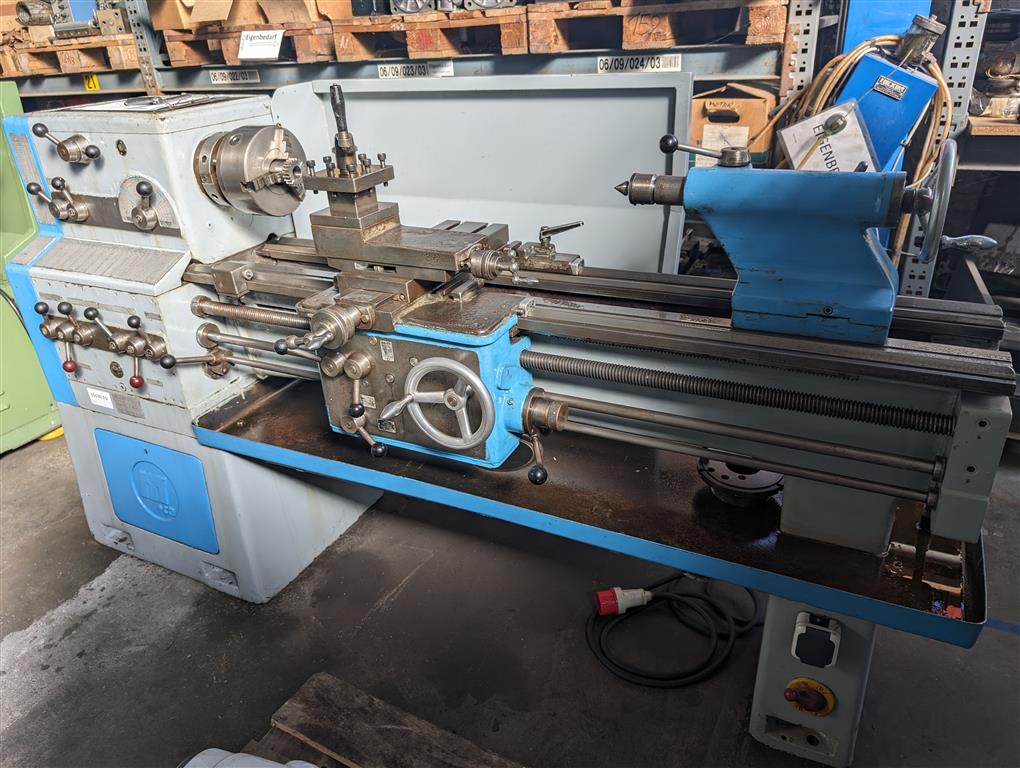

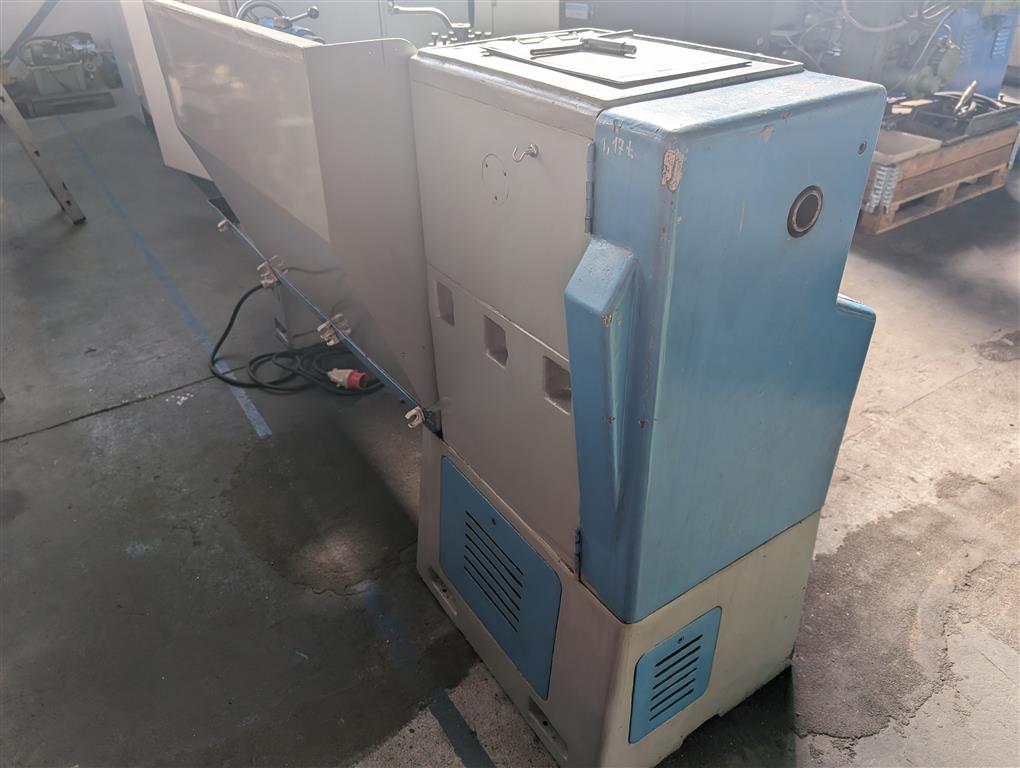

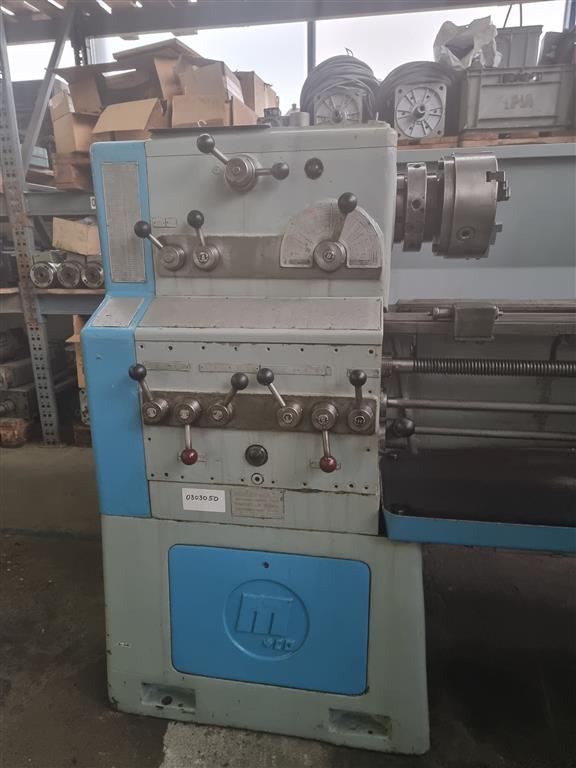

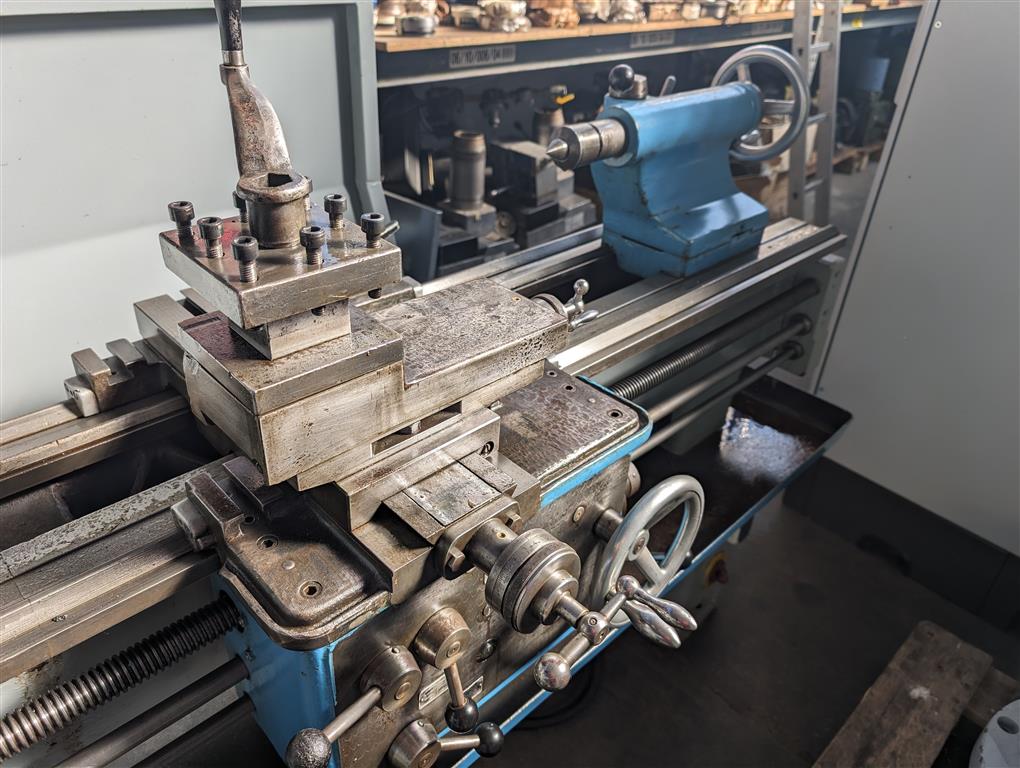

Center Lathe Meuser DLZ 400x1000

Offer

stock-no.:

0303050

type of machine:

Center Lathe

make:

Meuser

model:

DLZ 400x1000

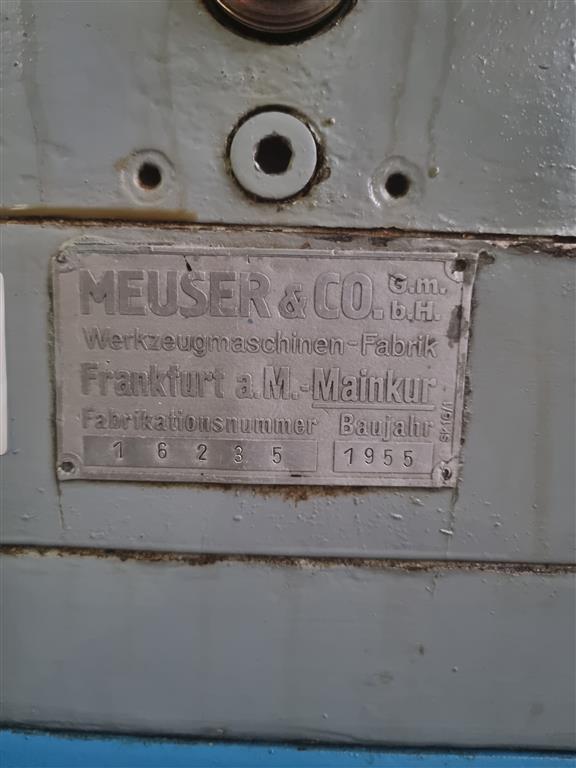

year of manufacture:

1955

type of control:

conventional

country of origin:

Germany

freight basis:

EXW, free on truck unpacked

storage location:

Leipzig 1

delivery time:

immediately

price:

on request

technical details

turning diameter over bed:

420 mm

turning diameter over support:

240 mm

turning length:

1100 mm

turning dia. in gap:

600 mm

turning height:

mm

range of revolution per miute:

24 - 900 / 8 step U/min

spindle bore:

41 mm

range of feed in x - axis:

0,0120 - 0,1000 mm/U

range of feed in y - axis:

0,0062 - 0,0302 mm/U

tailstock quill taper MT:

3

tailstock quill adjustment:

220 mm

total power requirement:

ca. 4,0 (ohne Gewähr) kW

weight of the machine ca.:

1,2 t

dimension machine approx.LxWxH:

2,3 x 0,9 x 1,3 m

additional information

Equipment:

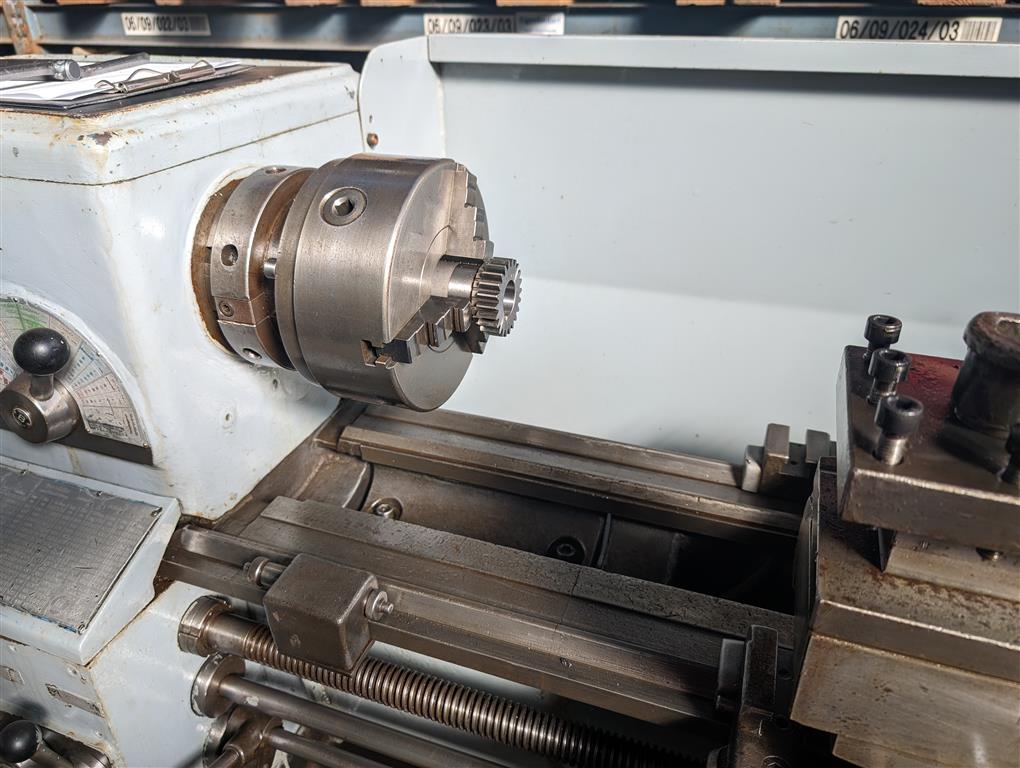

3-jaw chuck Ø 200mm
Tool holder 4-way, swivelling 30° right/left
Copying device
Driving disc
