Turning Automatic Lathe - Longitudinal
Offer
- stock-no.:
- 0300141
- type of machine:
- Turning Automatic Lathe - Longitudinal
- make:
- MANURHIN
- model:
- K`MX 20
- year of manufacture:
- 1990
- type of control:
- CNC
- country of origin:
- France
- freight basis:
- EXW, free on truck unpacked
- storage location:
- Leipzig 1
- delivery time:
- immediately
- price:
- on request
technical details
- spindle passage:
- 23 mm
- z-axis:
- 150 mm
- turning length:
- 150 mm
- stroke:
- x+z Achse / Axis/eje/eixo/os = 30 mm
- facing movement (x-axis):
- 30 mm
- longitudinal traverse (z-axis):
- 30 mm
- control:
- Num 760T
- spindle turning speed - continuous:
- 0-3000 / 0-6000 U/min
- feed speed:
- x/y: 5 mm/min
- feed speed:
- z: 10 mm/min
- tool turret:
- 2 Stück/pcs mit je/each 6 tools
- operating pressure:
- max. 45 bar
- total power requirement:
- 8,0 kW
- weight of the machine ca.:
- 2,2 t
- dimension machine approx.LxWxH:
- 2,45x1,3x2,2 m
- dimensions of the bar loader L-W-H:
- 4,65x0,5x1,3 m
additional information

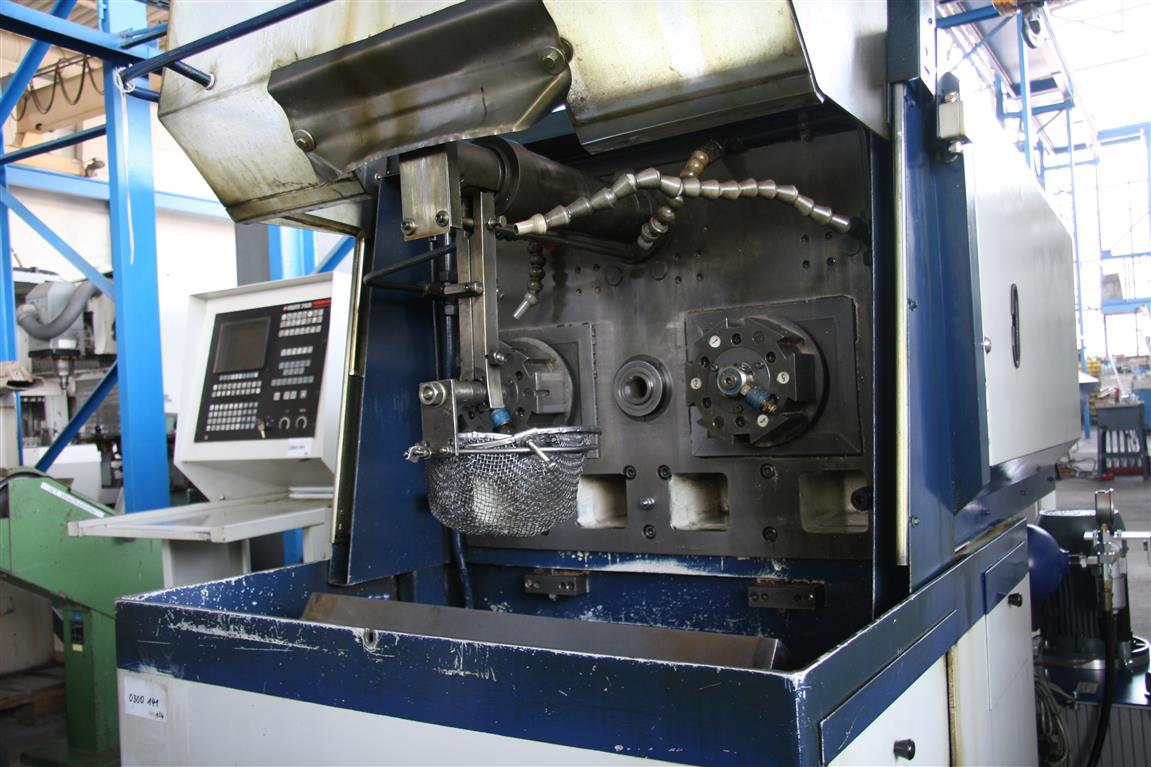

techn. details:

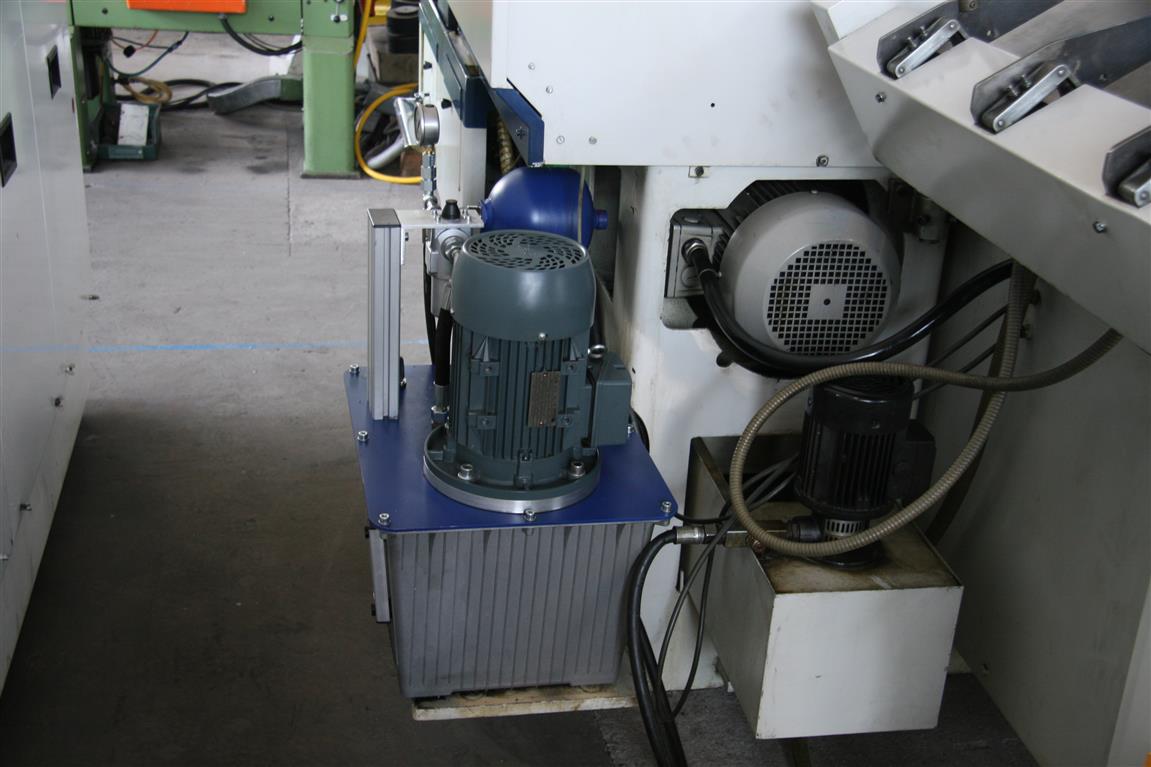

- bar clamping hydraulic
-automatic workpiece discharge (via catch basket)
- 2 turrets with each 6 tool tapers
- coolant device
- control NUM 760 (size: L:1,0xW0,8mxH:1,56m)
- bar loader magazine make IEMCA type CS 112/31
accessories:
-24 div. tool tapers
- device tool Sylvac system ( size:L:0,58xW:0,5xH:0,43m)
