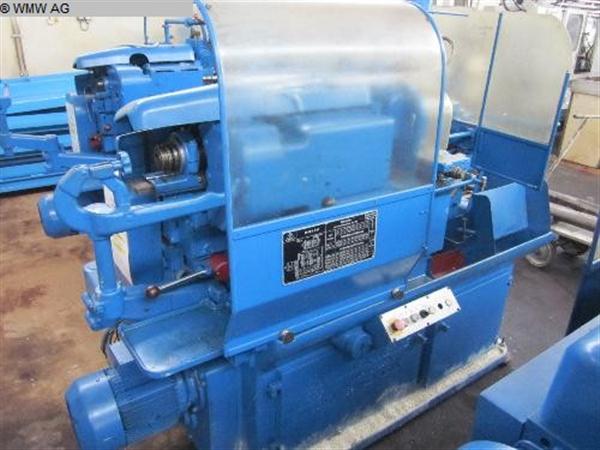

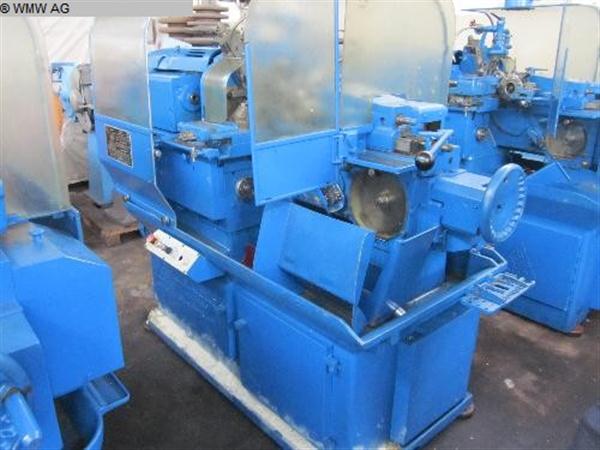

Turret Lathe - AutomaticTurret Lathe - Automatic INDEX B60

Turret Lathe - Automatic INDEX B60Turret Lathe - Automatic INDEX B60Turret Lathe - Automatic INDEX B60Turret Lathe - Automatic INDEX B60

Offer

stock-no.:
0300140
type of machine:
Turret Lathe - Automatic
make:
INDEX
model:
B60
year of manufacture:
-
type of control:
conventional
country of origin:
Germany
freight basis:
ex location Bitterfeld, free truck
storage location:
GOG Bitterfeld
delivery time:
immediately
price:
on request

technical details

turning diameter over bed:
mm
spindle passage:
60 mm
turning length:
45 mm
turning diameter:
max. 56 mm
drill depth:
max. 70 mm

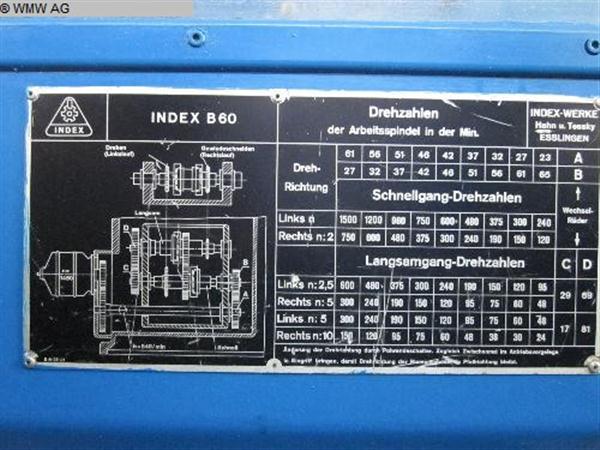

revolution per minute:
48 - 1500 (spindle) U/min
threading:
Drehzahl: 24 - 750 U/min
tool turret - number of stations:
8
total power requirement:
5,5 kW
weight of the machine ca.:
2,4 t
space requirement of the machine approx.:
L:2,1x1,0x1,8 m

additional information

Cam-controlled automatic lathe according to template.
Workpiece is clamped via clamping cartridge.

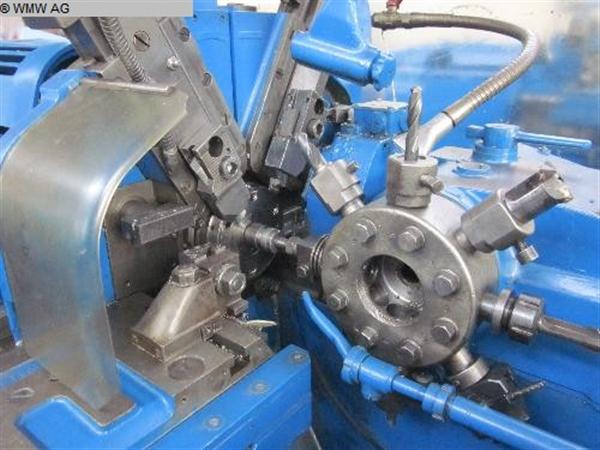

Turret head: disk turret Hahn&Tessky Esslingen, tool path 80mm, adjustment 36mm, distance collet/turret head min./max.: 72/188mm
2 pieces turning support, working stroke 45mm
2 piece cutting off support, working path approx. 40mm
Cooling water system

Machine is not connected. Sale at a low selling price.
