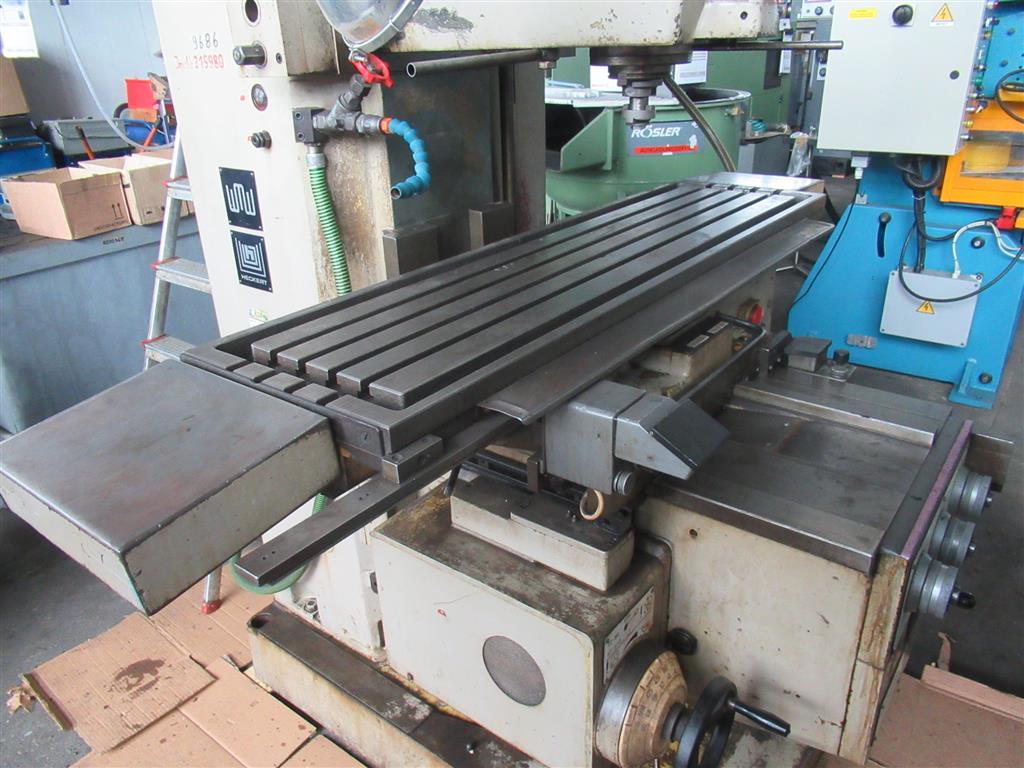

Milling Machine - Vertical WMW FSS 250x1000

Offer

stock-no.:

0400574

type of machine:

Milling Machine - Vertical

make:

WMW

model:

FSS 250x1000

year of manufacture:

1980

type of control:

conventional

country of origin:

Germany

freight basis:

EXW, free on truck unpacked

storage location:

Leipzig 1

delivery time:

on request

price:

on request

technical details

x-travel:

820 mm

y-travel:

300 mm

z-travel:

485 mm

control:

spindle taper ISO:

SK 40

spindle head swivable left - right:

0 - 45° rechts/links °

quill travel:

80 mm

milling head vertical adjustable:

mm

range of revolution per miute:

56 - 355 und 450 - 2800 U/min

feed::

X/Y: 10 - 80 und 80 - 630 mm/min

rapid traverse :

X/Y: 3150mm mm/min

Table dimensions:

1700 x 400 mm

table surface area:

1120 x 205 mm

table load:

t

total power requirement:

7,5 kW kW

machine weight approx.:

2120 kg

dimension machine approx.LxWxH:

1,7 x 1,7 x 2.5 m

dimensions electric cabinet:

m

additional information

additional features:
-Table adjustment via machine see X/Y and Z data
-table adjustment by hand X/Y/Z: 850/330/505mm
milling arbor reception max. Ø 40mm
operation via control panel
incl. 4 pieces foot plates
