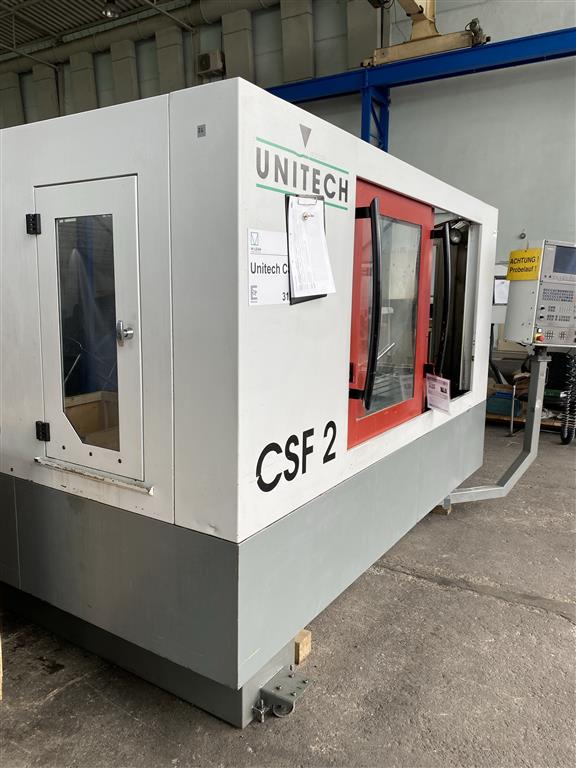

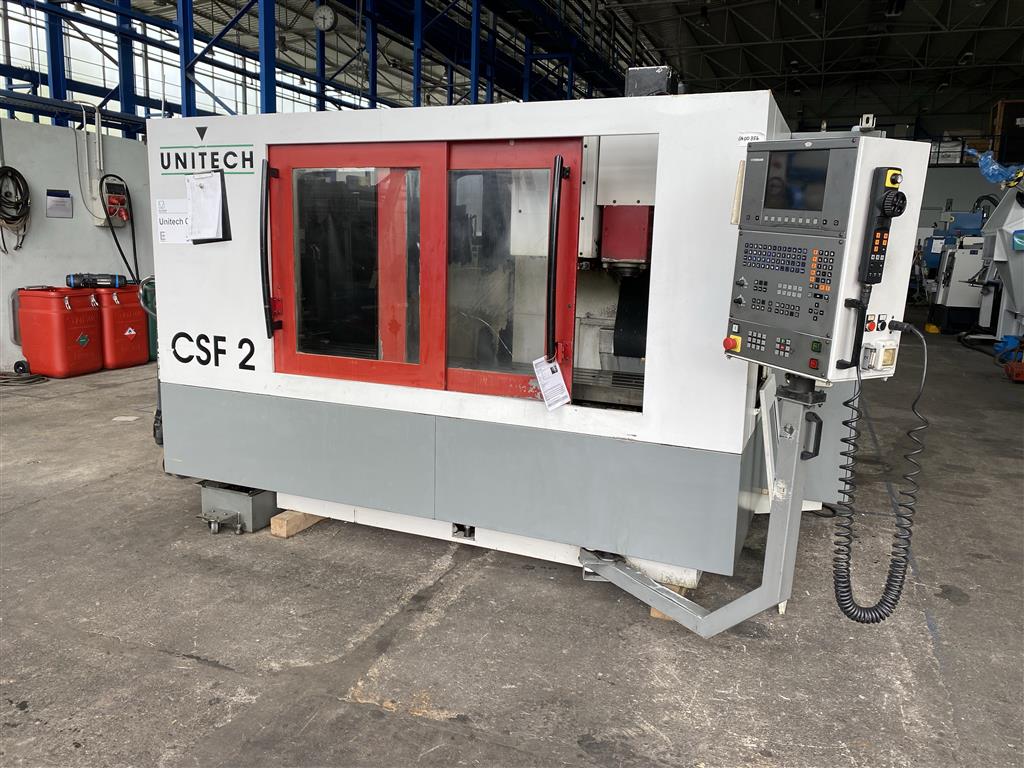

Travelling column milling machine Unitech CSF 2

Offer

stock-no.:

0400354

type of machine:

Travelling column milling machine

make:

Unitech

model:

CSF 2

year of manufacture:

2001

type of control:

CNC

country of origin:

Germany

freight basis:

EXW, free on truck unpacked

storage location:

Leipzig 1

delivery time:

immediately

price:

on request

technical details

x-travel:

1500 mm

y-travel:

300 mm

z-travel:

315 mm

control:

Heidenhain TNC 410N

revolutions per minute spindle::

50 - 8000

feed::

1....15000 steples

rapid traverse:

30 m/min

tool changer with:

20 Plätze

tool taper:

SK 40 DIN 69871 B

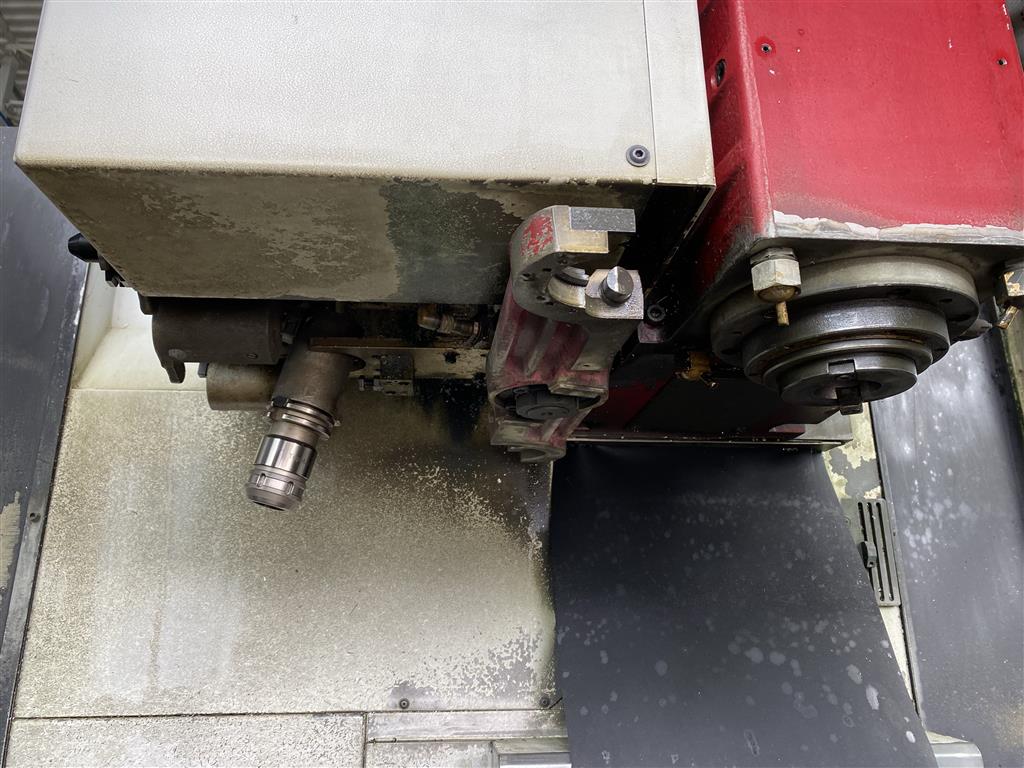

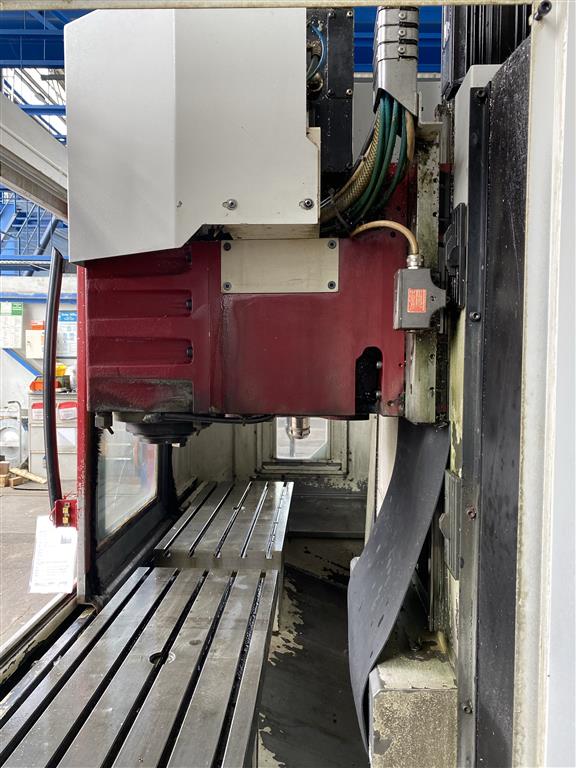

spindle head:

DIN 2079-40-B4 schenkbar re/li 90°

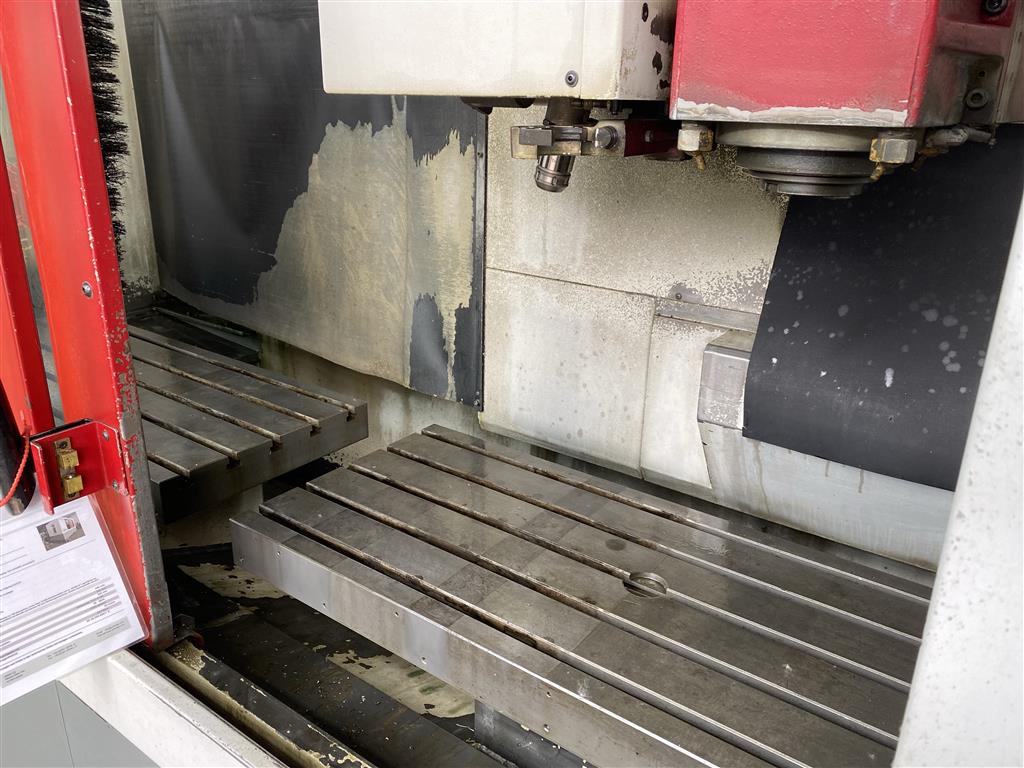

table clamping surface::

2 x 1.000 x 400 mm

Number of working hours:

keine Angaben möglich h

air pressure - required:

6 bar

total power requirement:

25 kW

weight of the machine ca.:

3,5 t

dimension machine approx.LxWxH:

3,2 x 3,25 x 2,3 m

dimensions LxWxH:

Späneförderer: 3,0 x 1,9 x 1,43 m

additional information

Version:

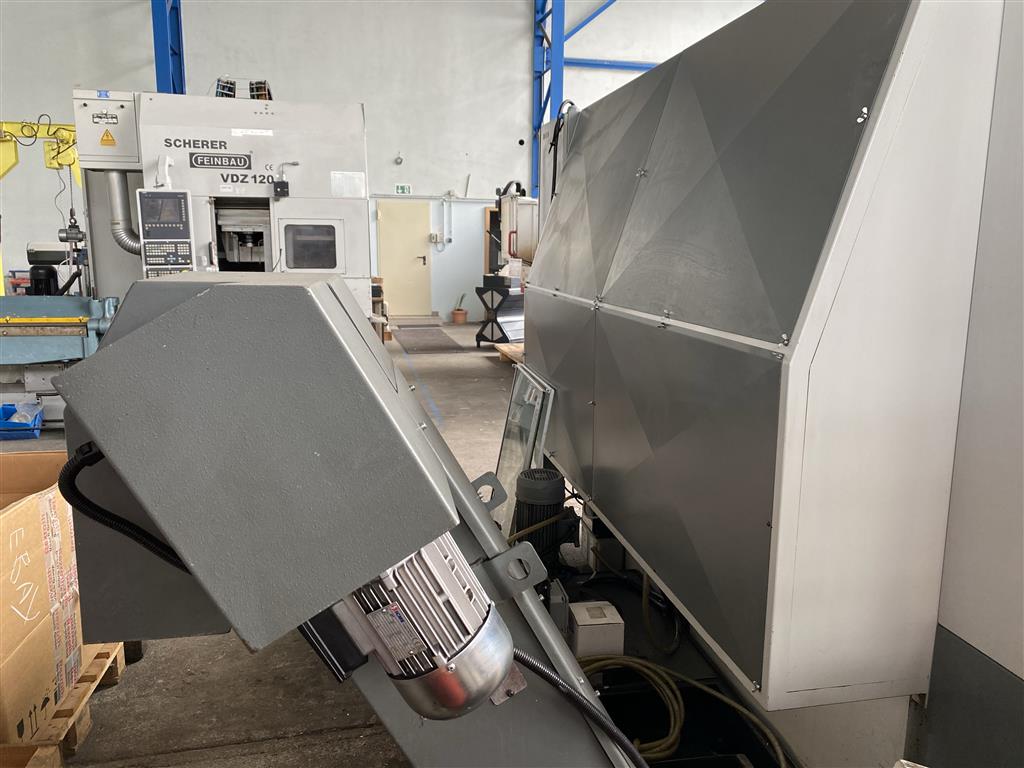

Chip conveyor/scraping belt conveyor make EIKON
Coolant system for 200 litres

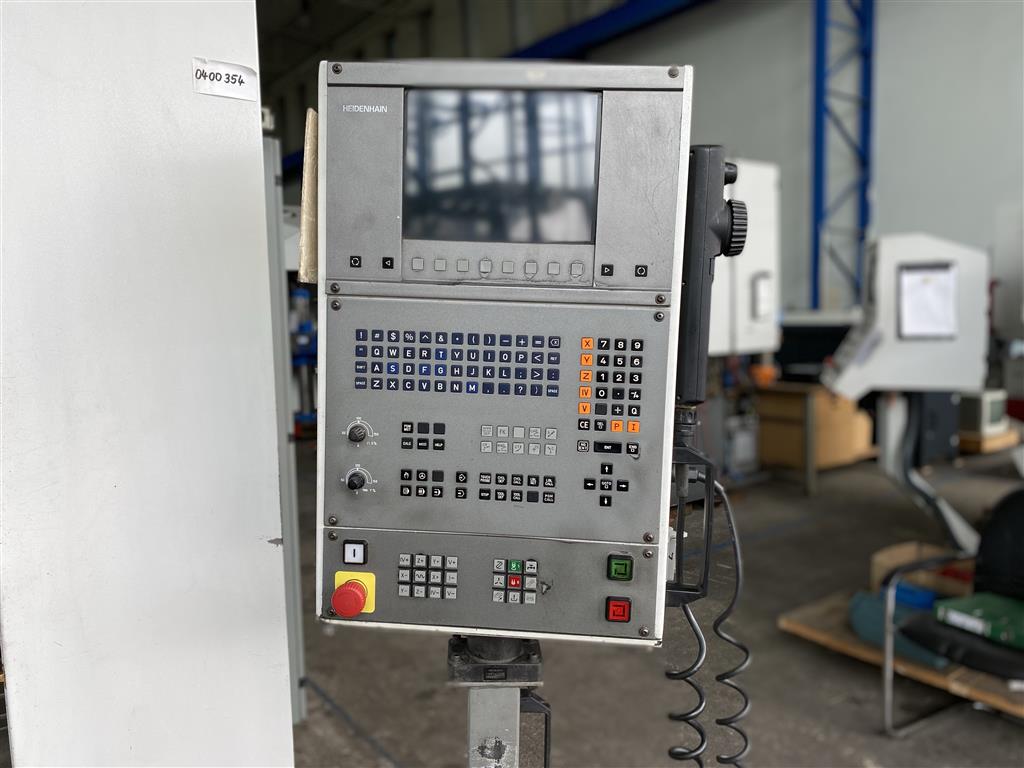

Control panel from Heidenhain with extension arm
Manual control unit
External cooling
Machine feet

Accessories:
Cooling water filter ÖFK5079
Separating wall
i.D.
