Universal Milling MachineUniversal Milling MachineMAHO WERKZEUGMASCHINENBAU PFRO MH 600

Universal Milling Machine MAHO WERKZEUGMASCHINENBAU PFRO MH 600Universal Milling Machine MAHO WERKZEUGMASCHINENBAU PFRO MH 600

Offer

stock-no.:
0400457
type of machine:
Universal Milling Machine
make:
MAHO WERKZEUGMASCHINENBAU PFRO
type:
MH 600
year of manufacture:
ca.1982
type of control:
NC
country of origin:
Germany
freight basis:
EXW, free on truck
storage location:
Leipzig 4
delivery time:
immediately
price:
on request

technical details

x-travel:
500 mm
y-travel:
400 mm
z-travel:
400 mm
clamping surface area:
900x450 mm
range of revolution per miute:
0 - 2000 U/min
quill stroke:
80 mm
feed range:
12,5 - 500 mm/min
tool taper:
SK 40
total power requirement:
6,5 kW
weight of the machine ca.:
1,8 t
dimension machine approx.LxWxH:
1,8x1,7x1,9 m
transport dimensions LxWxH:
2,0x1,8x1,9 m

additional information

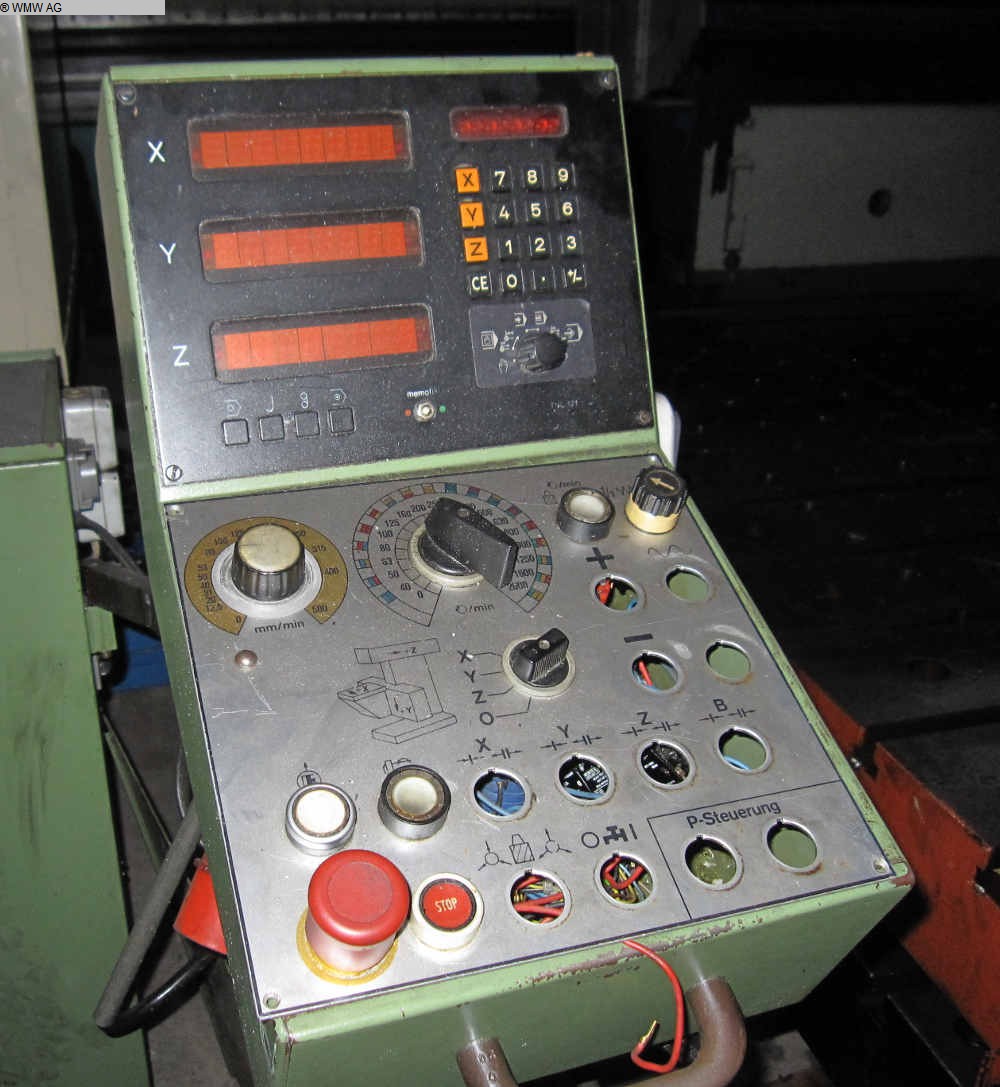

DRO control Heidenhain with digital display
travel adjustment manual:
longitudinal x-axis 600mm
transversal y.axis 450mm
vertical z-axis 450mm
technical error
sale as is! in need of repair
