MIKROMAT GITU16/IV
Thread-Cutting Machine | Stock number: 0500015
Unfortunately, the machine has already been sold.
Machine data
- Machine type
- Thread-Cutting Machine
- Manufacturer
- MIKROMAT
- Type
- GITU16/IV
- Year of manufacture
- 1968
- Control type
- conventional
- Country of origin
- Germany
Technical data
- thread dia.
- 16 M
- thread depth max.
- 48 im Durchgang /in the passage / passaje mm
- threading depth
- 63 in Sackloch / blind hole / furo cego mm
- table surface area
- 355x450 mm
- spindle adjustment vertical
- 500
- rapid traverse
- 710 U/min
- spindle throat
- 280 mm
- revolution per minute
- 90...710 U/min
- connection electric
- 380/50 V/Hz
- total power requirement
- 1,7 kW
- weight of the machine ca.
- 700 kg
- space requirement approx.:
- 0,9x0,7x2,35 m
Additional description

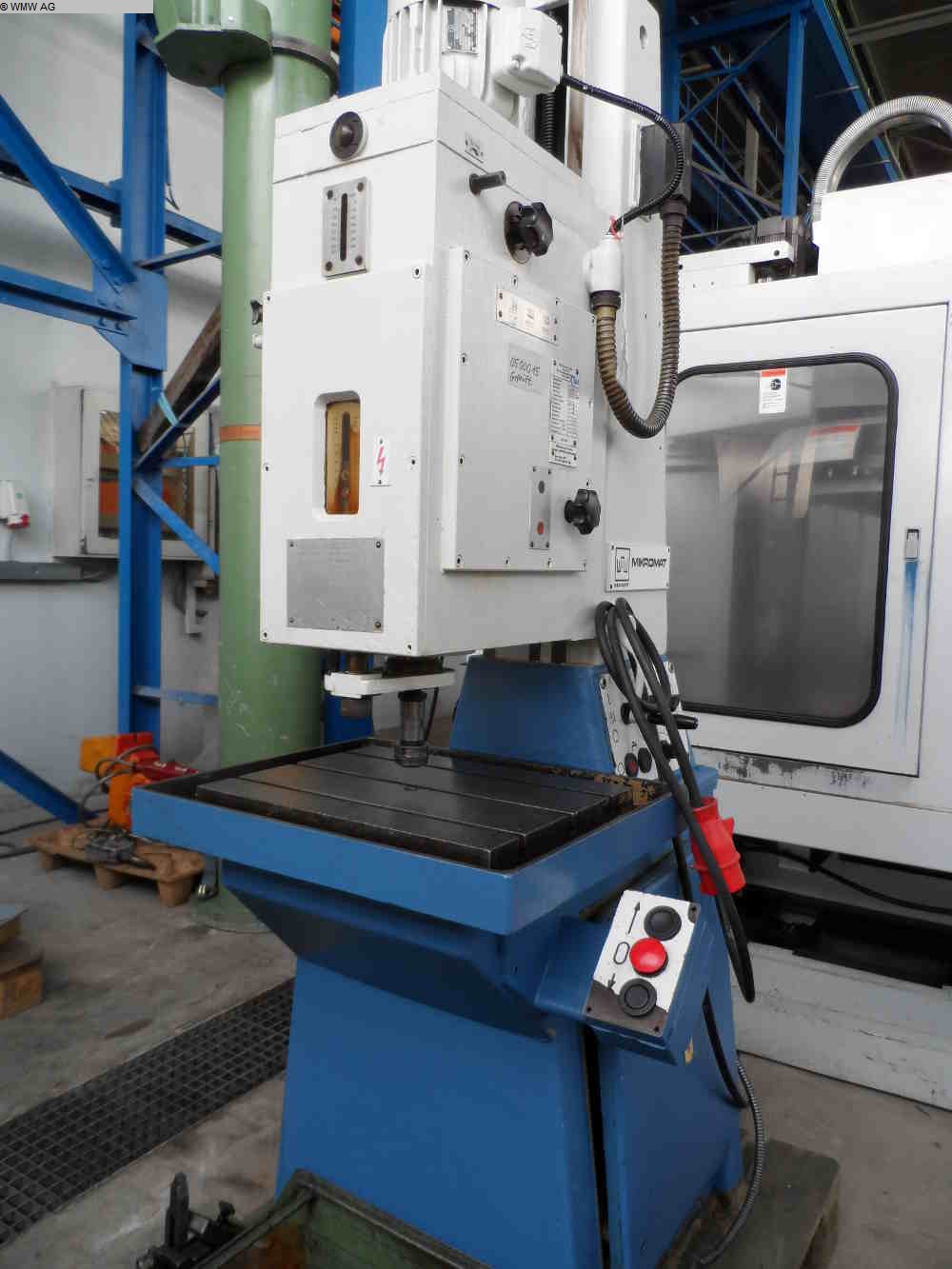

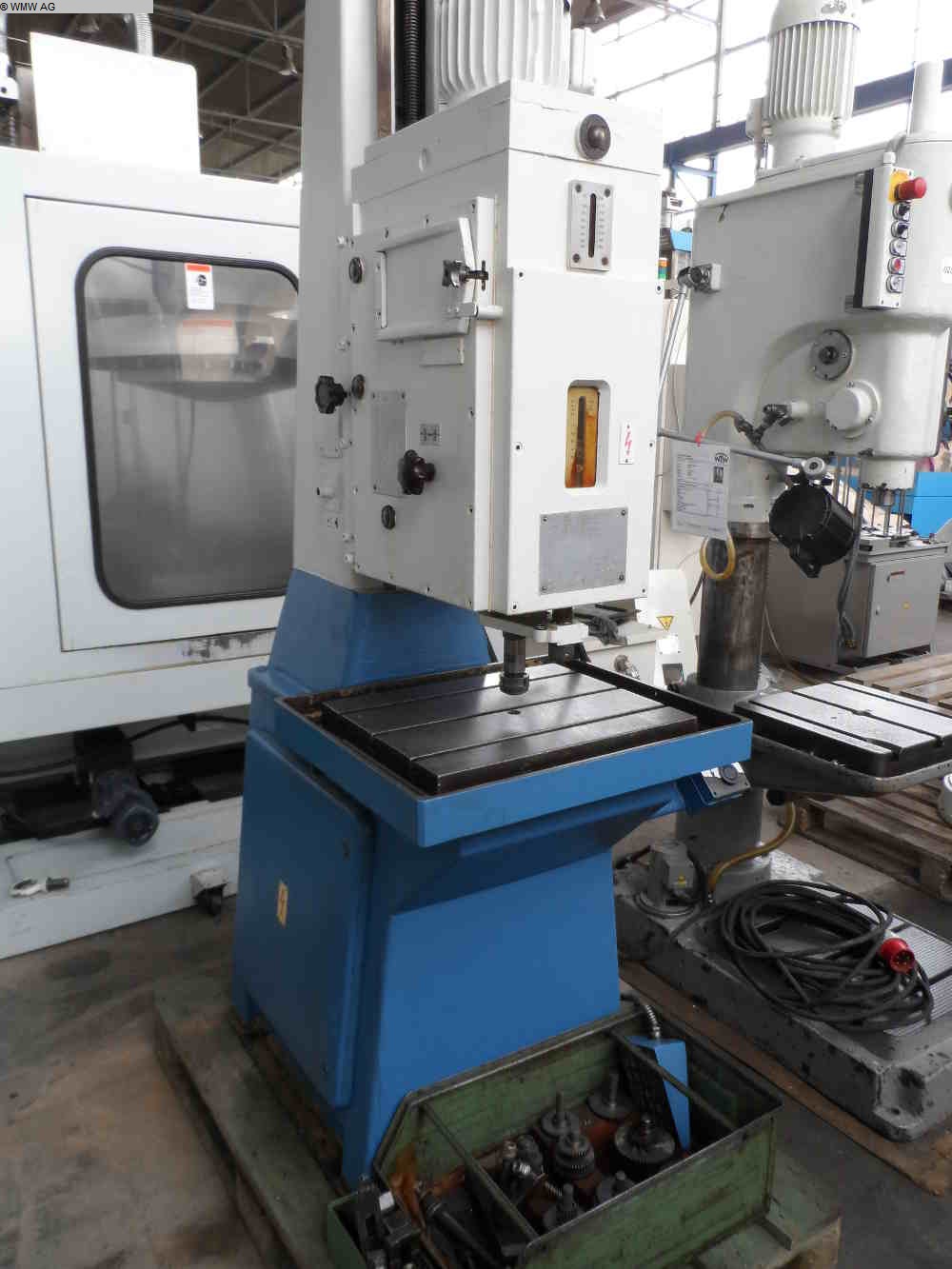

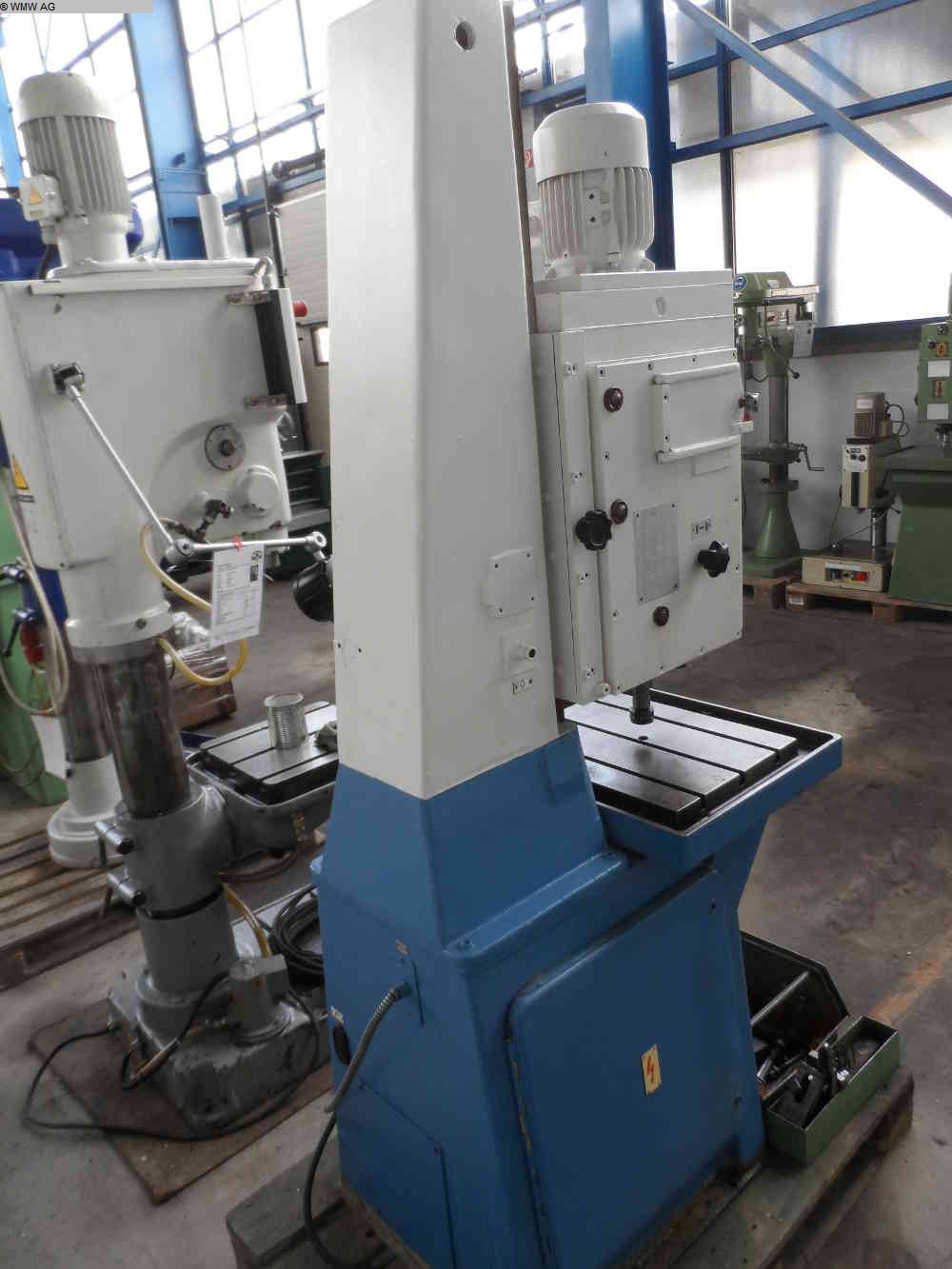

Vertical Internal Thread Cutting Machine
- table type machine with box stand

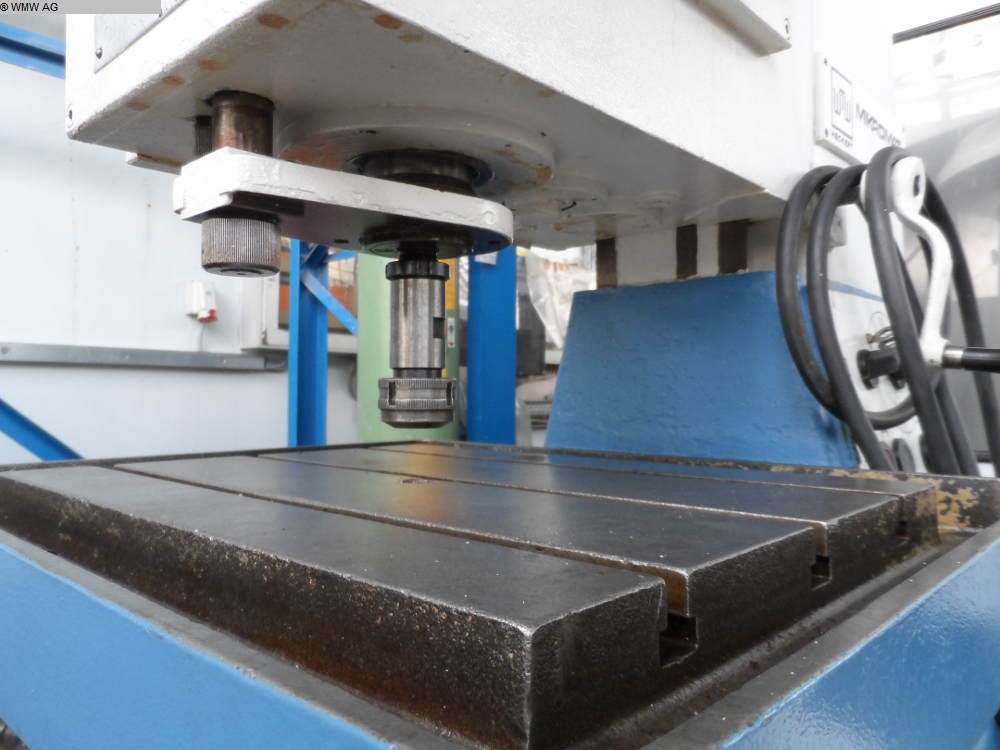

- tool clamping via clamping chuck with tool cartridges
technical details:
- type of thread: metric and inch thread
- usable tools: grinded incision - thread cut drills made of HSS
- rapid traverse forward / backwards
- coolant pump electric pre-equipped
accessories:
- foot switch
- div. change gear wheels for Slope 0.5; 0.75; 1.0; 1.25; 1.5; 1.75; 2.0; 2.5; 3.0; 3.5 mm (M6 up to M30)
Machine can be demonstrated under power.
Terms of storage and delivery
- Freight base
- EXW, free on truck
- Storage location
- Leipzig 1
- Delivery time
- immediately
- Price
Subject to changes and errors in technical details and specifications, as well as prior sale.
